Control Assembly: Removal

  1. Remove the center instrument panel register. For additional information, refer to AIR DISTRIBUTION & FILTERING .
  2. Remove the screws.

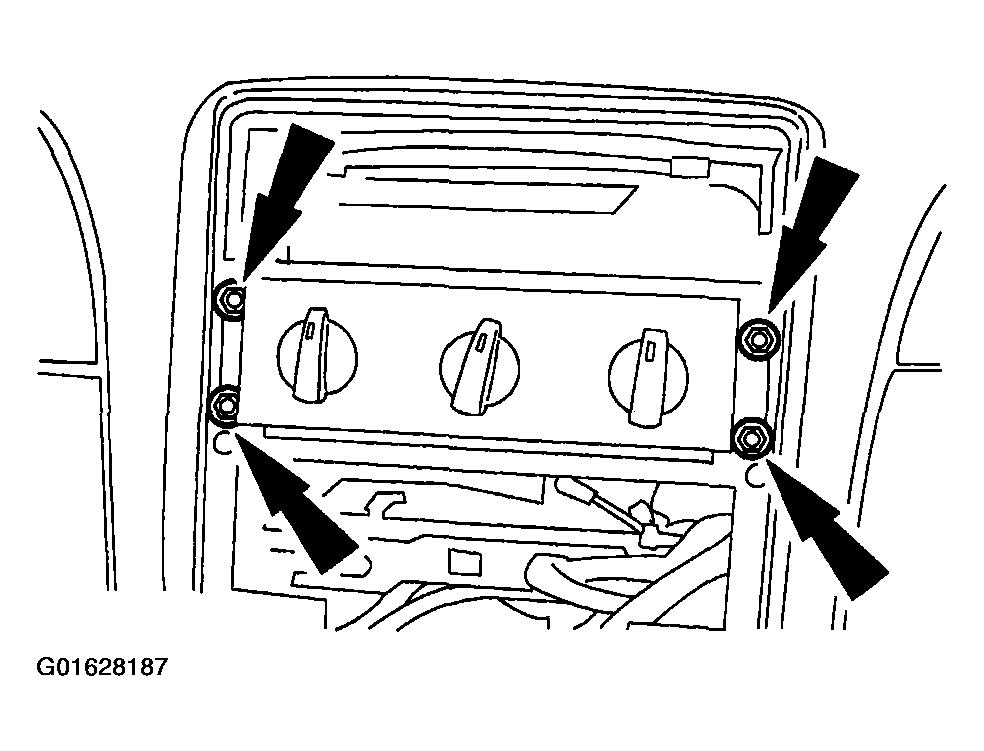

    Fig 1: Removing Center Instrument Panel Register Screws
    G01628187Courtesy of FORD MOTOR CO.
  3. Disconnect the connectors.

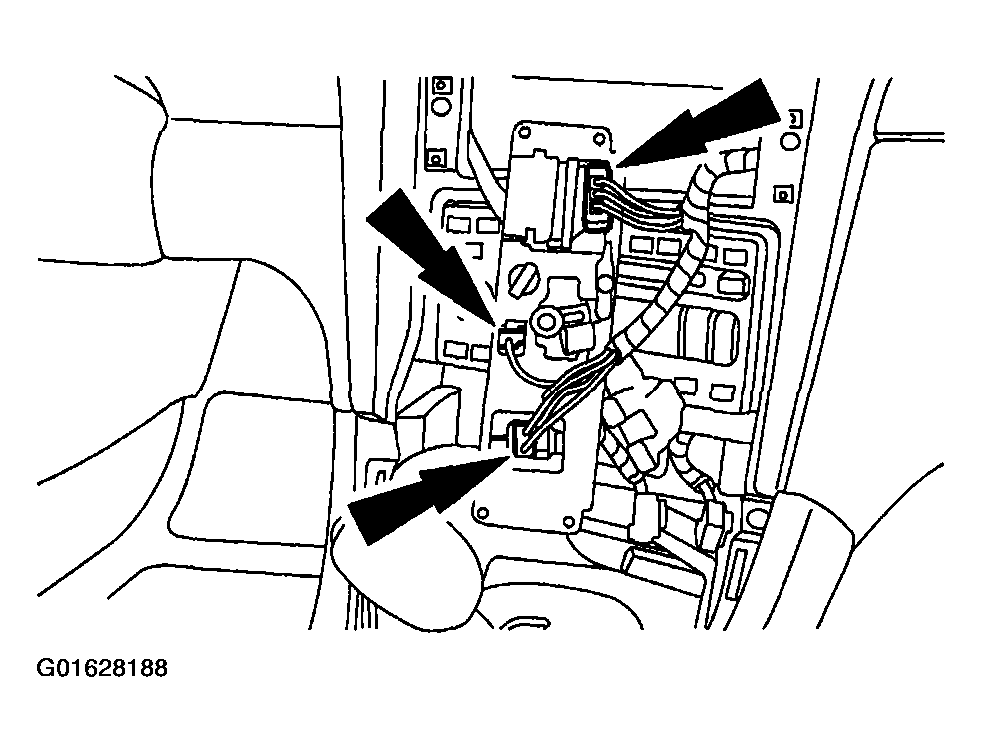

    Fig 2: Disconnecting Electrical Connectors
    G01628188Courtesy of FORD MOTOR CO.
  4. Using the special tool, disconnect the temperature control cable from the control head.
    Fig 3: Disconnecting Temperature Control Cable From Control Head
    G01628189Courtesy of FORD MOTOR CO.
  5. Remove the nuts and disconnect the vacuum connector.

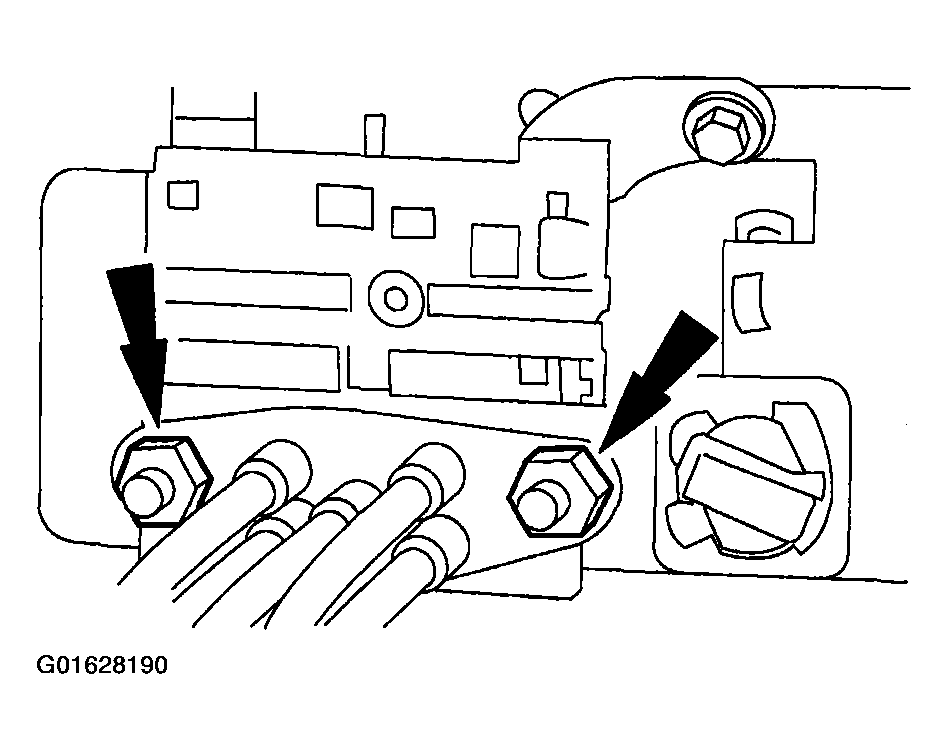

    Fig 4: Removing Nuts And Disconnecting Vacuum Connector
    G01628190Courtesy of FORD MOTOR CO.
