Torque Specifications

Specifications

Flywheel/Flex Plate Torque
3.8L (6 Bolt Flywheel) 59 lbs ft.
4.6L
2V SOHC (6 Bolt Flywheel) 59 lbs ft.

4.6L
(4V DOHC)
Cobra (8 Bolt Flywheel) 63 lbs ft.
Mach I (6 Bolt Flexplate) 59 lbs ft.
Mach I (8 Bolt Flywheel) 63 lbs ft.

6 Bolt Pattern
12 0'clock position (clockwise) 1-3-5-2-4-6

8 Bolt Pattern
10 0'clock position (clockwise) 1-5-7-4-2-6-8-3

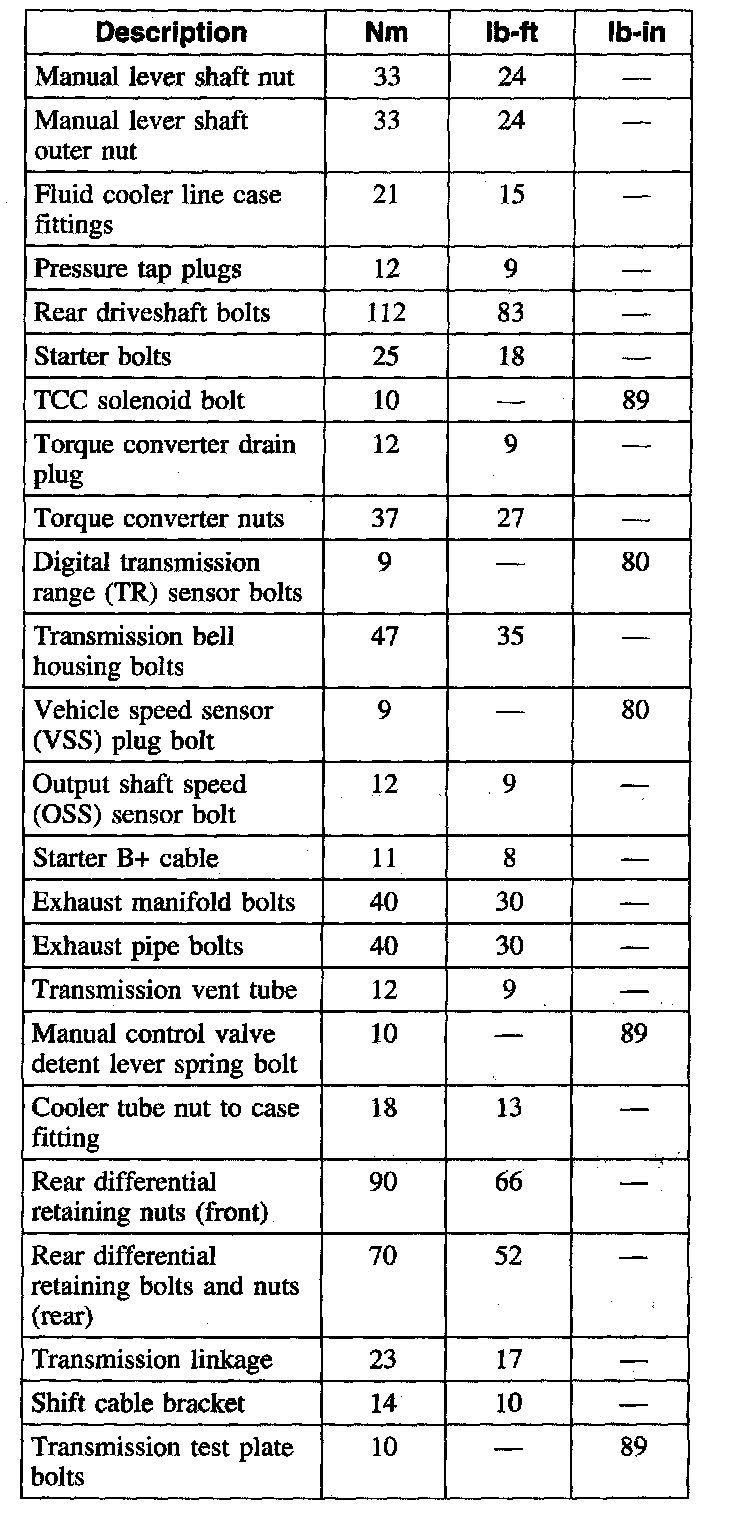

Torque Specifications





Fluid Pan
