Symptom Chart

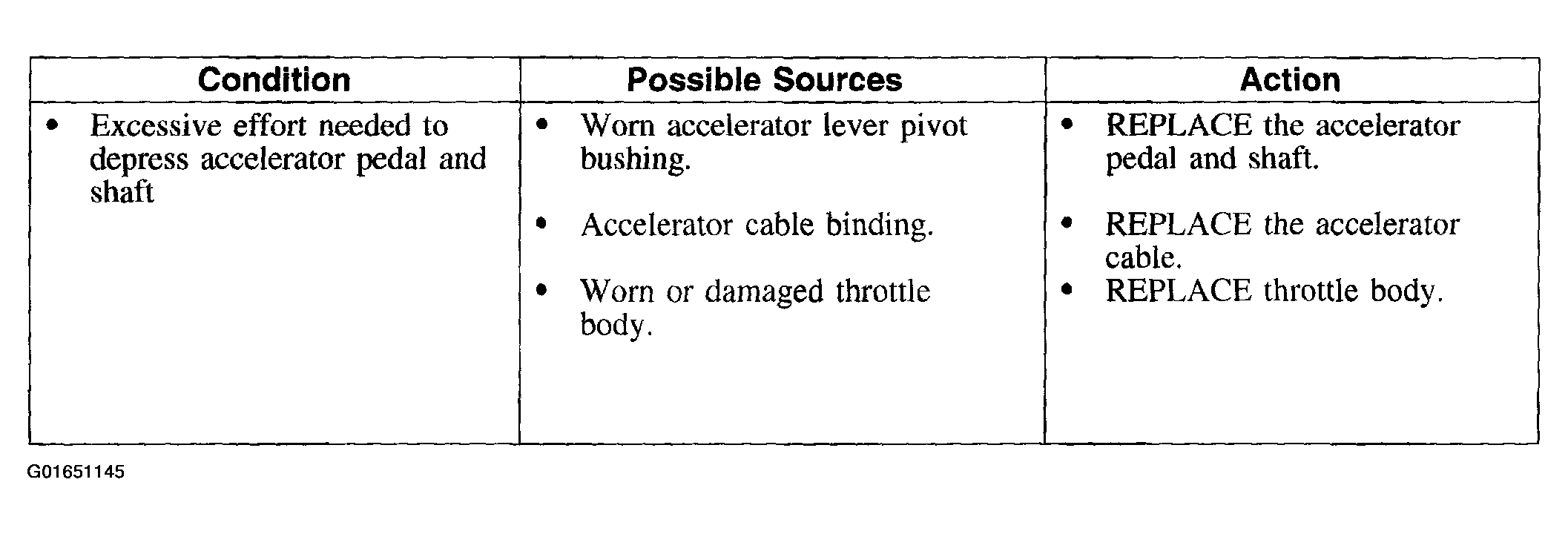

Fig 1: Acceleration Control Symptom Chart (1 Of 2)
G01651145Courtesy of FORD MOTOR CO.

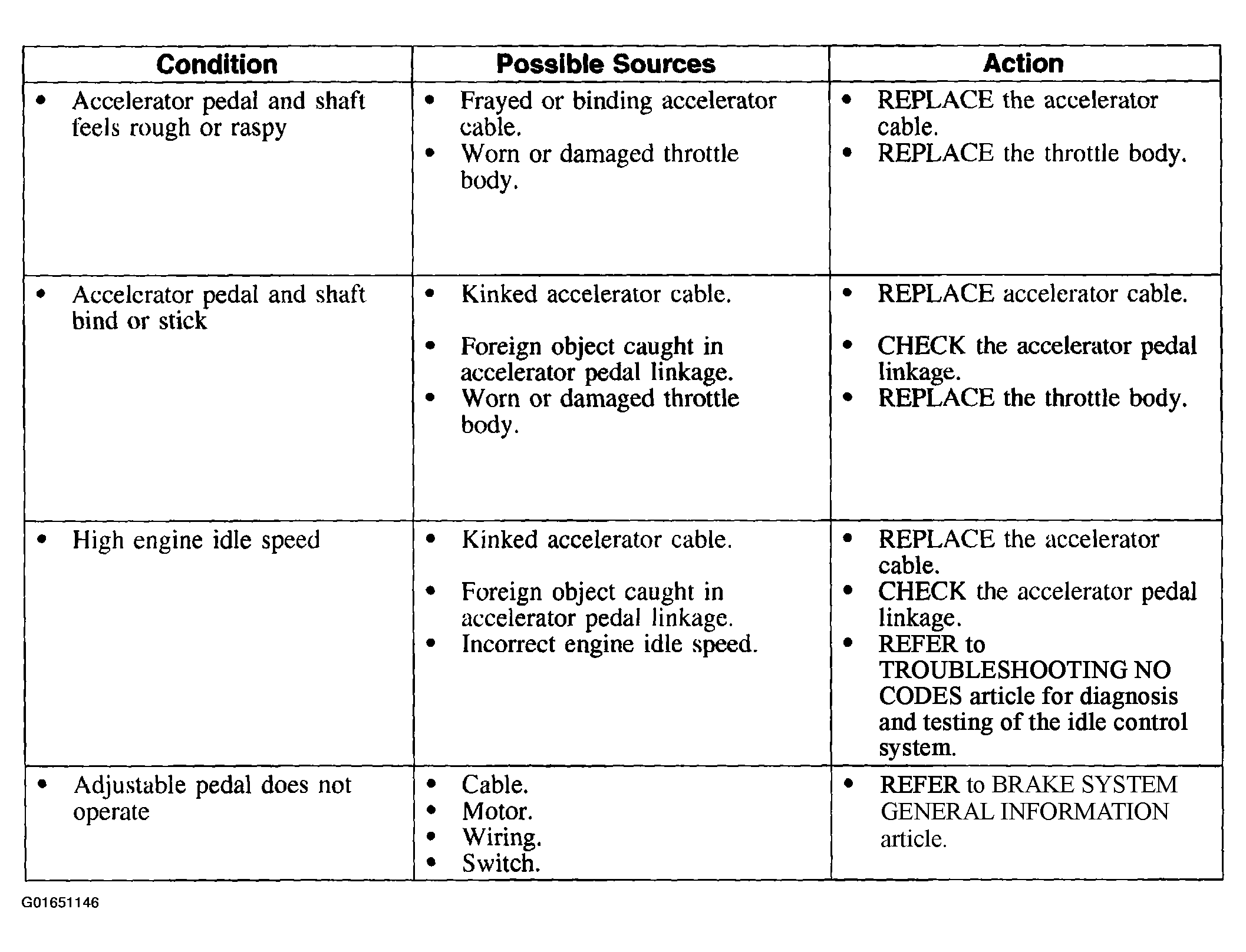

Fig 2: Acceleration Control Symptom Chart (2 Of 2)
G01651146Courtesy of FORD MOTOR CO.
