Vehicle Security Module (VSM)
PINPOINT TEST B: NO COMMUNICATION WITH THE CENTRAL SECURITY MODULE

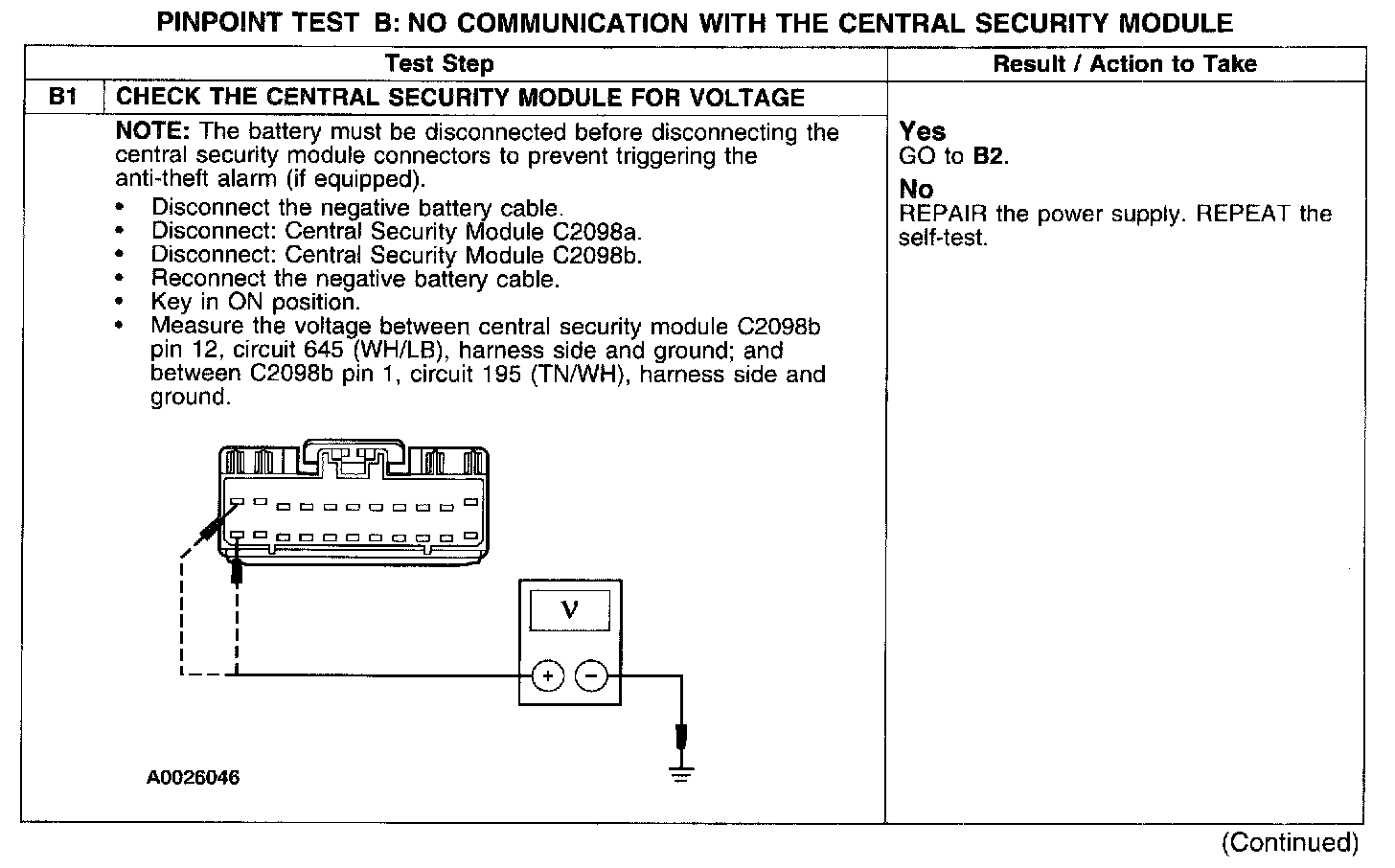

Test B1:

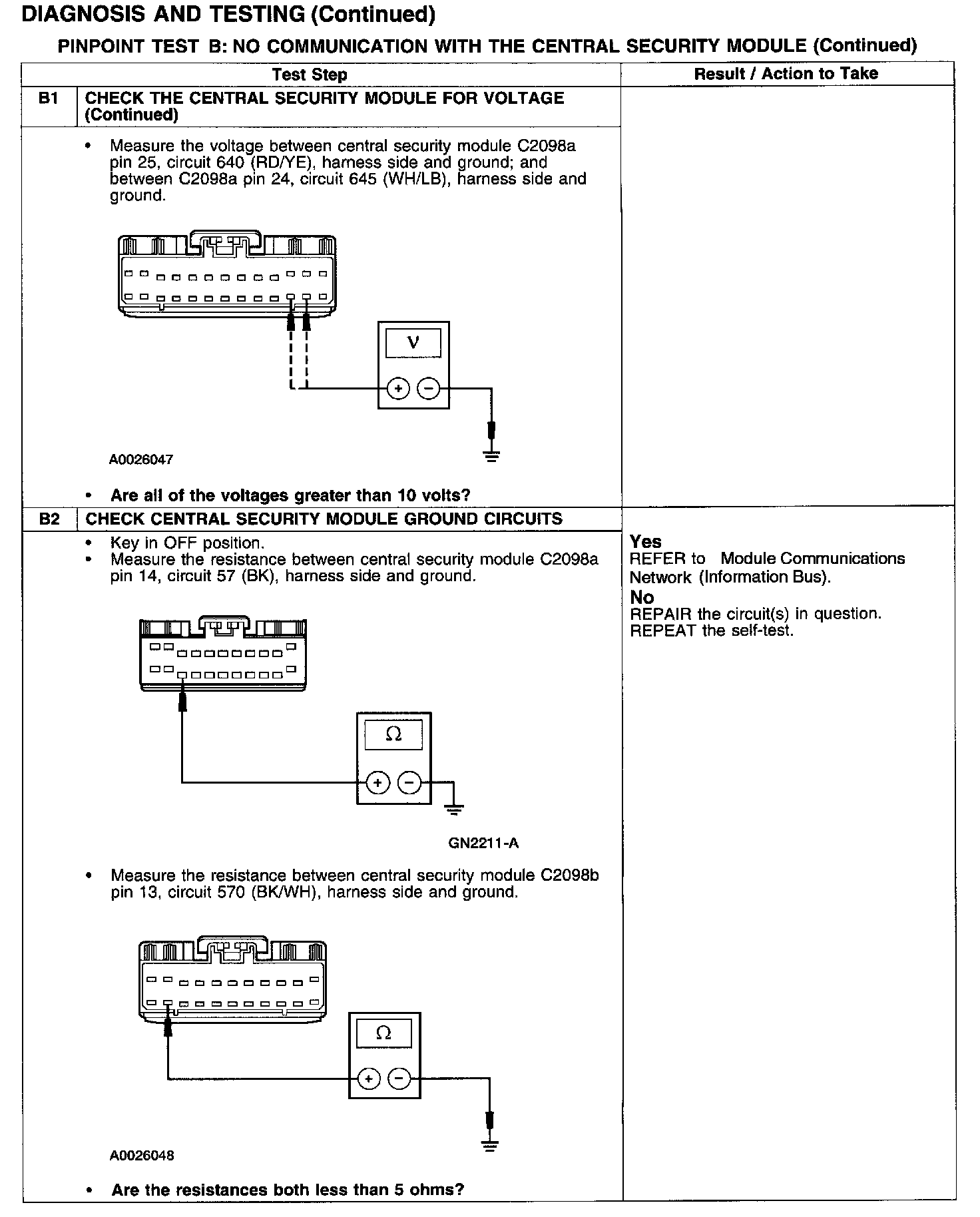

Test B1-B2:
