Home >> Ford >> 2003 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-30

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

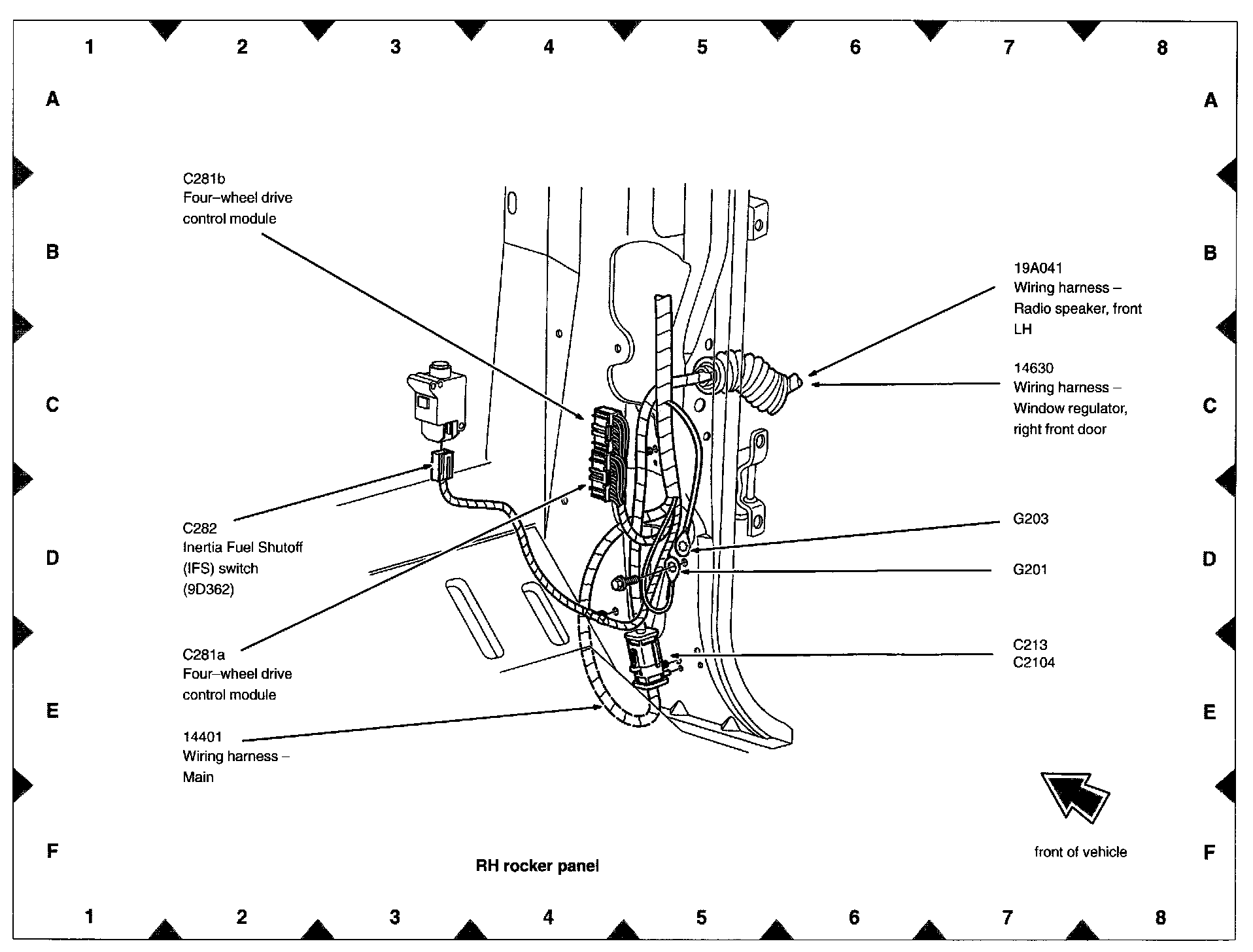

View 151-30

View 151-30:
