Seat adjust switch

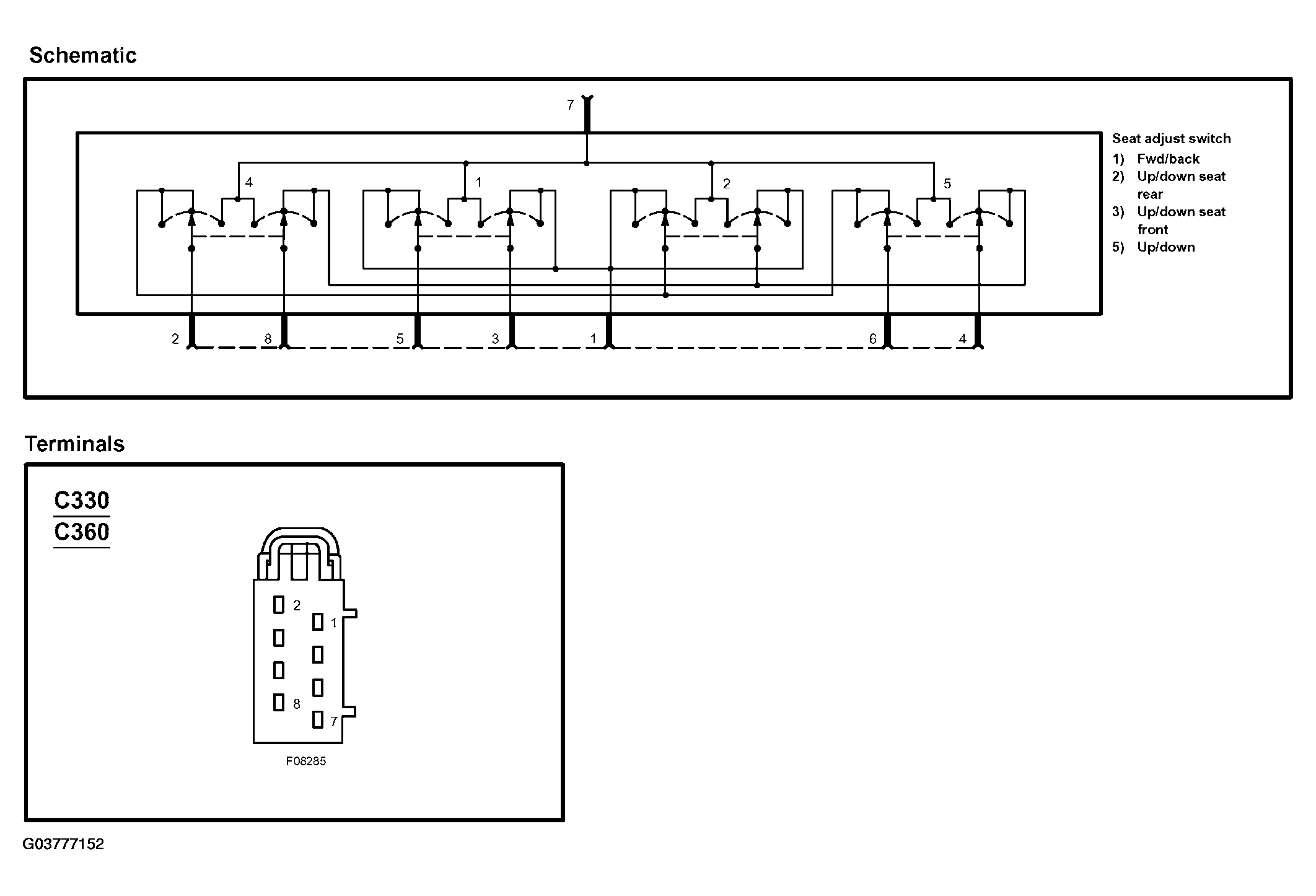

Fig 1: Testing Seat Adjust Switch (1 Of 2)
G03777152Courtesy of FORD MOTOR CO.

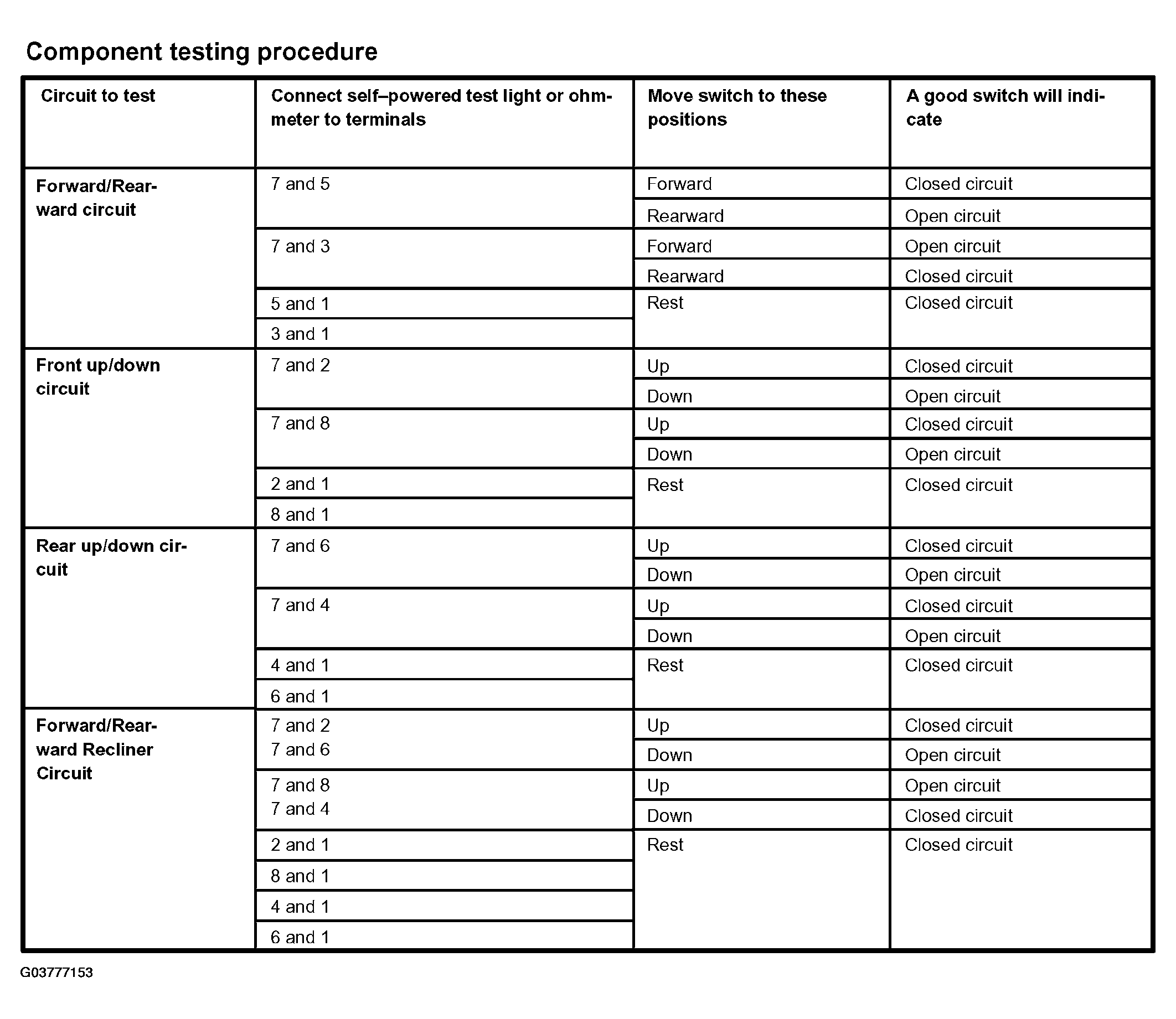

Fig 2: Testing Seat Adjust Switch (2 Of 2)
G03777153Courtesy of FORD MOTOR CO.
