Symptom Chart

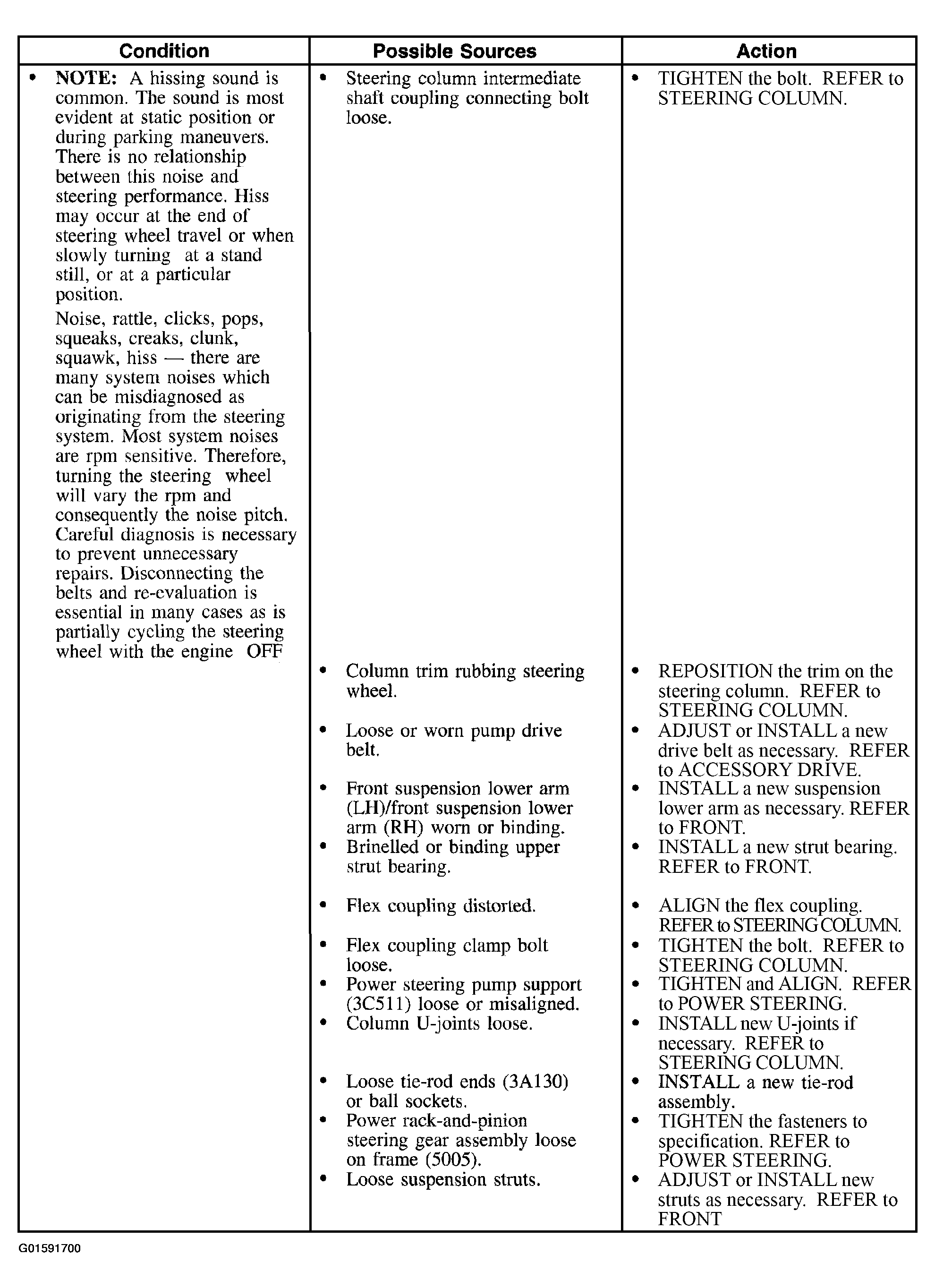

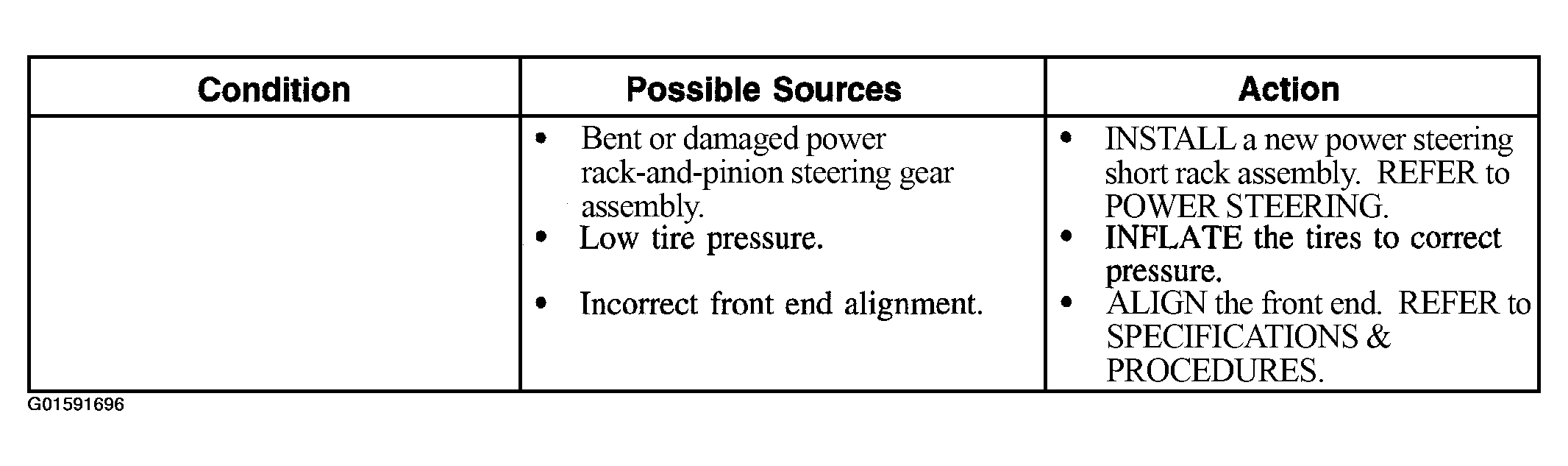

Fig 1: Steering System Problem Symptoms Chart (1 Of 12)
Courtesy of FORD MOTOR CO.

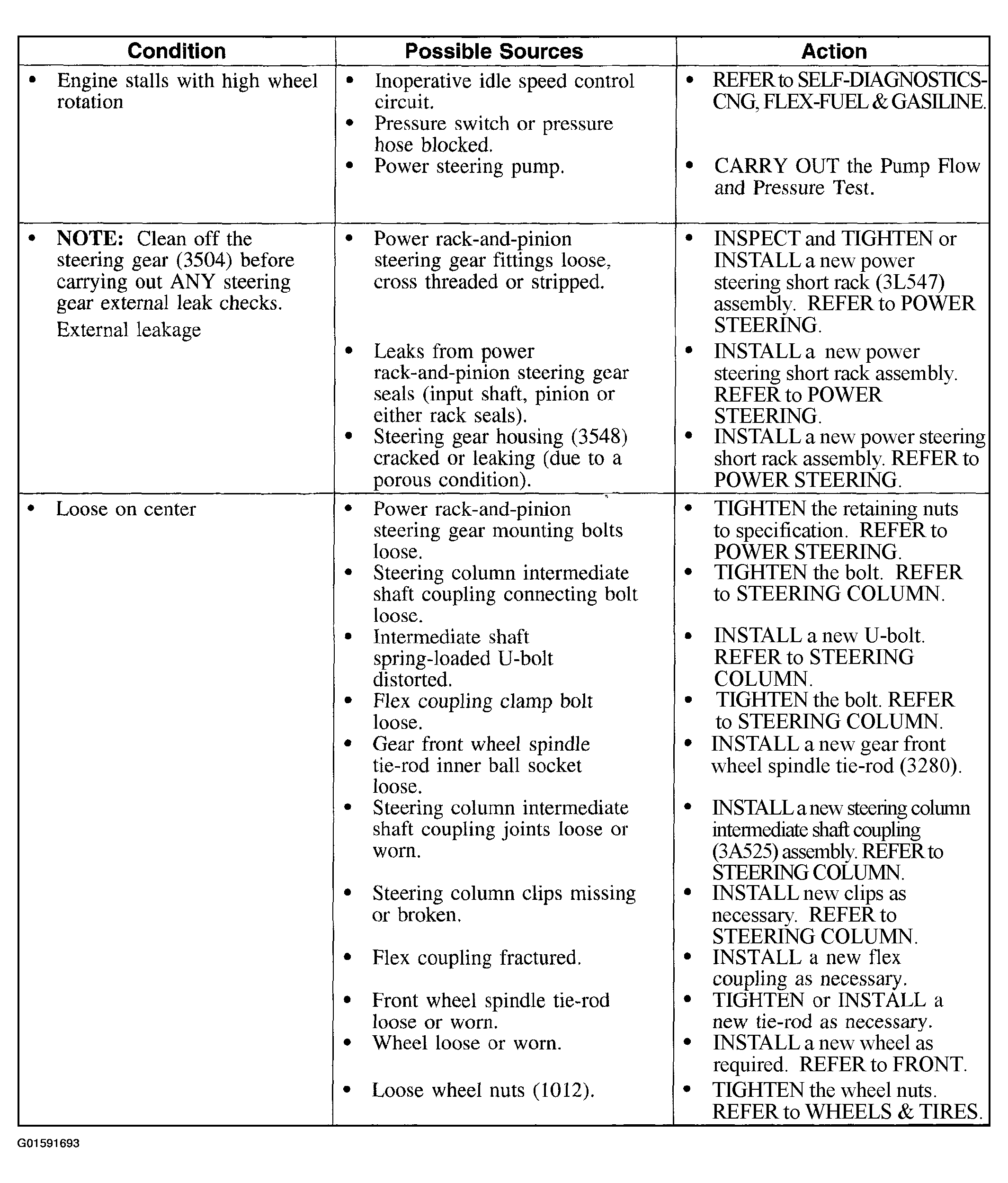

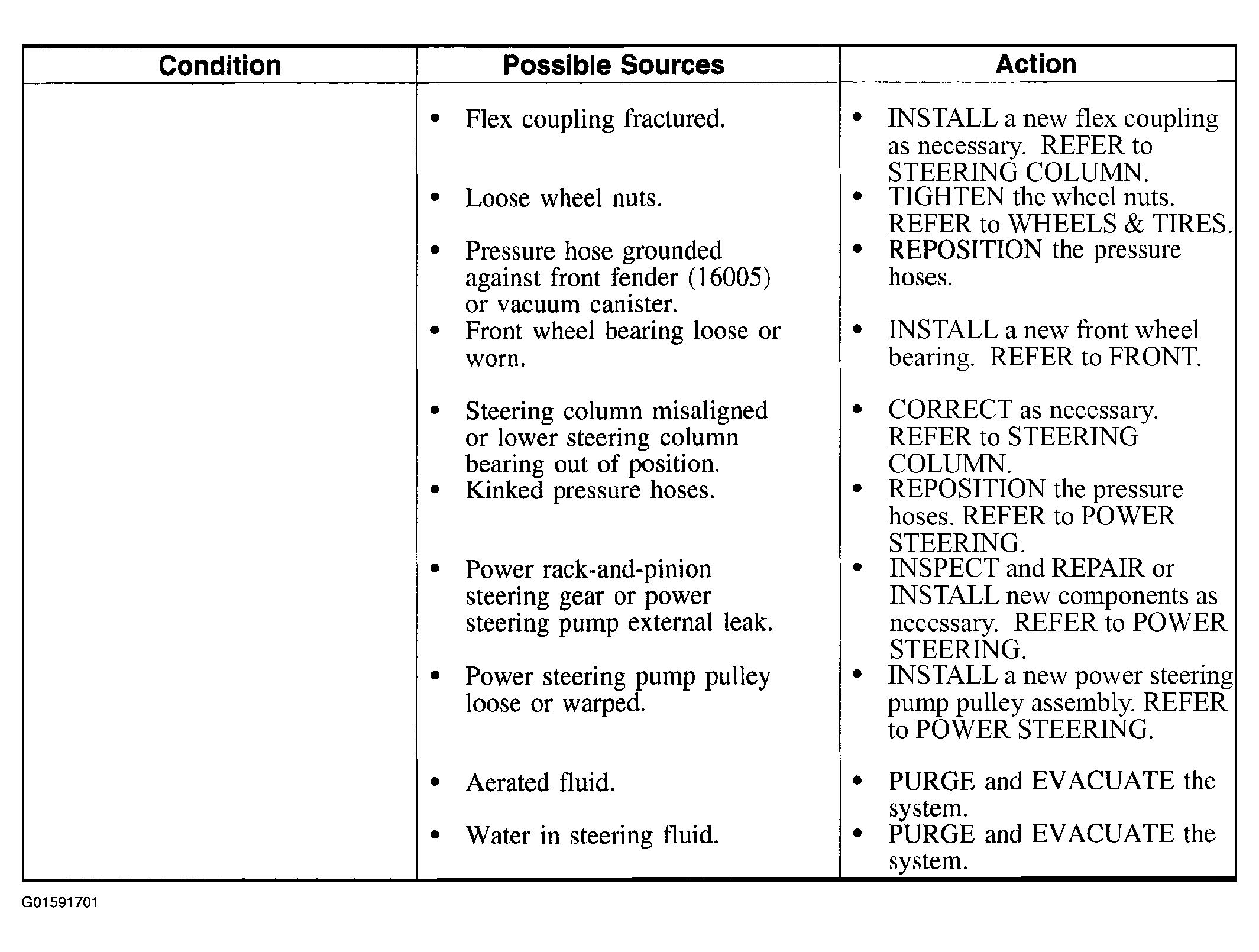

Fig 2: Steering System Problem Symptoms Chart (2 Of 12)
Courtesy of FORD MOTOR CO.

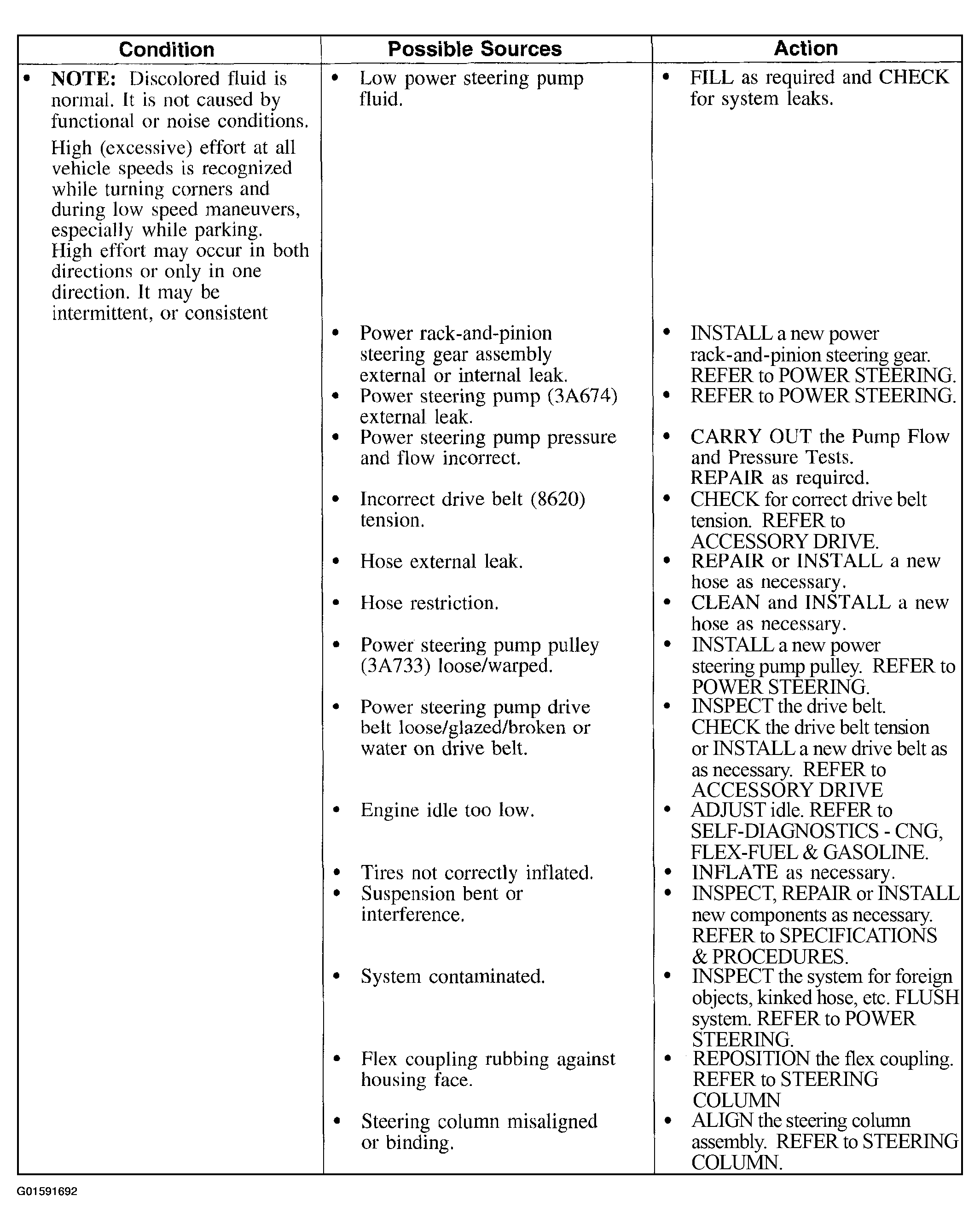

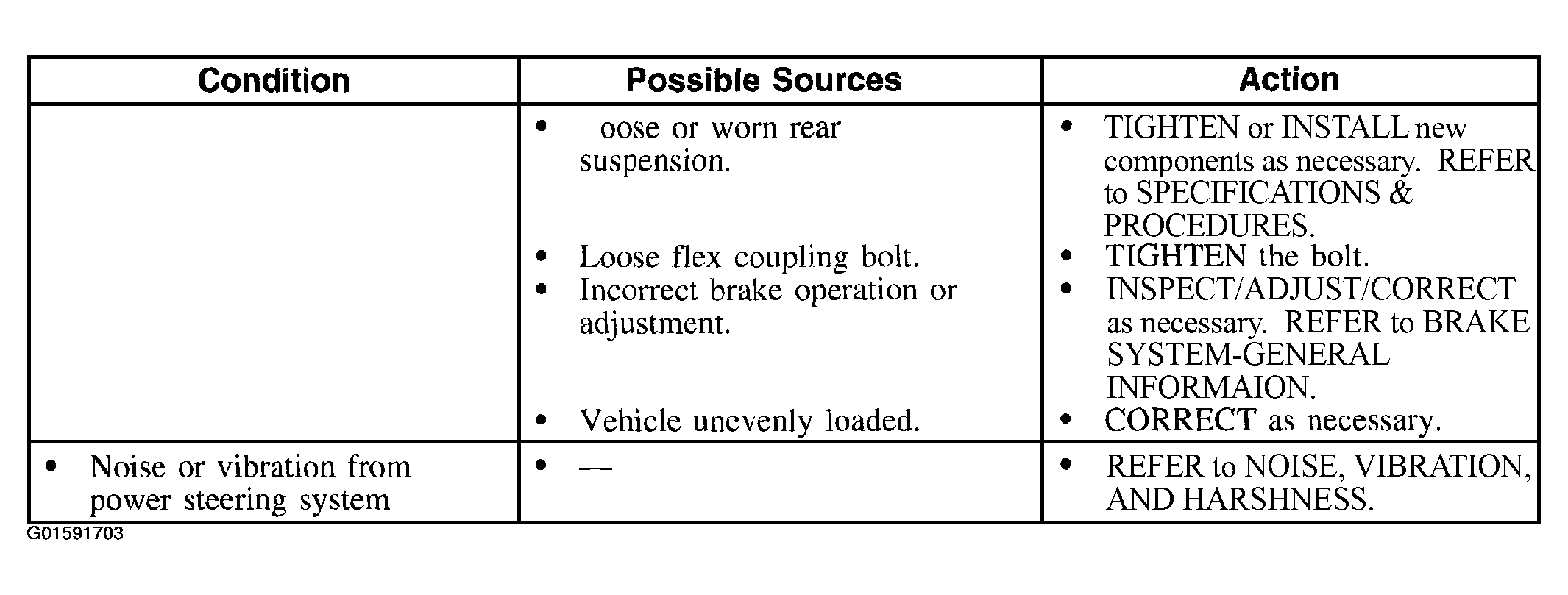

Fig 3: Steering System Problem Symptoms Chart (3 Of 12)
Courtesy of FORD MOTOR CO.

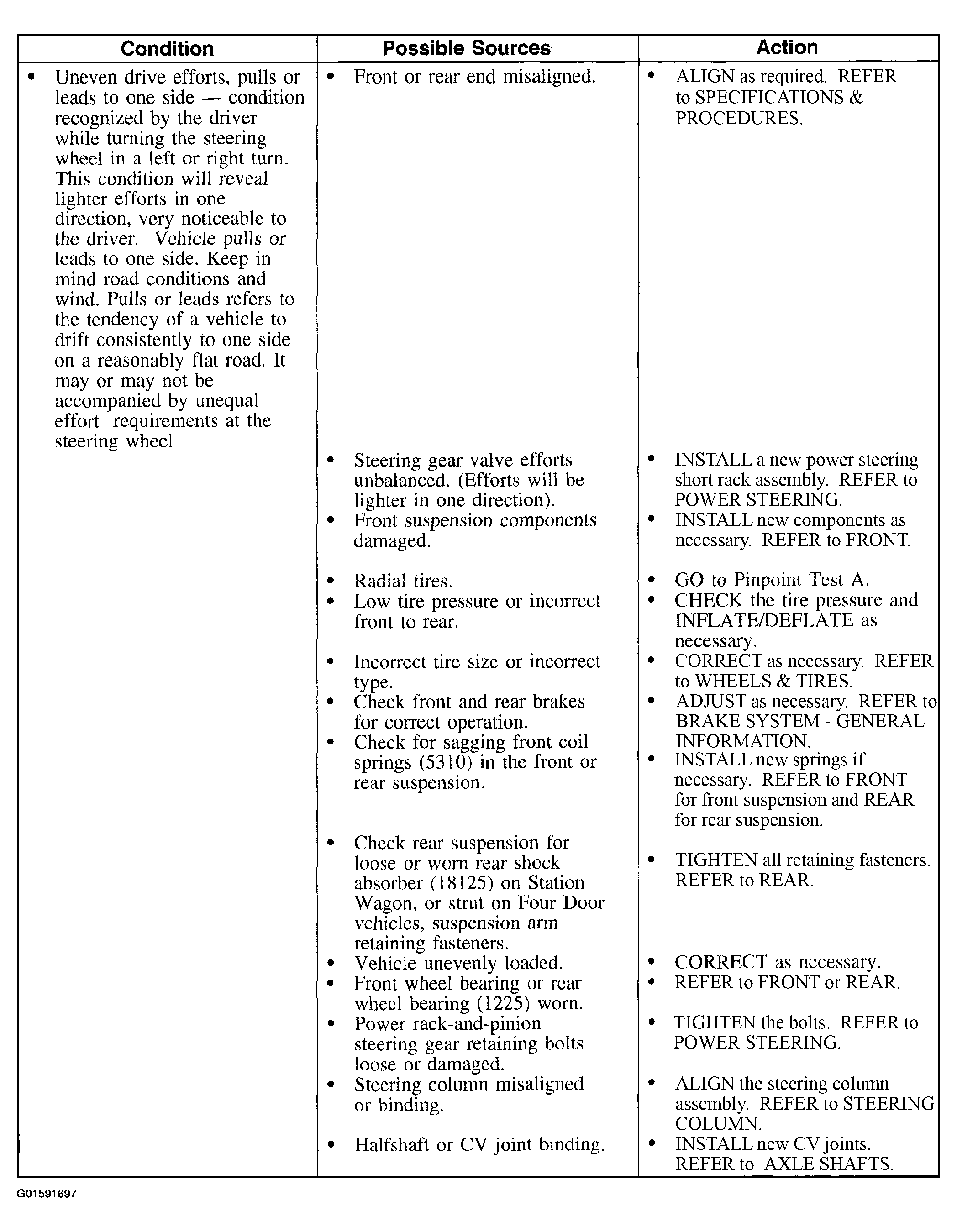

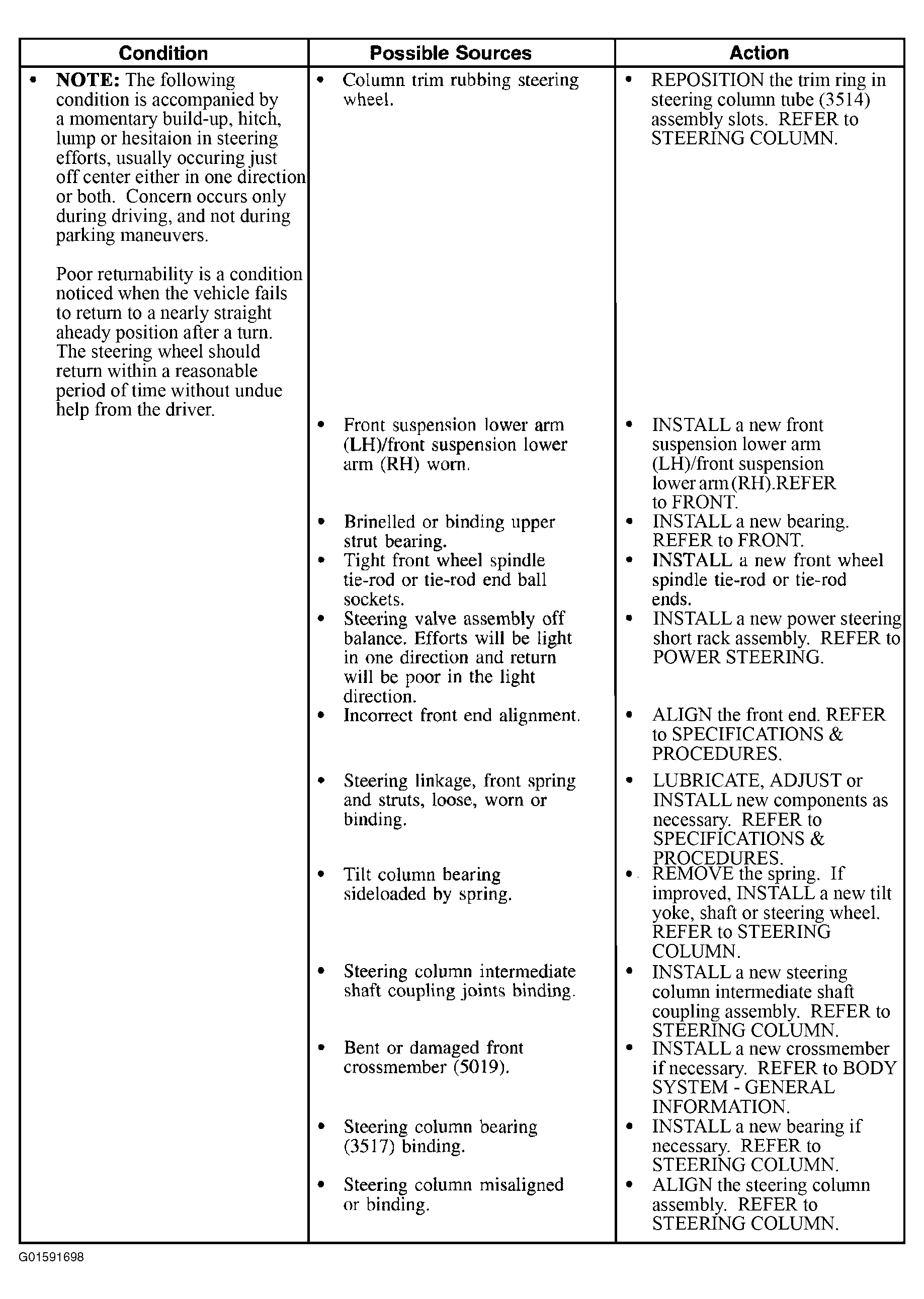

Fig 4: Steering System Problem Symptoms Chart (4 Of 12)
Courtesy of FORD MOTOR CO.

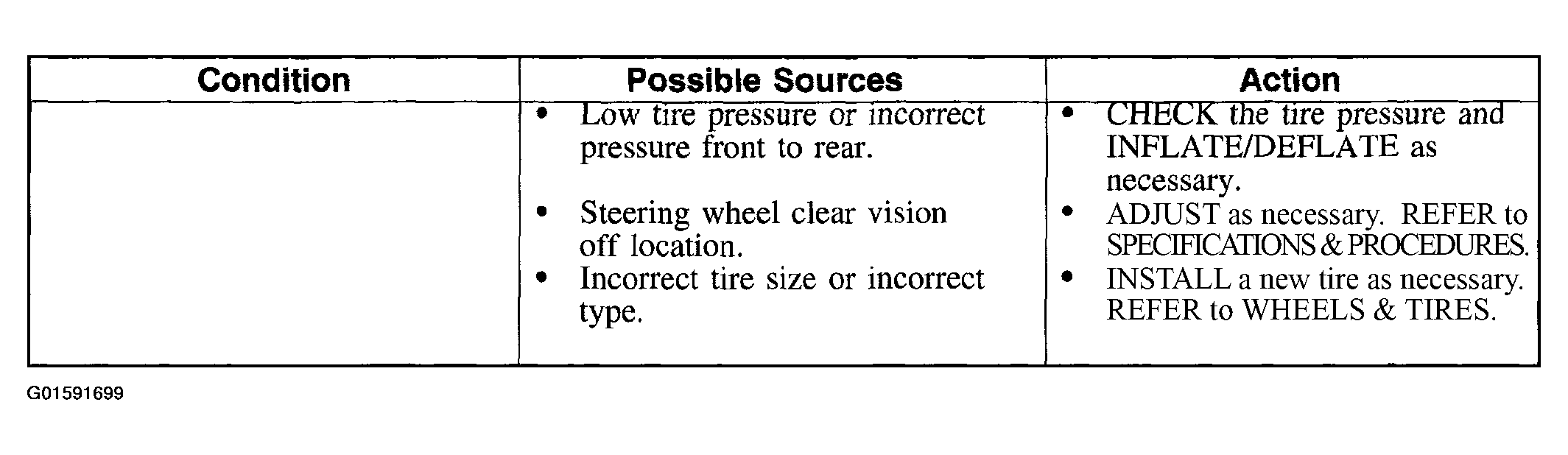

Fig 5: Steering System Problem Symptoms Chart (5 Of 12)
Courtesy of FORD MOTOR CO.

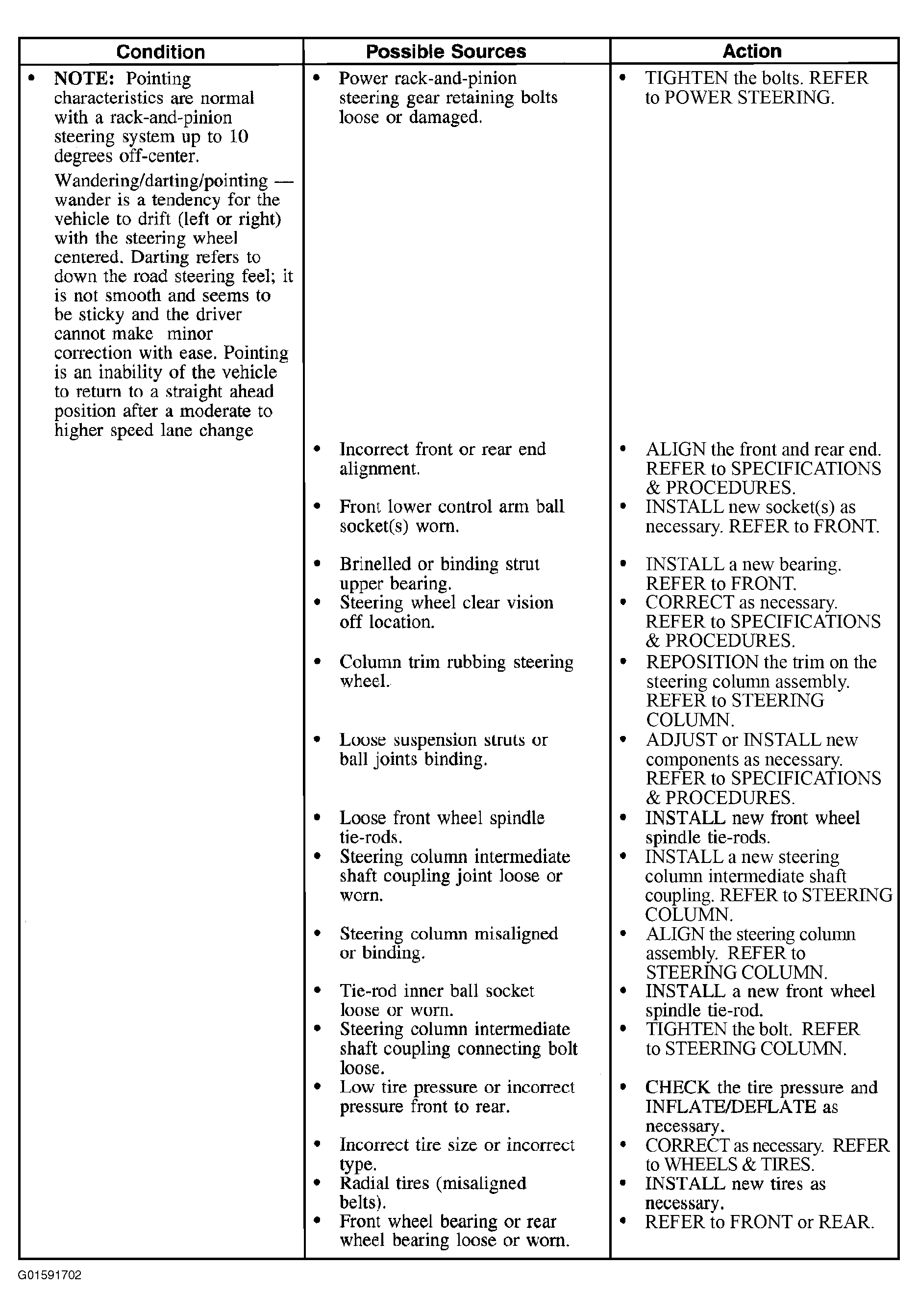

Fig 6: Steering System Problem Symptoms Chart (6 Of 12)
Courtesy of FORD MOTOR CO.

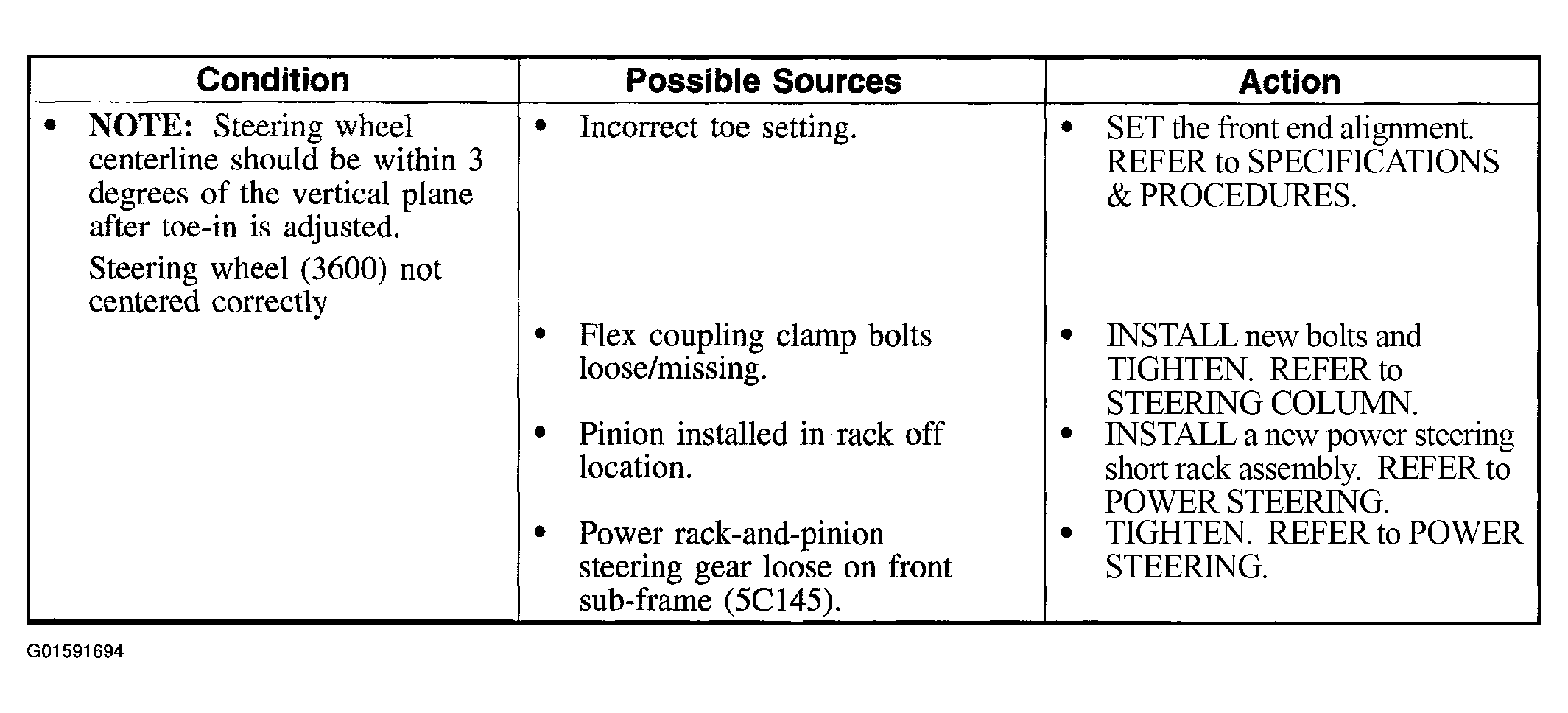

Fig 7: Steering System Problem Symptoms Chart (7 Of 12)
Courtesy of FORD MOTOR CO.

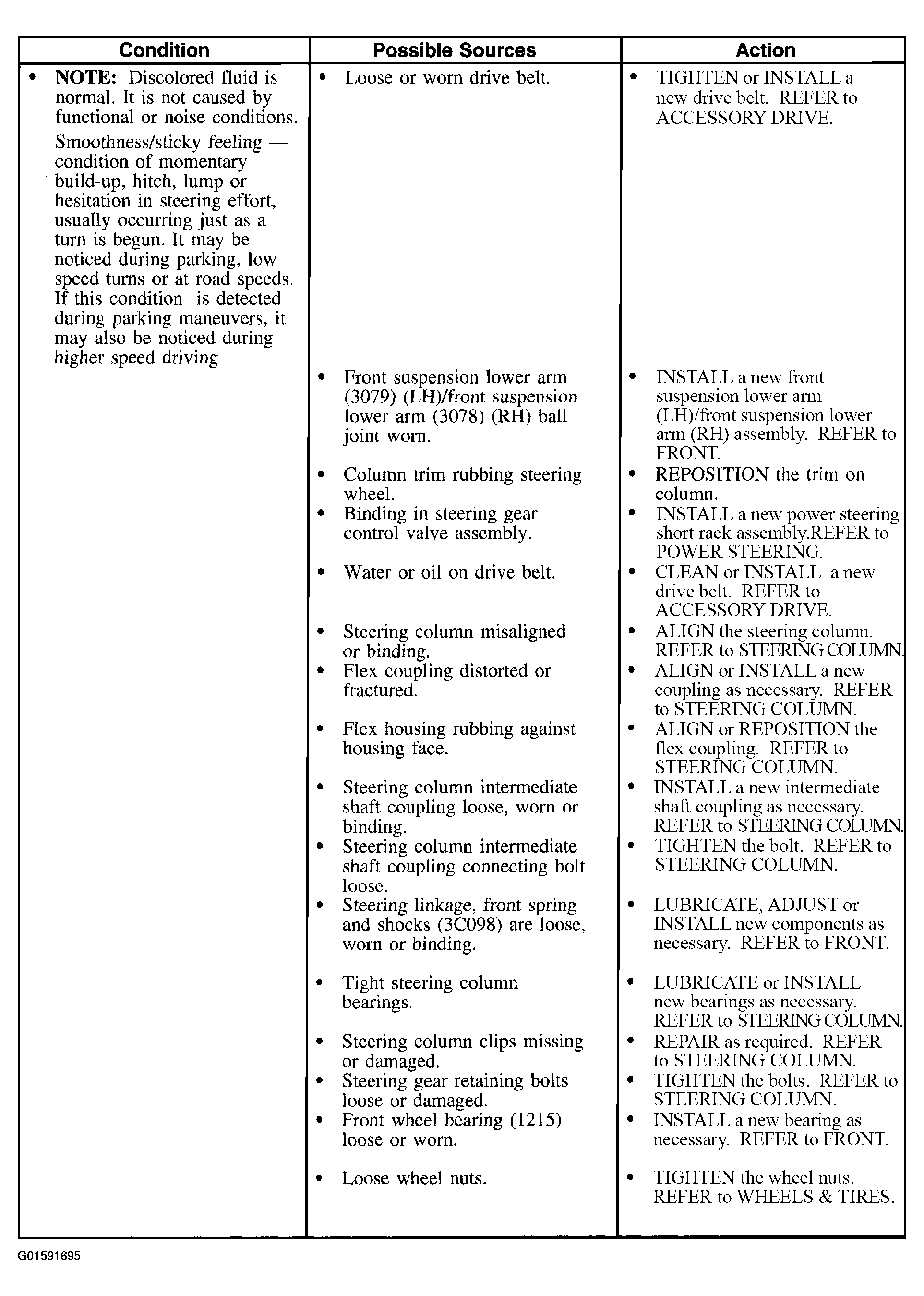

Fig 8: Steering System Problem Symptoms Chart (8 Of 12)
Courtesy of FORD MOTOR CO.
Fig 9: Steering System Problem Symptoms Chart (9 Of 12)
Courtesy of FORD MOTOR CO.
Fig 10: Steering System Problem Symptoms Chart (10 Of 12)
Courtesy of FORD MOTOR CO.
Fig 11: Steering System Problem Symptoms Chart (11 Of 12)
Courtesy of FORD MOTOR CO.
Fig 12: Steering System Problem Symptoms Chart (12 Of 12)
Courtesy of FORD MOTOR CO.
