Driven Sprocket Support: Disassembly

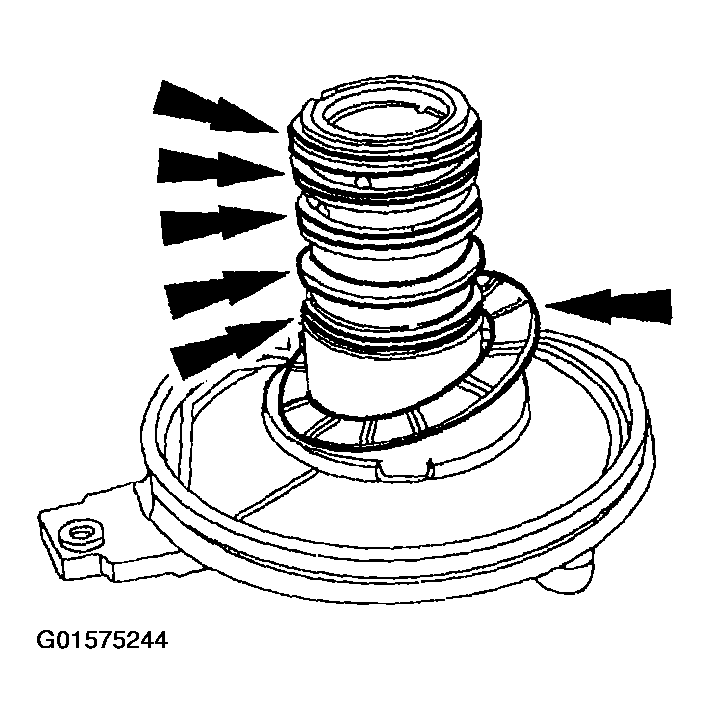

  1. Remove the Teflon® seal rings and the No. 5 thrust washer.
    Fig 1: Removing Teflon® Seal Rings And Thrust Washer
    G01575244Courtesy of FORD MOTOR CO.

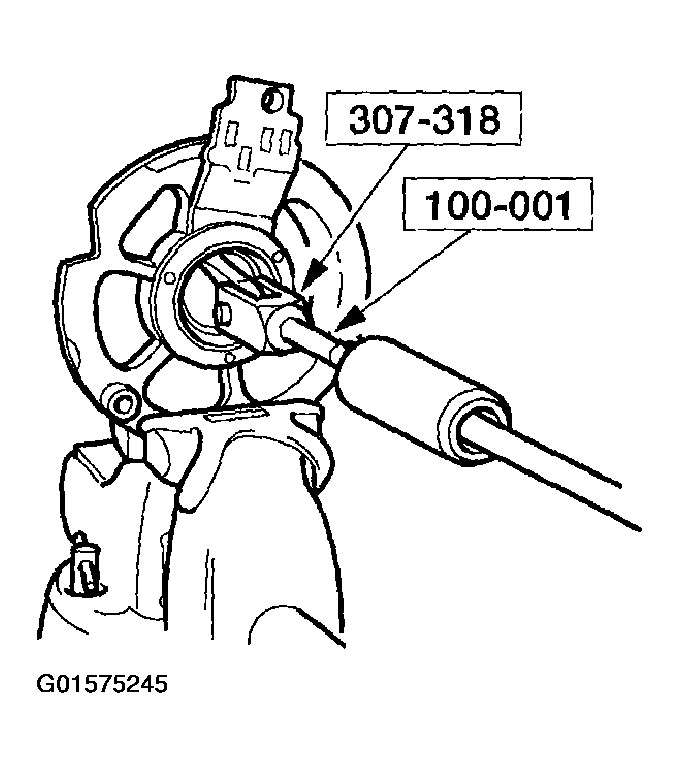

  2. Using the special tools, remove the bearing.
    Fig 2: Removing Bearing
    G01575245Courtesy of FORD MOTOR CO.
