Intermediate Clutch Cylinder: Notes

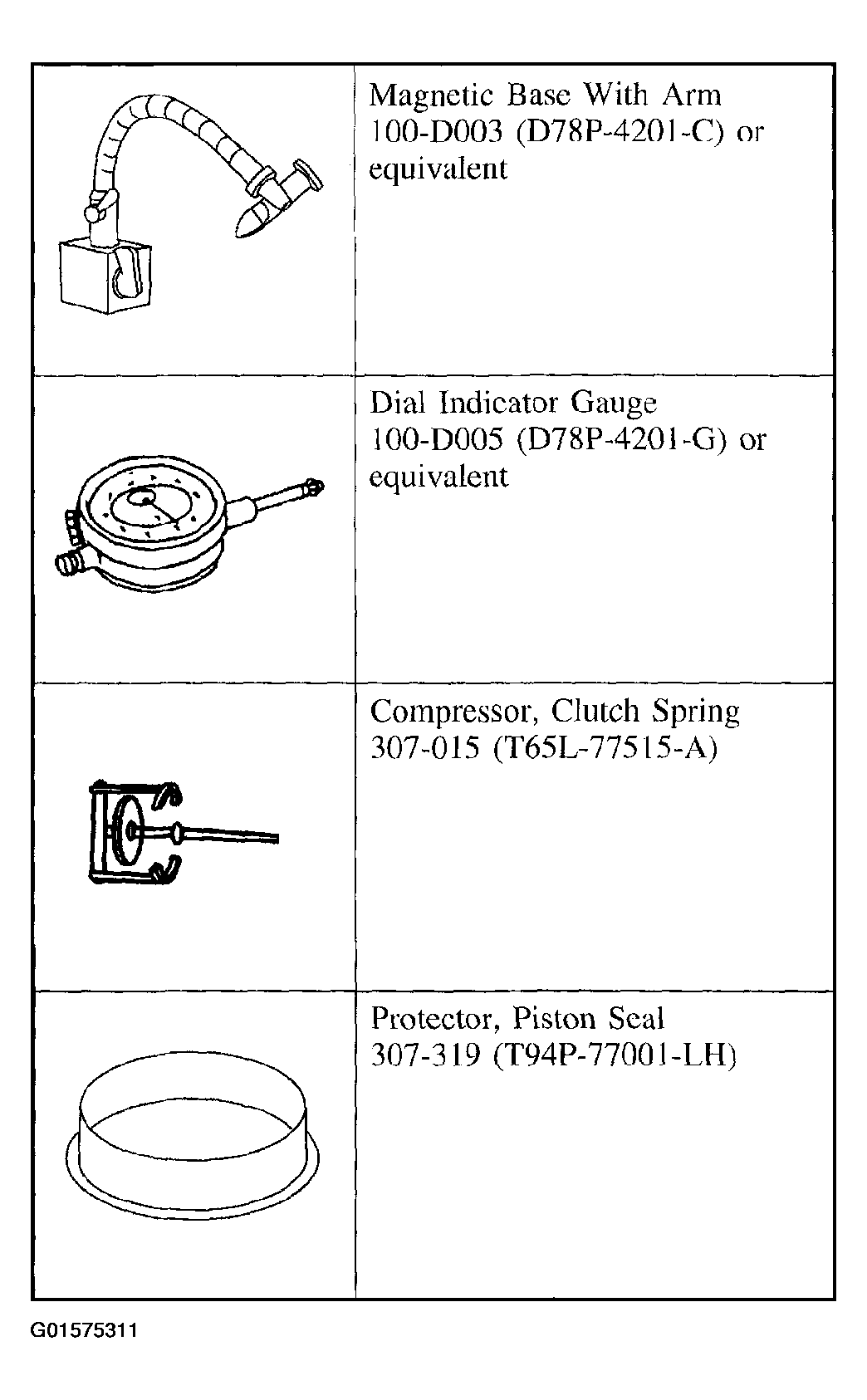

Fig 1: Identifying Special Tools
G01575311Courtesy of FORD MOTOR CO.

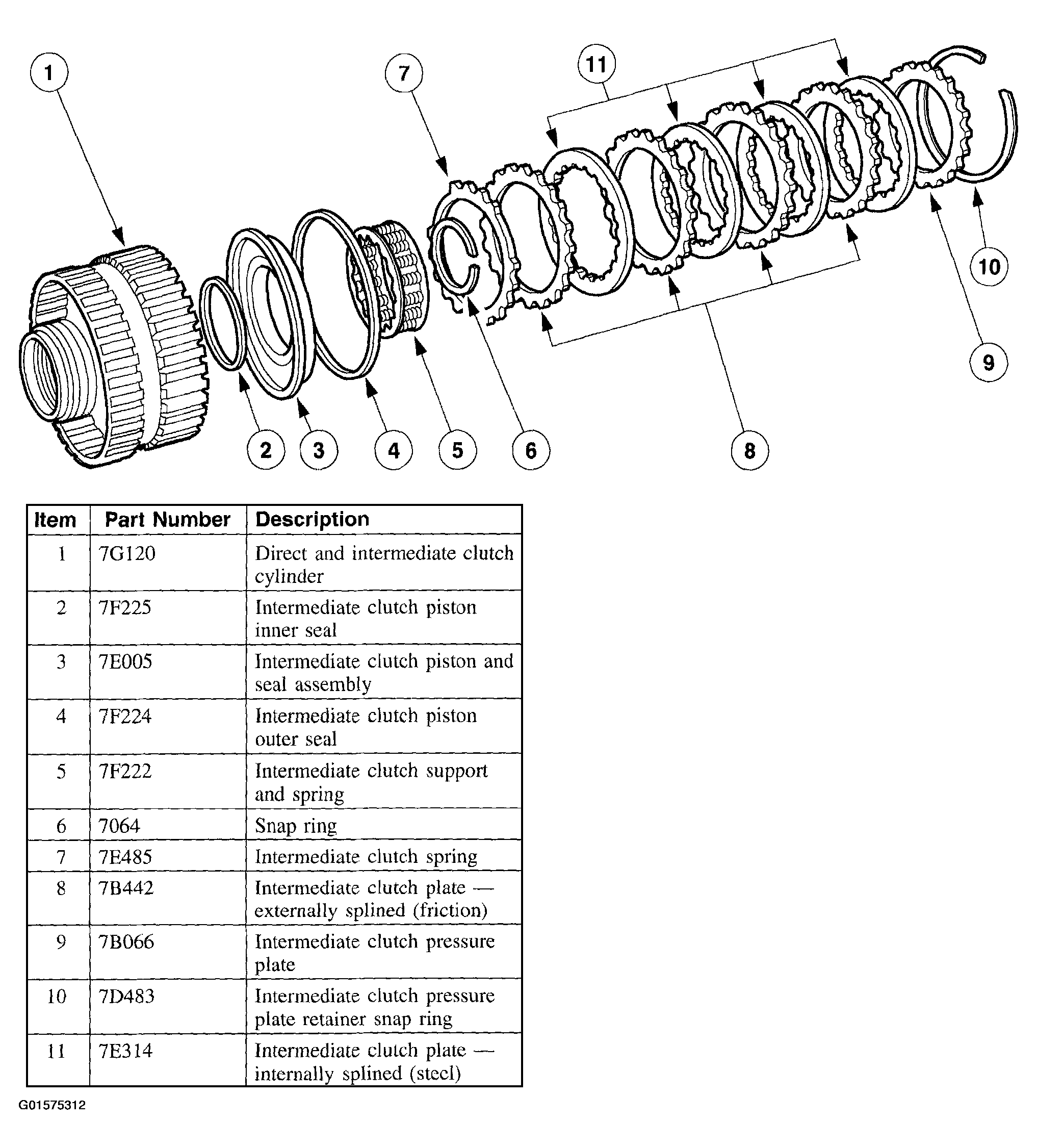

Fig 2: Exploded View Of Intermediate Clutch Cylinder
G01575312Courtesy of FORD MOTOR CO.
