Removal & Installation

Remove the engine appearance cover. Remove the components in the order indicated. See Fig 1. To install, reverse the removal procedure.

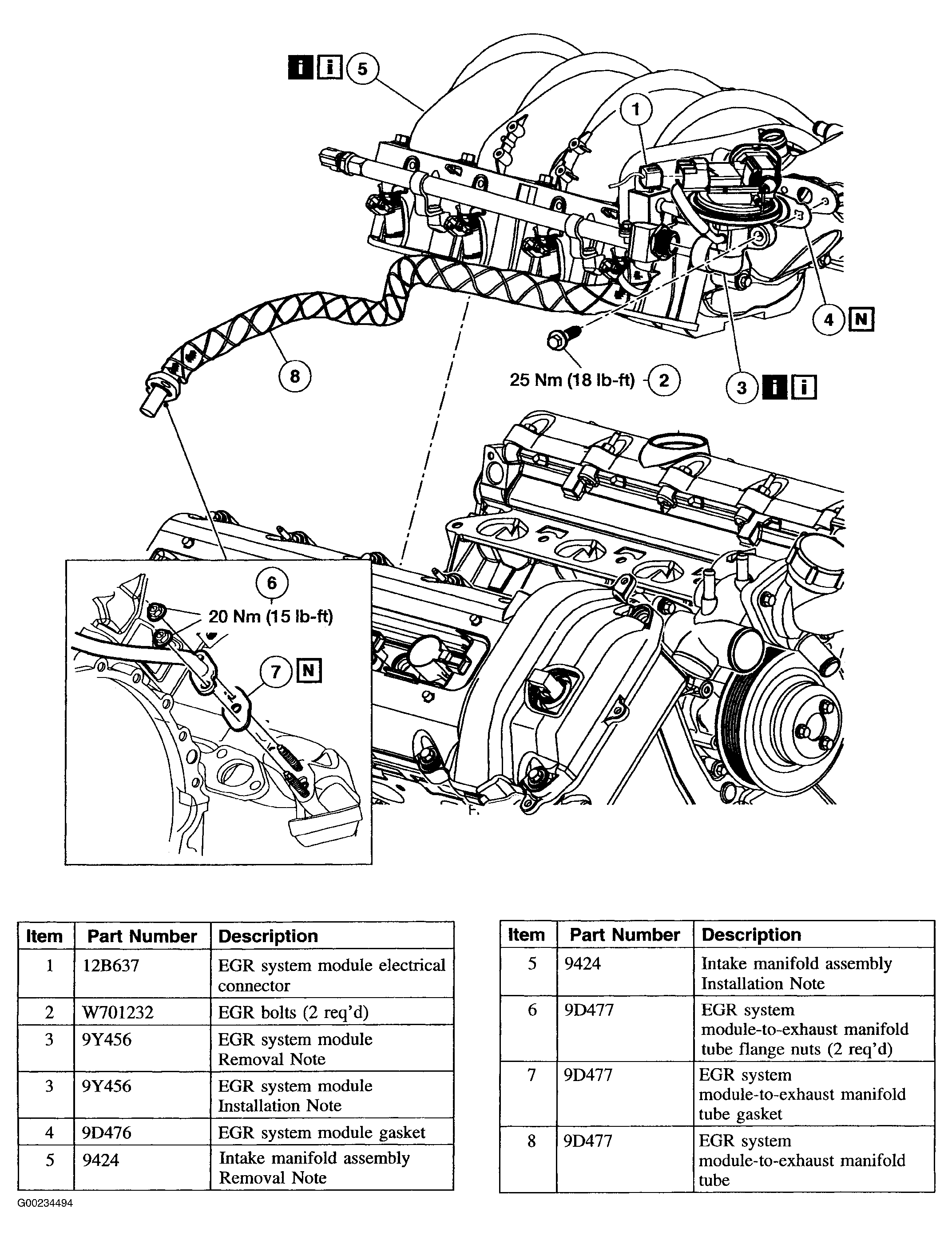

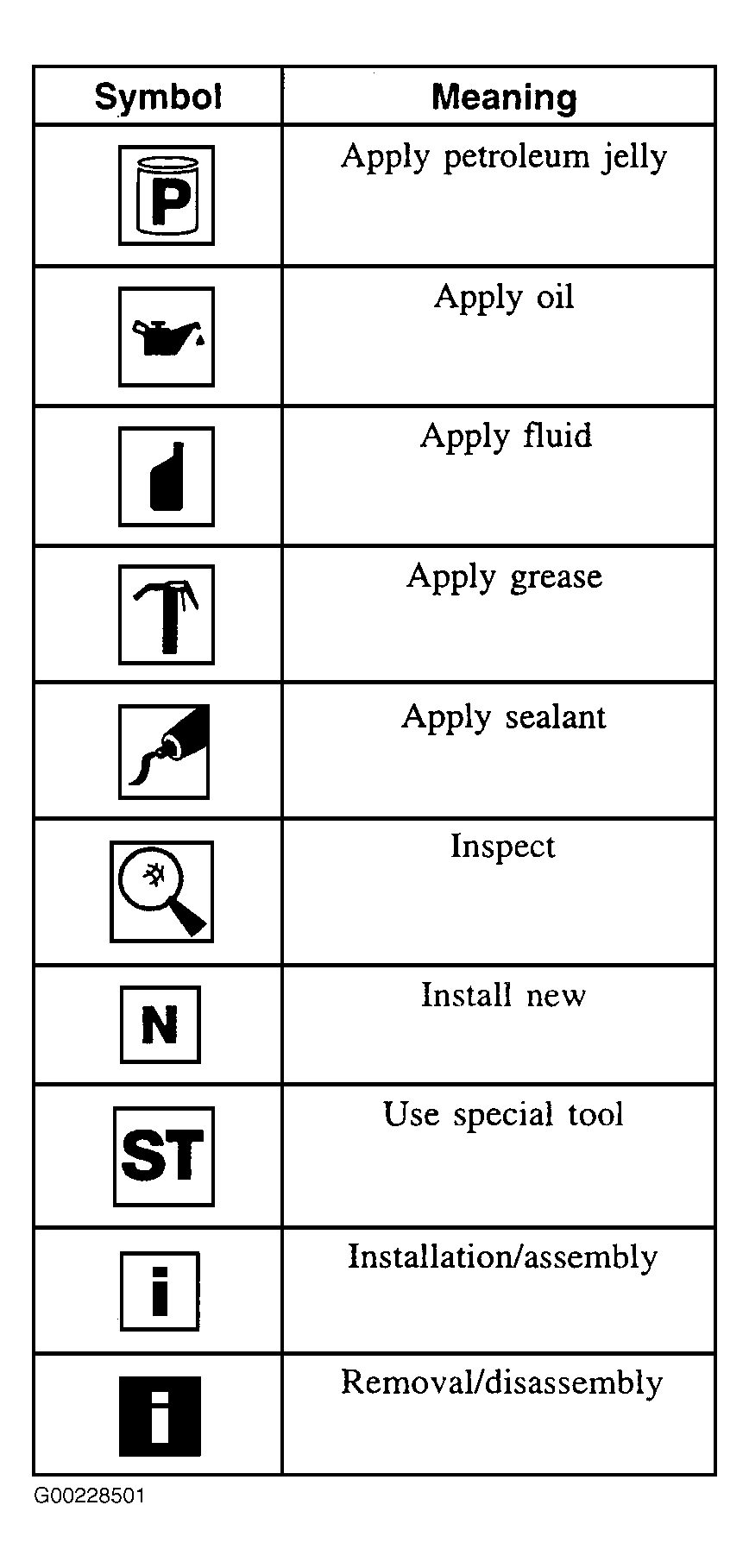

Fig 1: Removing EGR System Module & EGR System Module Tube-To-Exhaust Manifold

Courtesy of FORD MOTOR CO.

Removal Notes

1. Item 3: EGR System Module Removal Note

   Remove the vacuum harness. See Fig 2. Disconnect the EGR system module-to-exhaust manifold tube from the EGR system module. See Fig 3.
2. Item 5: Intake Manifold Removal Note

   Remove the intake manifold. See INTAKE MANIFOLD  under AIR INDUCTION SYSTEMS.

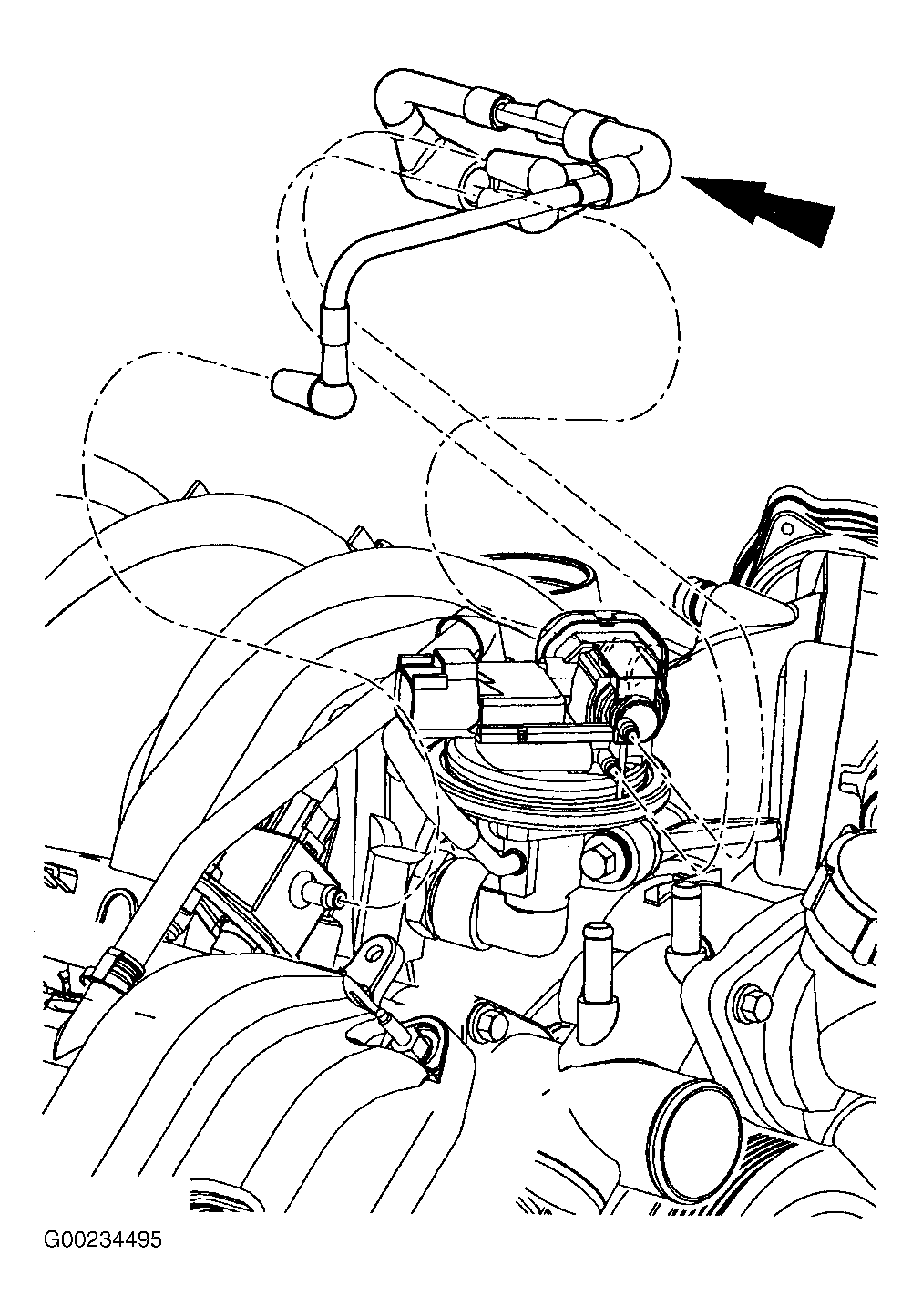

Fig 2: Removing EGR Vacuum Harness

Courtesy of FORD MOTOR CO.

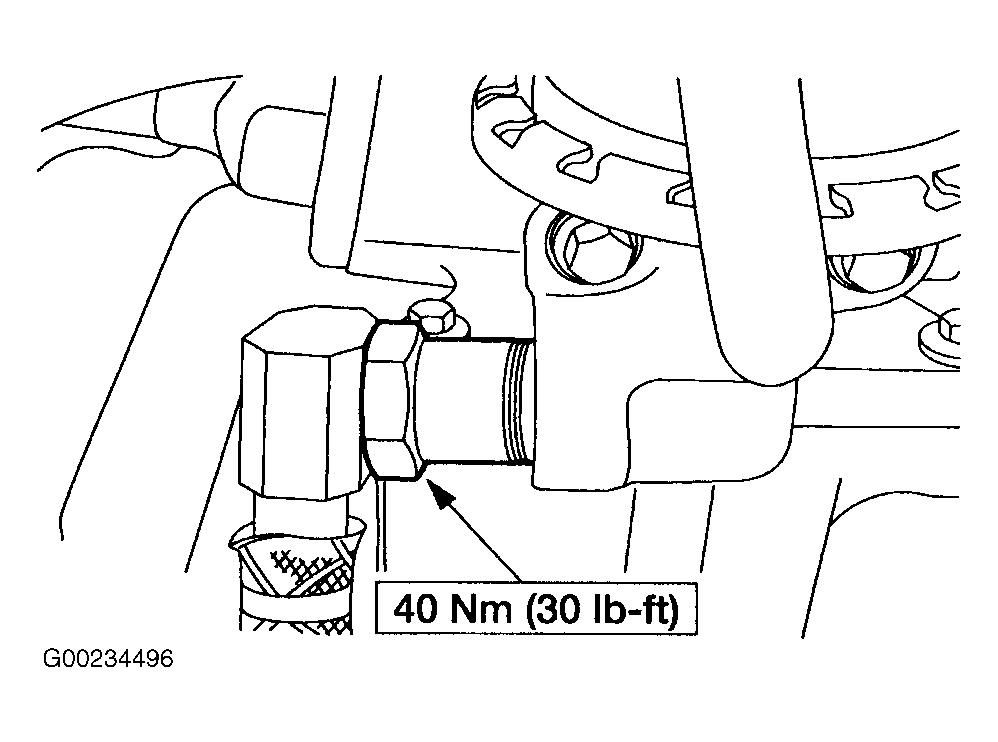

Fig 3: Disconnecting EGR System Module-To-Exhaust Manifold Tube From EGR System Module

Courtesy of FORD MOTOR CO.

Installation Notes

1. Item 5: Intake Manifold Installation Note

   Install the intake manifold. See INTAKE MANIFOLD  under AIR INDUCTION SYSTEMS.
2. Item 3: EGR System Module Installation Note

   Connect the EGR system module-to-exhaust manifold tube to the EGR system module. See Fig 3. Install the vacuum harness. See Fig 2.
