Front Electronic Module (FEM)-C201b

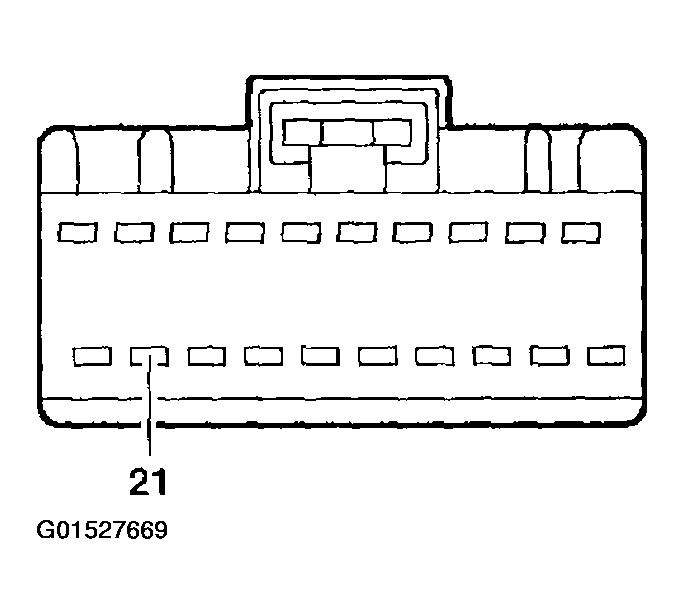

Fig 1: Front Electronic Module (FEM)-C201b Connector
G01527669Courtesy of FORD MOTOR CO.

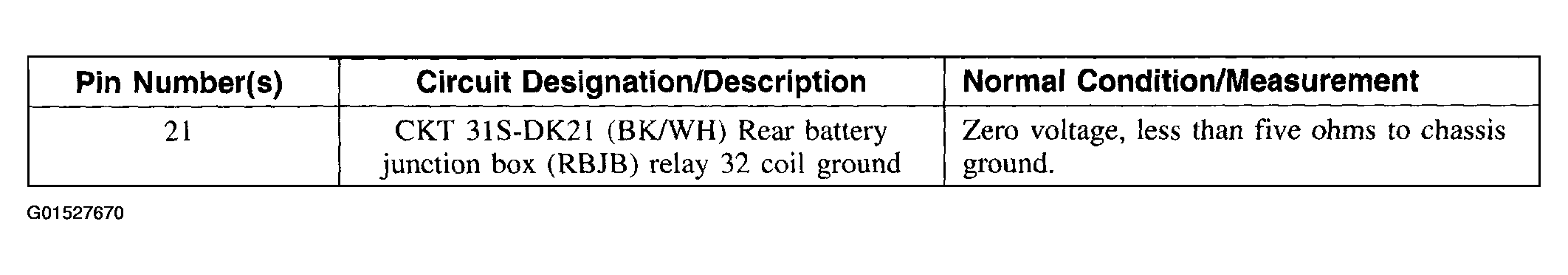

Fig 2: Connector Reference Chart
G01527670Courtesy of FORD MOTOR CO.
