Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cycle the roof opening panel through the fully open to the fully closed position.
  2. Loosen the roof opening panel screws.
  3. Adjust the roof opening panel to specification.

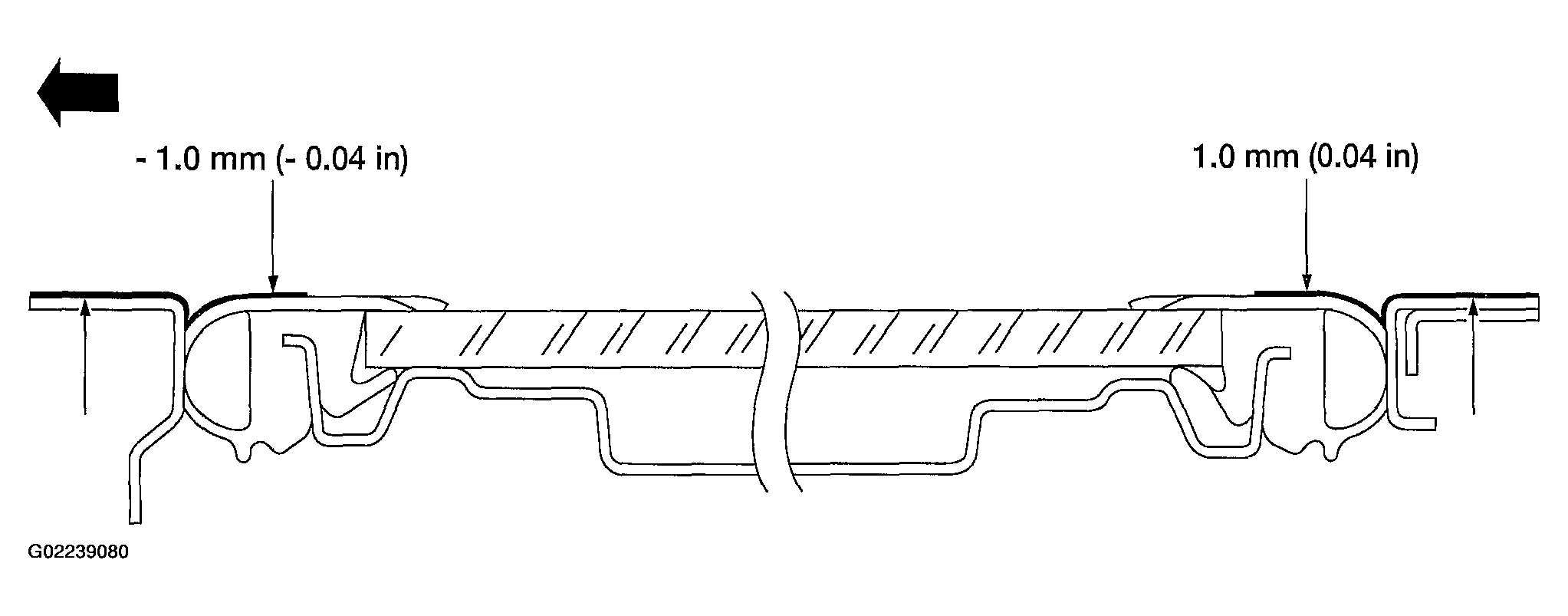

    Fig 1: View Of Roof Opening Panel Adjustment Dimensions
    G02239080Courtesy of FORD MOTOR CO.
  4. Tighten the roof opening panel screws.
  5. Reinitialize the roof opening panel. Refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
