Instrument Panel: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Remove the front floor console. For additional information, Refer to FLOOR CONSOLE .
Remove the transmission range selector lever. For additional information, Refer to AUTOMATIC TRANSMISSION - 5R55S .
Remove the LH and RH A-pillar lower trim panels. For additional information, Refer to INTERIOR TRIM PANELS .
Remove the LH and RH windshield side garnish mouldings. For additional information, Refer to INTERIOR TRIM PANELS .
To remove individual components only, carry out the following steps.

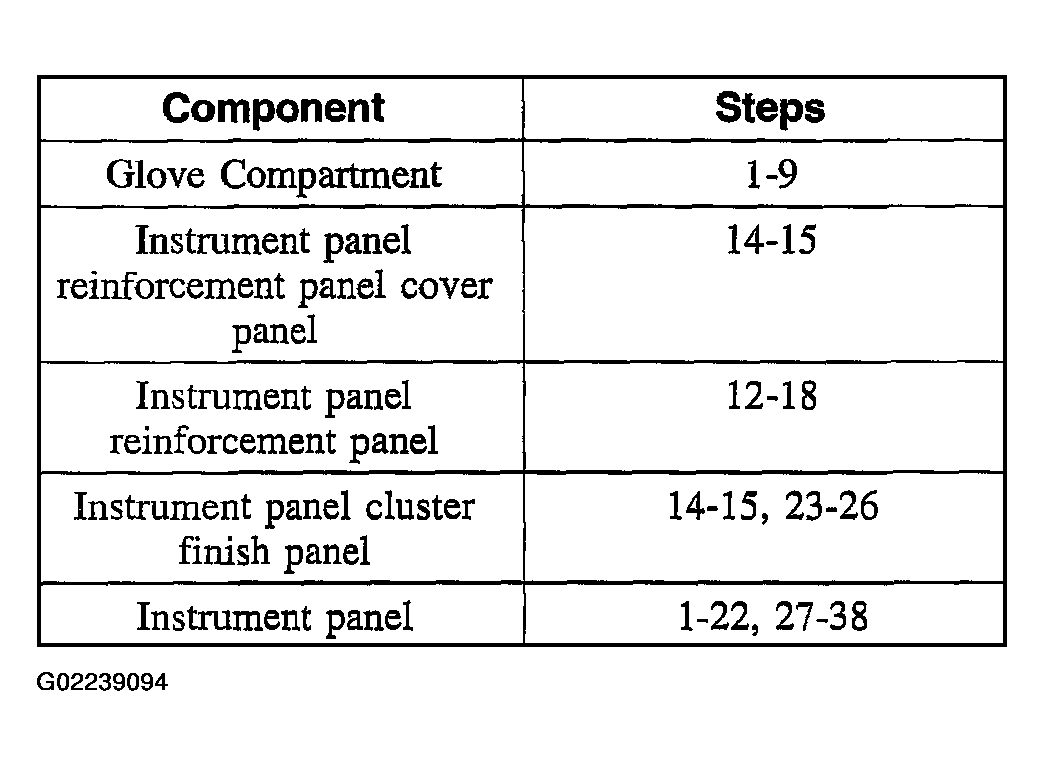

Fig 1: Components Stepping Chart
Courtesy of FORD MOTOR CO.

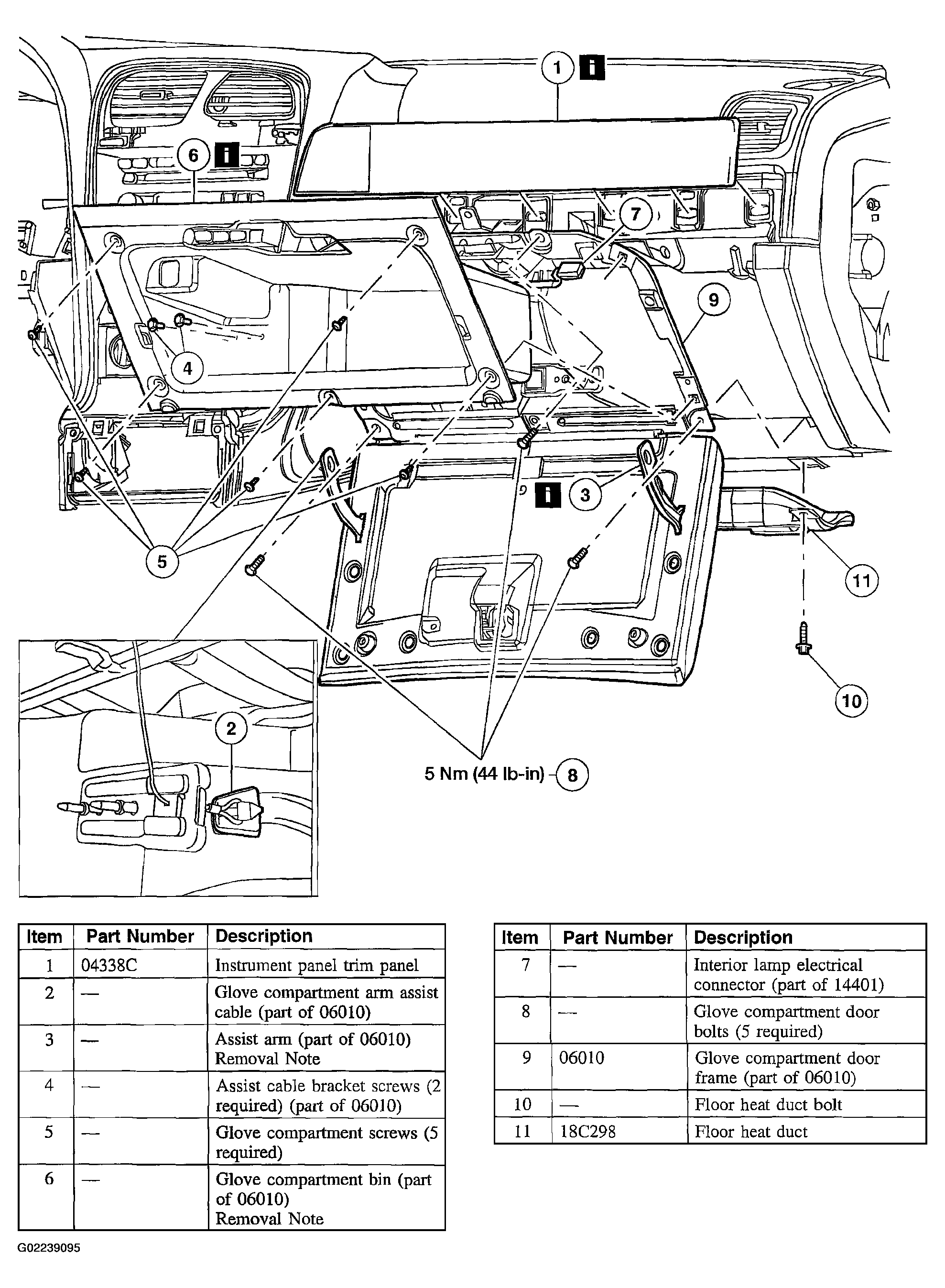

View 1 of 3. Remove the components in the order indicated in Fig 2.

Fig 2: Identifying Instrument Panel Components
Courtesy of FORD MOTOR CO.

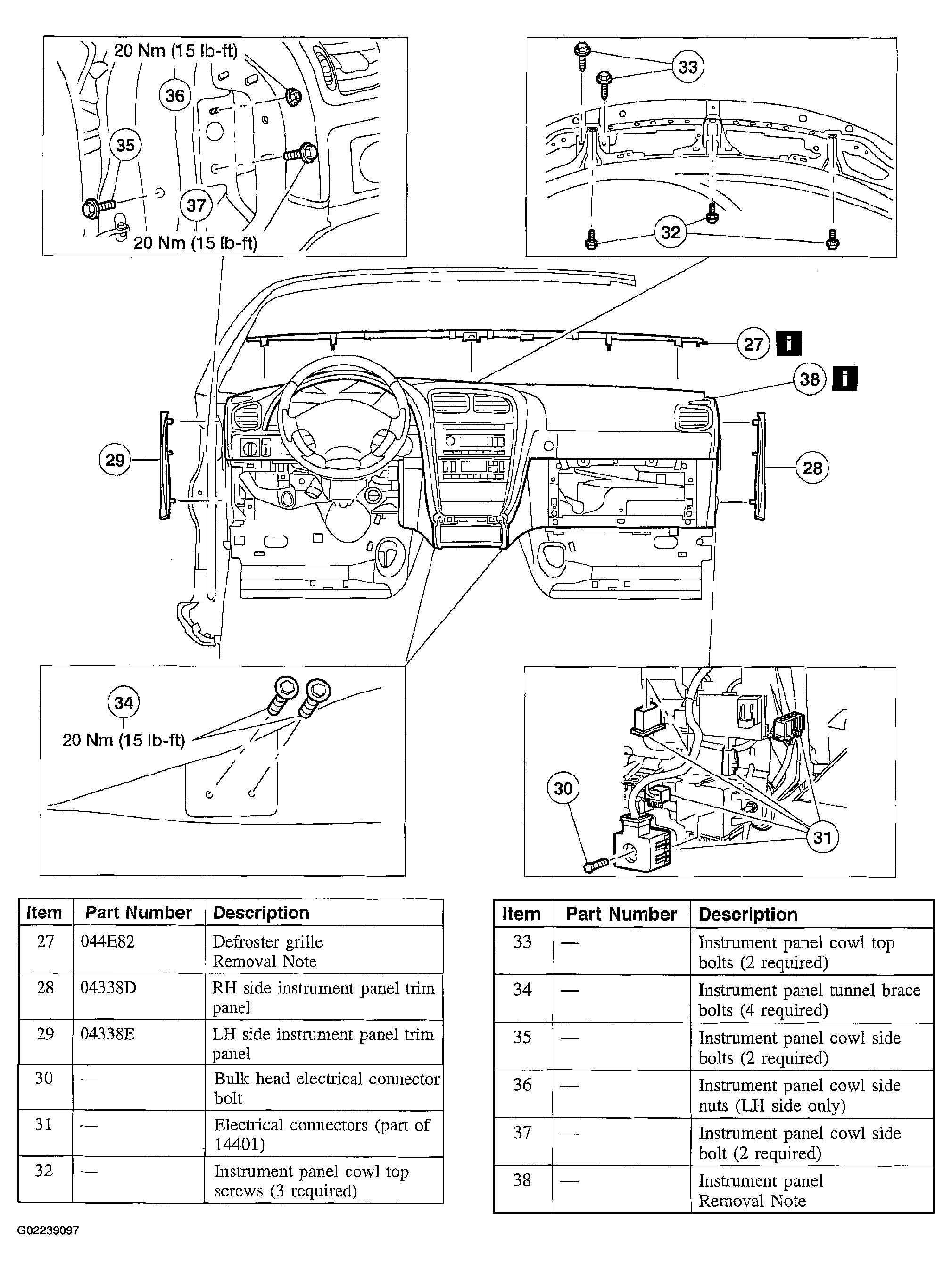

View 2 of 3. Remove the components in the order indicated in Fig 3.

Fig 3: Exploded View Of Instrument Panel Components
Courtesy of FORD MOTOR CO.

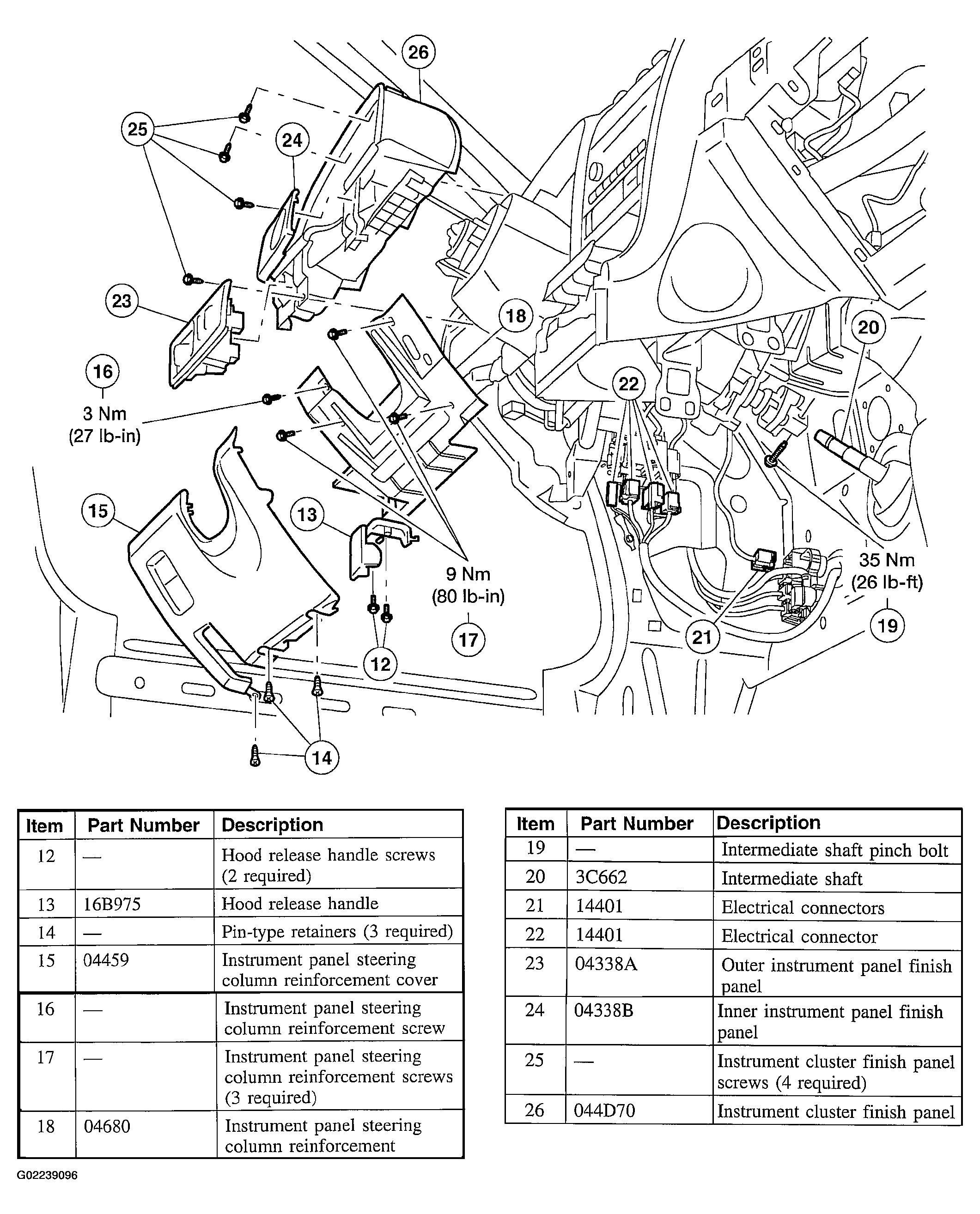

View 3 of 3. Remove the components in the order indicated in Fig 4.

Fig 4: Identifying Instrument Panel Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
