Test P: Temperature Controls Do Not Operate Using Aux Controls
PINPOINT TEST P: THE TEMPERATURE CONTROLS DO NOT OPERATE USING THE FRONT/REAR AUXILIARY CLIMATE CONTROLS

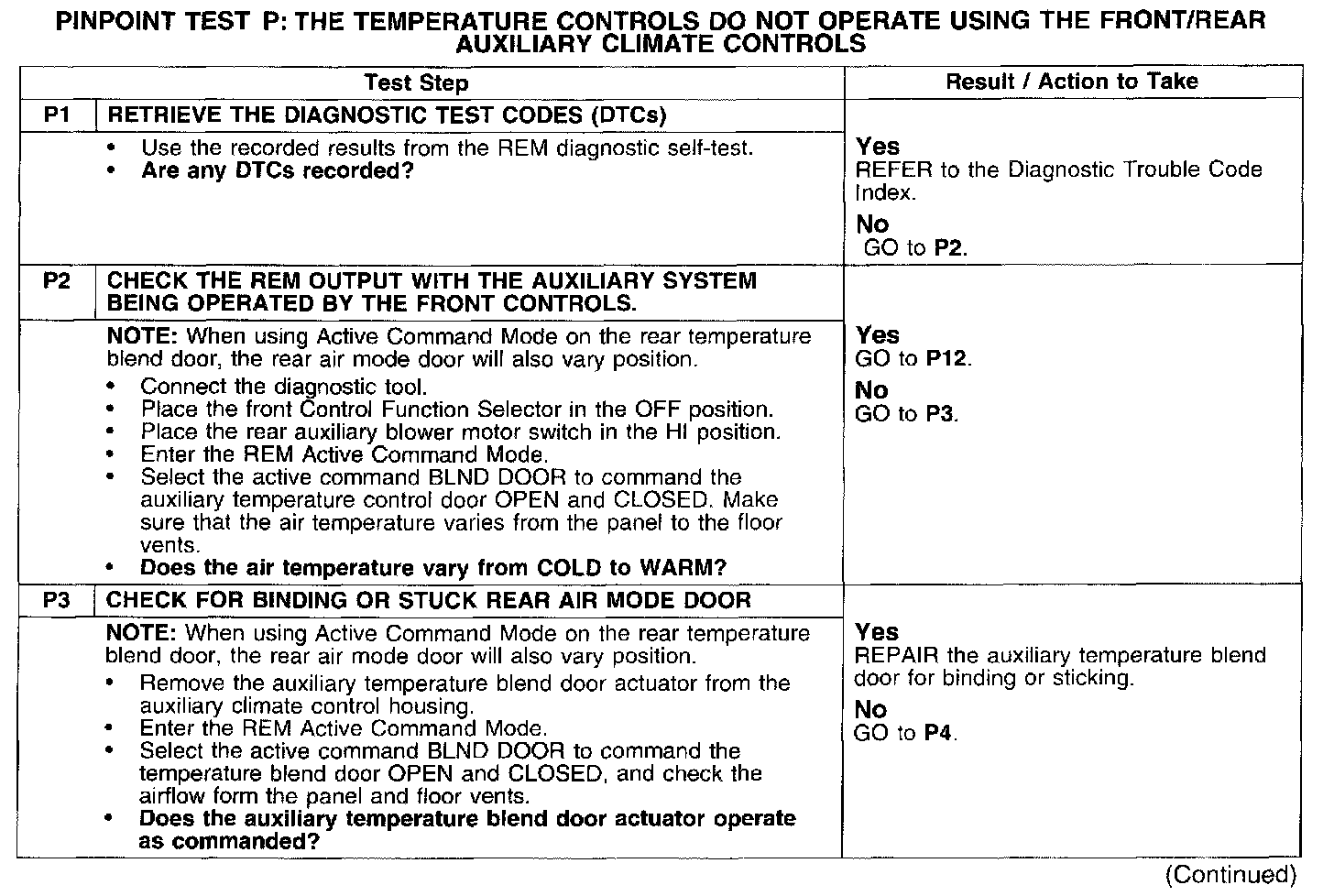

Test P1-P3:

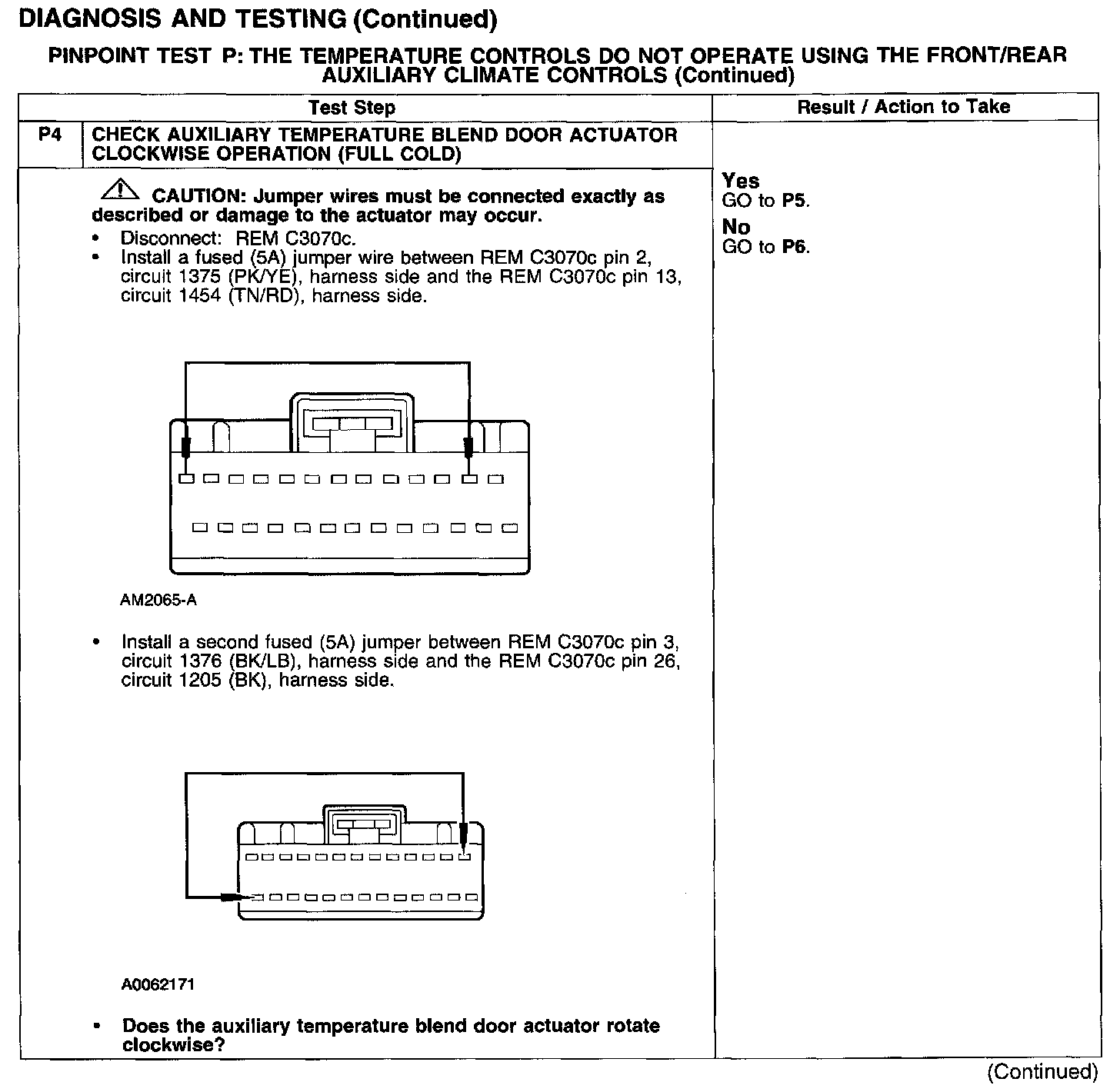

Test P4:

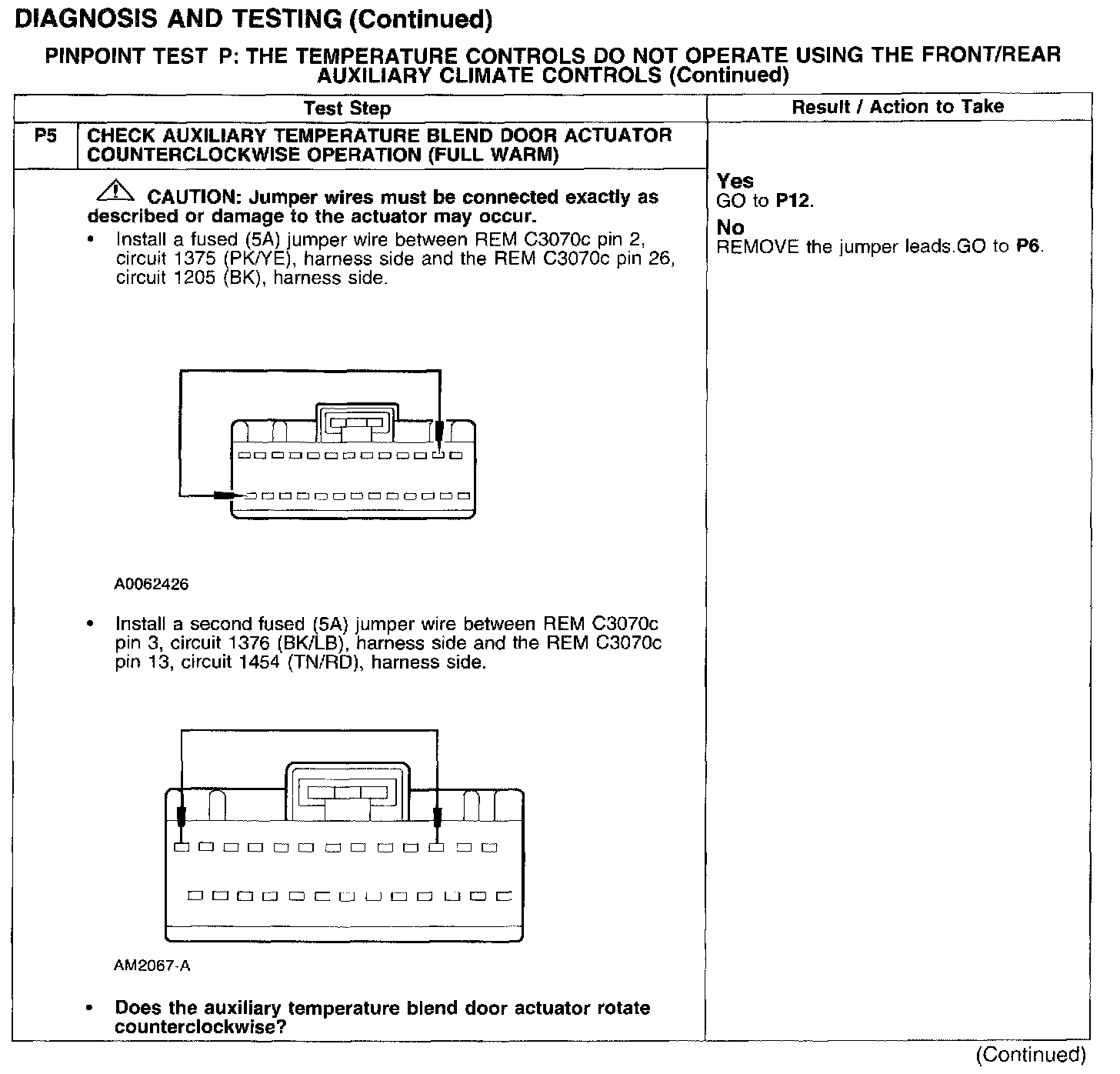

Test P5:

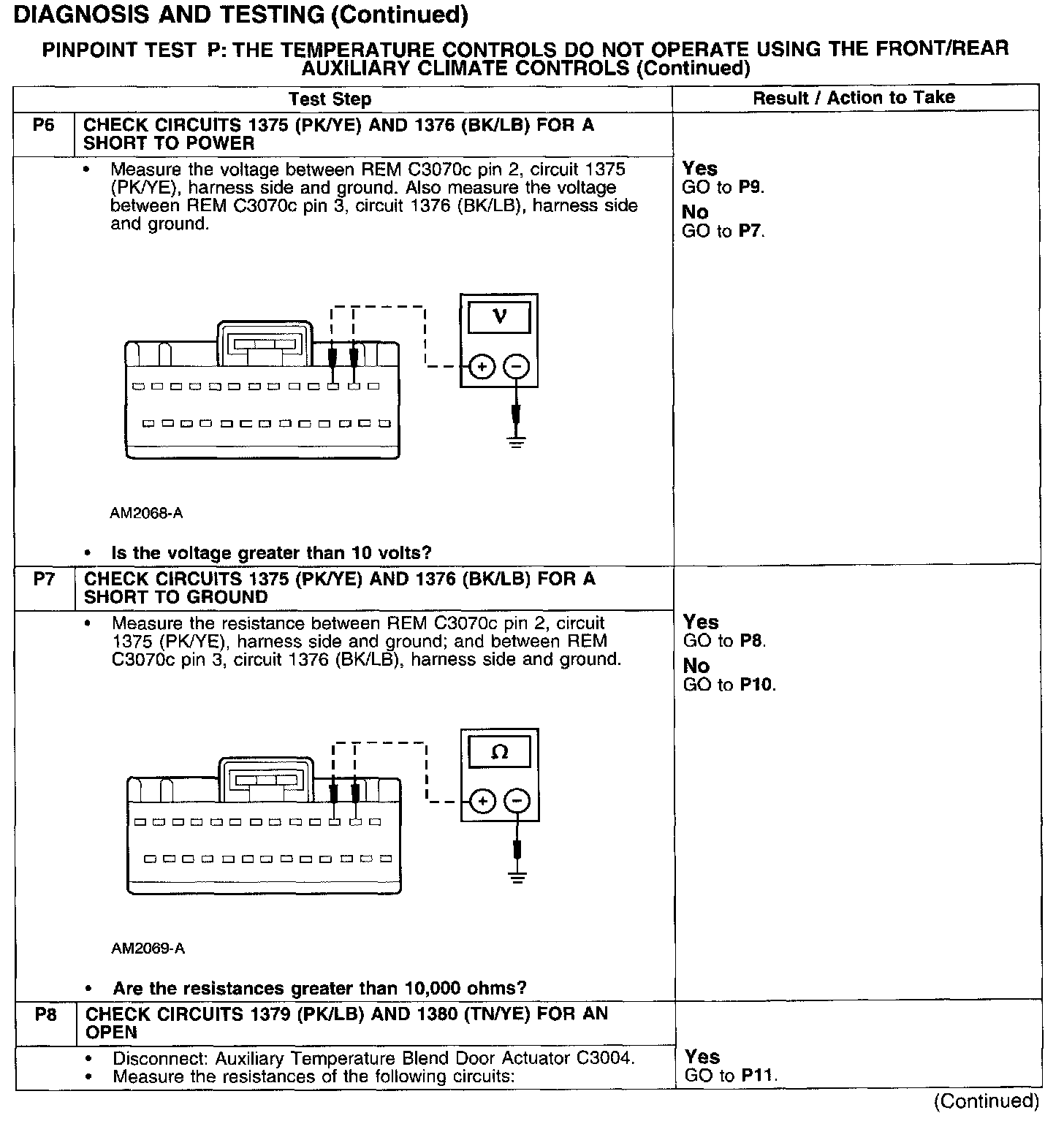

Test P6-P8:

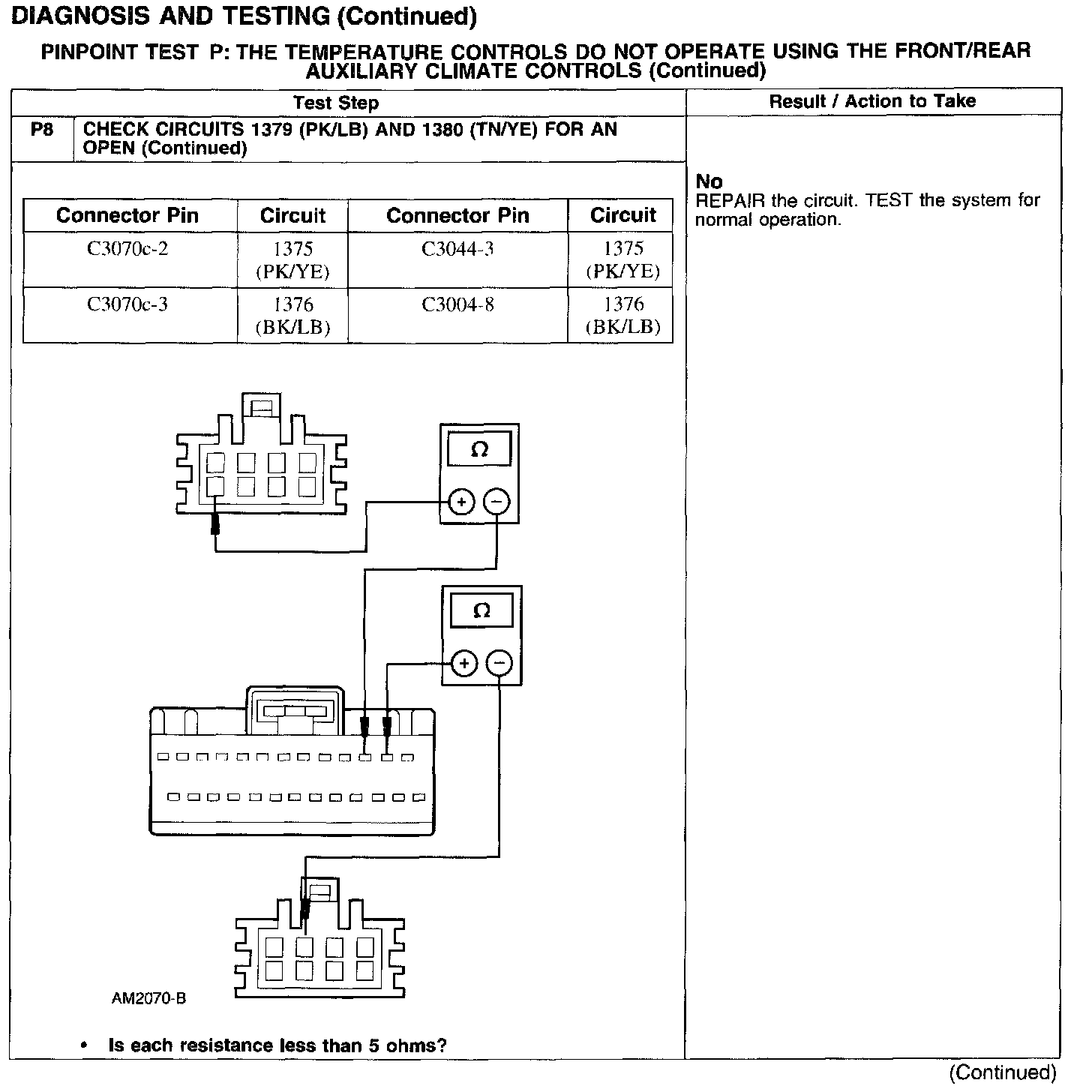

Test P8 Continued:

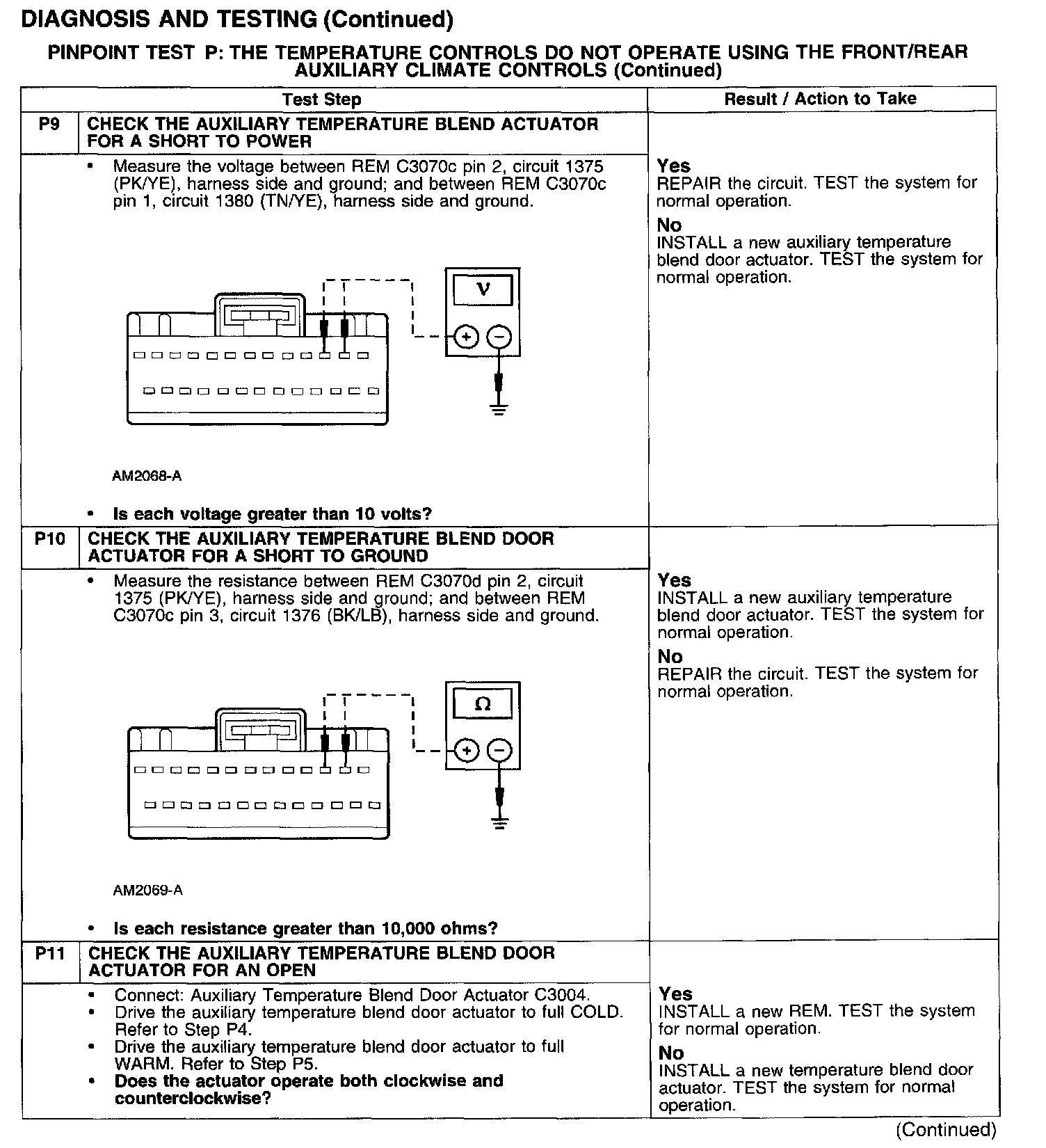

Test P9-P11:

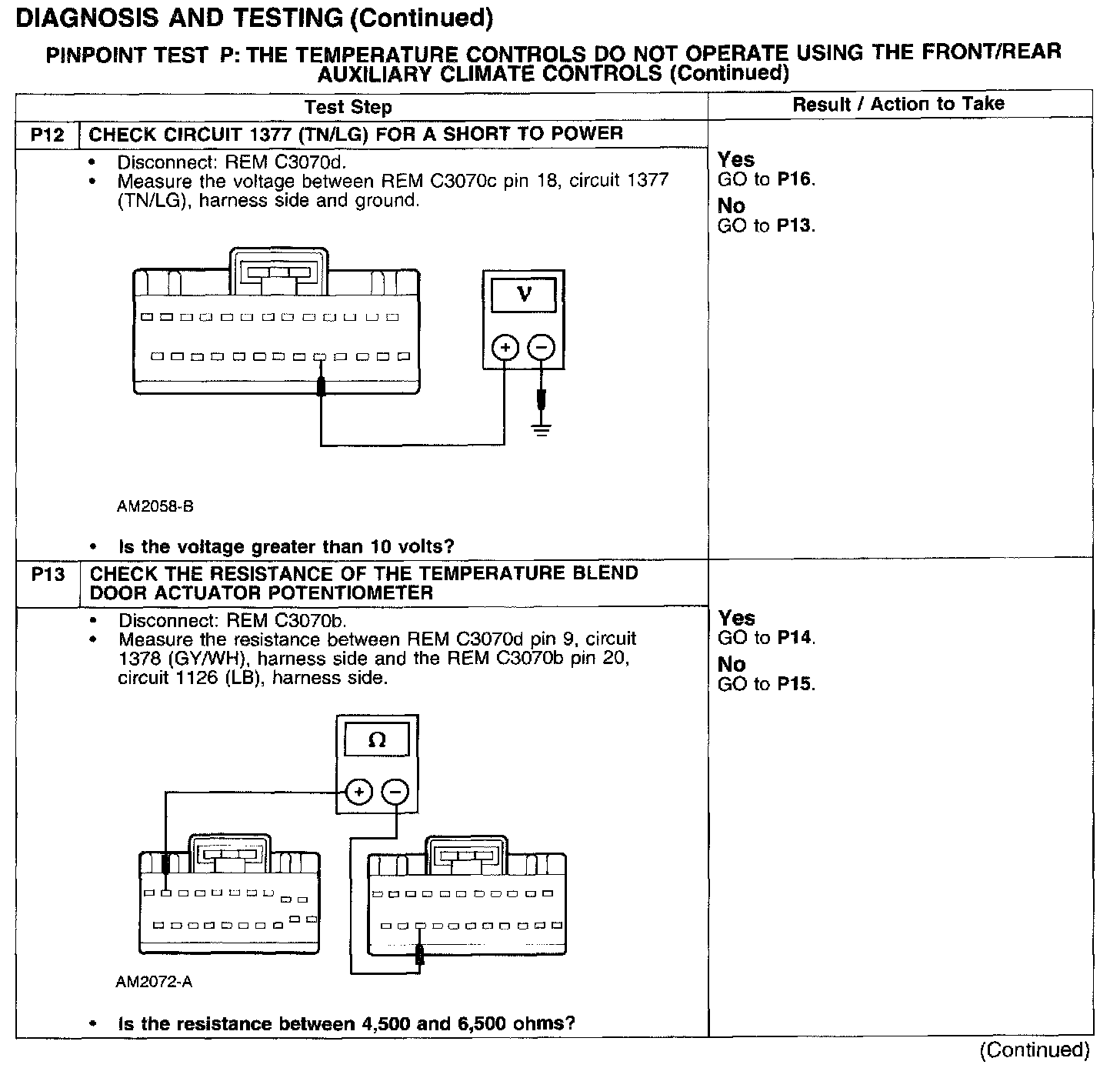

Test P12-P13:

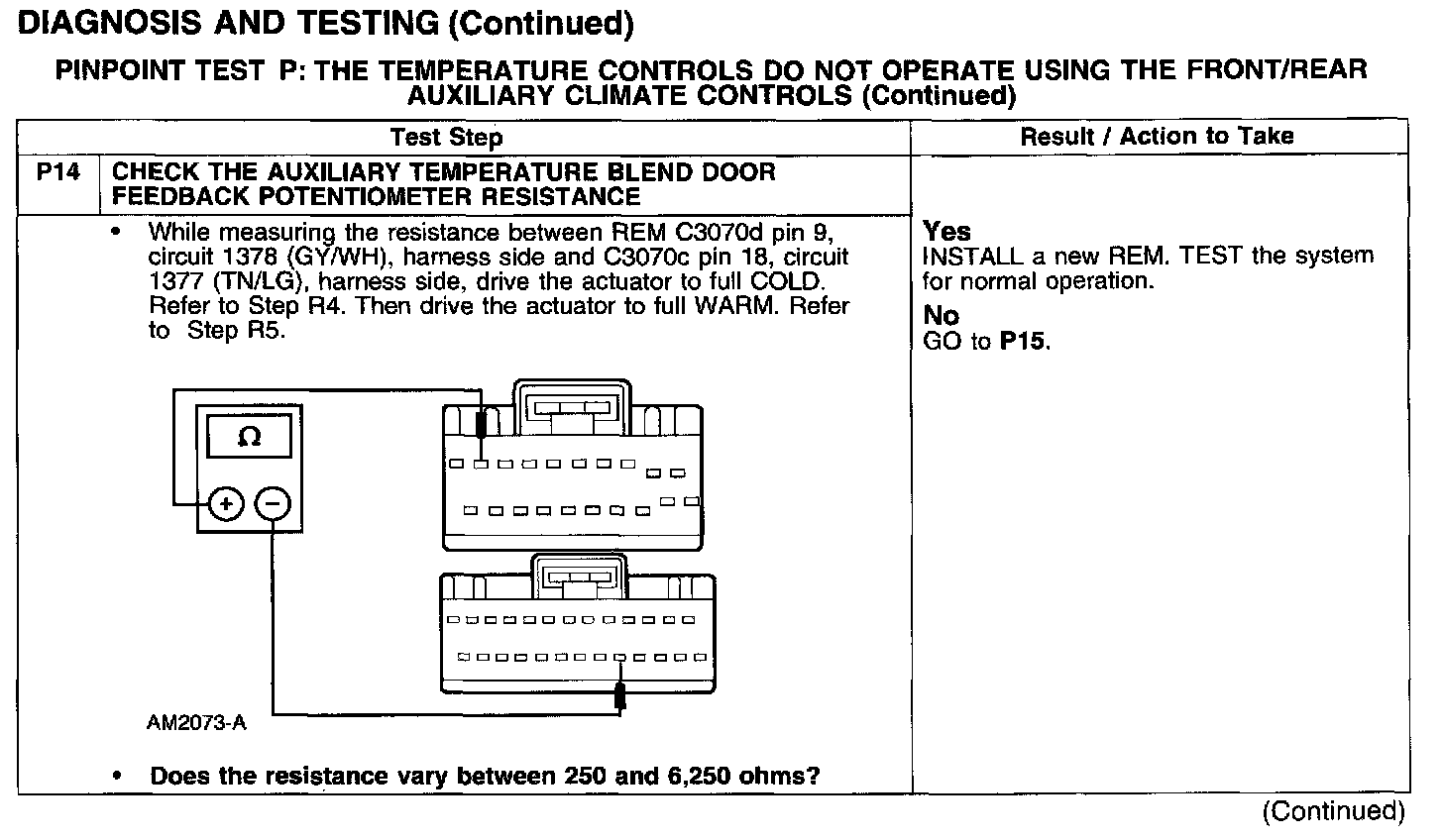

Test P14:

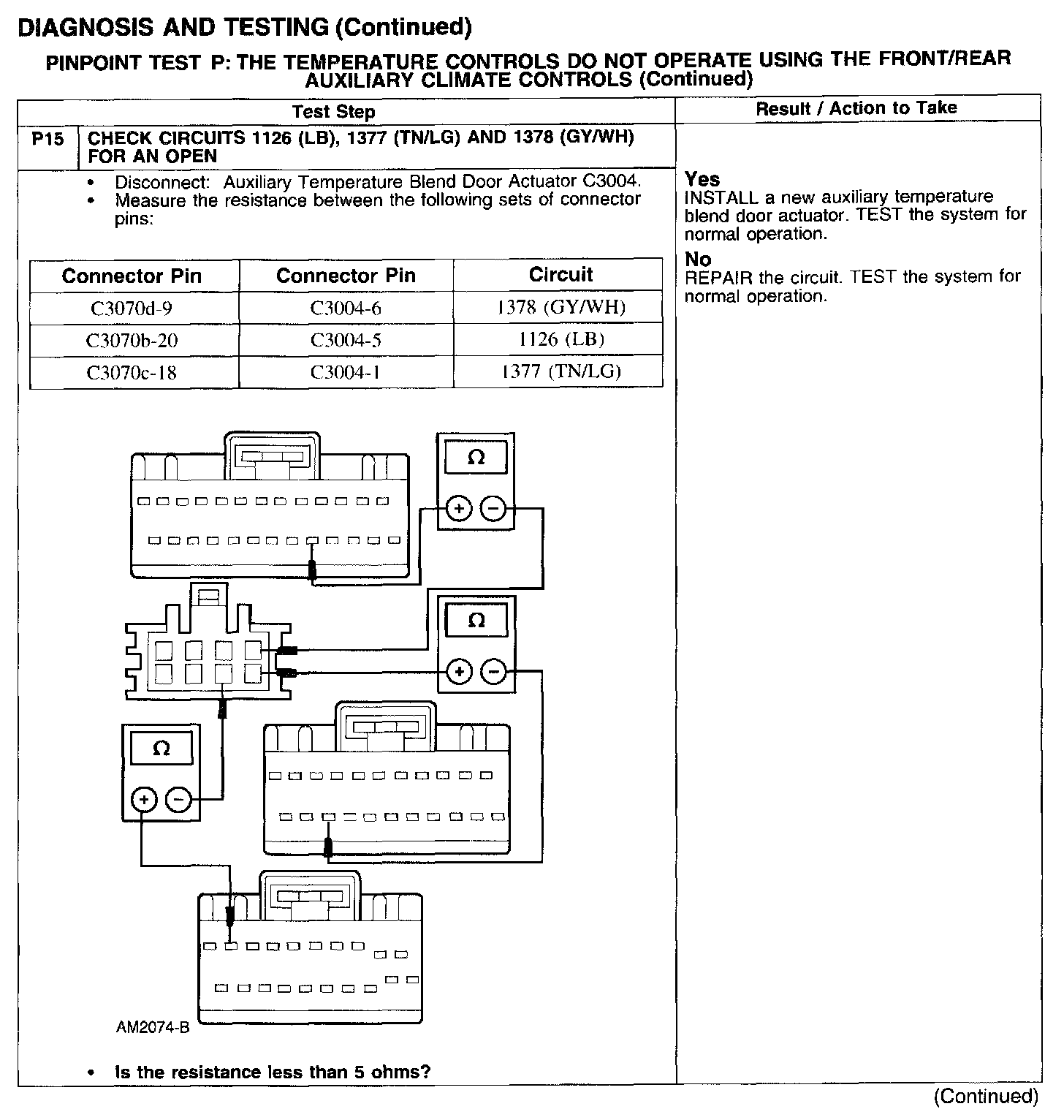

Test P15:

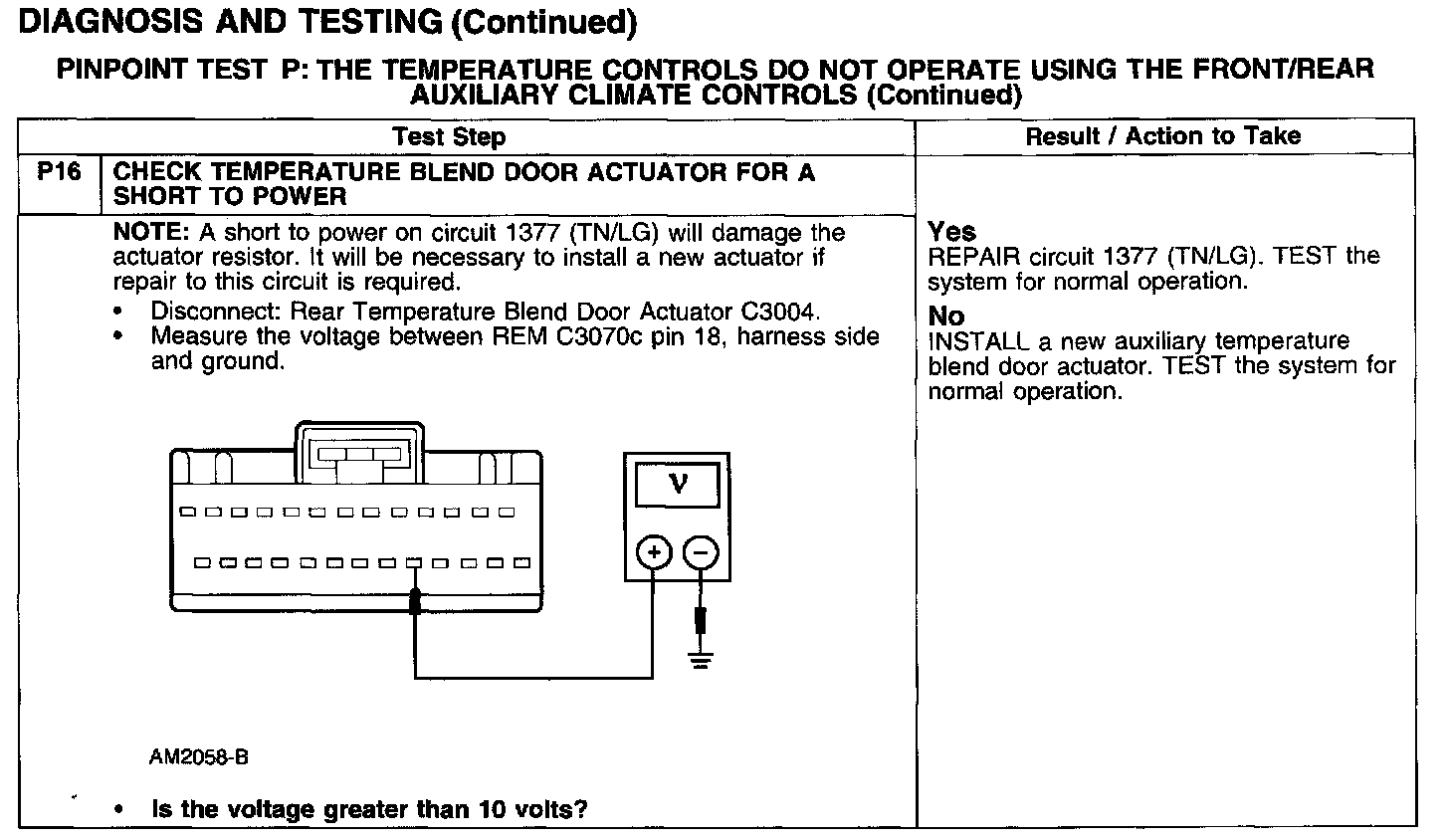

Test P16:
