Test A

PINPOINT TEST A: THE ANTI-LOCK BRAKE CONTROL MODULE (ABS) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

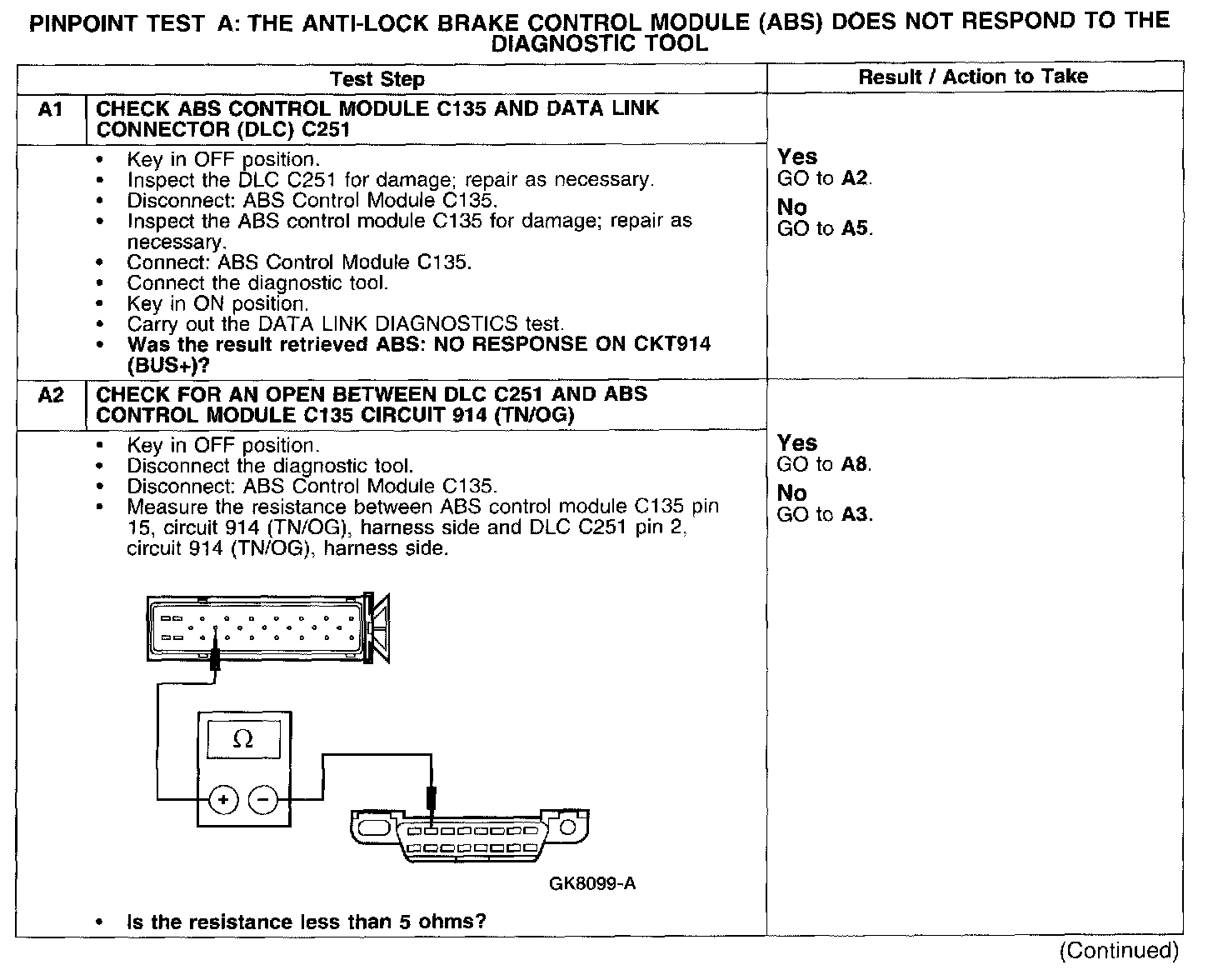

Test A1-A2:

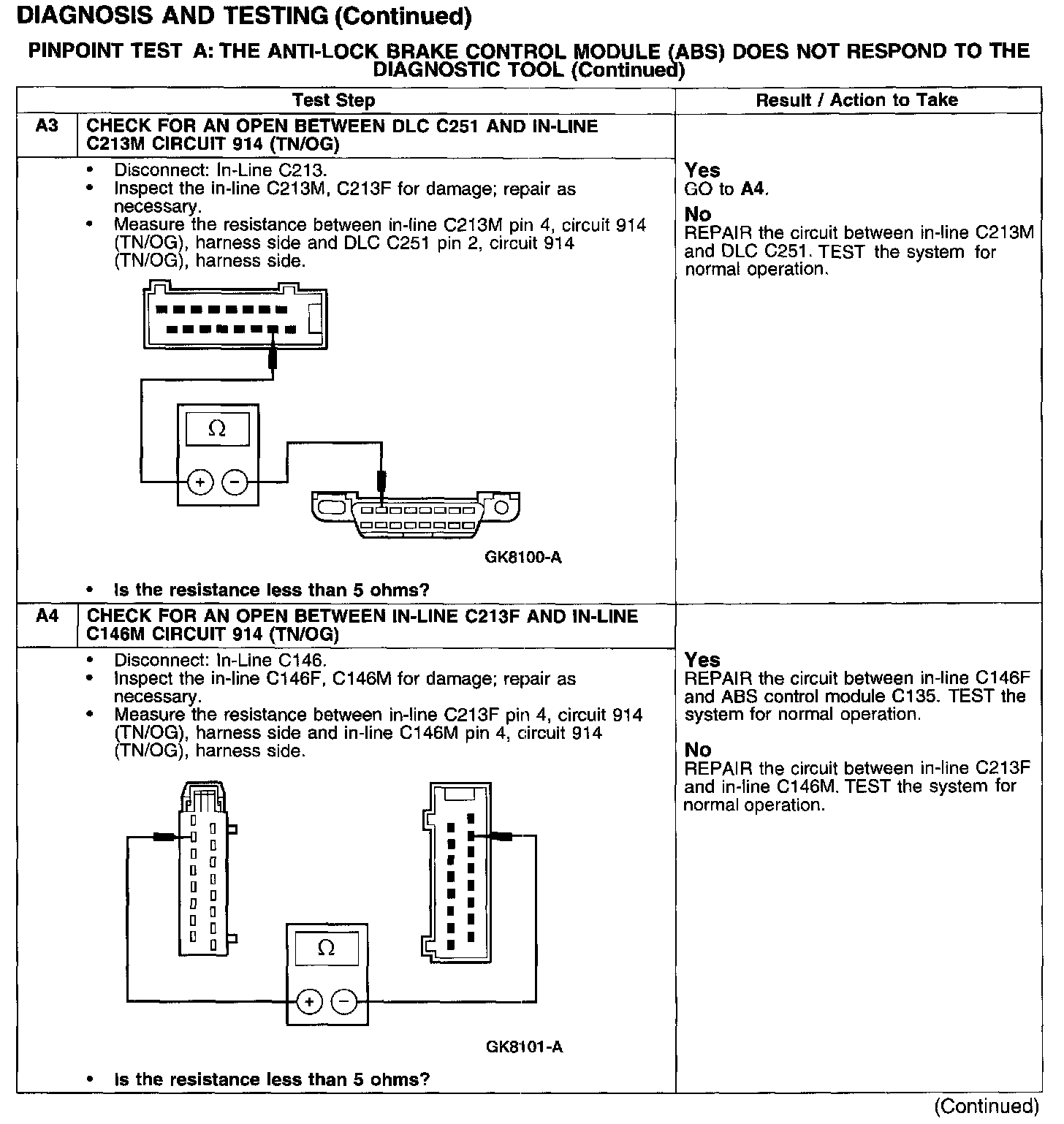

Test A3-A4:

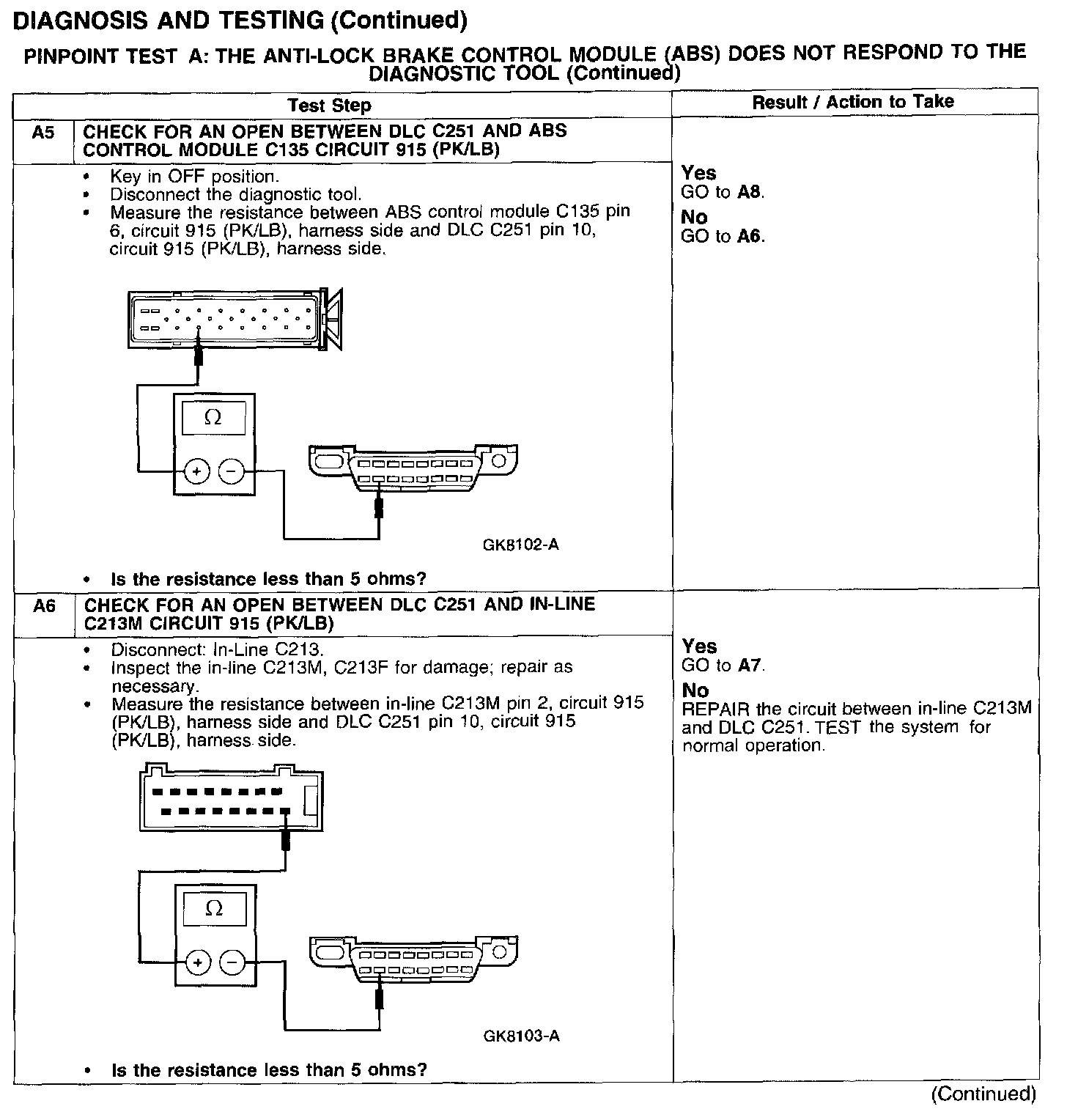

Test A5-A6:

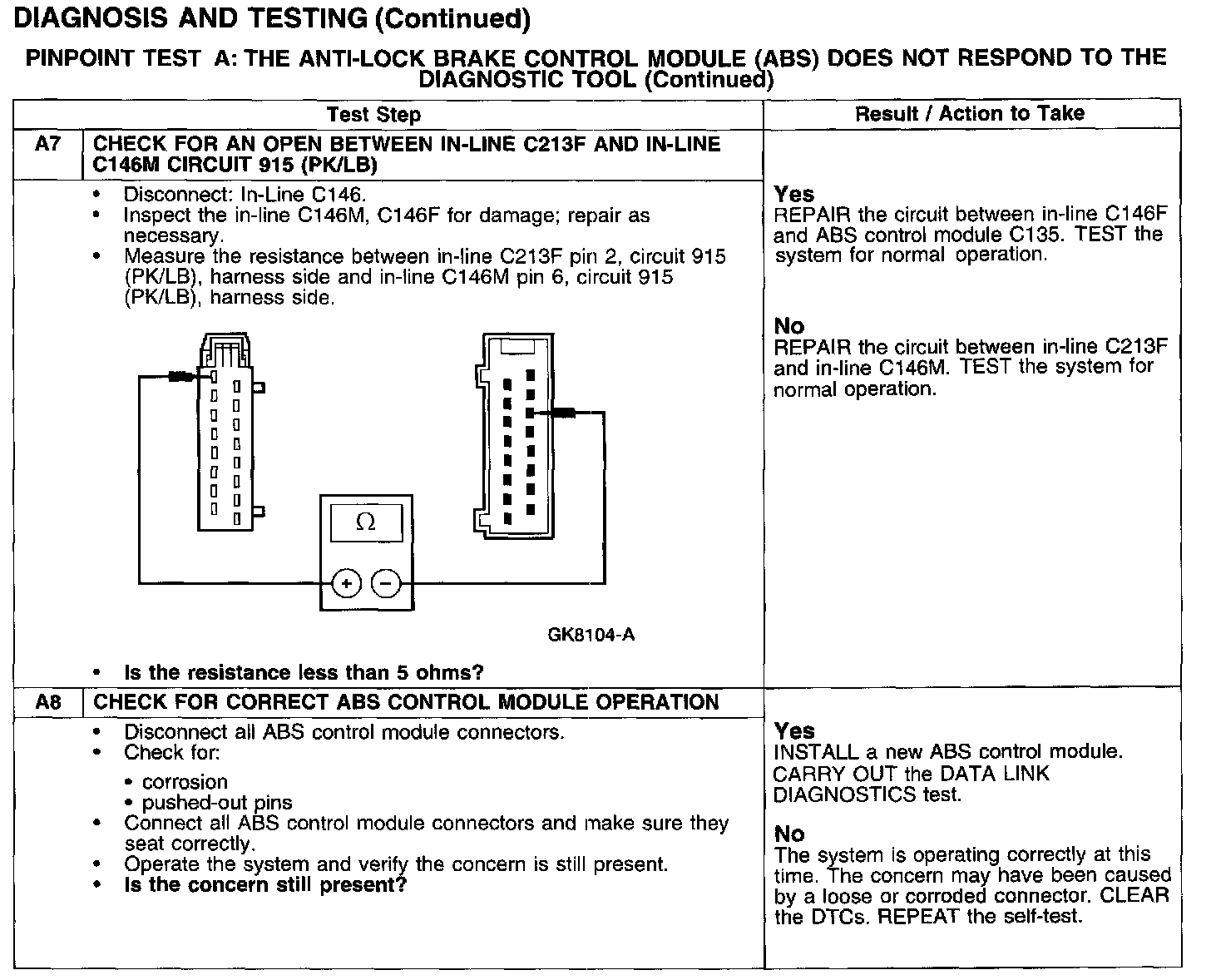

Test A7-A8:
