Test I
PINPOINT TEST I: THE FRONT ELECTRONIC MODULE (FEM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

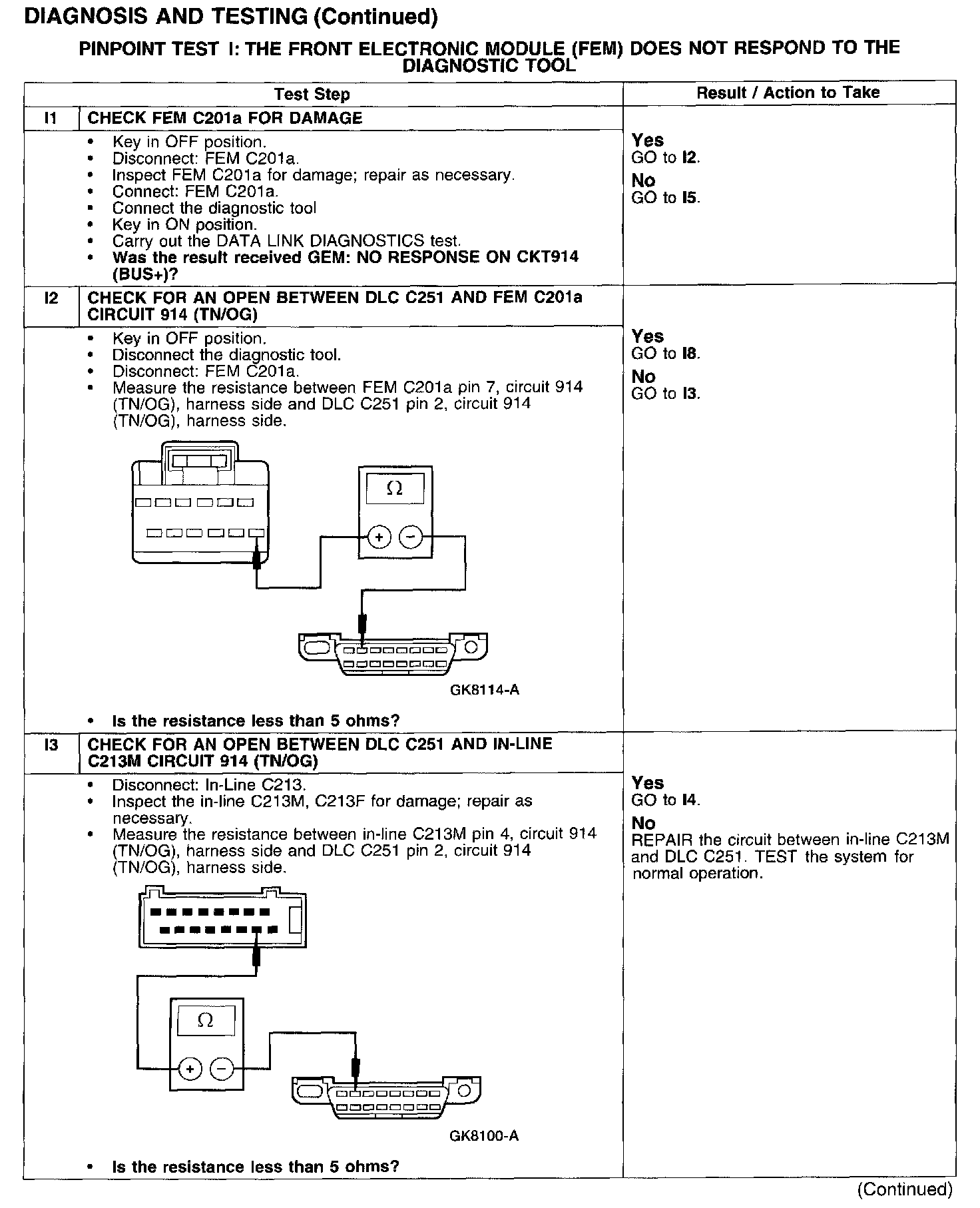

Test I1-I3:

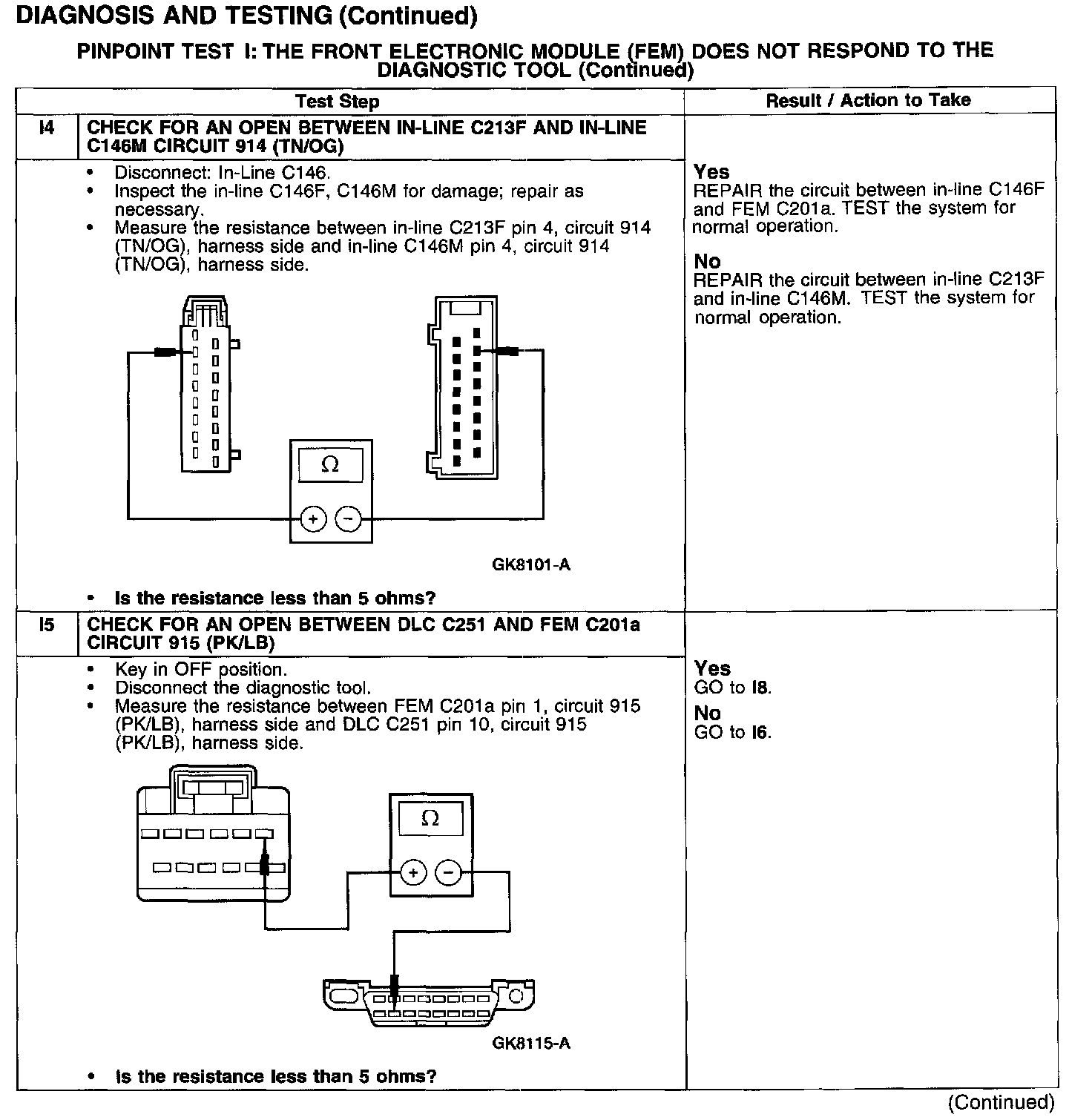

Test I4-I5:

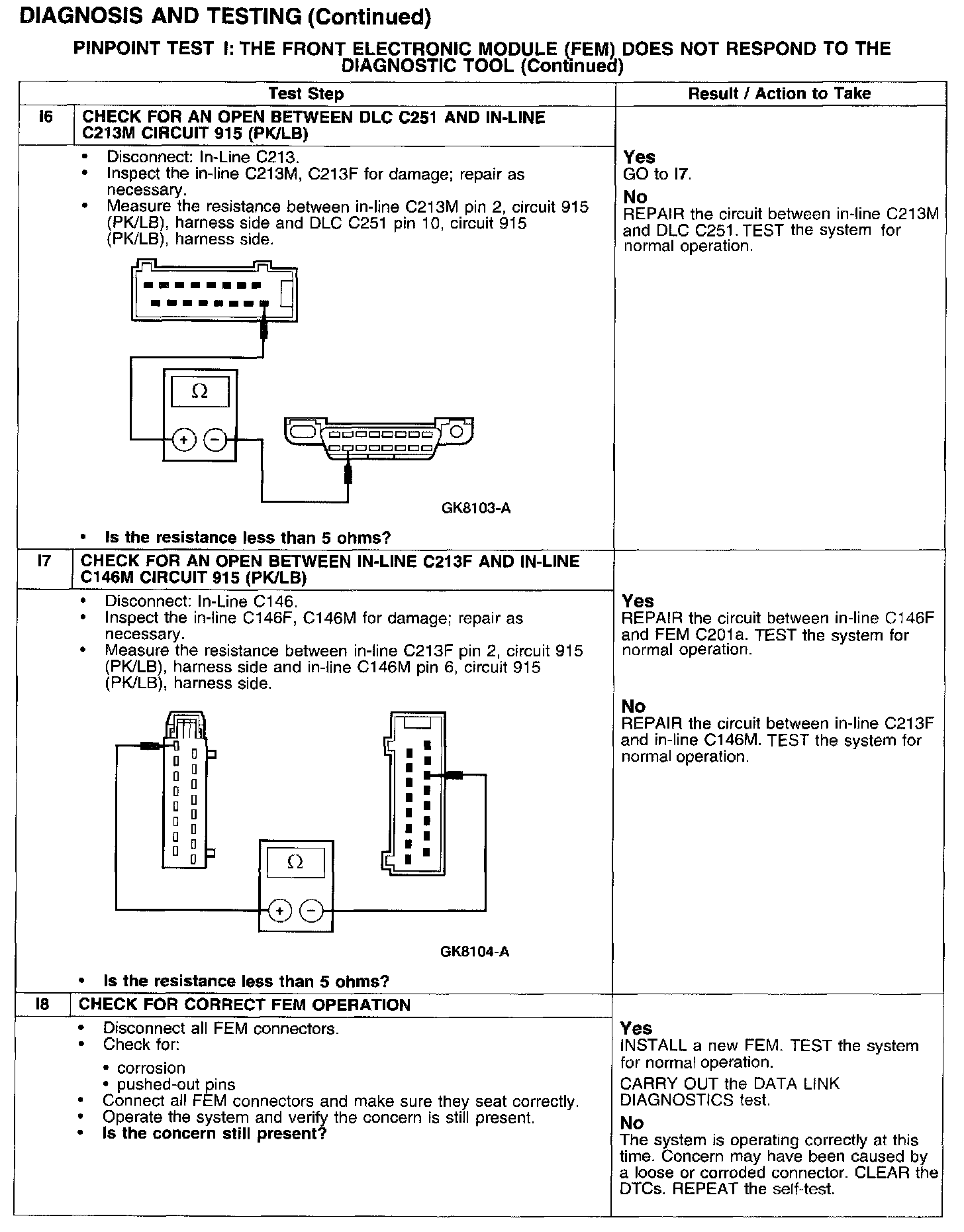

Test I6-I8:
