Test M

PINPOINT TEST M: NO STANDARD CORPORATE PROTOCOL (SCP) MODULE/NETWORK COMMUNICATION

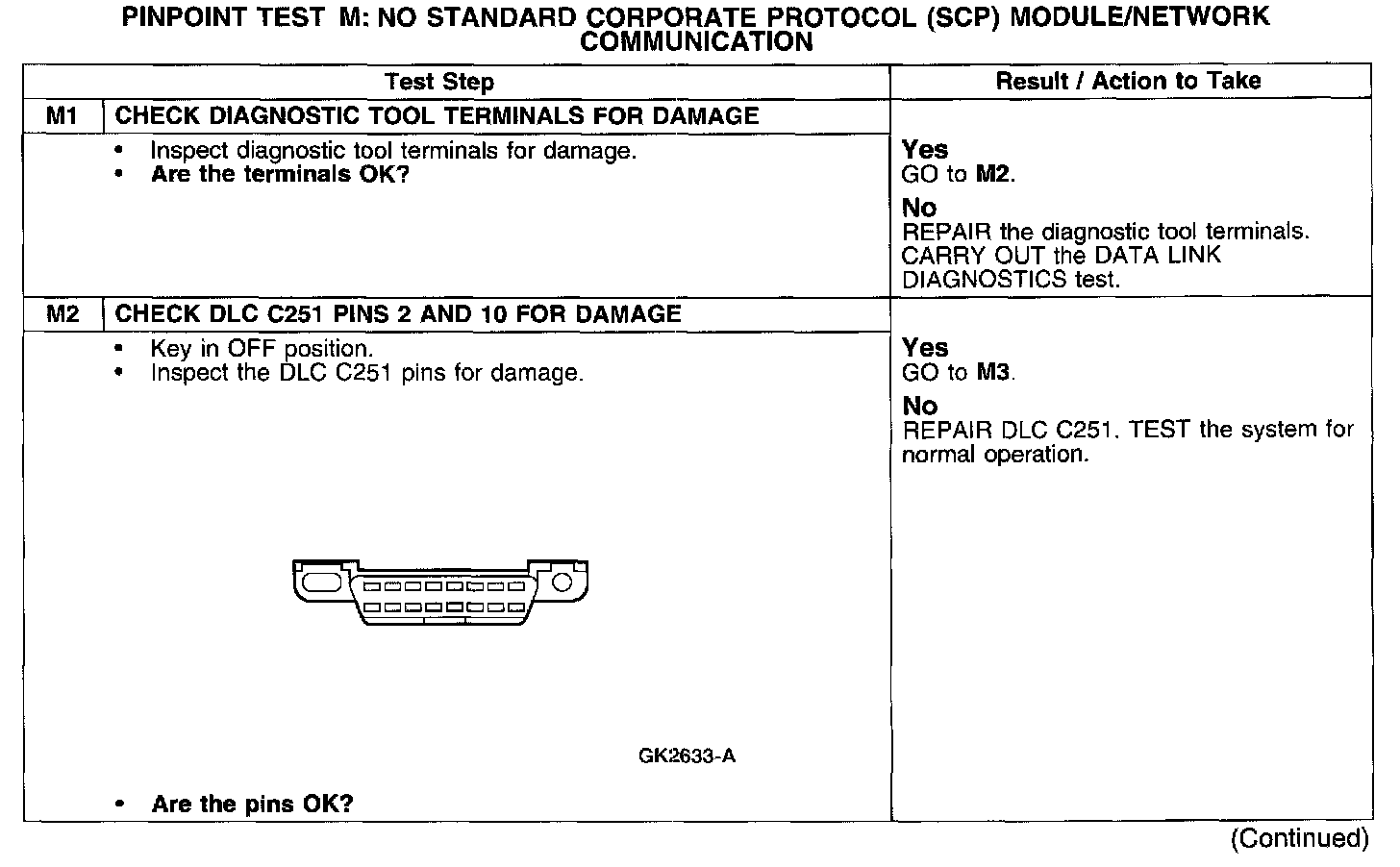

Test M1-M2:

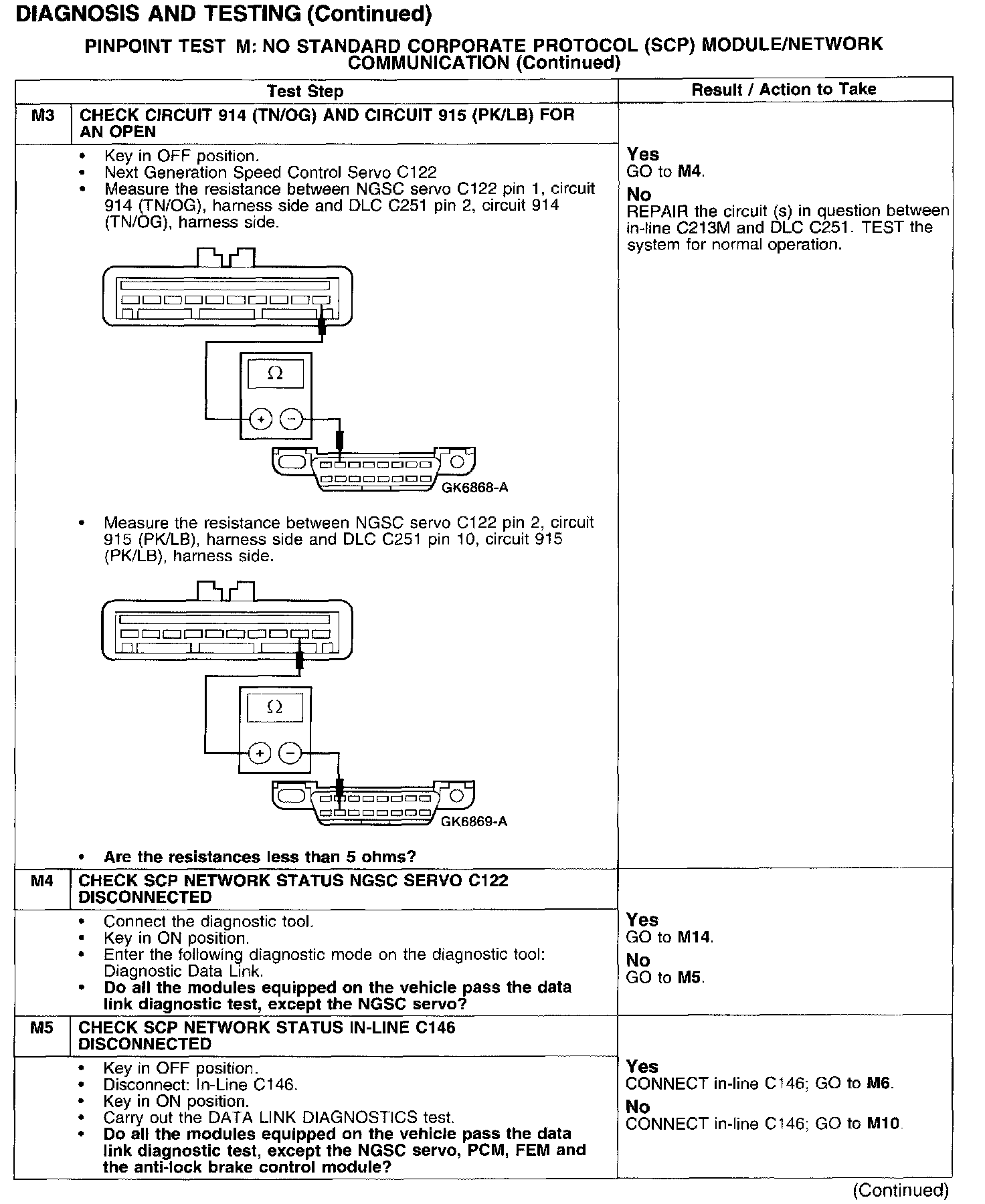

Test M3-M5:

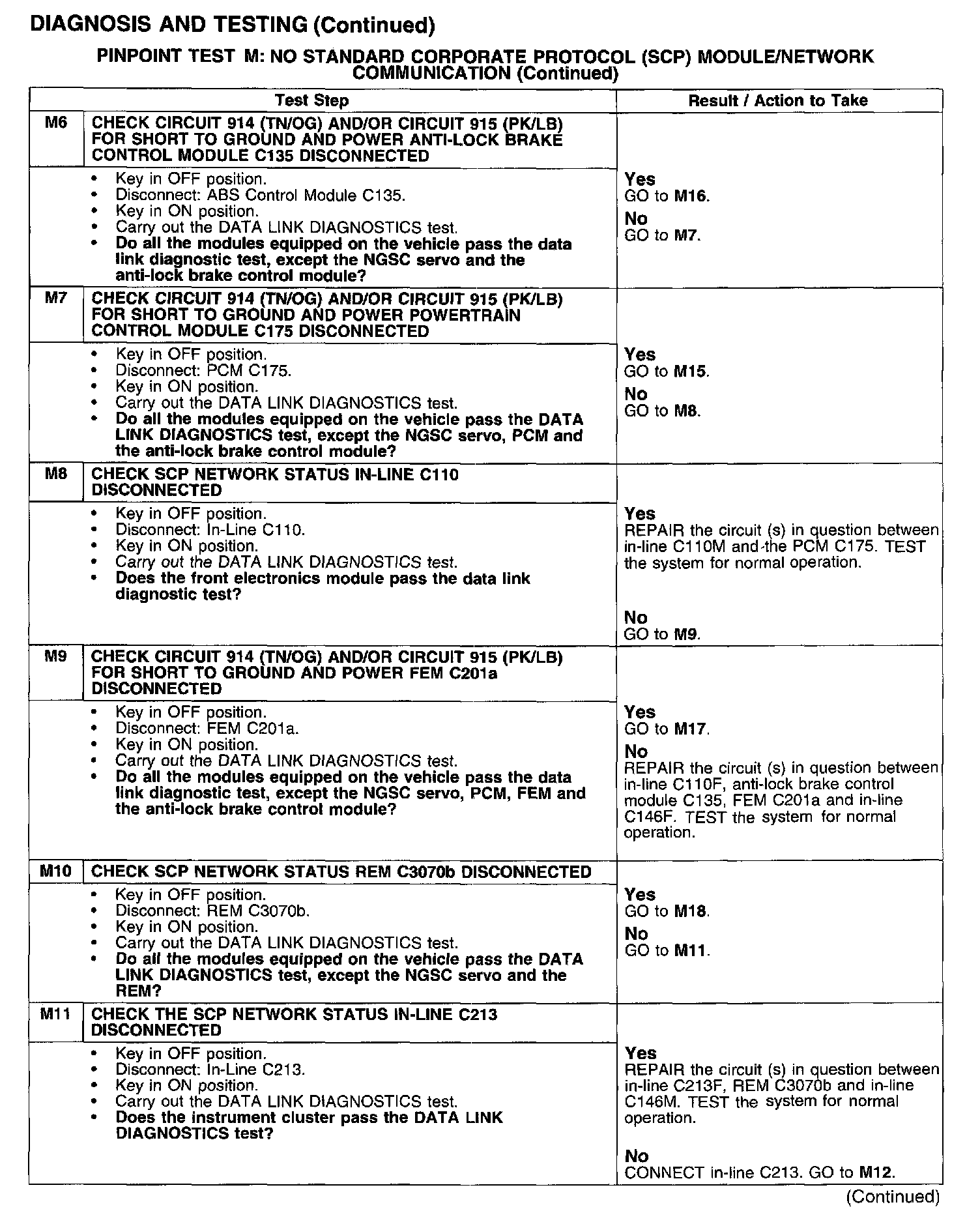

Test M6-M11:

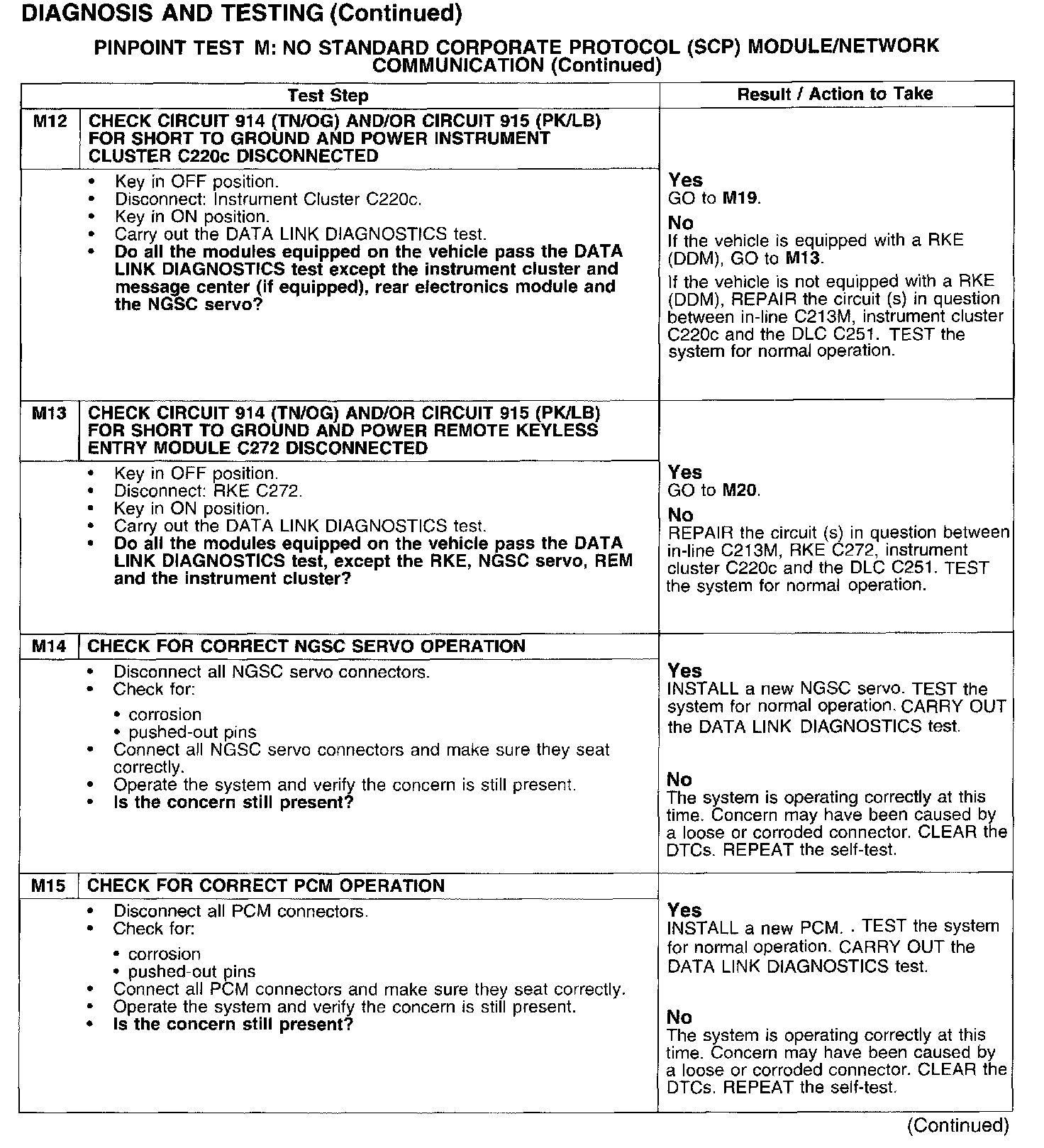

Test M12-M15:

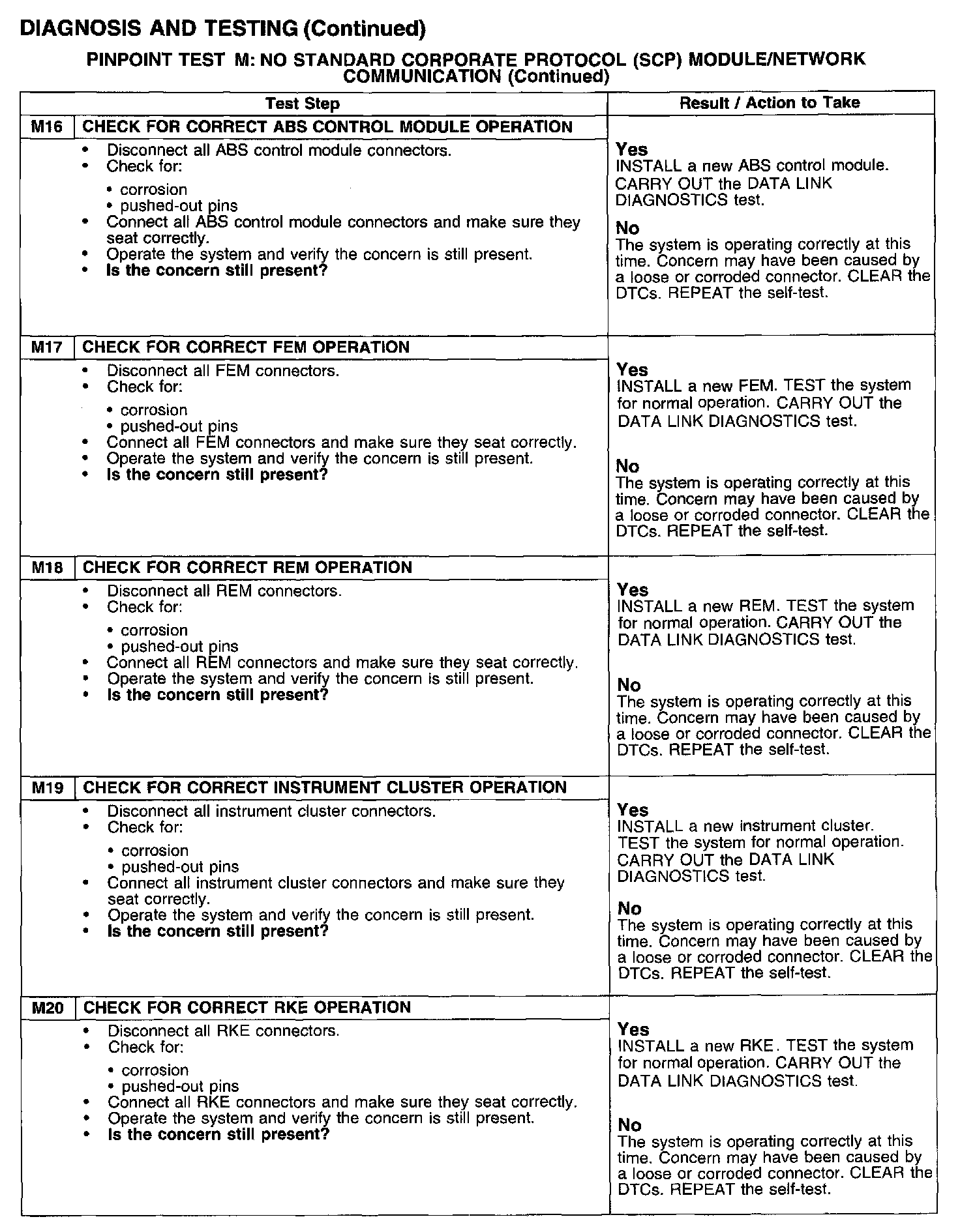

Test M16-M20:
