Removal And Installation

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The yaw rate sensor will be damaged if dropped. Do not use a damaged yaw rate sensor.

CAUTION: Make sure the yaw rate sensor is correctly positioned.

Remove the RH front seat. For additional information, refer to SEATING .
Remove the scuff plate trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

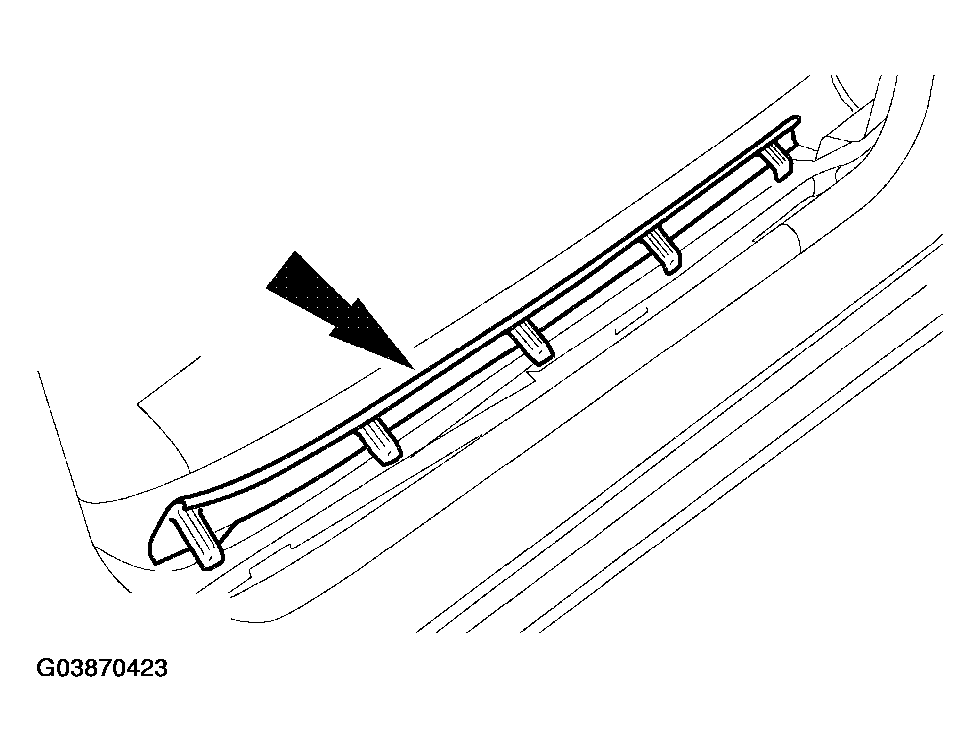

Fig 1: Removing Scuff Plate Trim Panel
Courtesy of FORD MOTOR CO.
Position the carpet aside.

Fig 2: Positioning Carpet Aside
Courtesy of FORD MOTOR CO.
Remove the sensor bracket bolts.

Fig 3: Removing Sensor Bracket Bolts
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

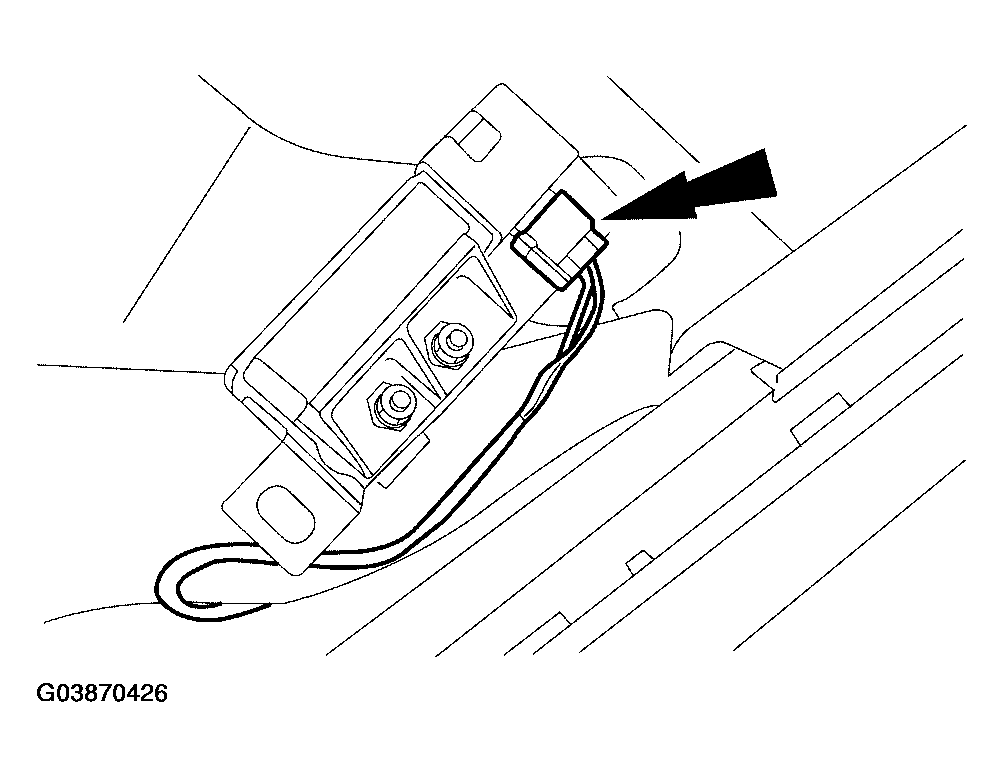

Fig 4: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the yaw rate sensor.

Fig 5: Removing Yaw Rate Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
