Disassembled Views - External Components

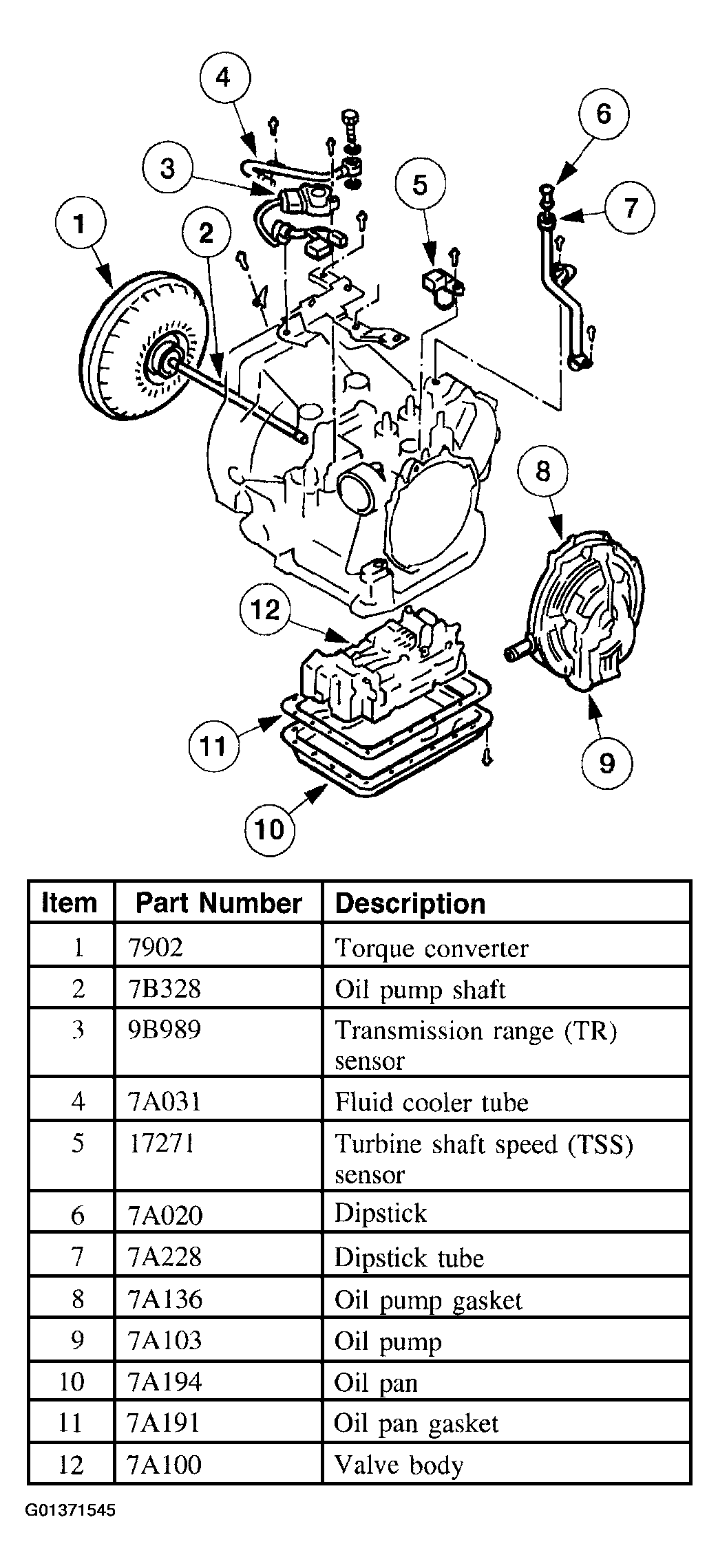

Fig 1: Identifying Automatic Transmission Disassembled Views - External Components
G01371545Courtesy of FORD MOTOR CO.
