Disassembled Views - Internal Components

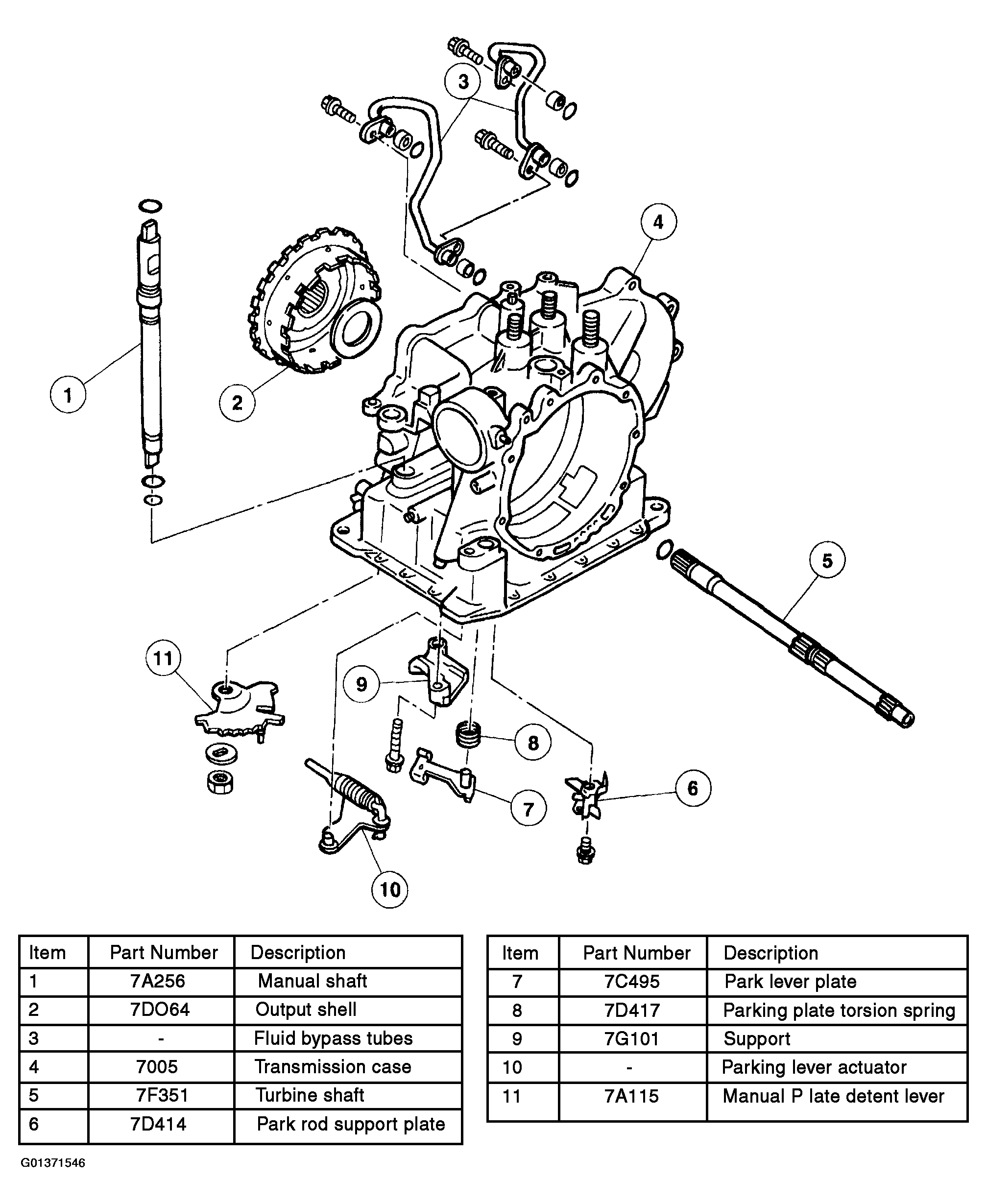

Fig 1: Exploded View Of Automatic Transmission - Internal Components
G01371546Courtesy of FORD MOTOR CO.
