Upper and Main Control Valve Bodies

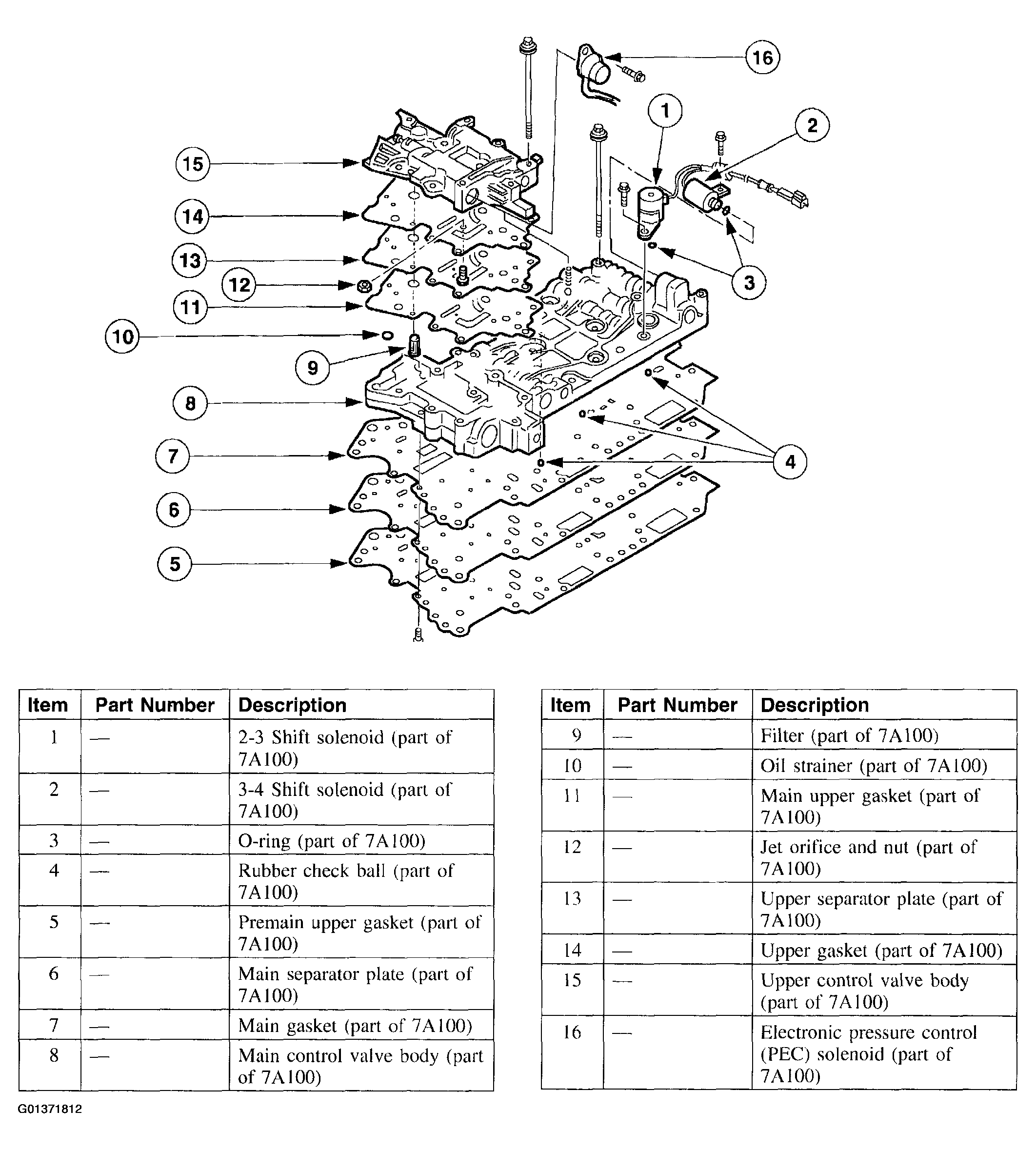

Fig 1: Disassembled View Of Upper And Main Control Valve Bodies
G01371812Courtesy of FORD MOTOR CO.
