Special Tool(s)

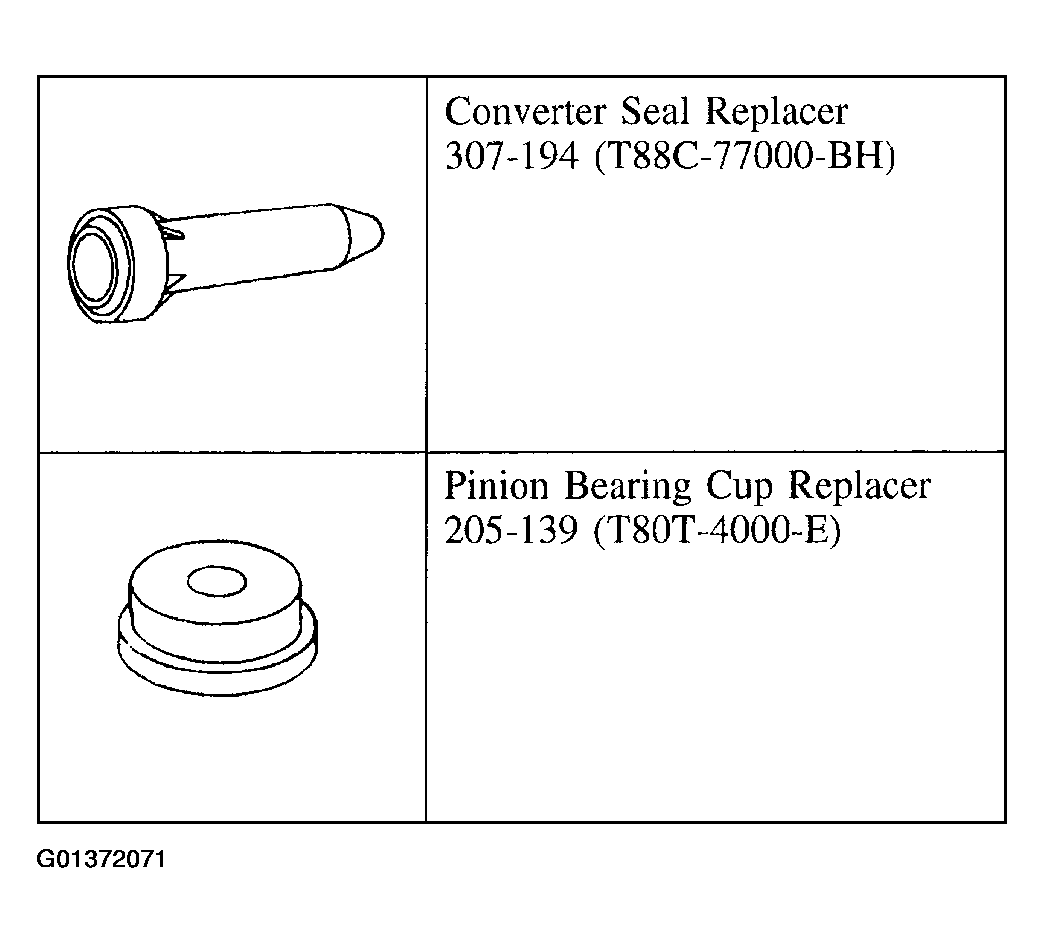

Fig 1: Identifying Special Tool(s)
G01372071Courtesy of FORD MOTOR CO.

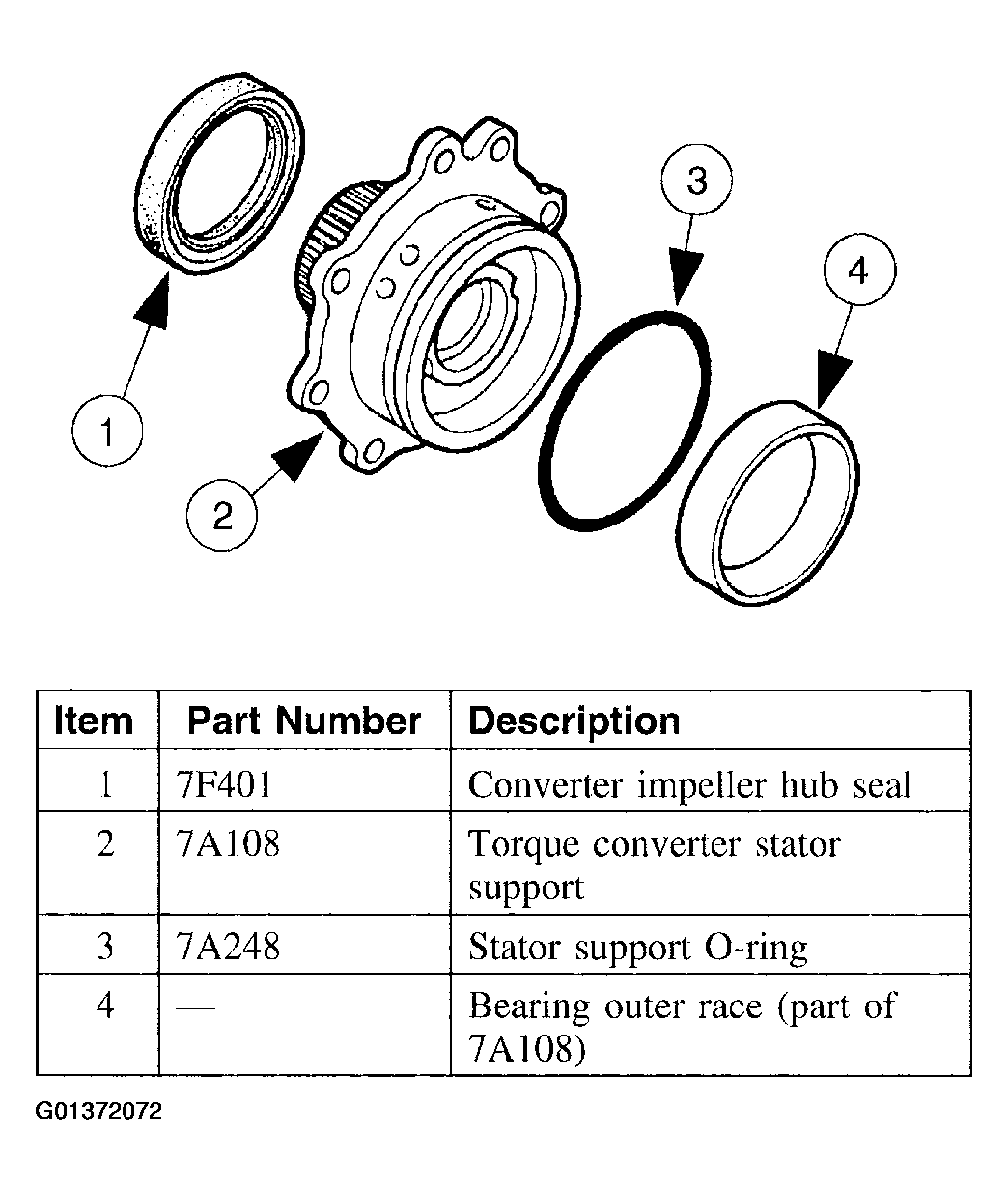

Fig 2: Assembling Torque Converter Components
G01372072Courtesy of FORD MOTOR CO.
