Connecting Rod Bushing Diameter

Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
- Refer to GENERAL SPECIFICATIONS .
- If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

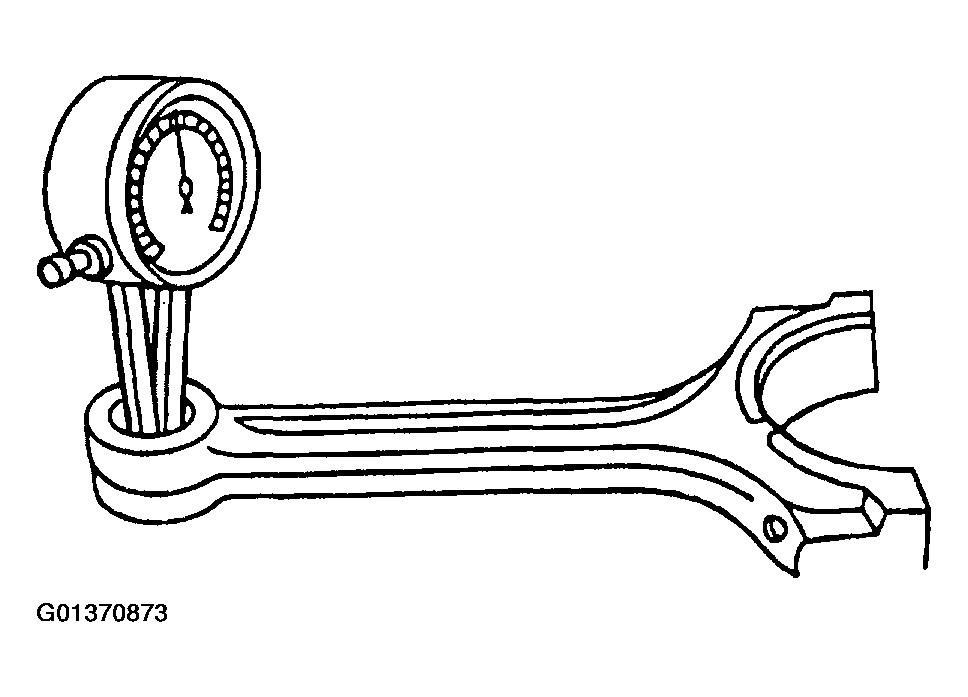

Fig 1: Measuring Inner Diameter Of Connecting Rod Bushing
Courtesy of FORD MOTOR CO.
