Audio Unit

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
Remove the console finish panel. For additional information, Refer to BODY SYSTEM - INTERIOR .
View 1 of 2. Remove the components in the order indicated in Fig 1.

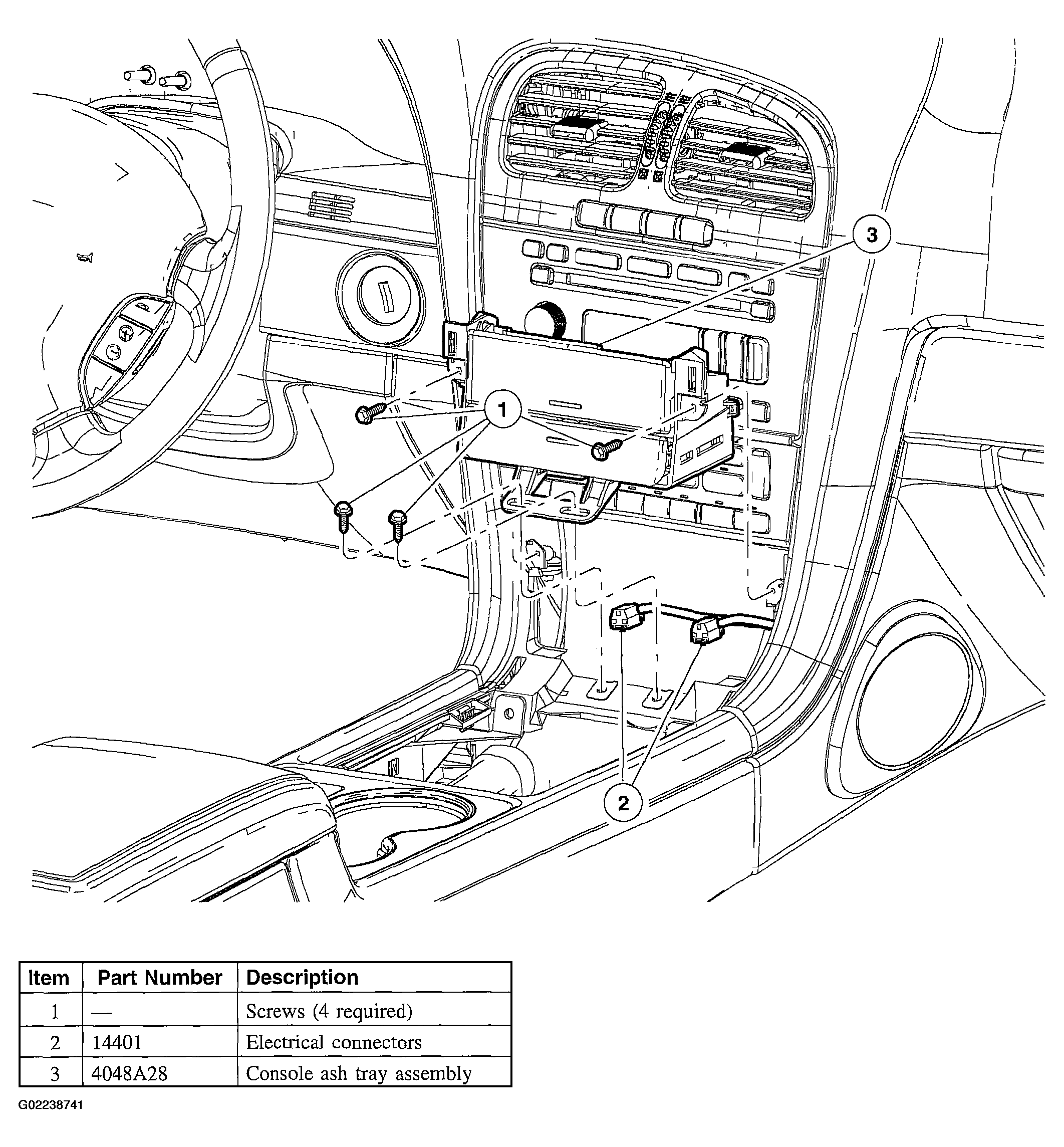

Fig 1: Removing Sequence Of Audio Unit (1 Of 2)
Courtesy of FORD MOTOR CO.
View 2 of 2. Remove the components in the order indicated in Fig 2.

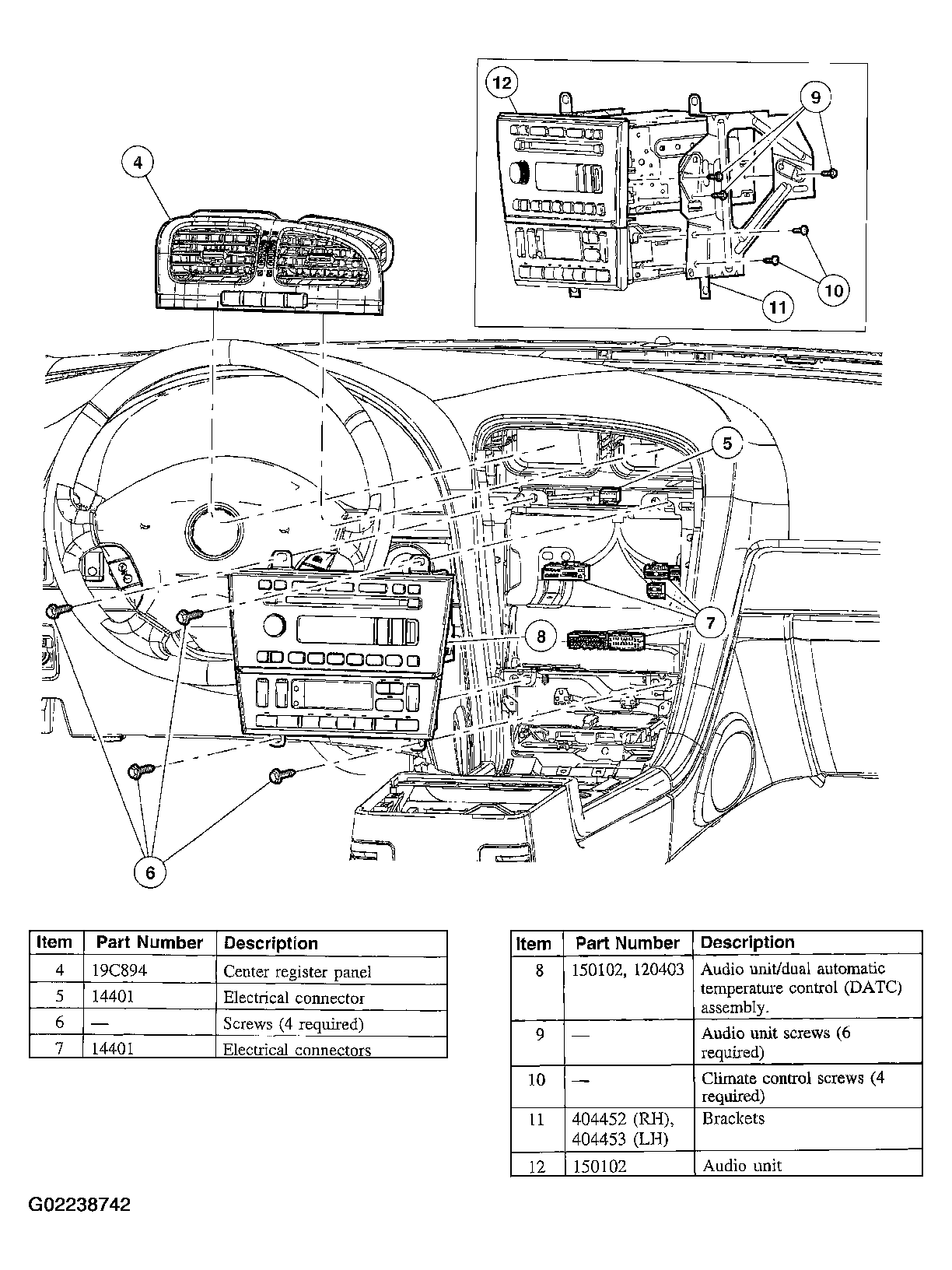

Fig 2: Removing Sequence Of Audio Unit (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
