Disassembled Views - Apply Components

WARNING: This page is about a different variant/trim than selected.

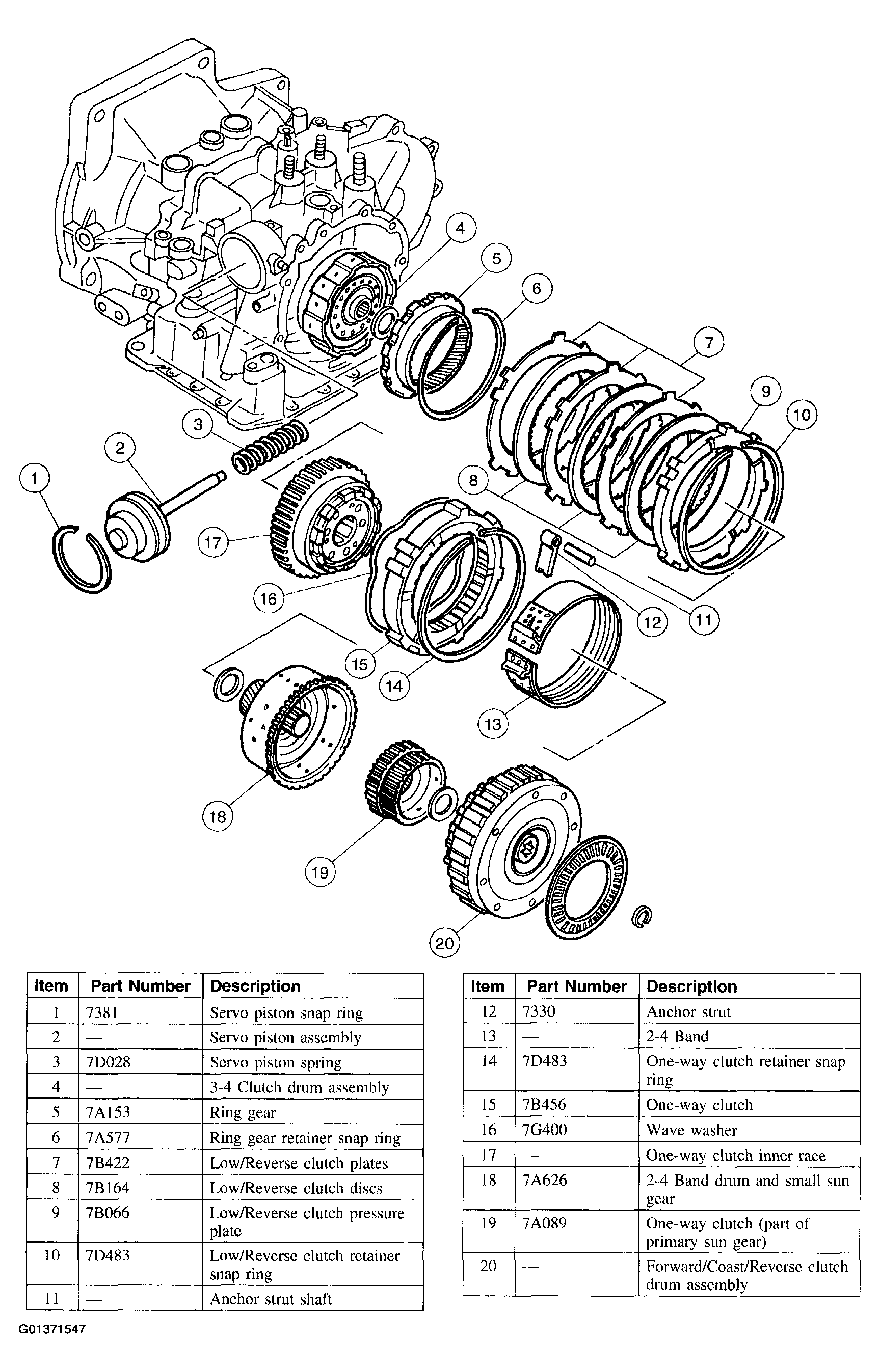

Fig 1: Exploded View Of Automatic Transmission - Apply Components
G01371547Courtesy of FORD MOTOR CO.
