Clutch/Band Application Charts

WARNING: This page is about a different variant/trim than selected.

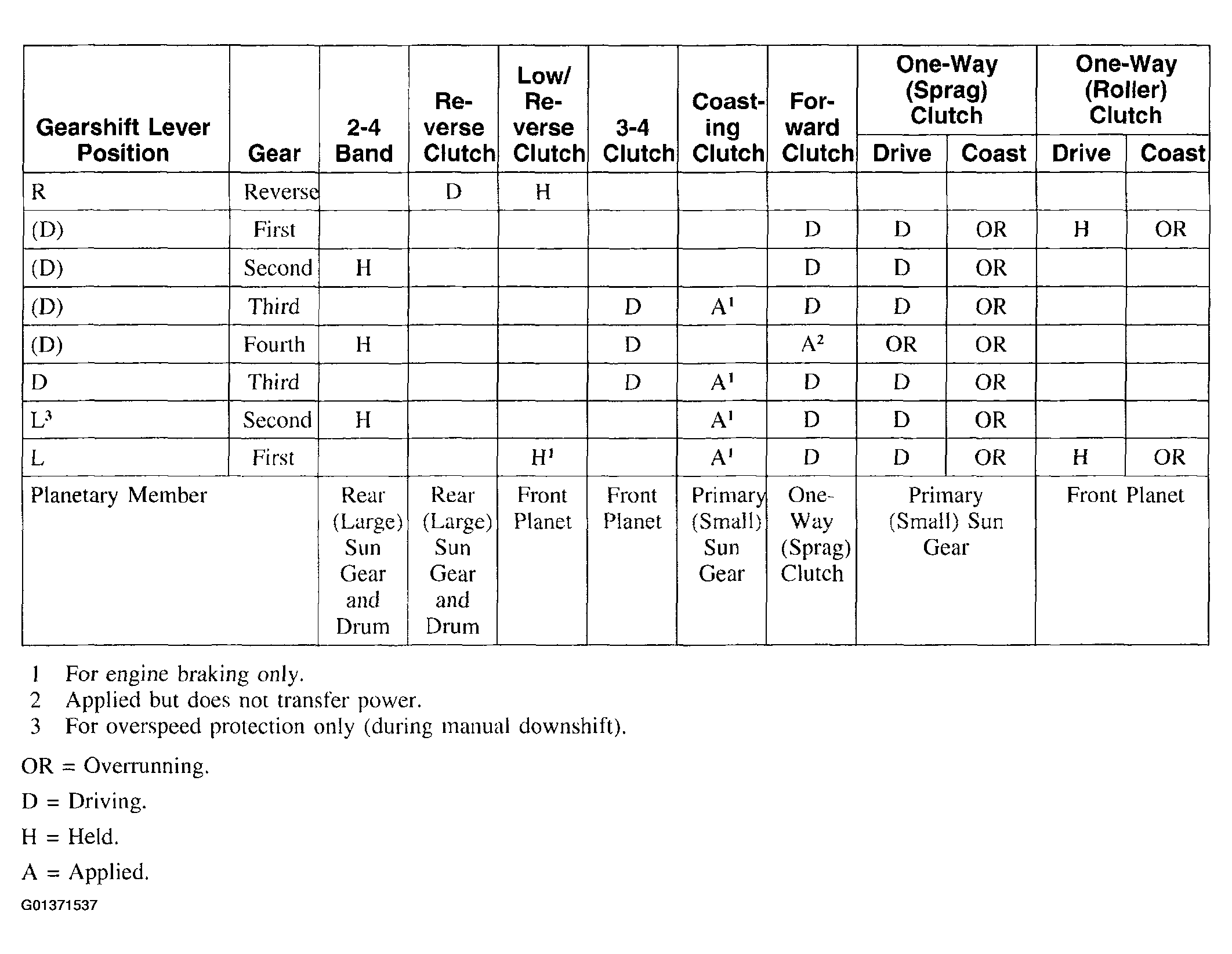

Fig 1: Clutch/Band Application Charts
G01371537Courtesy of FORD MOTOR CO.
