Shift Linkage: Notes

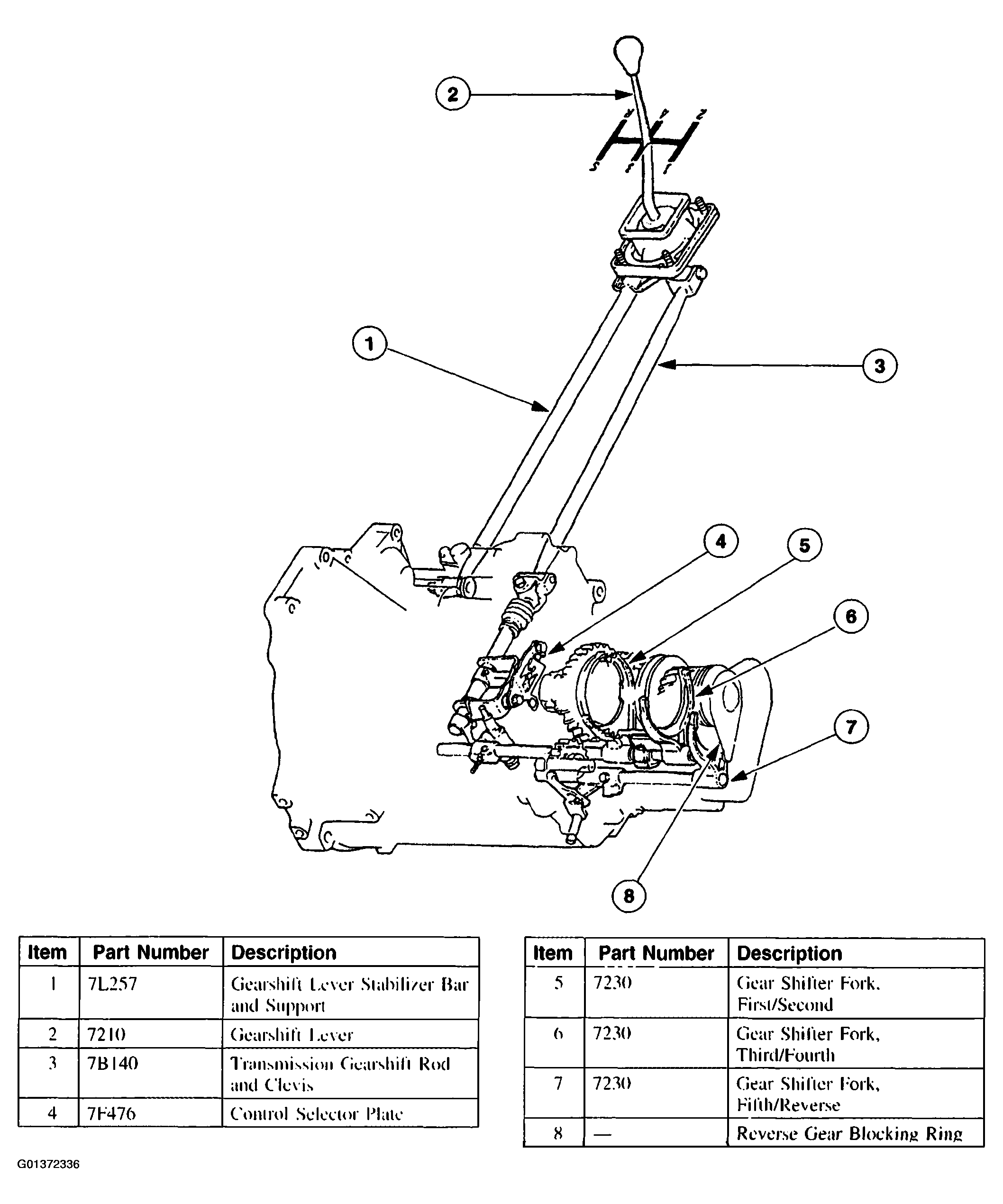

Fig 1: Identifying Shift Linkage Components
G01372336Courtesy of FORD MOTOR CO.
