Vehicle Speed Sensor (VSS): Removal

  1. Disconnect the vehicle speed sensor (VSS) electrical connector.

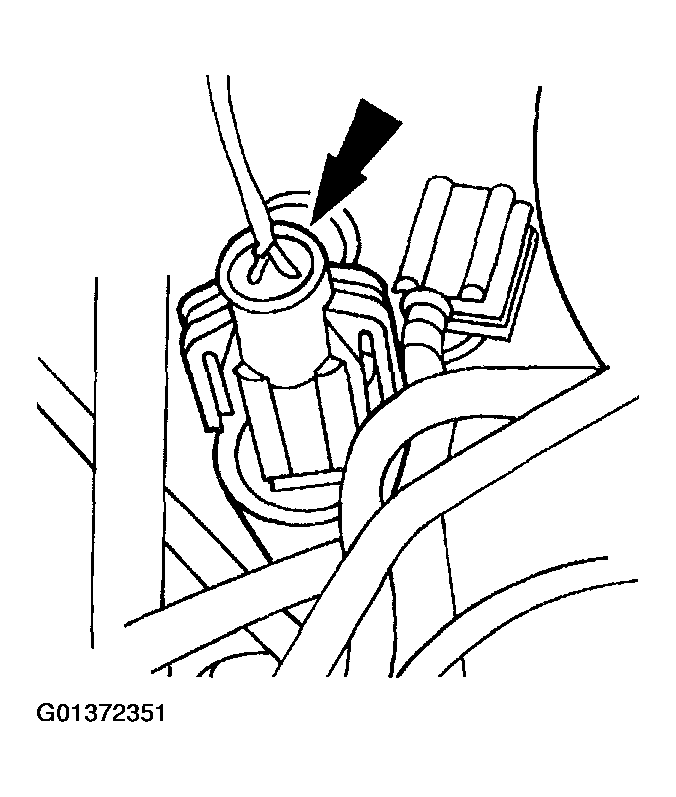

    Fig 1: Disconnecting VSS Connector
    G01372351Courtesy of FORD MOTOR CO.
  2. Remove the bolt and the VSS.

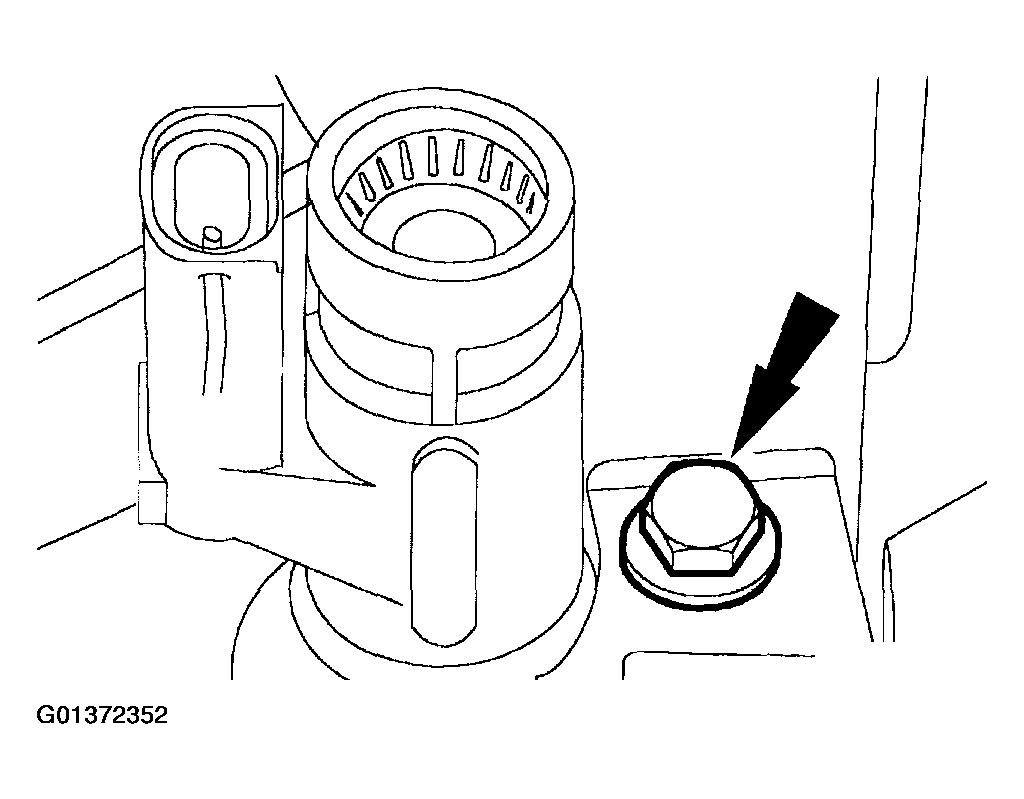

    Fig 2: Removing Bolt And VSS
    G01372352Courtesy of FORD MOTOR CO.
