Forward Clutch Cylinder: Notes

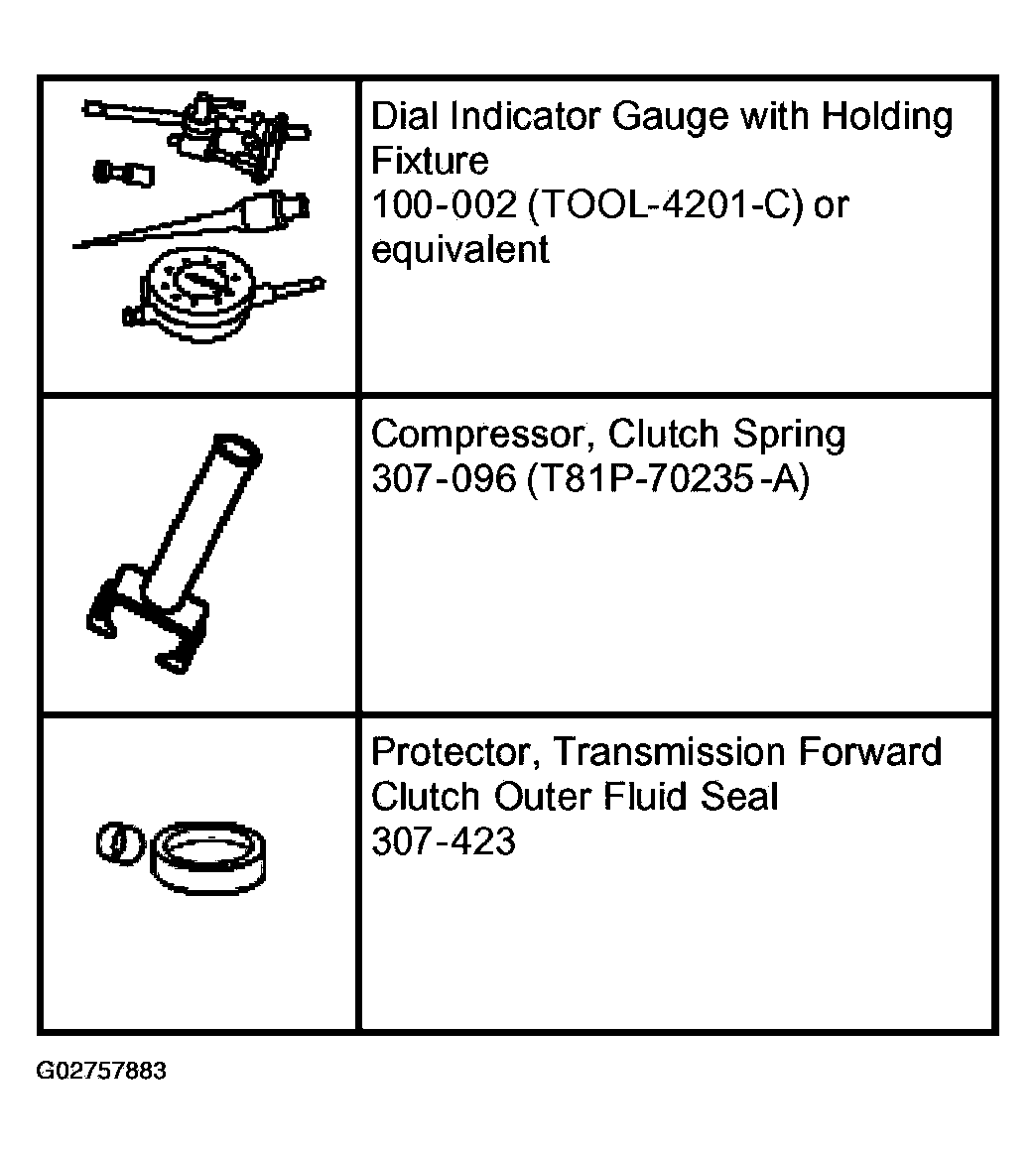

Fig 1: Identifying Special Tool(s)
G02757883Courtesy of FORD MOTOR CO.
MATERIAL SPECIFICATIONS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM, XT-5-DM MERCON® V

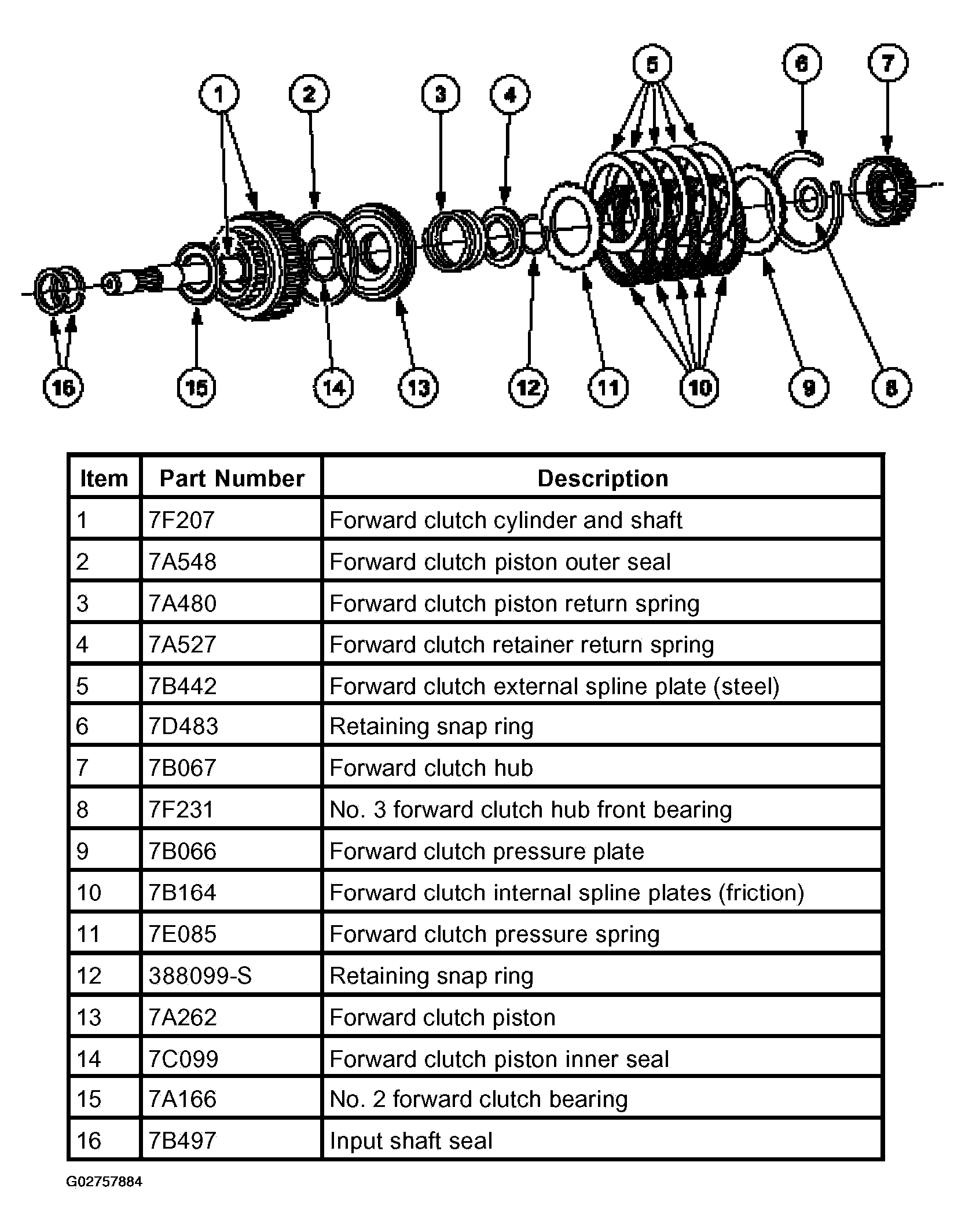

Fig 2: Disassembled View Of Forward Clutch
G02757884Courtesy of FORD MOTOR CO.
