Multifunction Electronic Modules

DIAGNOSTIC TROUBLE CODE (DTC) CHART

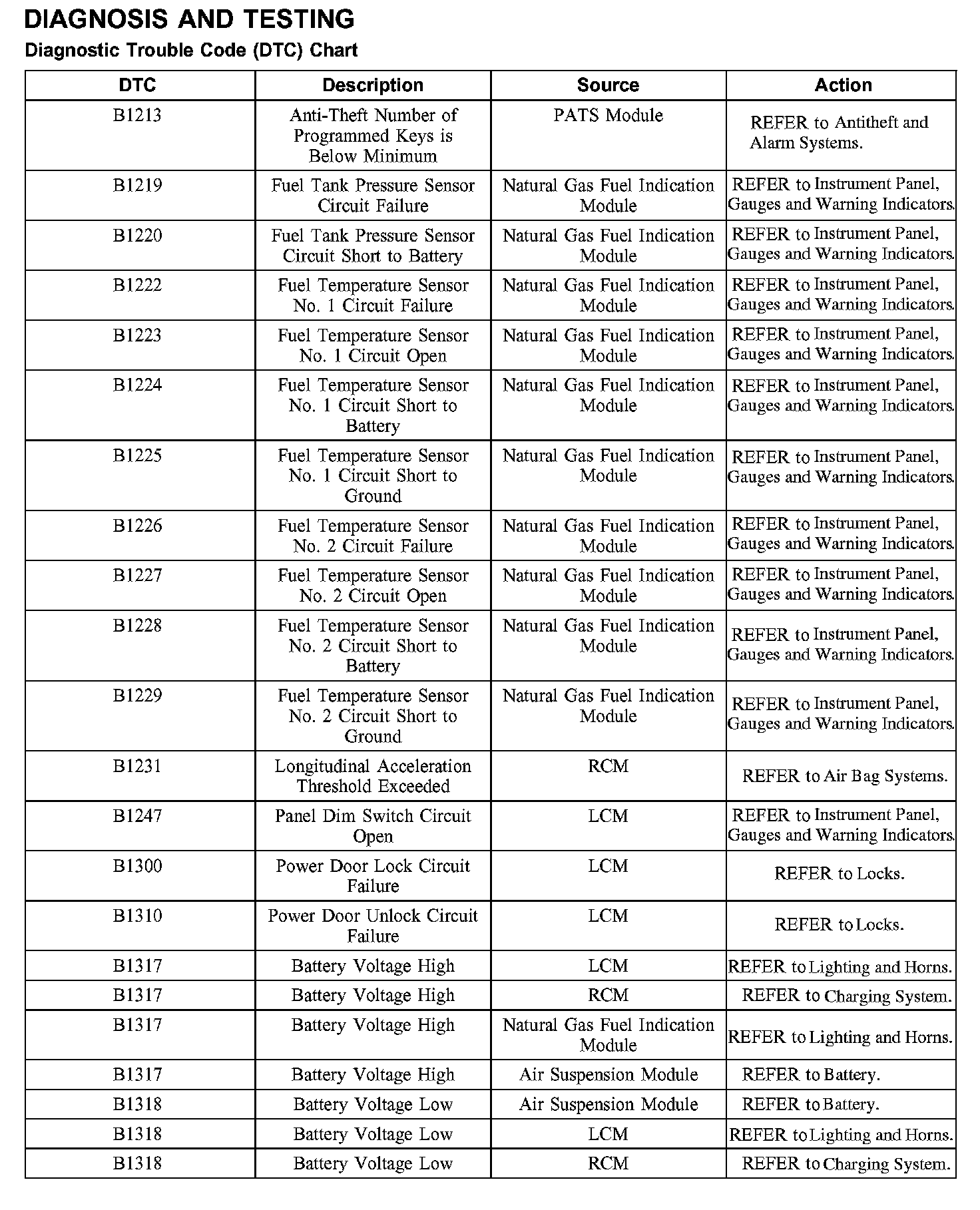

DTC Chart B1318 - B1342:

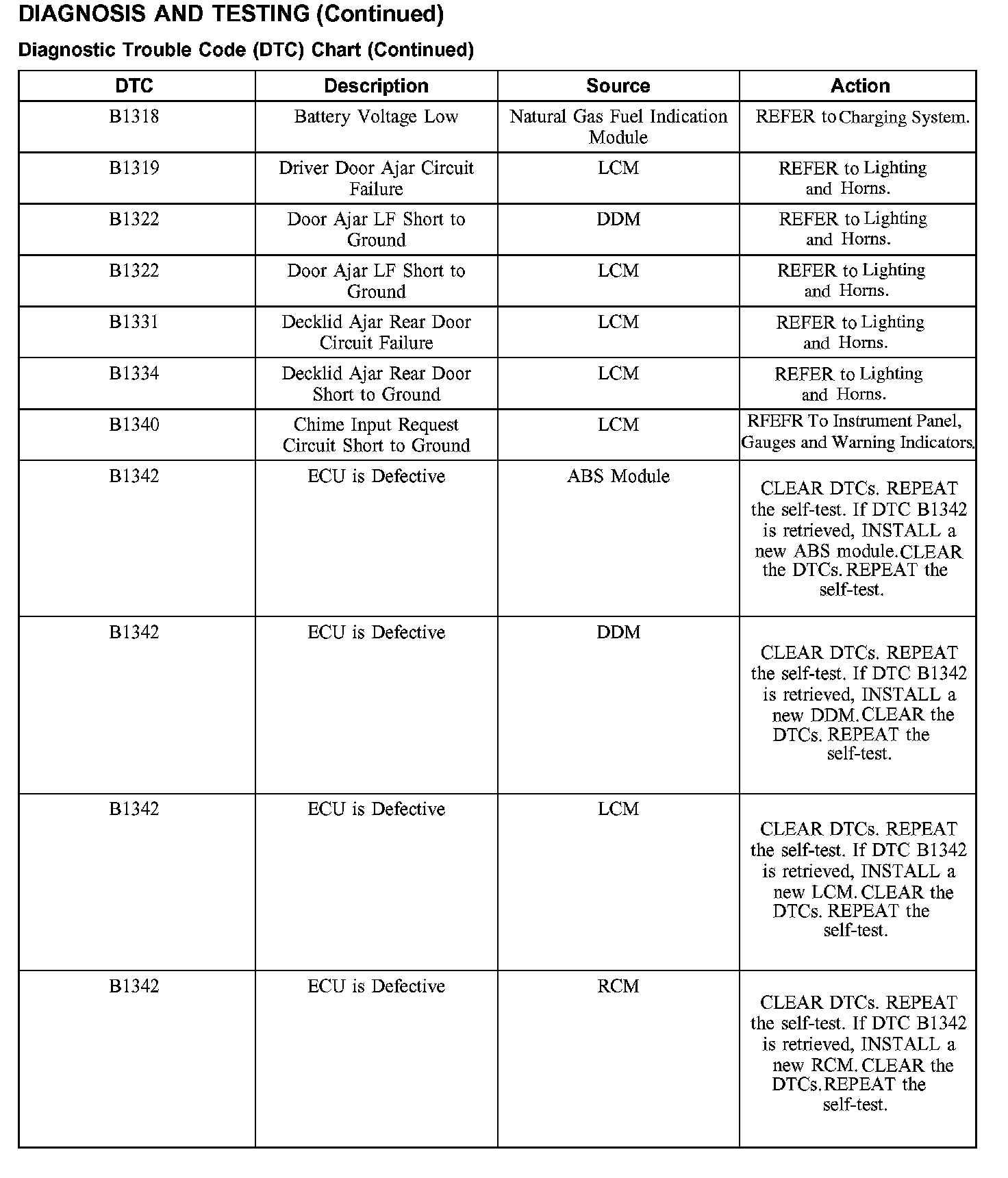

DTC Chart B1318 - B1342:

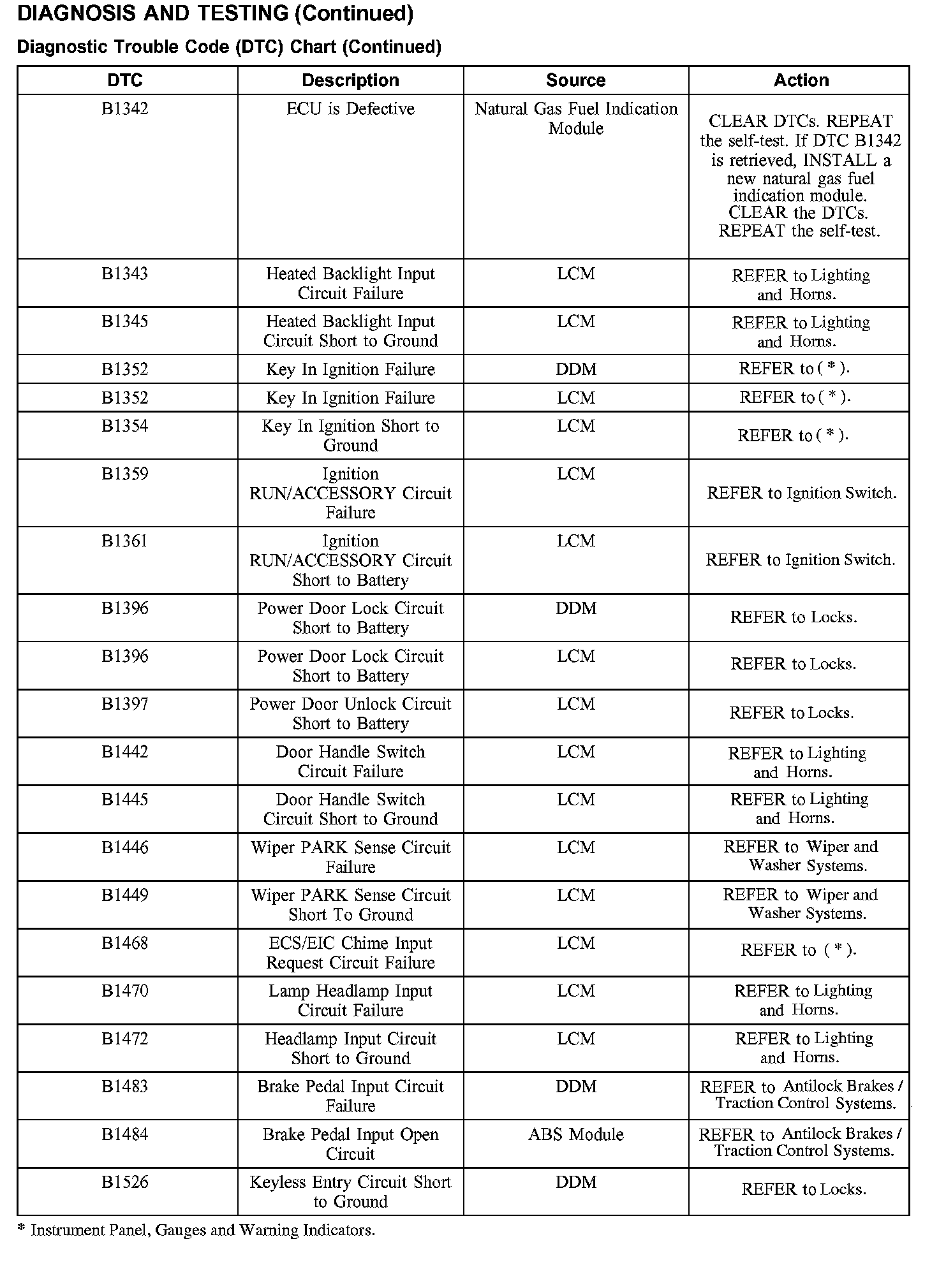

DTC Chart B1342 - B1526:

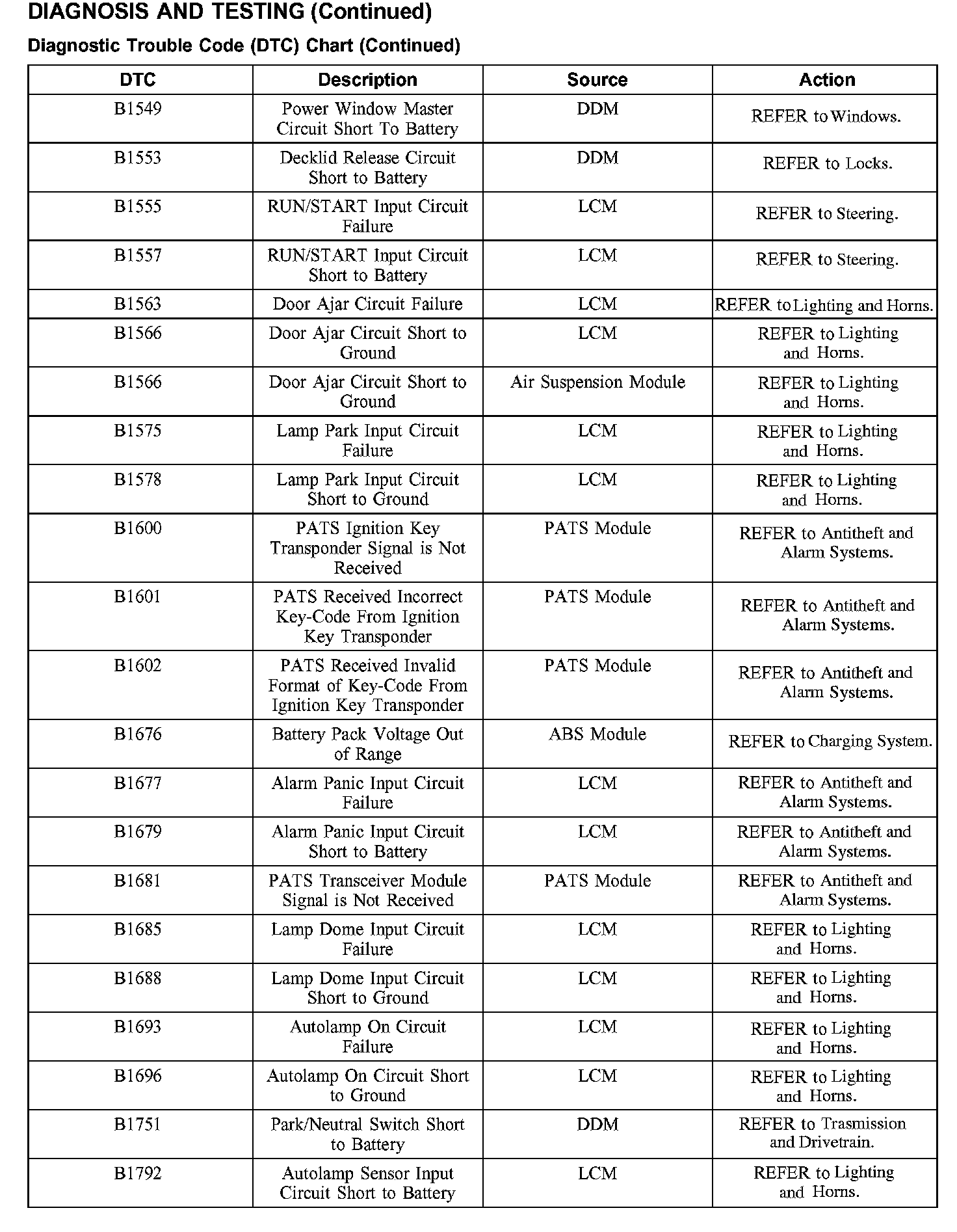

DTC Chart B1549 - B1792:

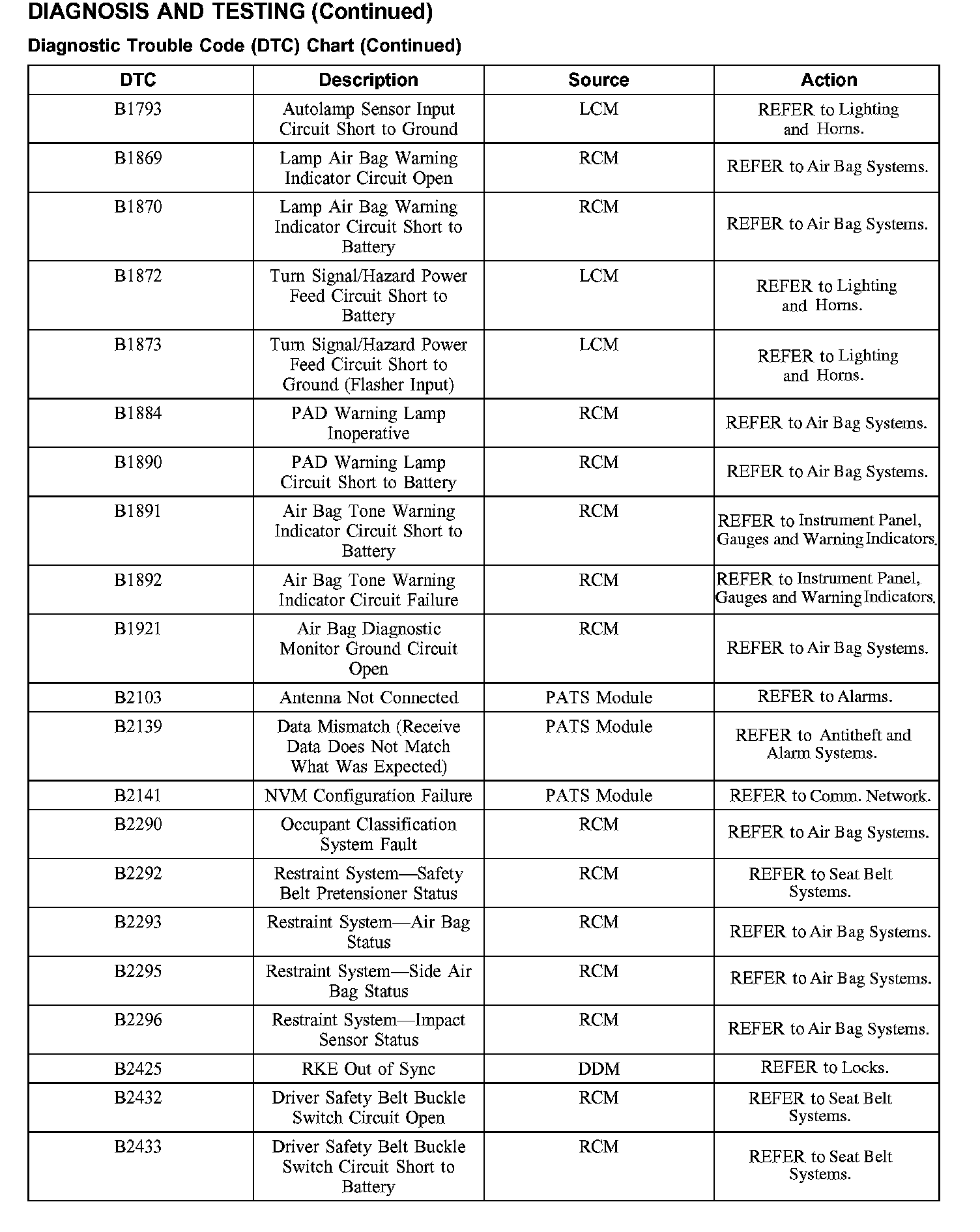

DTC Chart B1793 - B2433:

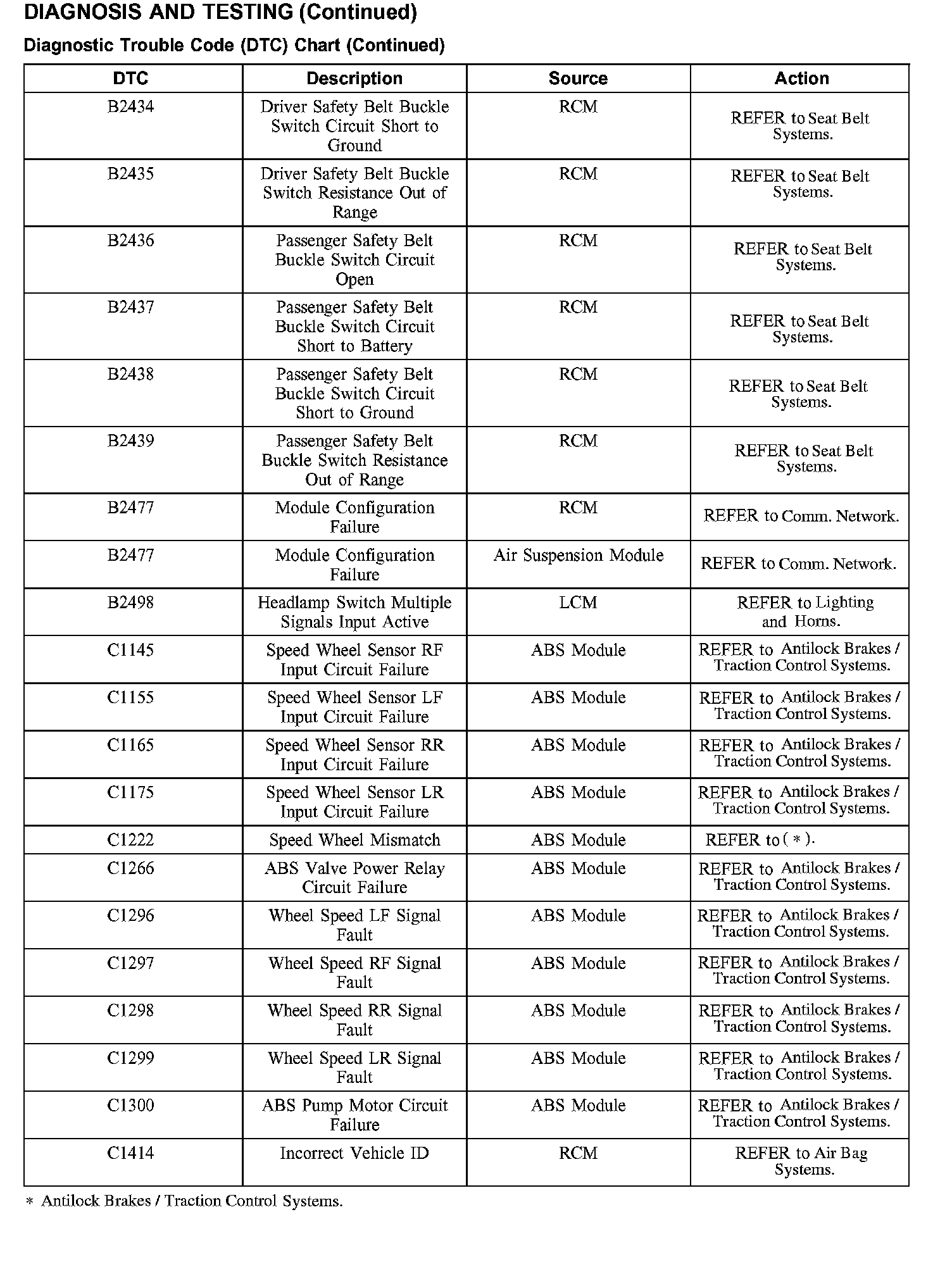

DTC Chart B2434 - C1414:

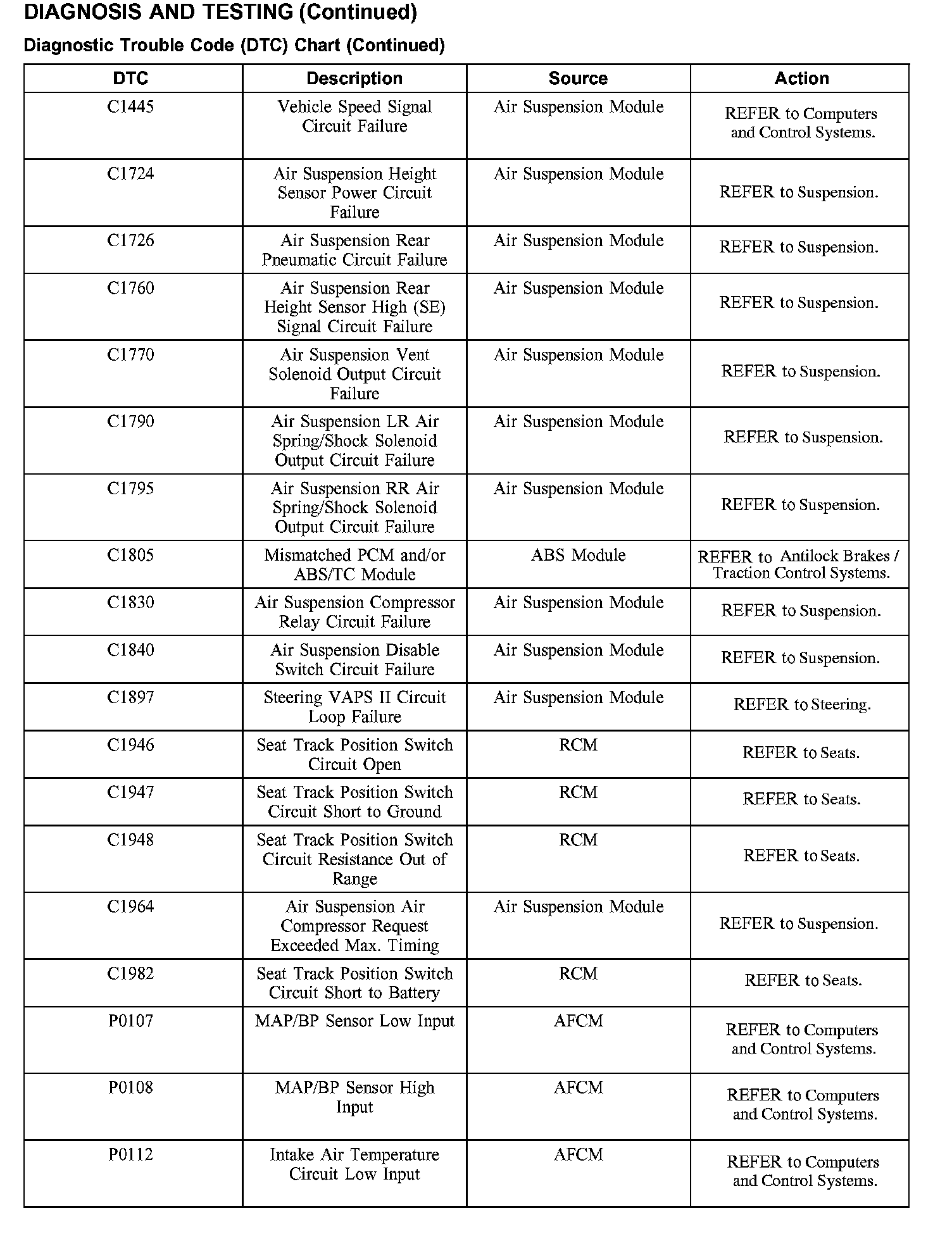

DTC Chart C1445 - P0112:

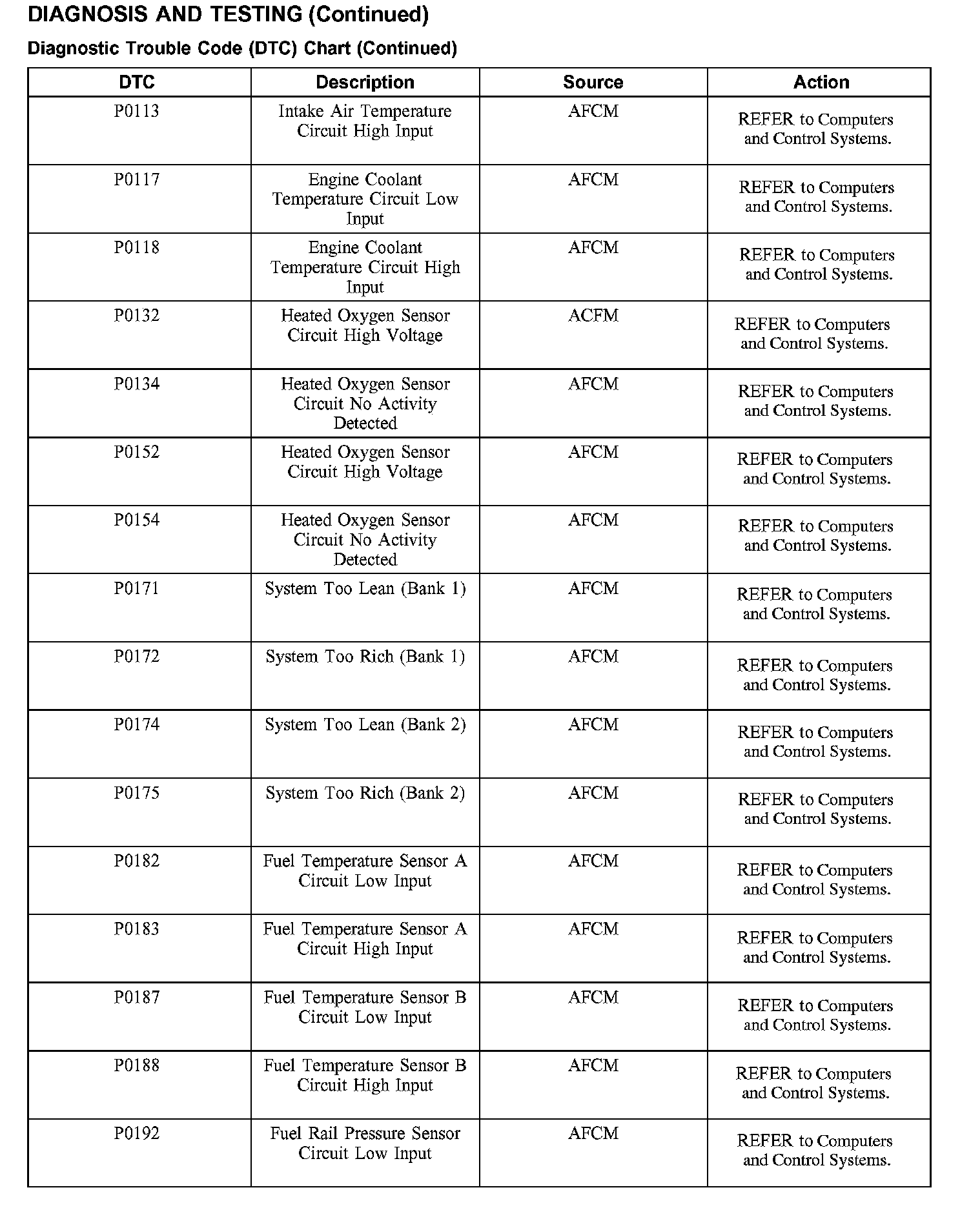

DTC Chart P0113 - P0192:

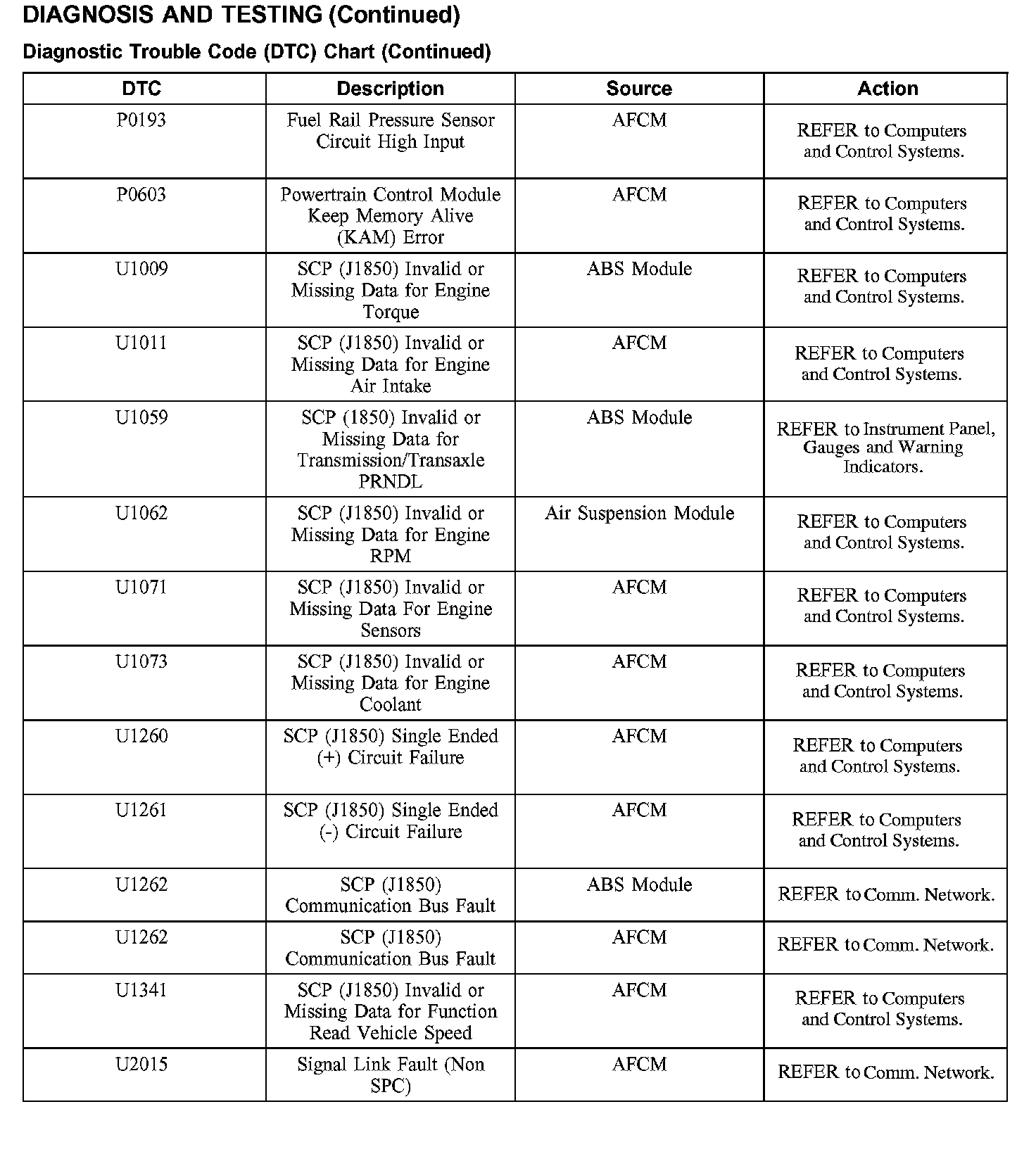

DTC Chart P0193 - U2015:
