Home
>>
Ford
>>
2004
>>
Escape 2.0 B
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
Engine-2.0L ZETEC
>>
Description And Operation
>>
Engine
>>
Cylinder Block Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cylinder Block Components

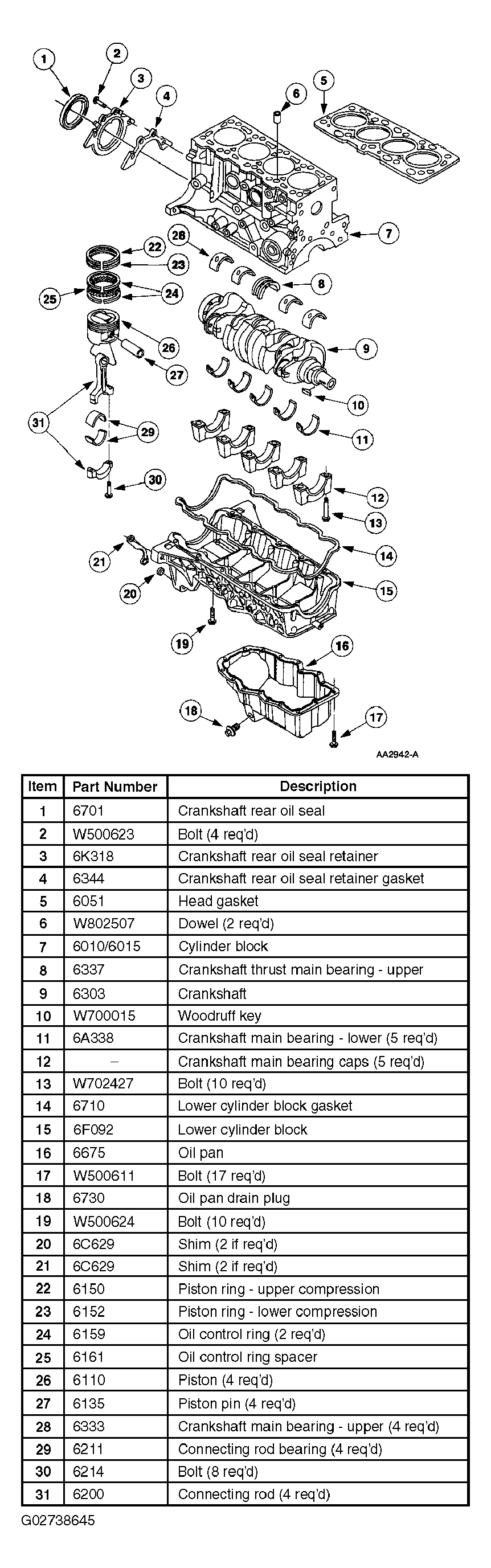

Fig 1: Identifying Cylinder Block Components
Courtesy of FORD MOTOR CO.
