Lower Engine Components

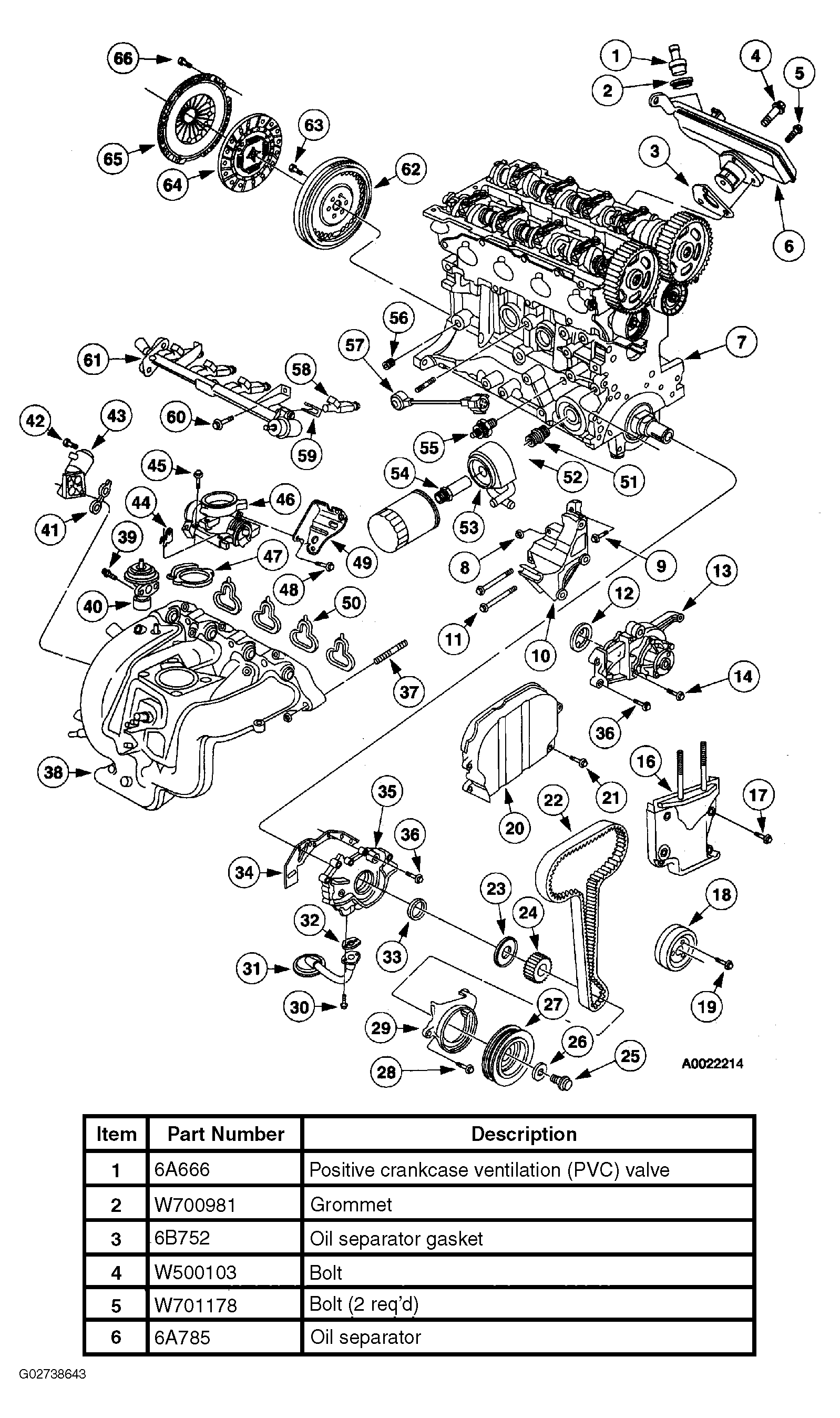

Fig 1: Identifying Lower Engine Components (Items 1-6)
G02738643Courtesy of FORD MOTOR CO.

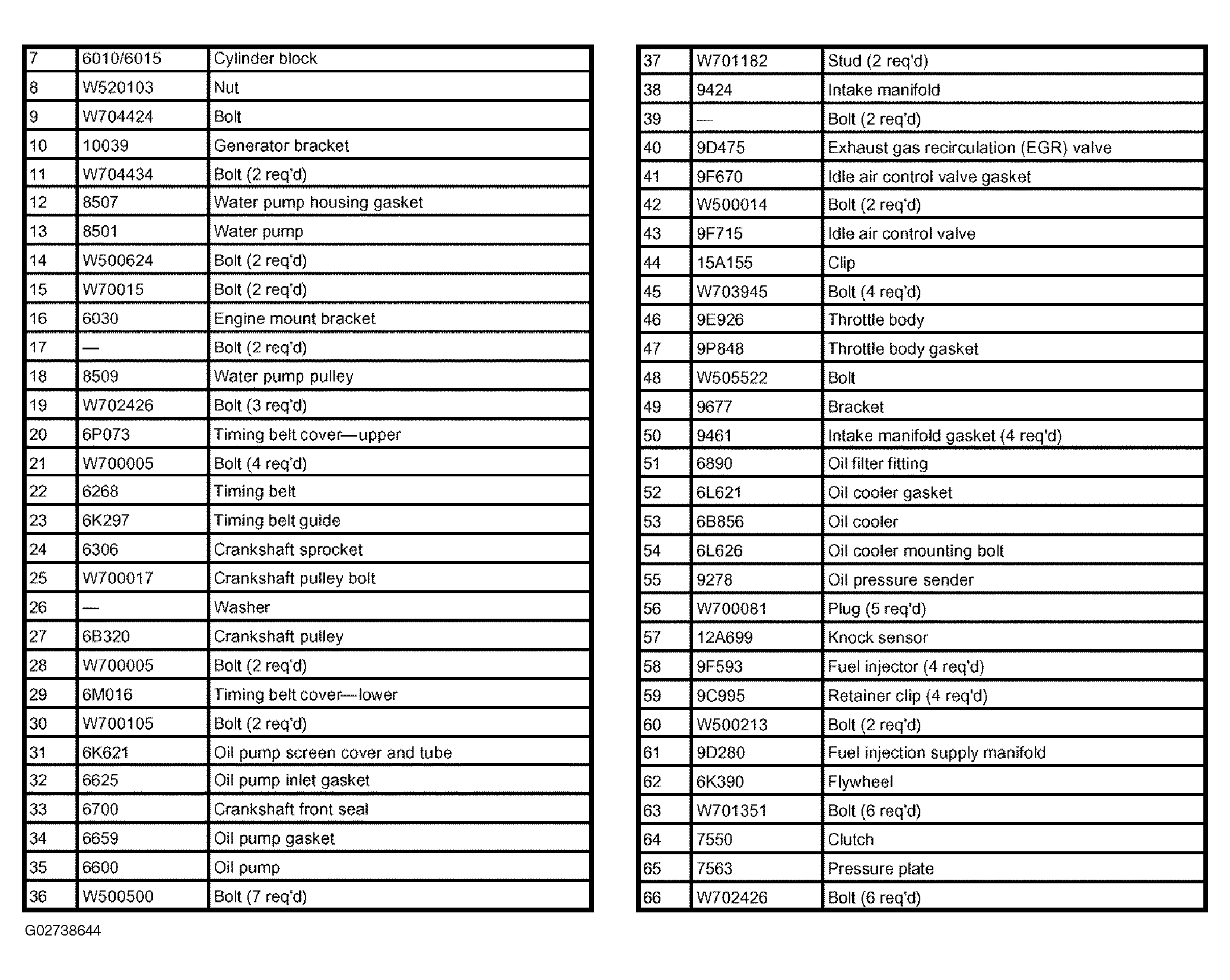

Fig 2: Identifying Lower Engine Components (Items 7-66)
G02738644Courtesy of FORD MOTOR CO.
