Piston Pin Diameter

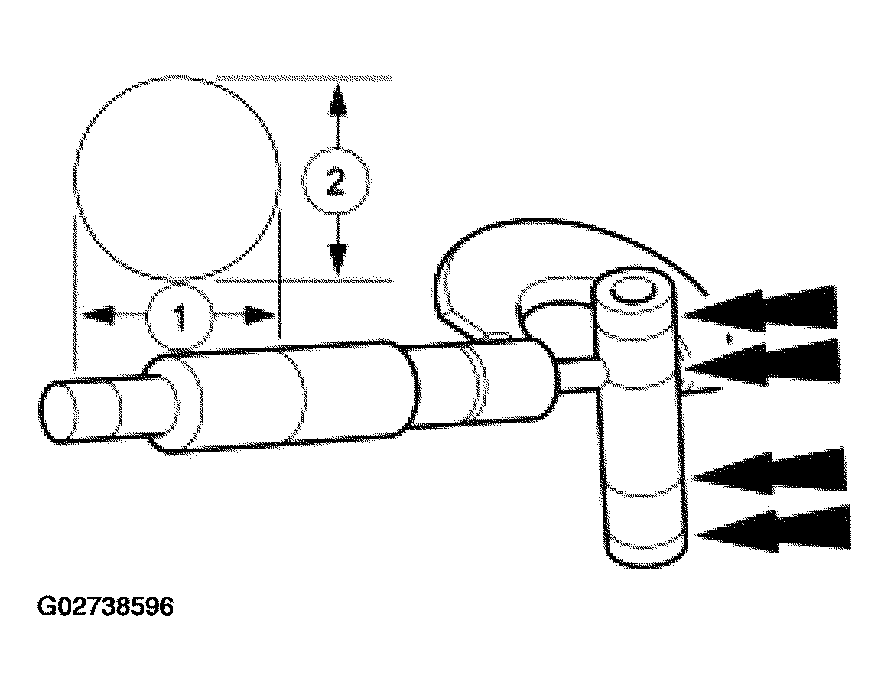

- Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
- Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) for specifications .
- If out of specification, install new components as necessary. Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) for the procedure .
