Dana S110

Rear Drive Axle and Differential

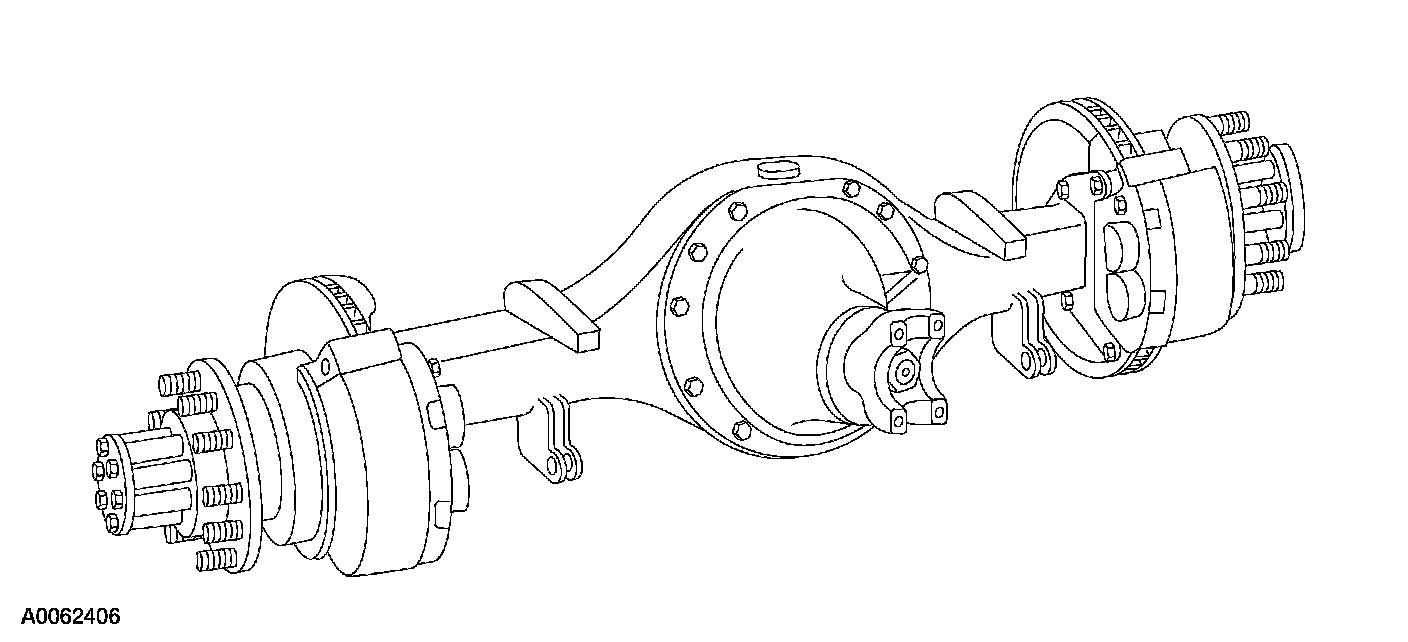

Dana Model S110 Full-Floating Rear Drive Axle

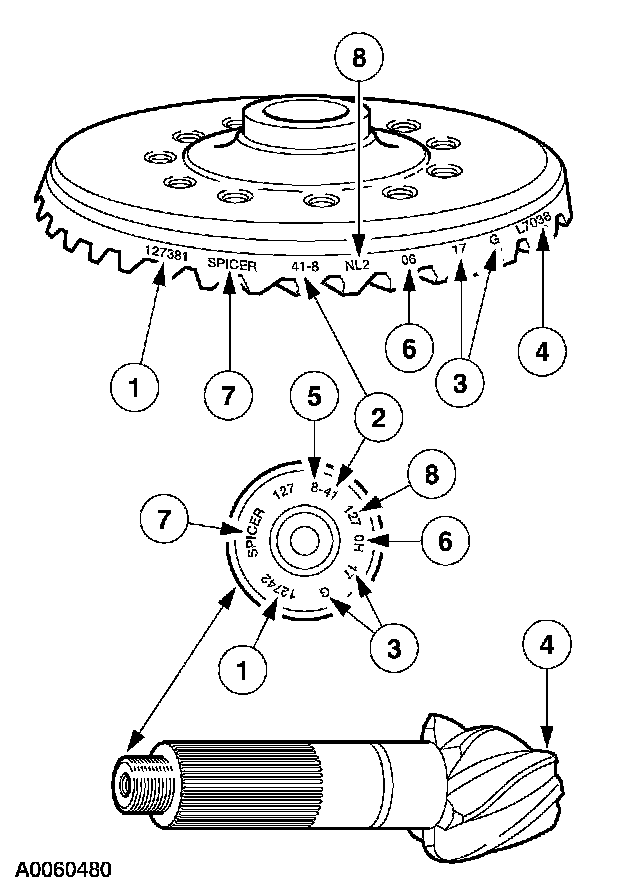

Gear Set Identification

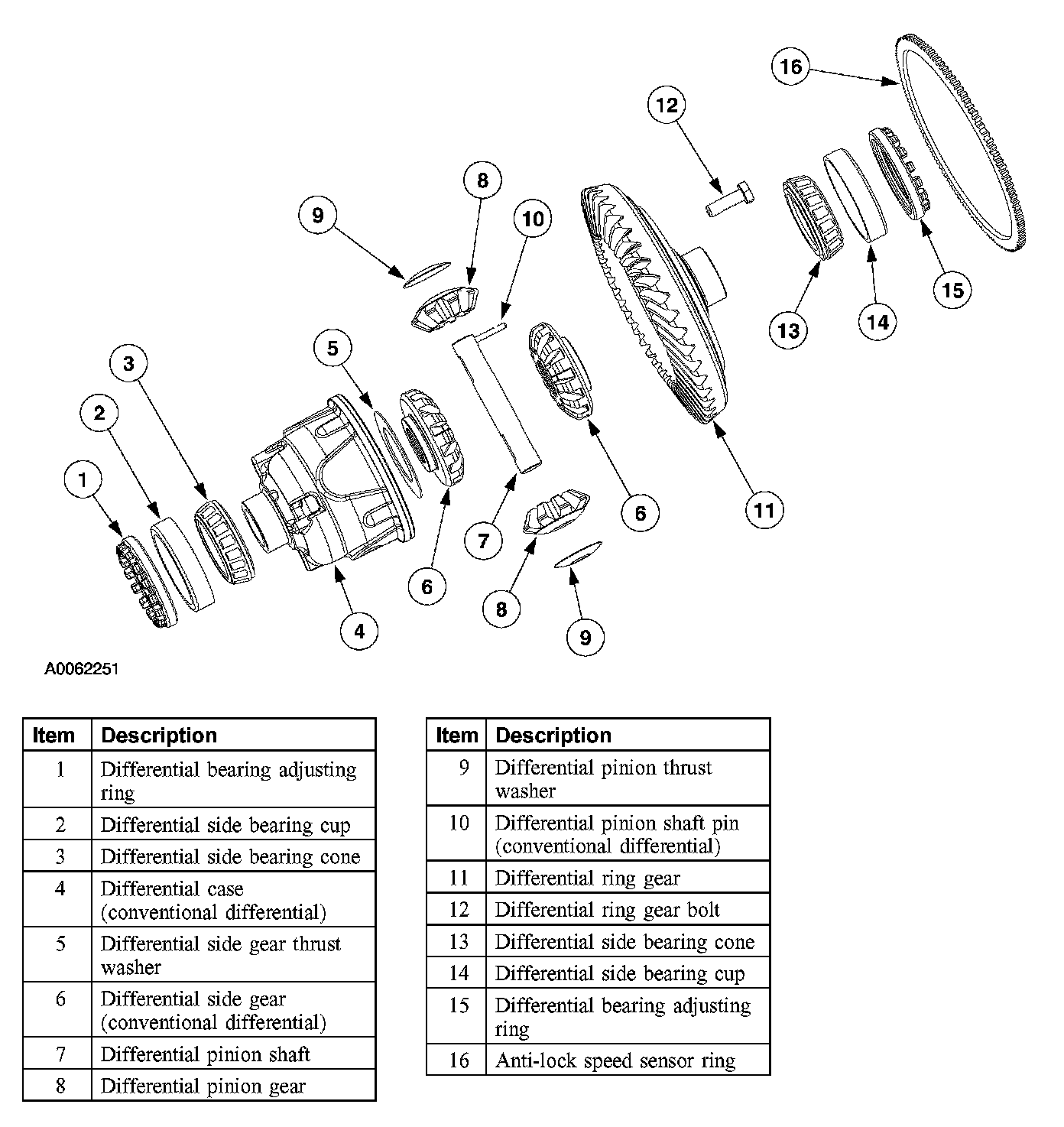

Dana Model S110 Wheel Differential Assembly, Disassembled View

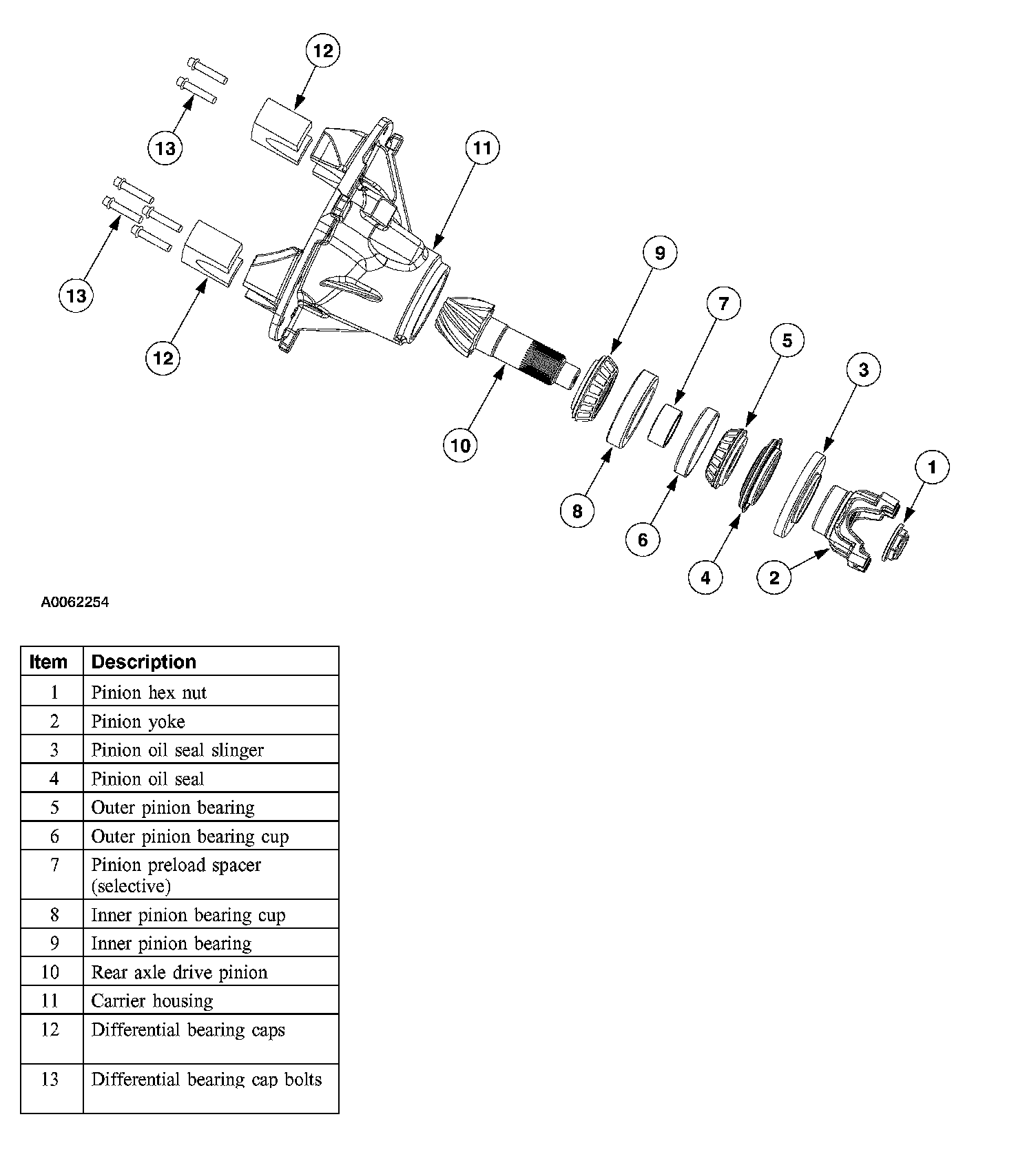

Dana S110 Rear Axle Pinion Assembly, Disassembled View
