Ford 10.50-Inch Ring Gear

Rear Drive Axle and Differential





Ford 10.50-Inch Axle, Single Rear Wheel





Ford 10.50-Inch Axle, Dual Rear Wheel

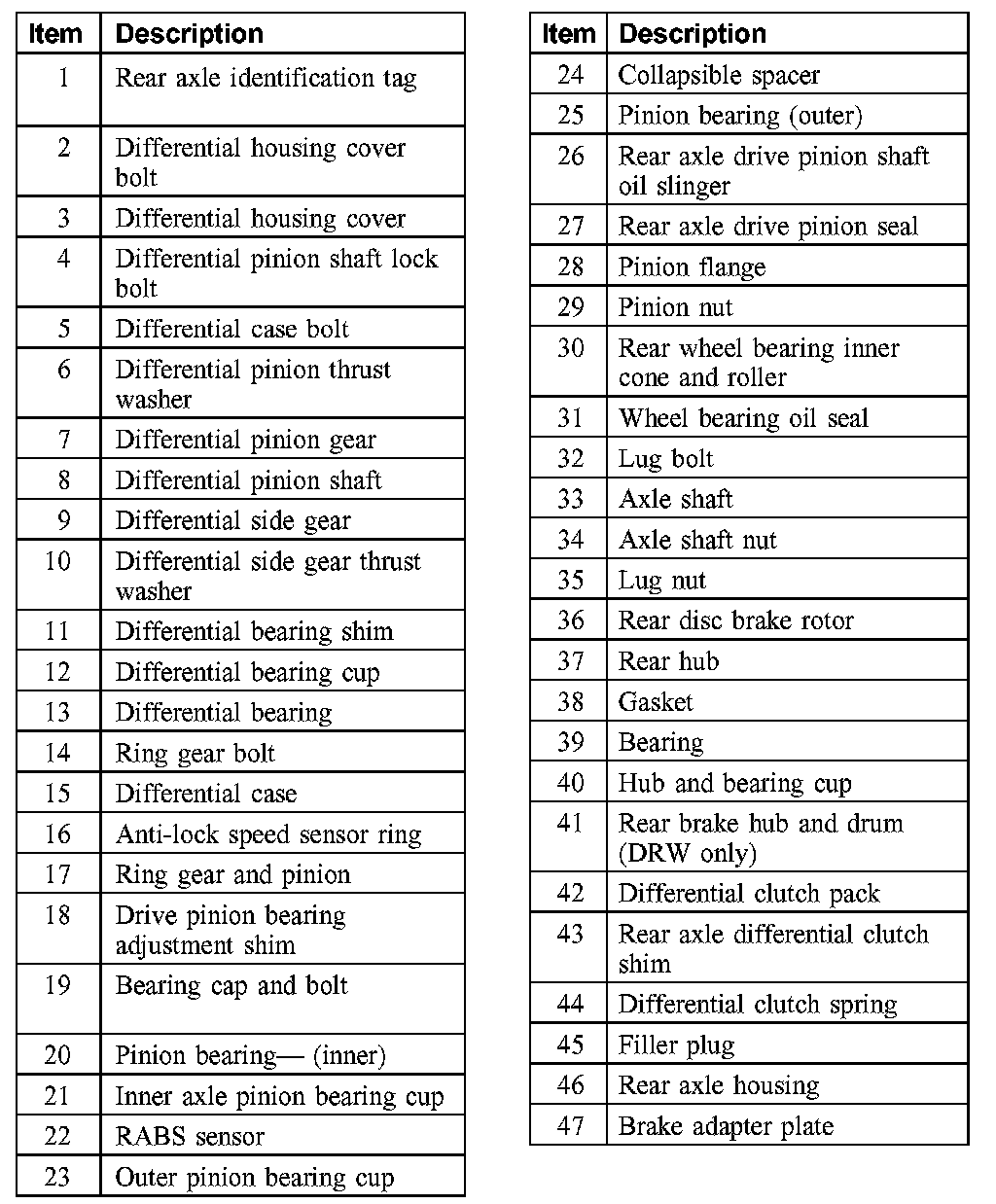

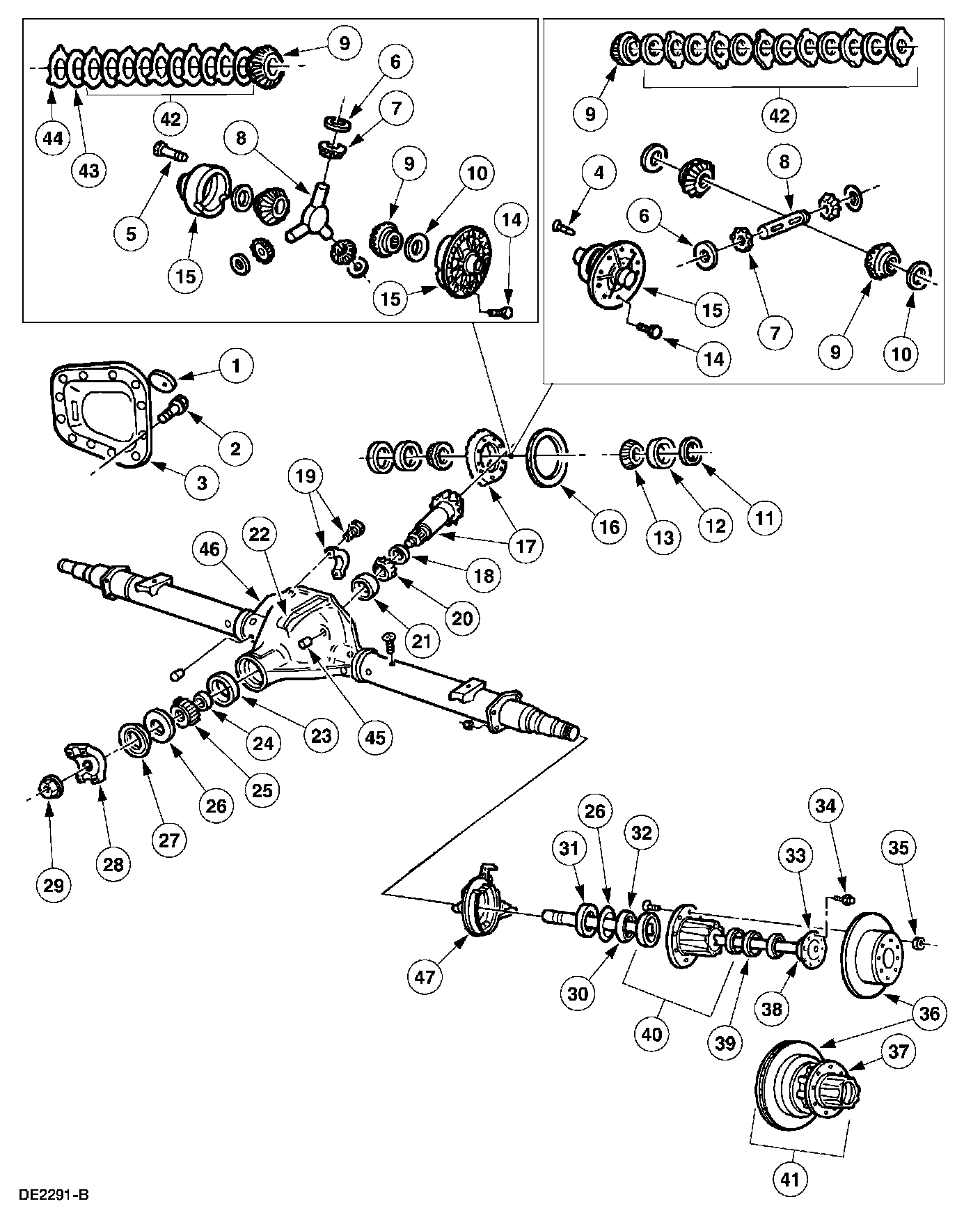

Rear Axle - 10.50-Inch Ring Gear, Traction-Lok

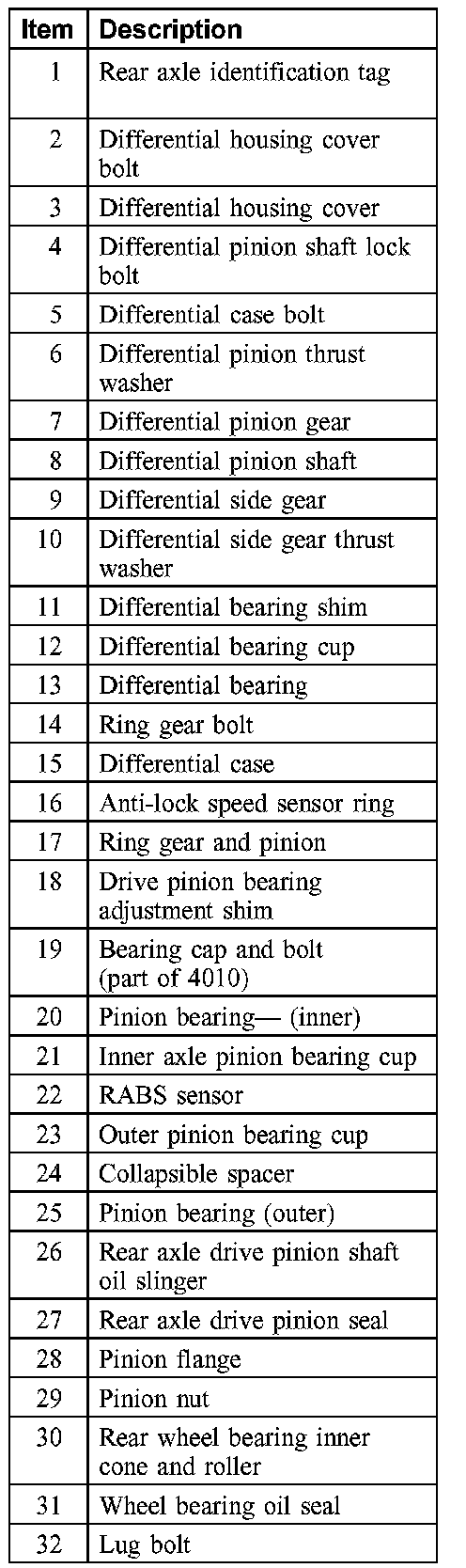

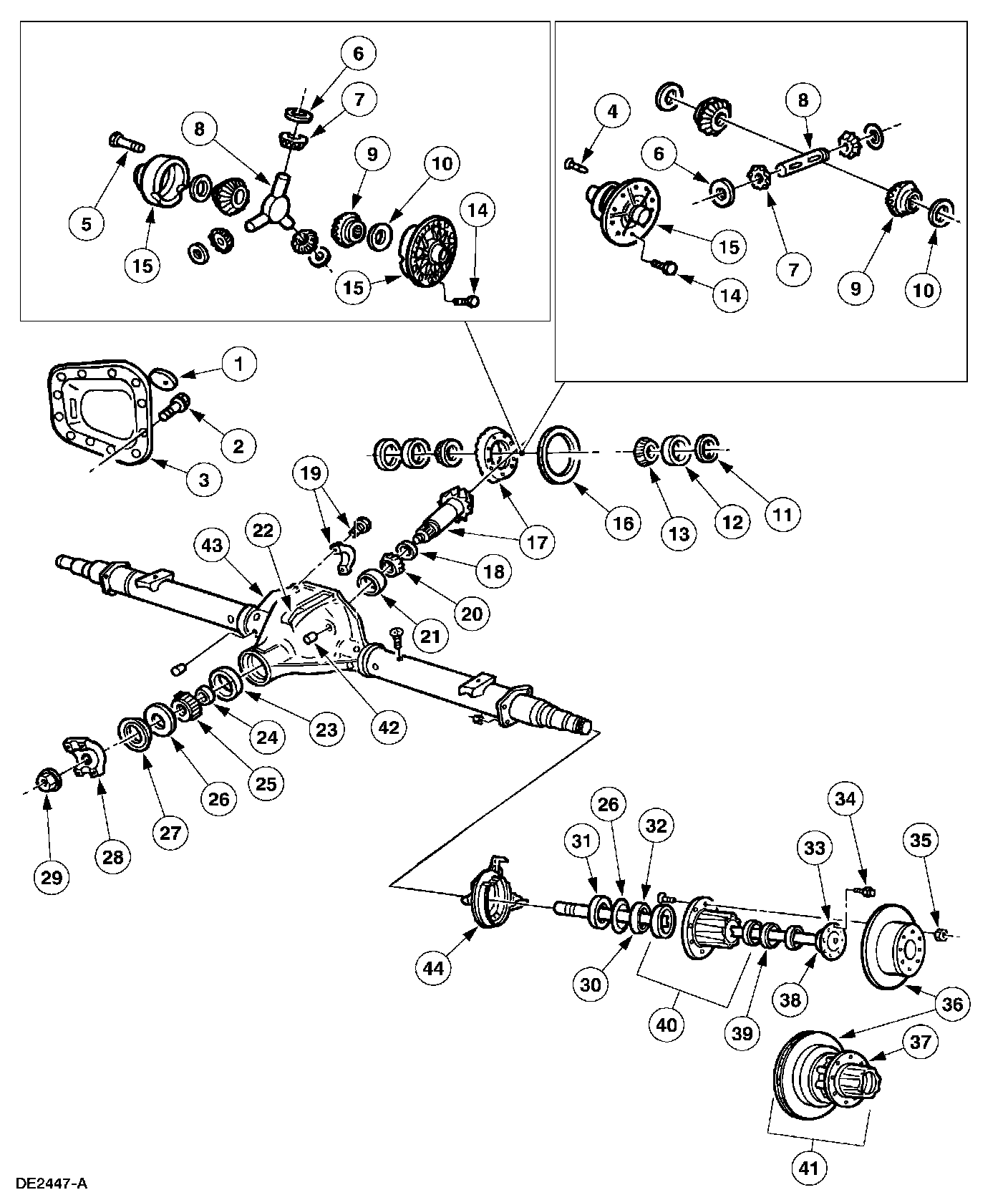

Rear Axle - 10.50-Inch Ring Gear, Conventional
