Tests DH: Throttle Position (TP) Sensor



PINPOINT TEST DH: THROTTLE POSITION (TP) SENSOR

DH Introduction 1 Of 3:





DH Introduction 2 Of 3:





DH Introduction 3 Of 3:





DH1 - DH2:





DH3 - DH4:





DH5 - DH6:





DH7 - DH8:

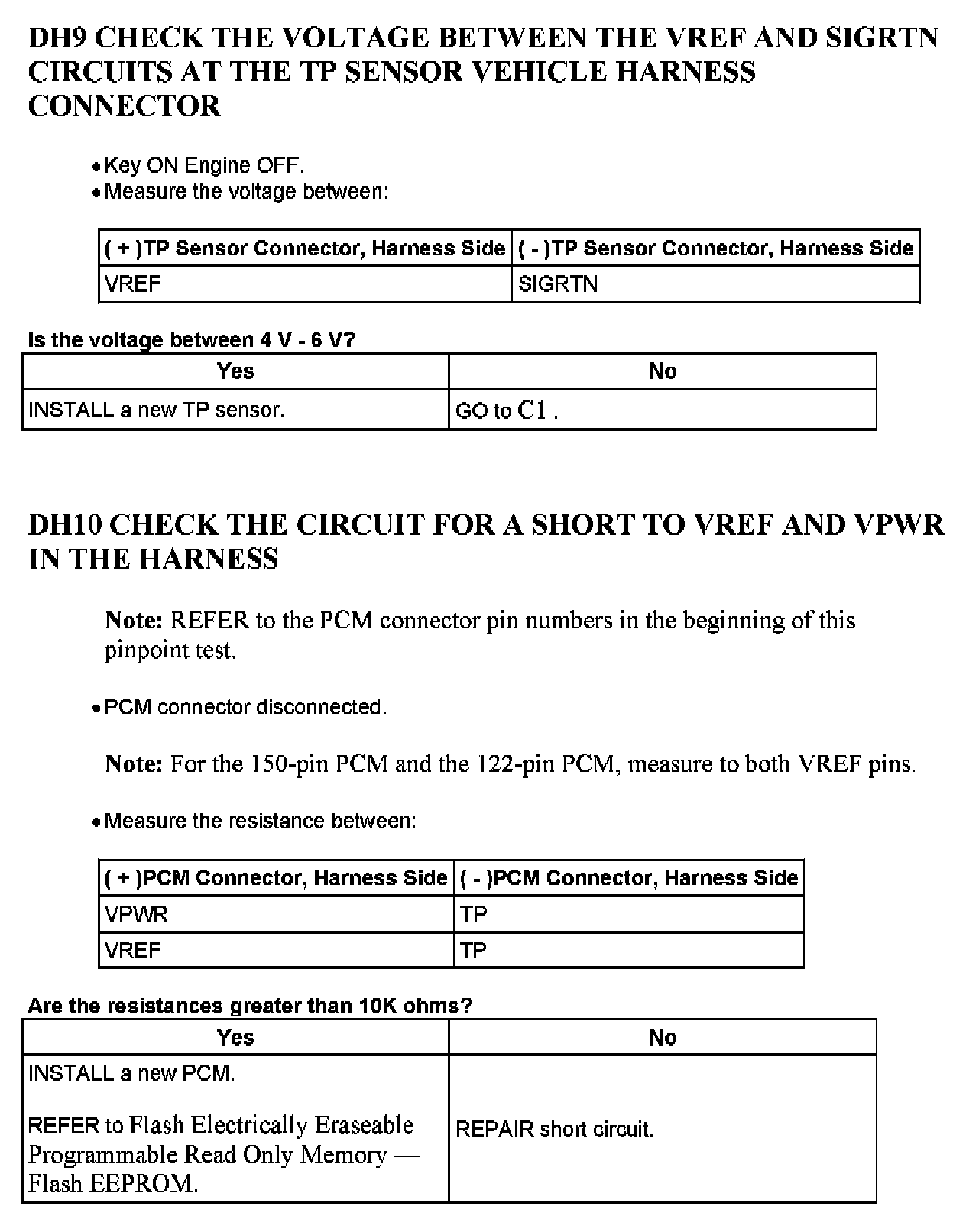

DH9 - DH10:





DH11 - DH13:





DH14 - DH15:

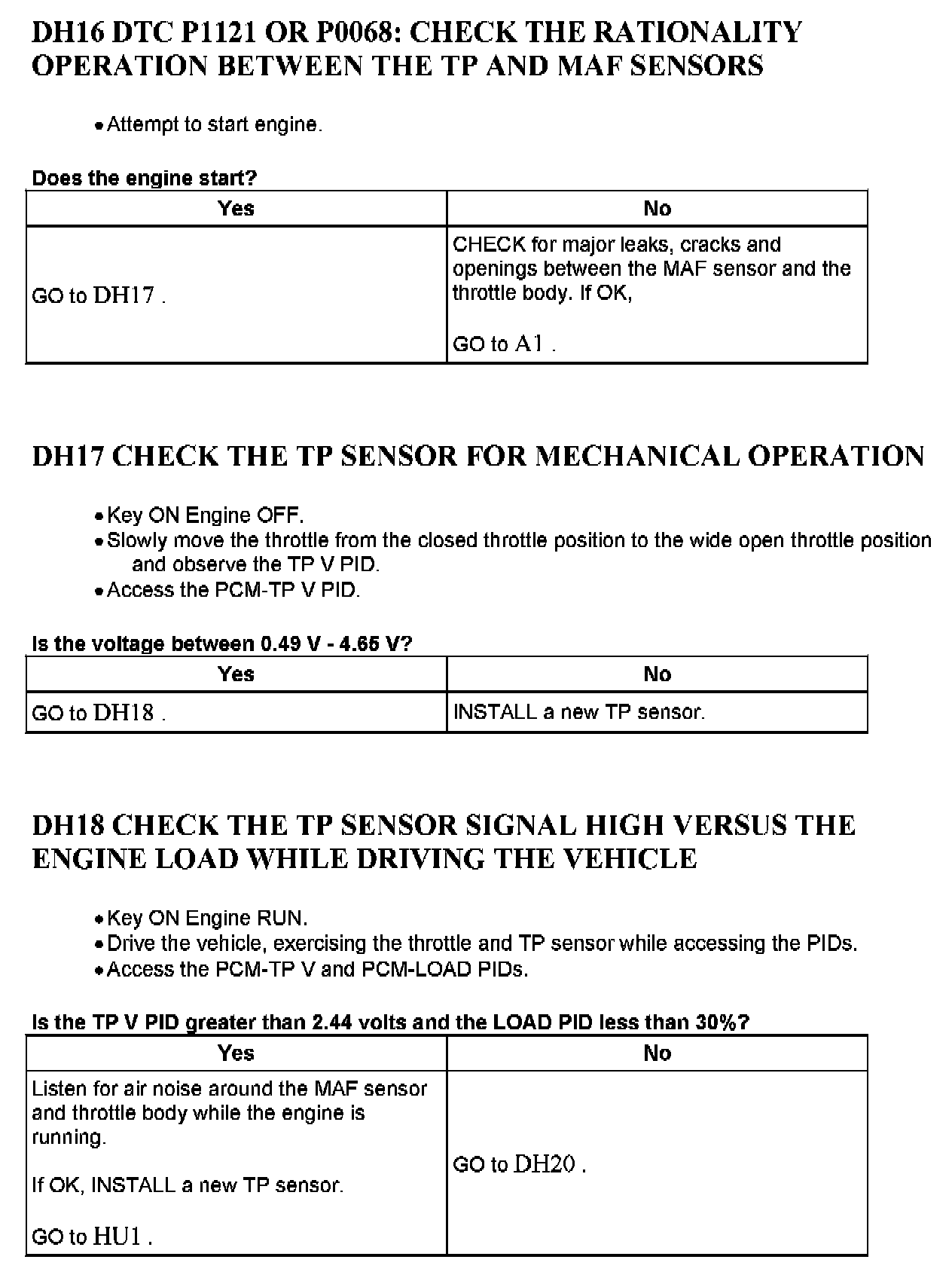

DH16 - DH18:

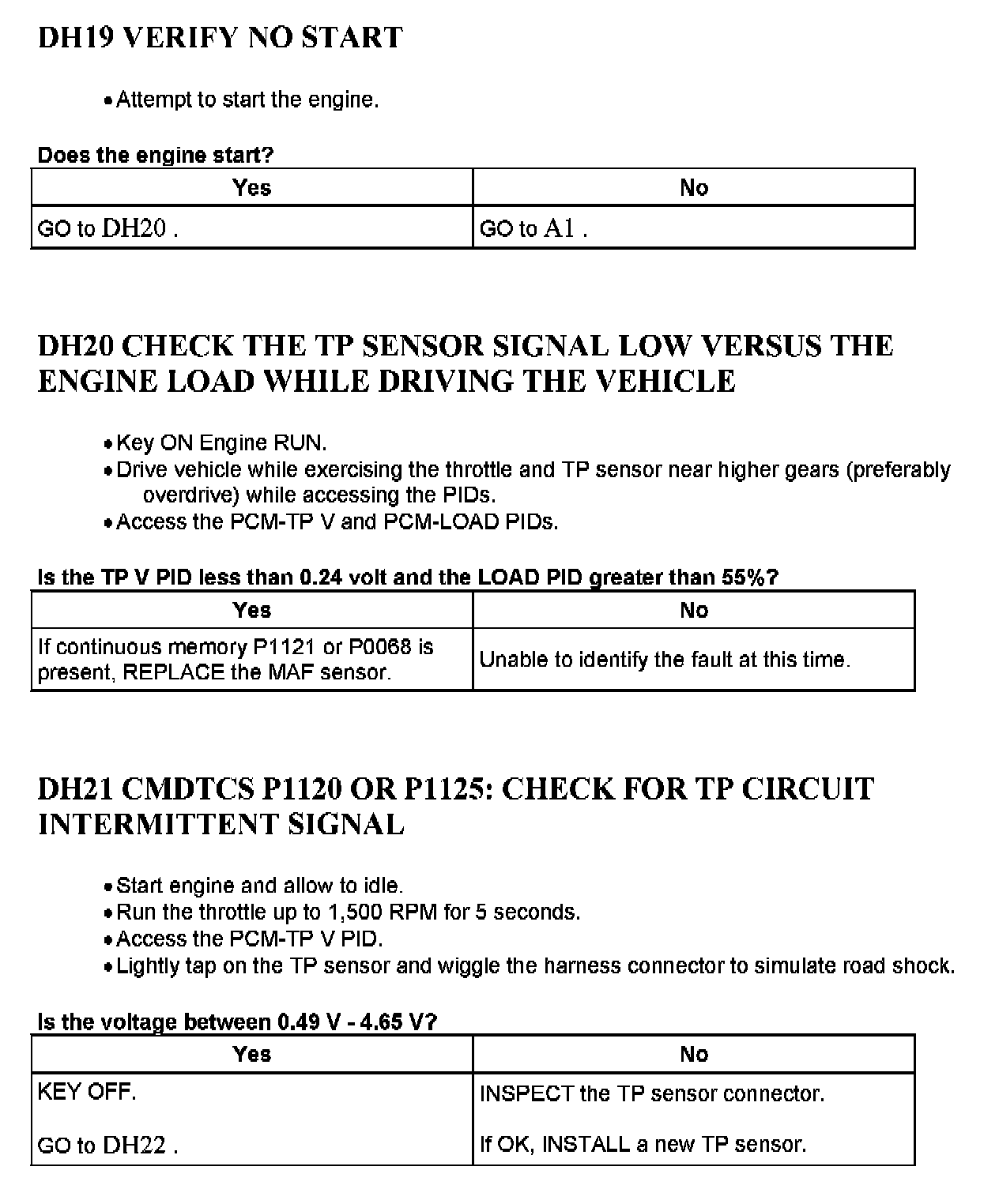

DH19 - Dh21:





Dh22 - DH23:





DH24:
