Single Generator

GENERATOR - SINGLE

REMOVAL

NOTE: Single generator shown, primary generator on the dual generator vehicles similar.

1. Disconnect the batteries.
2. Remove the cooling fan.







3. Rotate the accessory drive belt tensioner clockwise and remove the drive belt from the generator pulley.

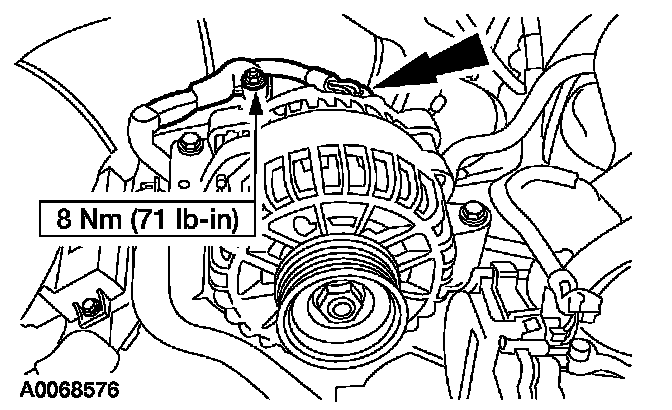

4. Disconnect the generator electrical connectors.

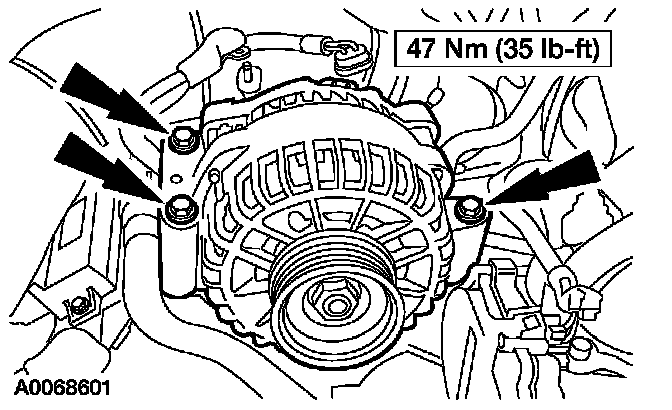

5. Remove the bolts and the generator.

INSTALLATION
1. To install, reverse the removal procedure.
