Test E

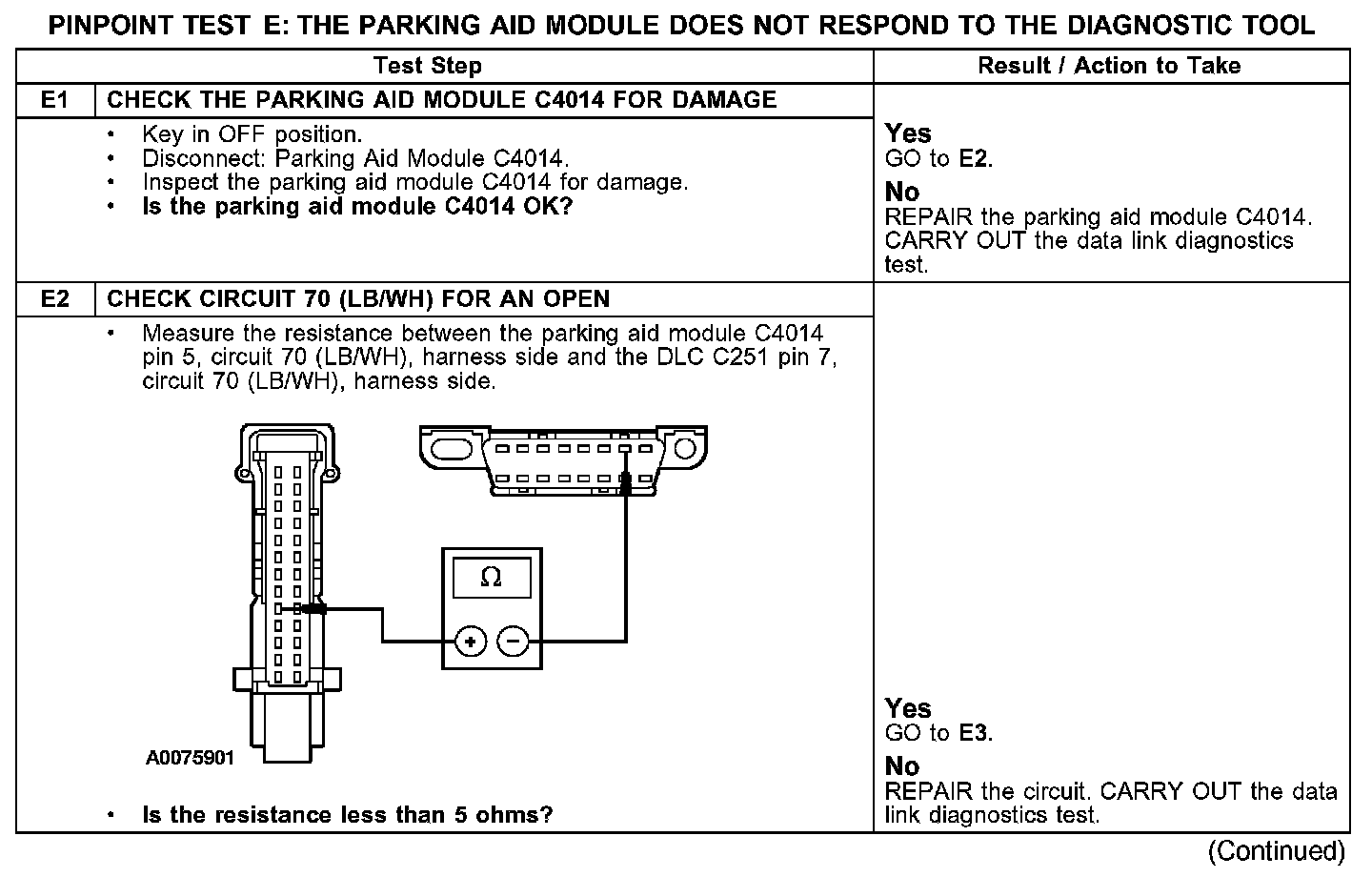

PINPOINT TEST E: THE PARKING AID MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL
Test E1-E2:
Test E3:
