Tests AV: Air Conditioning Relay Control Circuit

PINPOINT TEST AV: AIR CONDITIONING RELAY CONTROL CIRCUIT

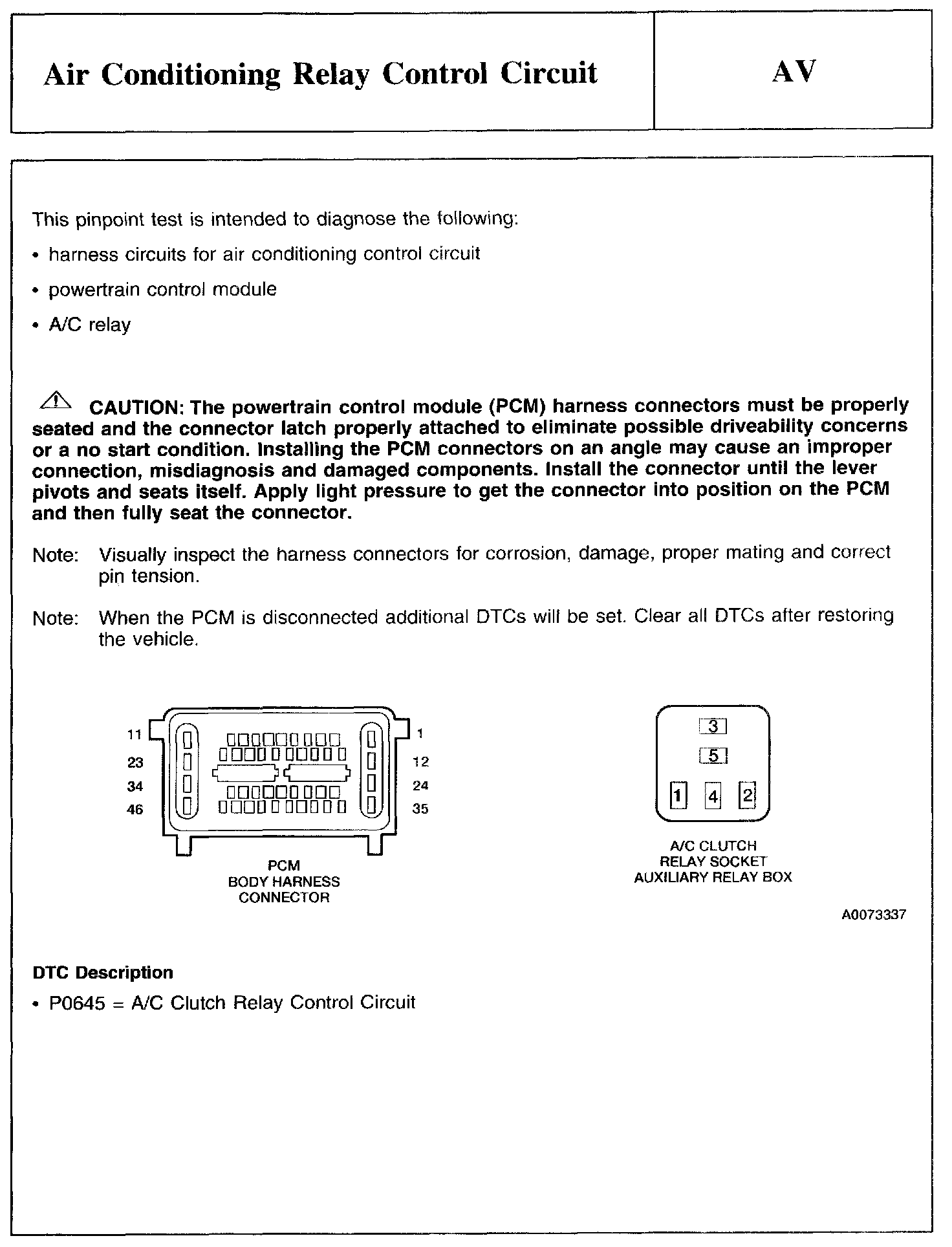

Description, Caution And Schematic:

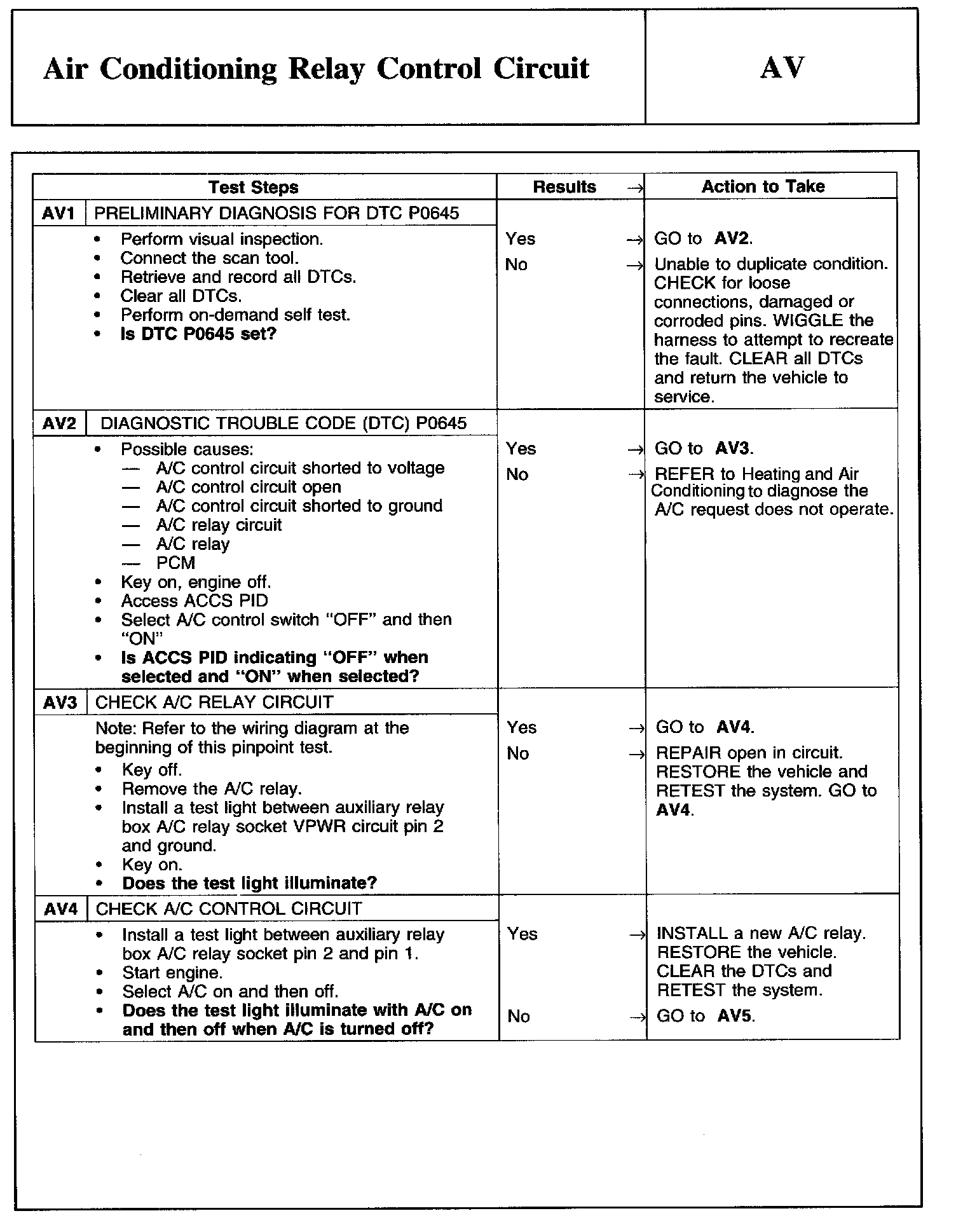

Test AV1-AV4:

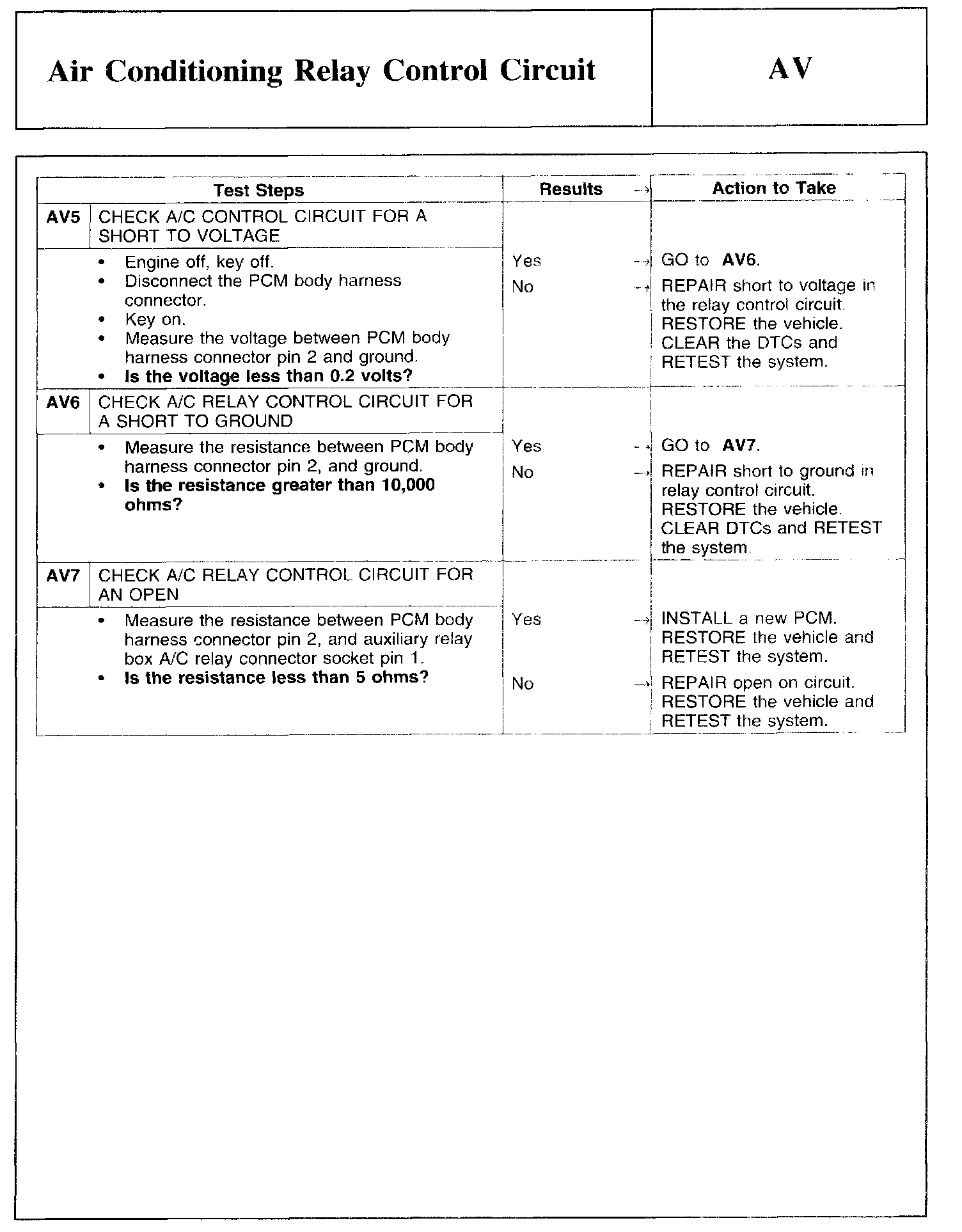

Test AV5-AV7:
