Glow Plug - Late Build

Glow Plug - Late Build










Removal

RH side

1. Remove the RH fender spTash shieTd.

Both sides

2. CAUTION: Do not pull on the wiring to remove the glow plug connector or damage may occur.

NOTE: Only one glow plug connector shown.

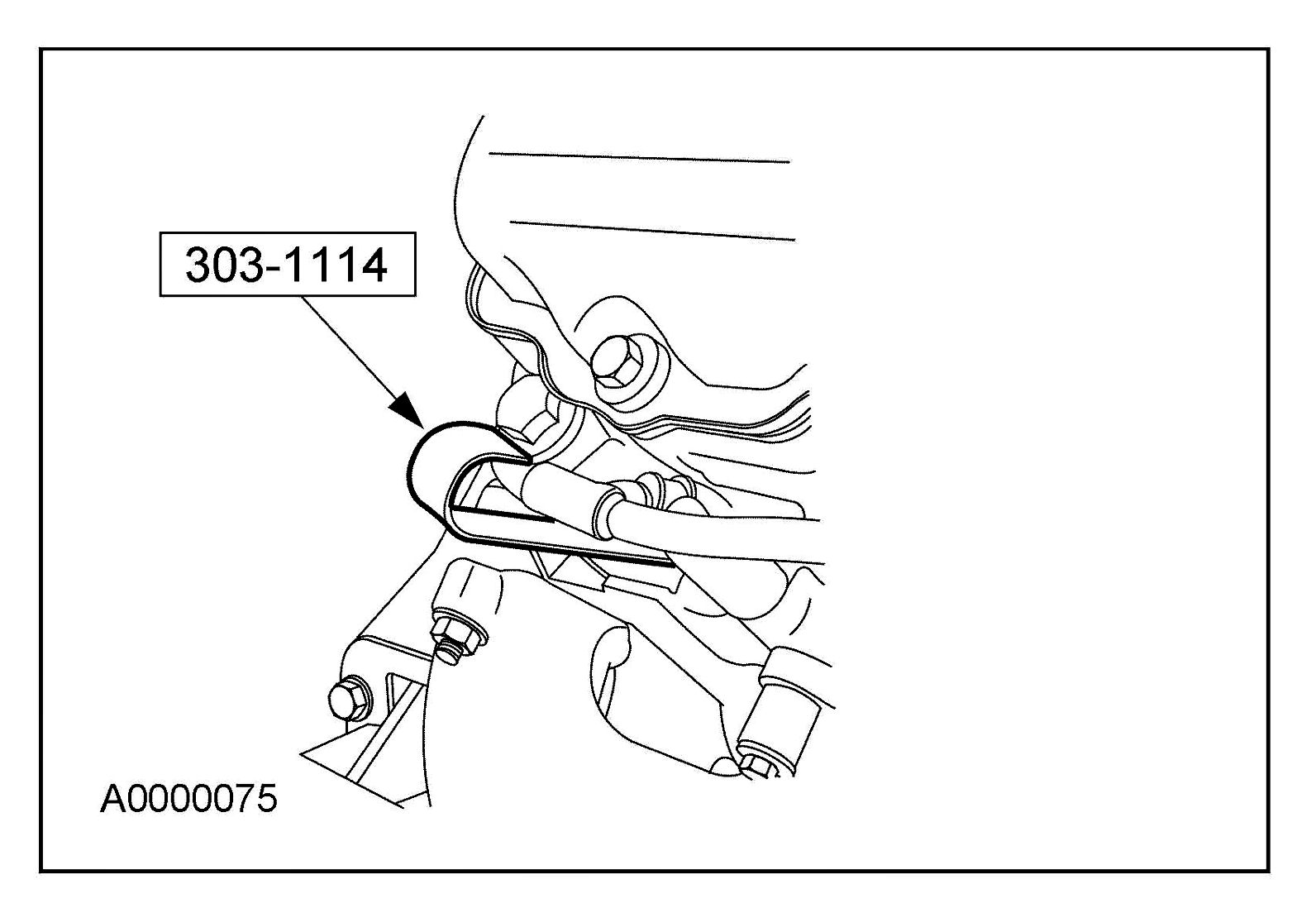

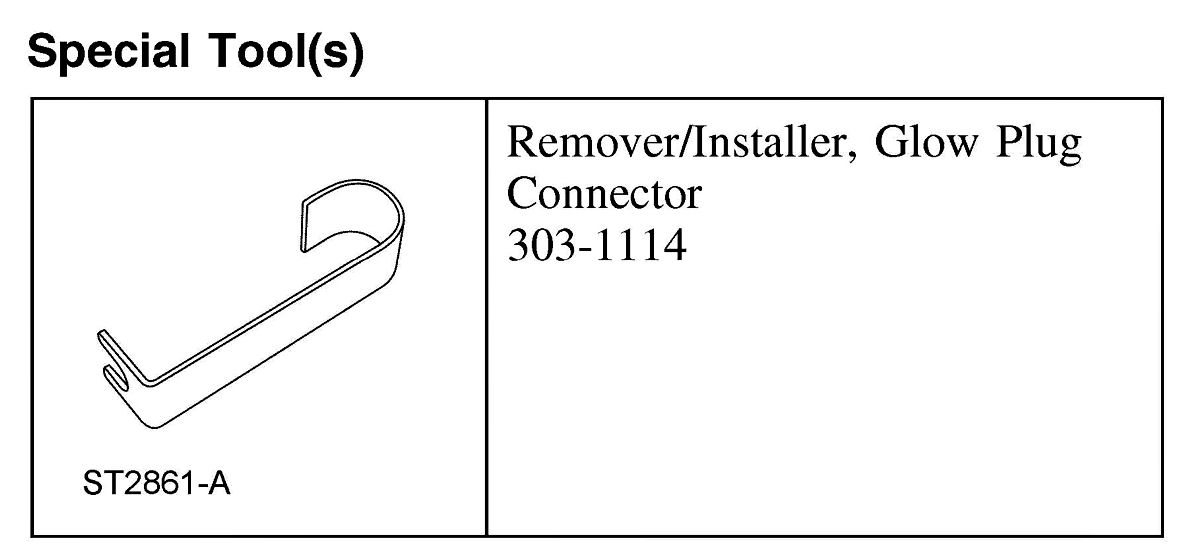

Using the special tool, remove the glow plug harness.






3. NOTE: If coolant residue is found on the glow plug, a new glow plug sleeve may have to be installed.

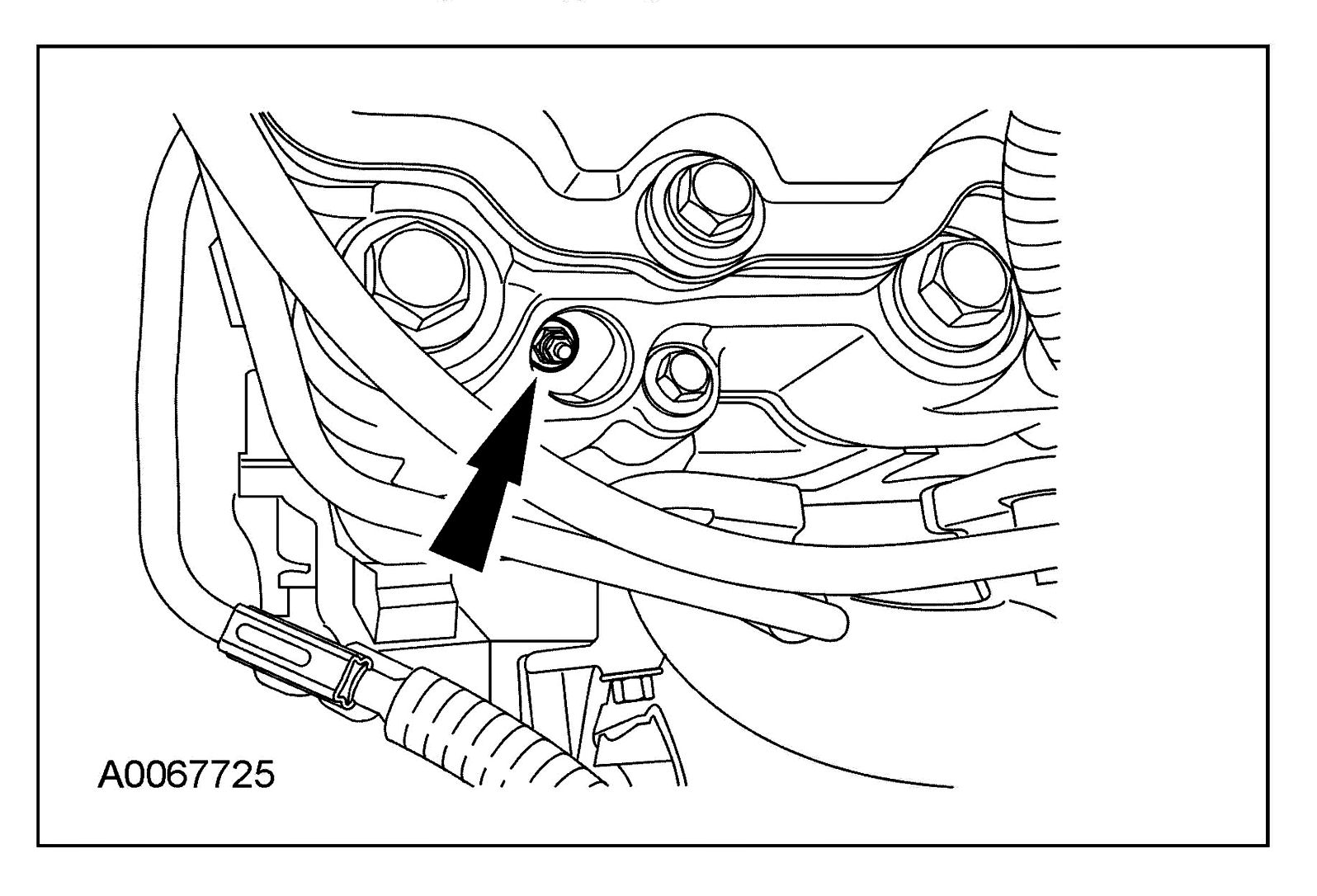

Remove the glow plug.






Installation

Both sides

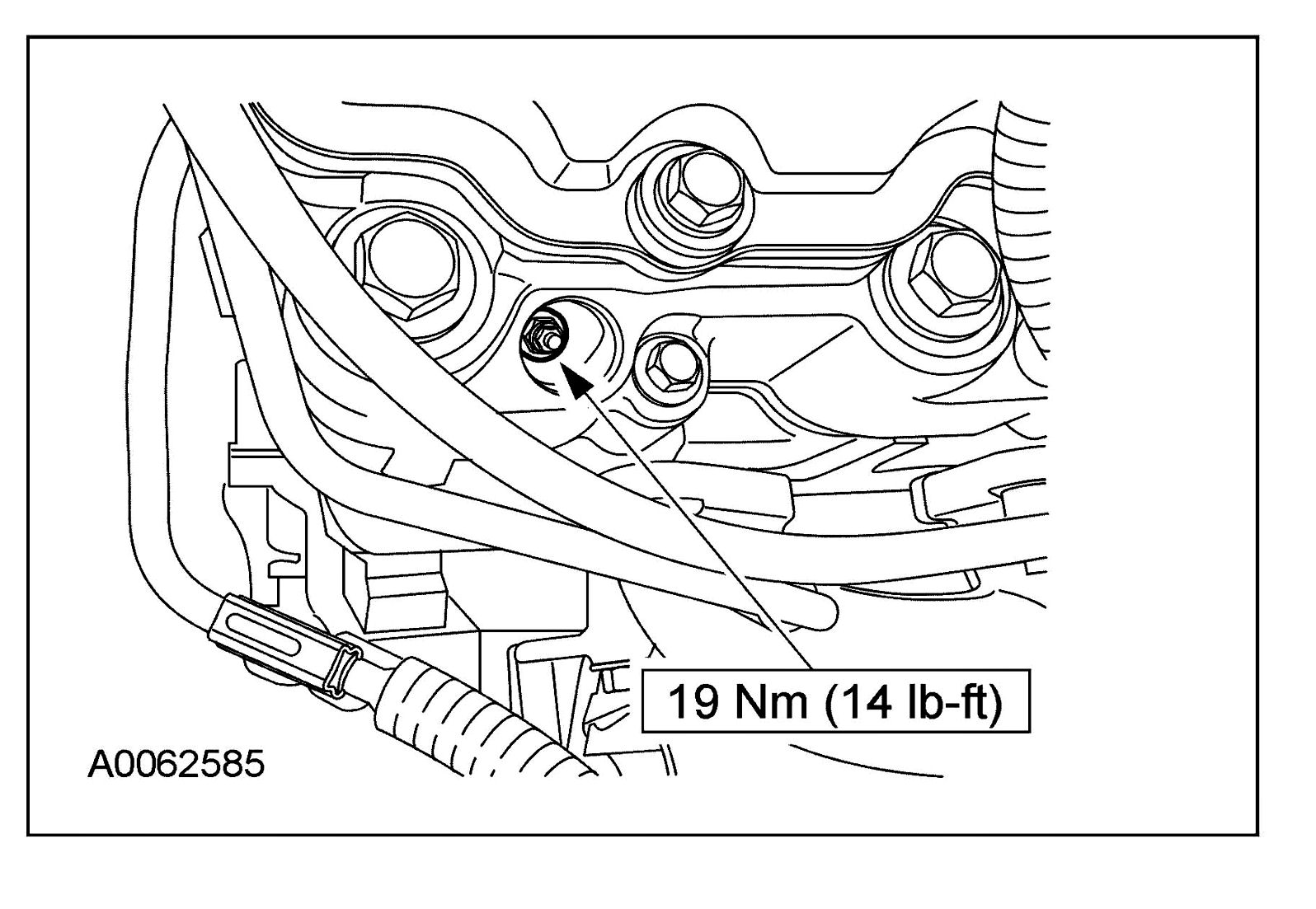

1. Install the glow plug.

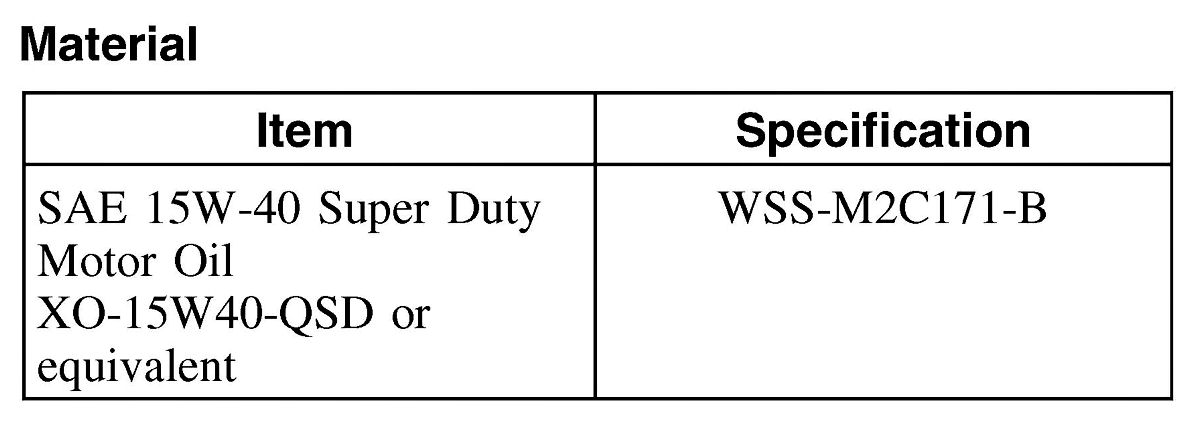

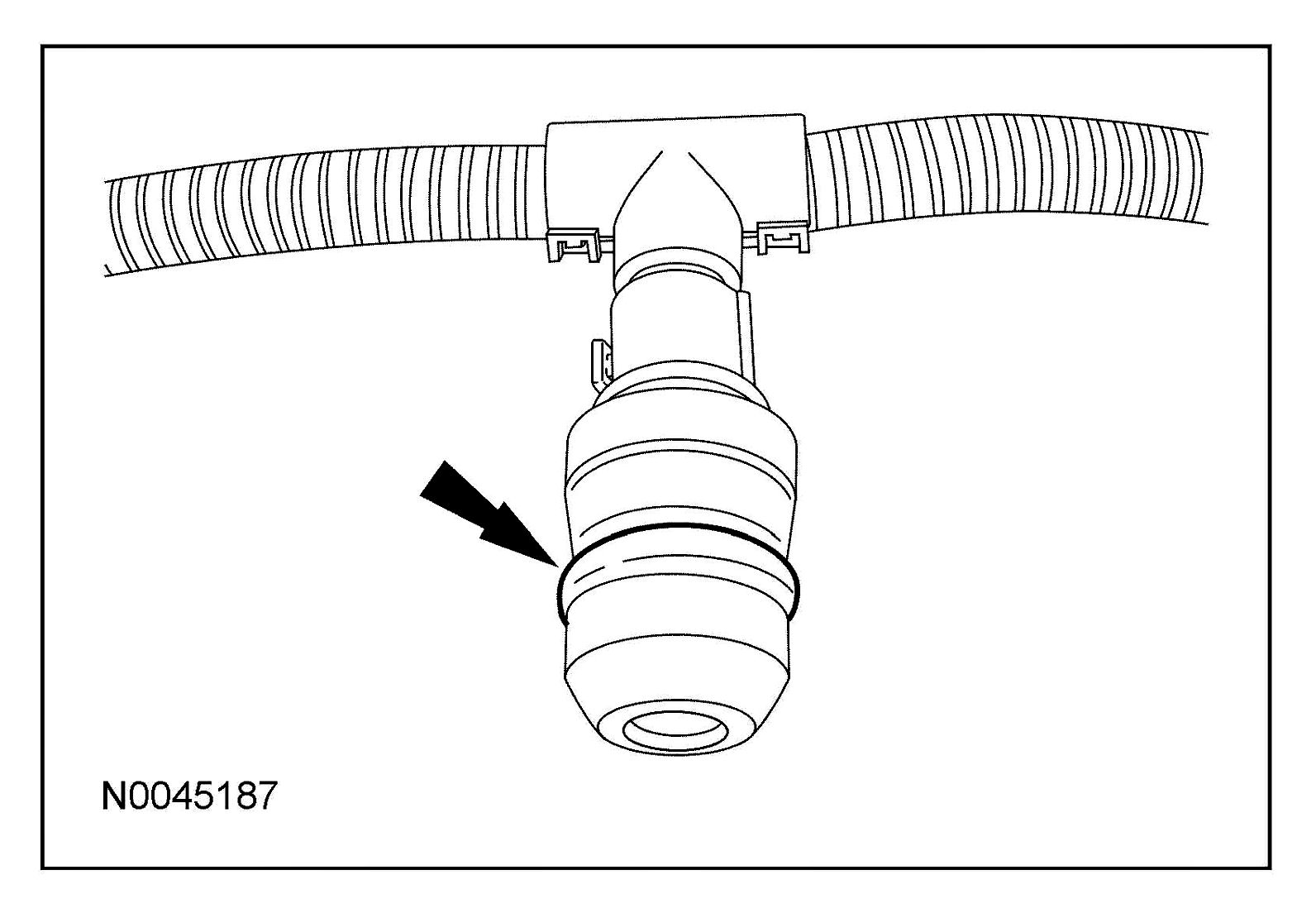

2. Clean and apply clean engine oil to the 0-rings.

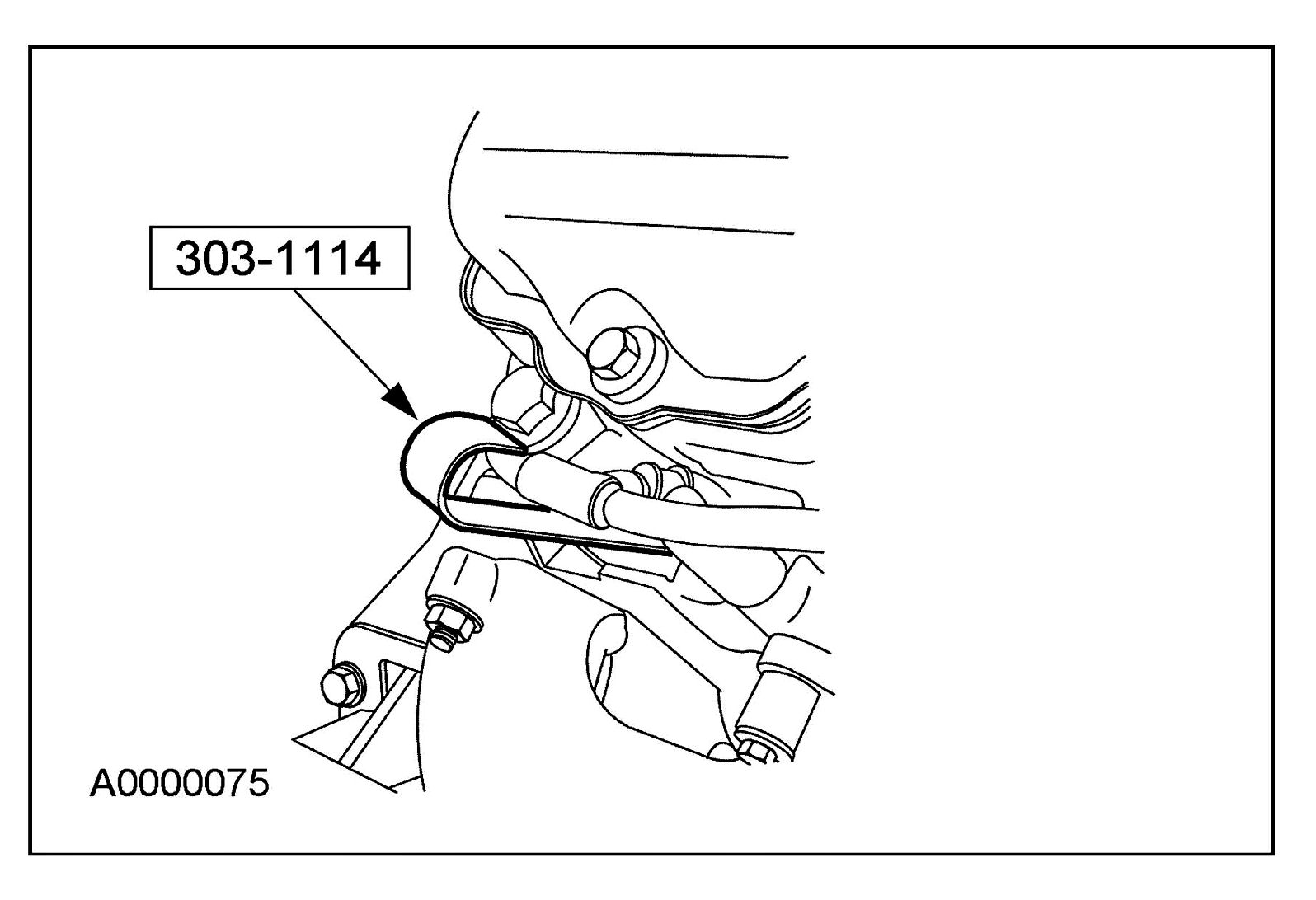

3. Using the special tool, install the glow plug harness.






RH side

4. Install the RH fender splash shield.
