Pinpoint Test TA: Clutch Pedal Position CPP2 Switch: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:
CPP (11A152/7C534).
PCM (12A650).
Harness Circuit(s):
SIGRTN.

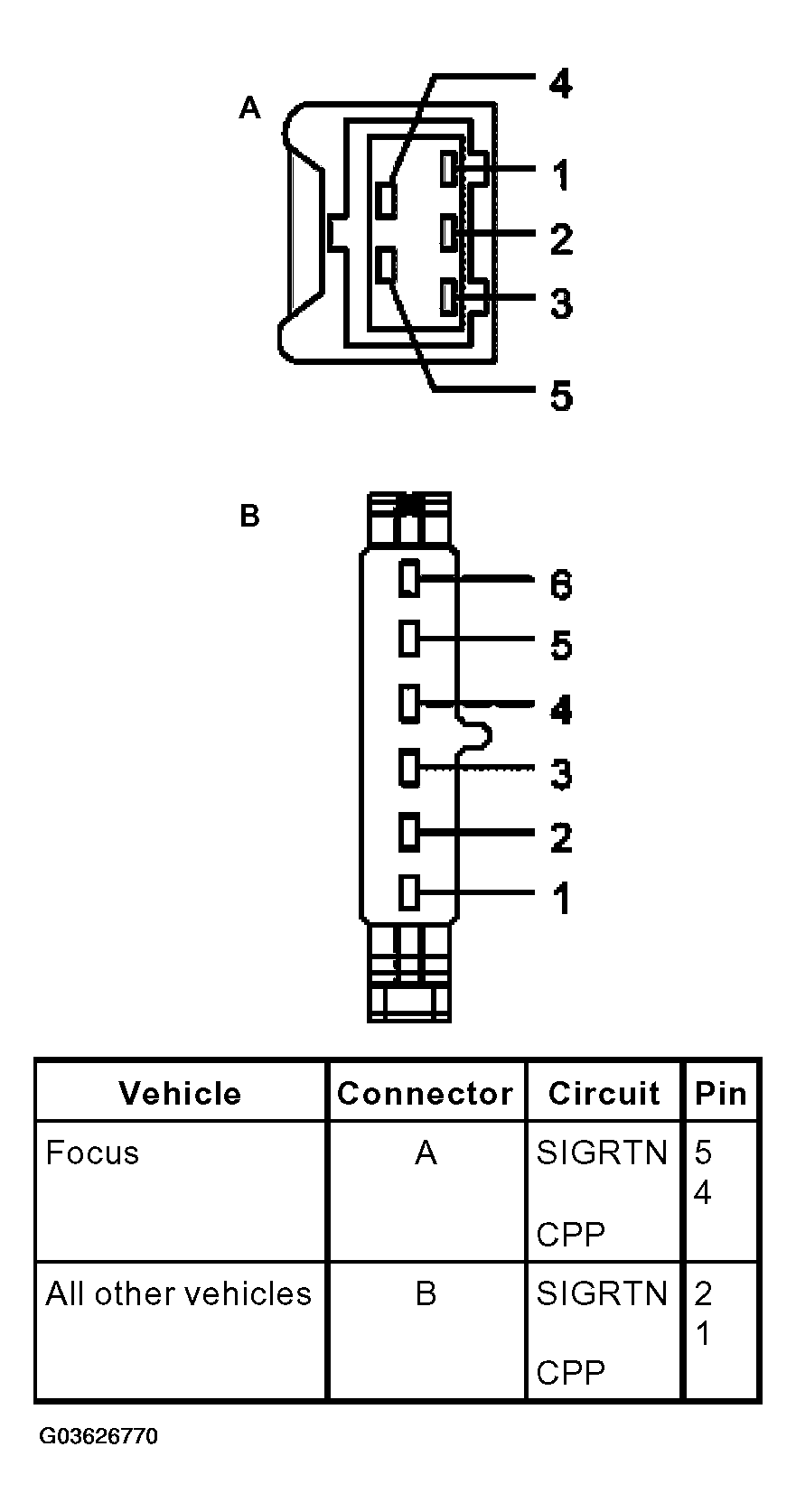

Fig 1: Identifying Clutch Pedal Position (CPP) Connector
G03626770Courtesy of FORD MOTOR CO.
