Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the front anti-lock brake sensor electrical connector.

Fig 1: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Separate the sensor cable from the clips.

Fig 2: Separating Sensor Cable From Clips
Courtesy of FORD MOTOR CO.
Remove the bolt and the front wheel speed sensor.

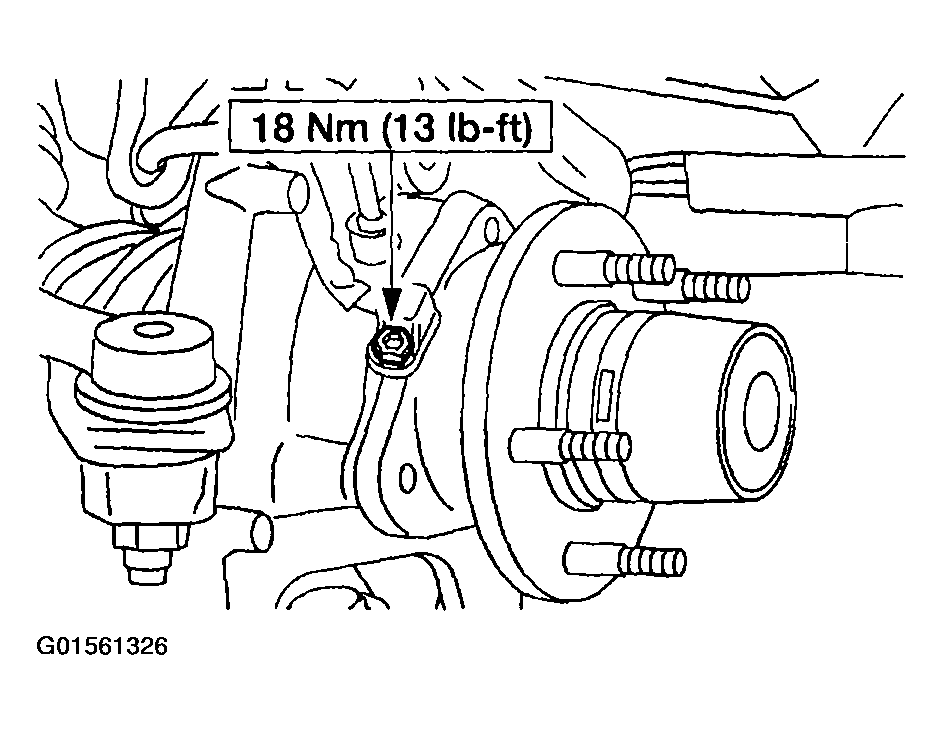

Fig 3: Removing Bolt And Front Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
