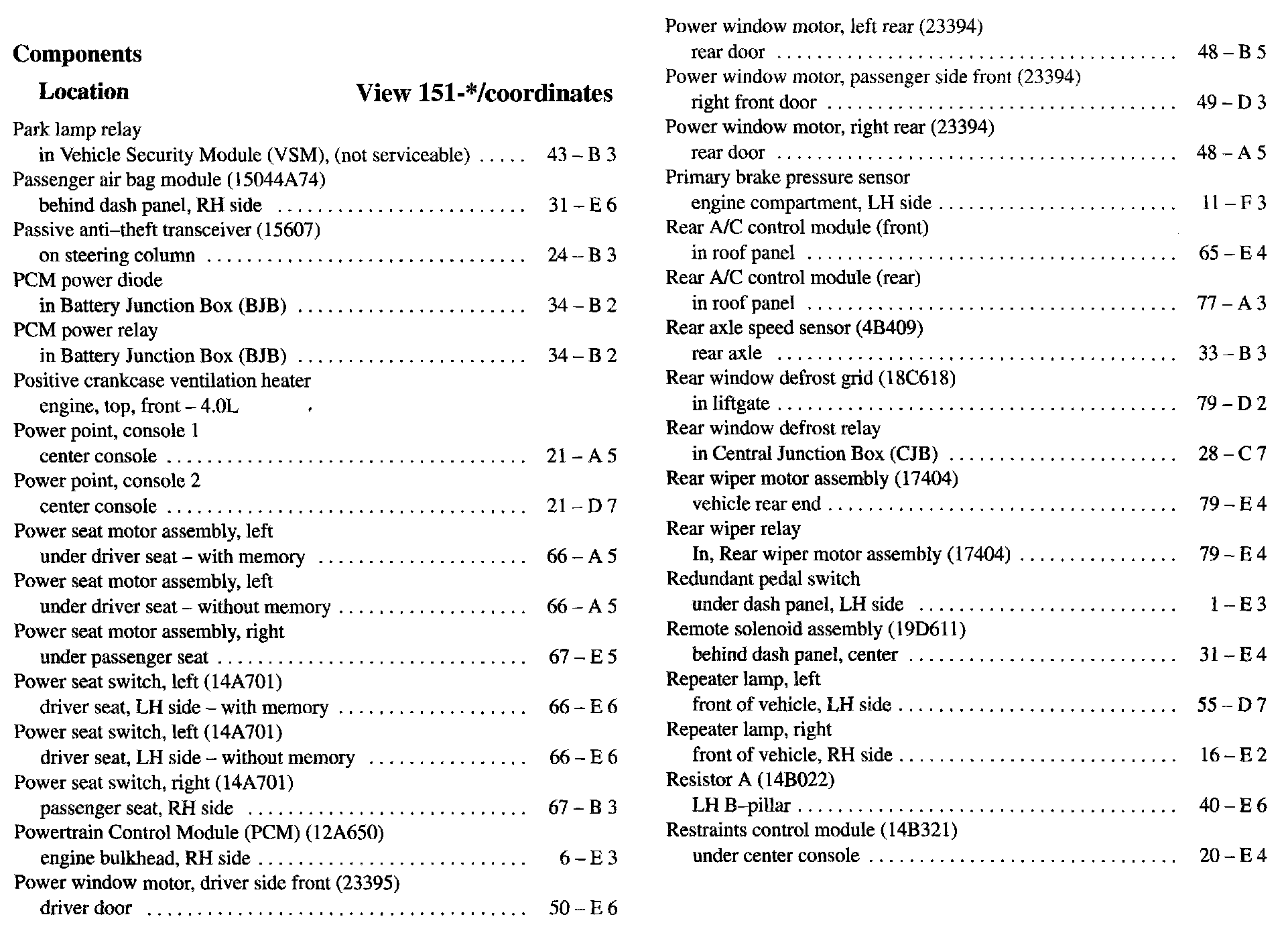

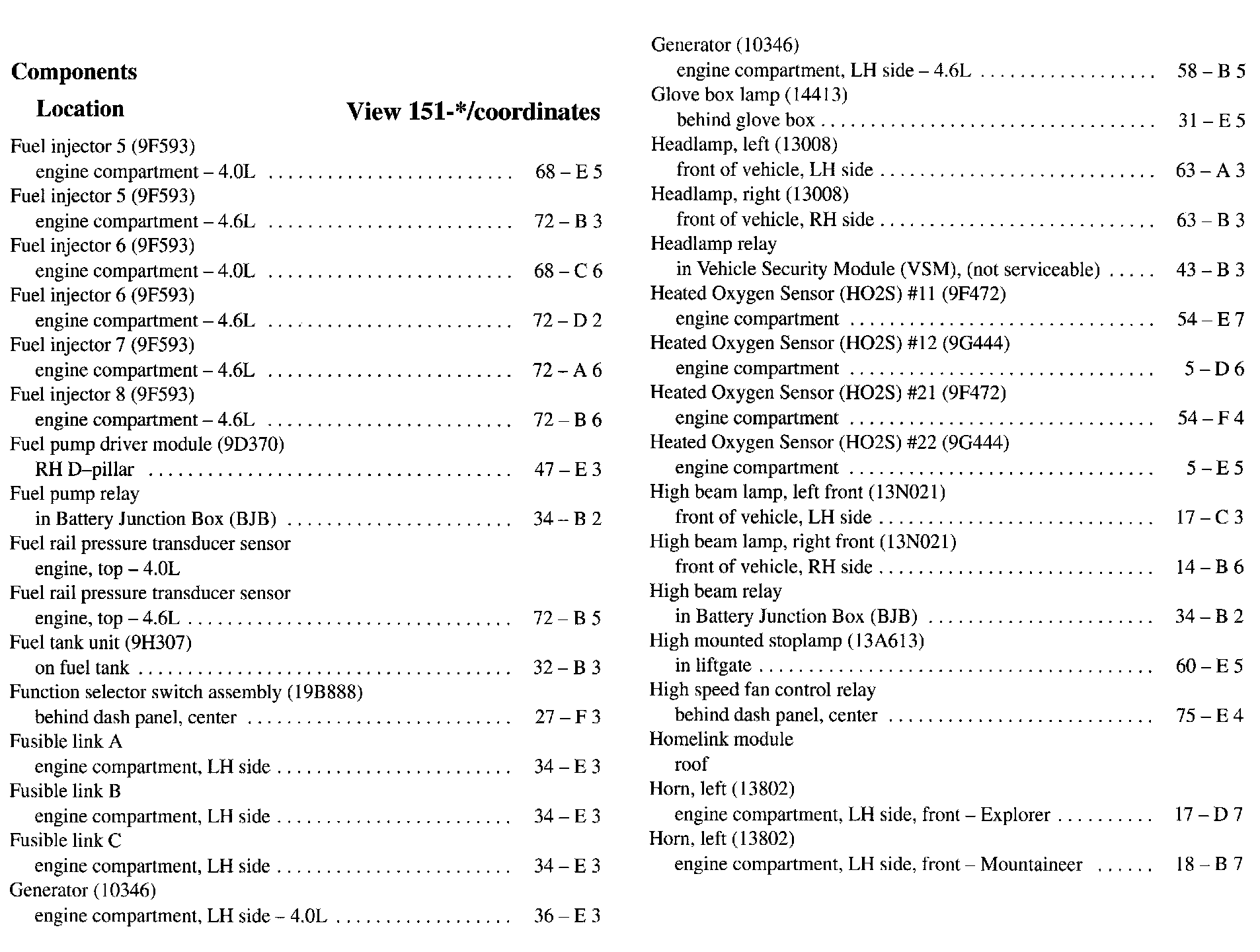

Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

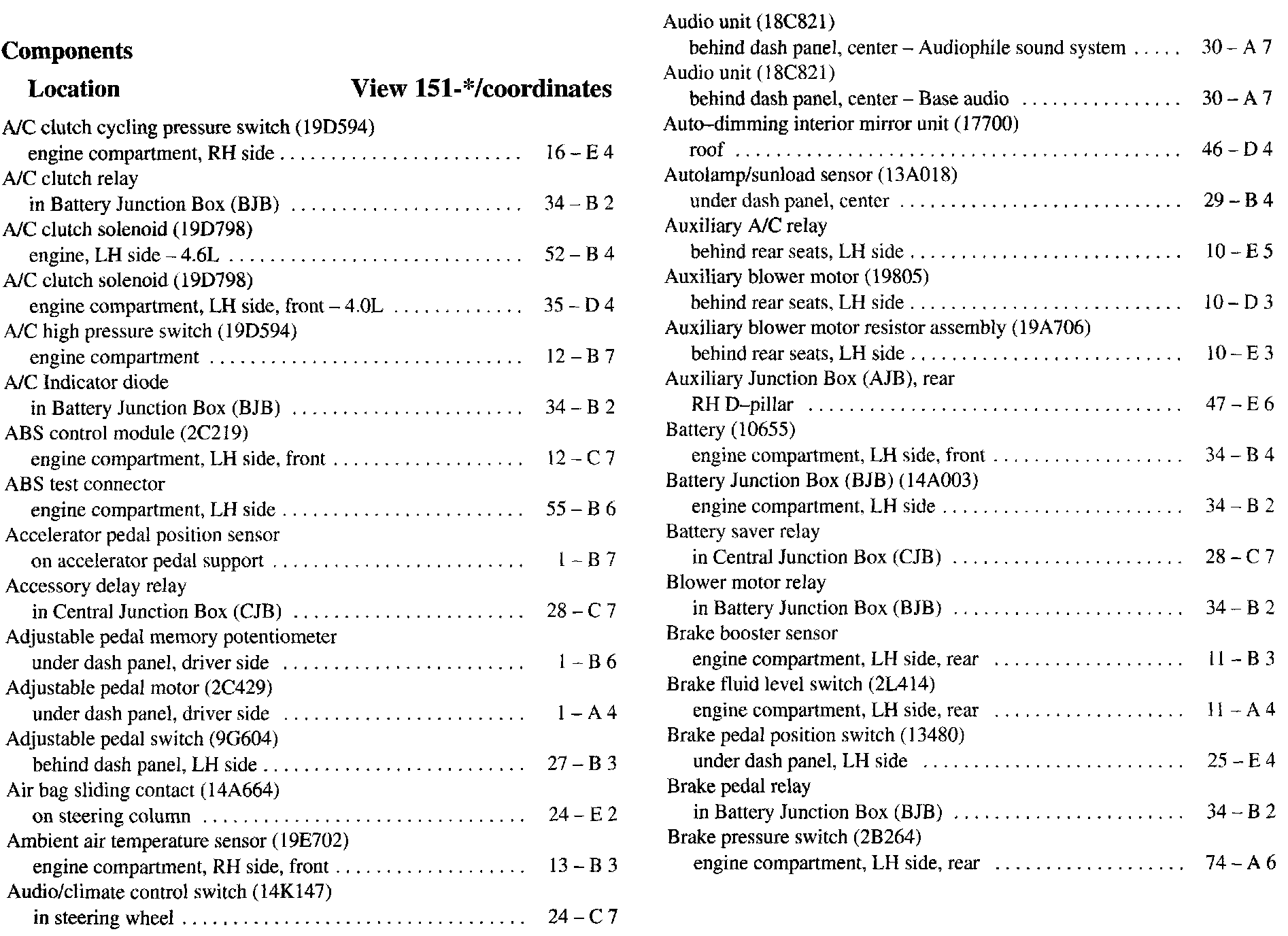

A/C-Br:

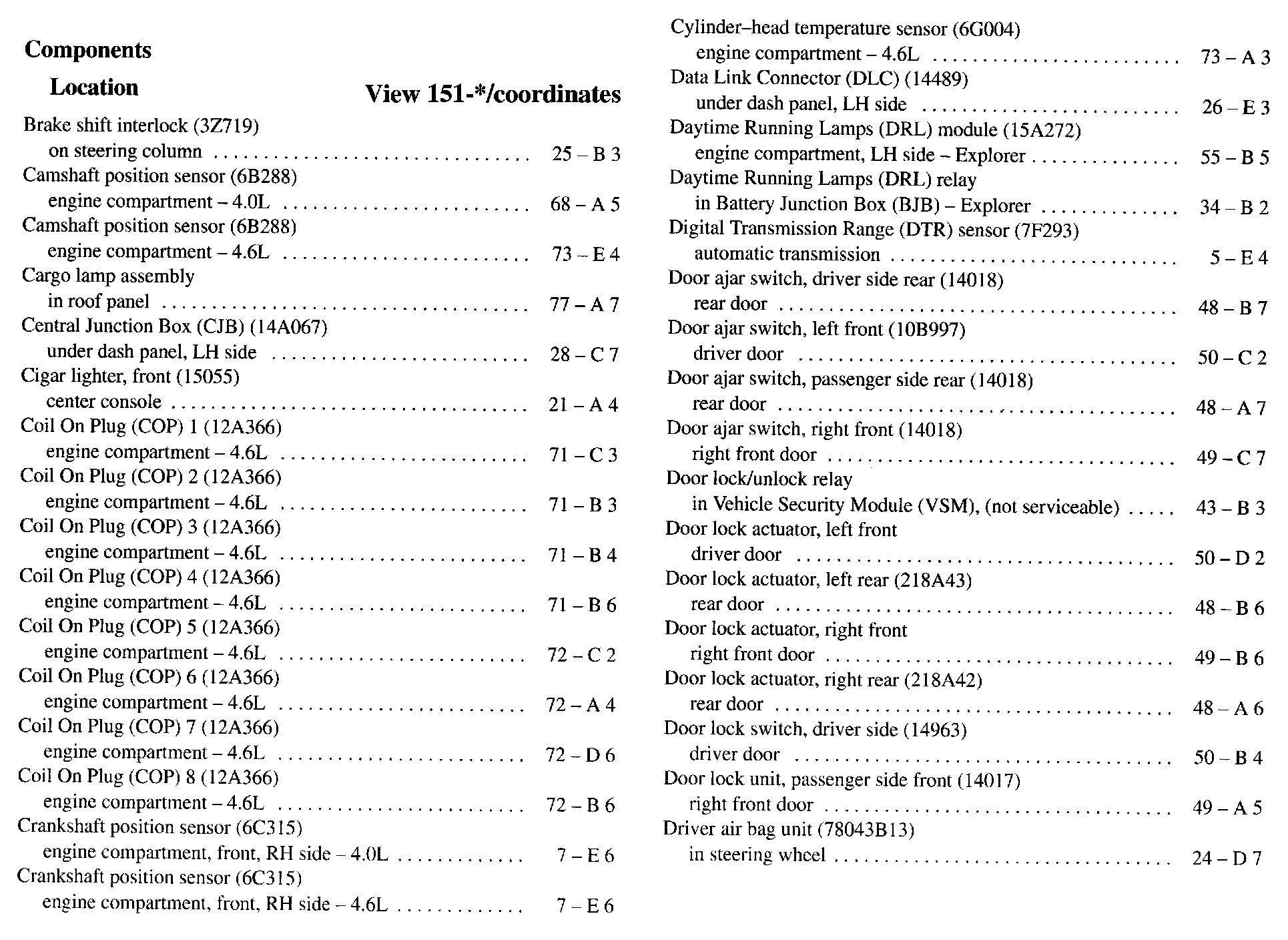

Br-Dr:

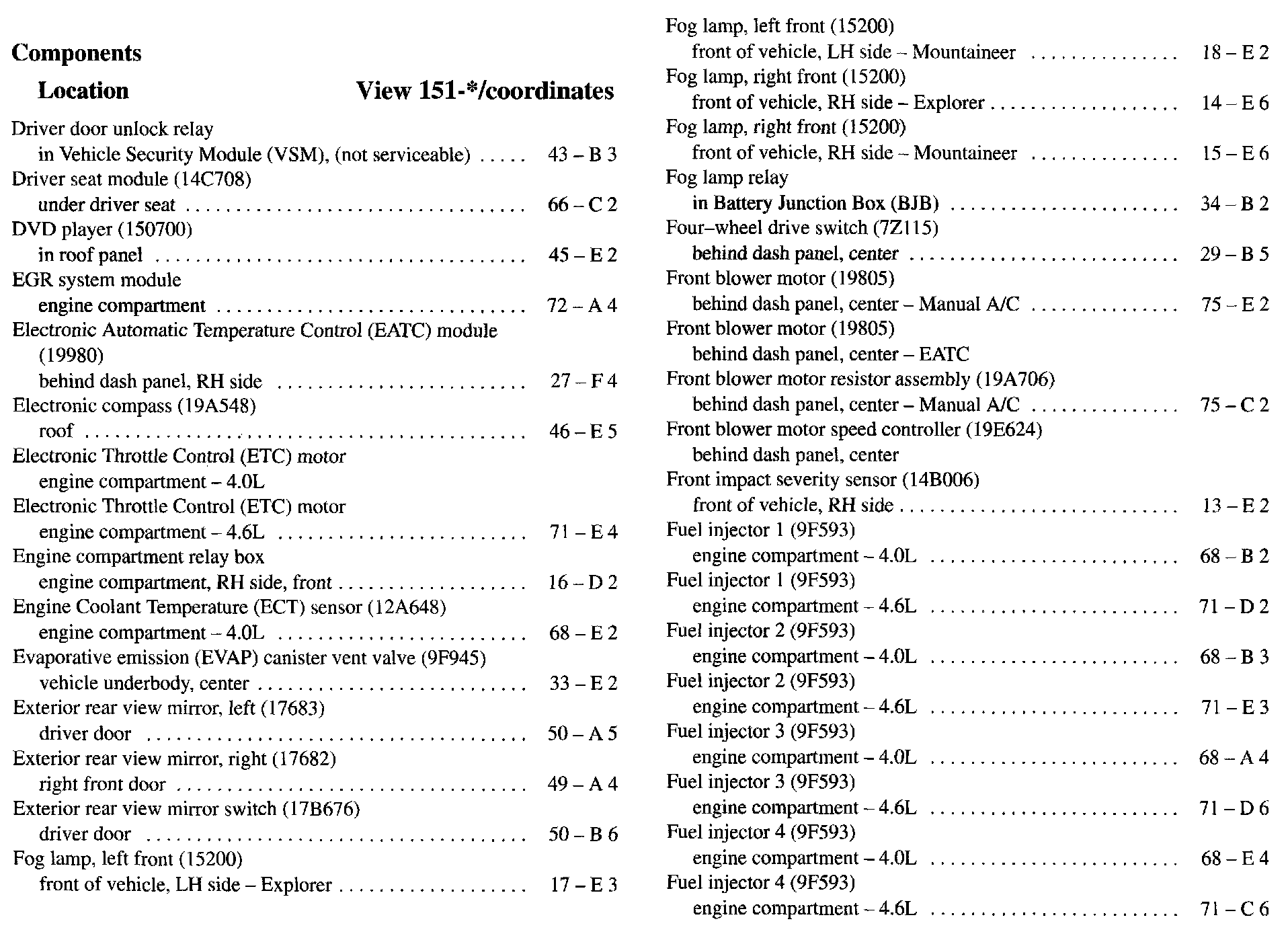

Dr-Fu:

Fu-Ho:

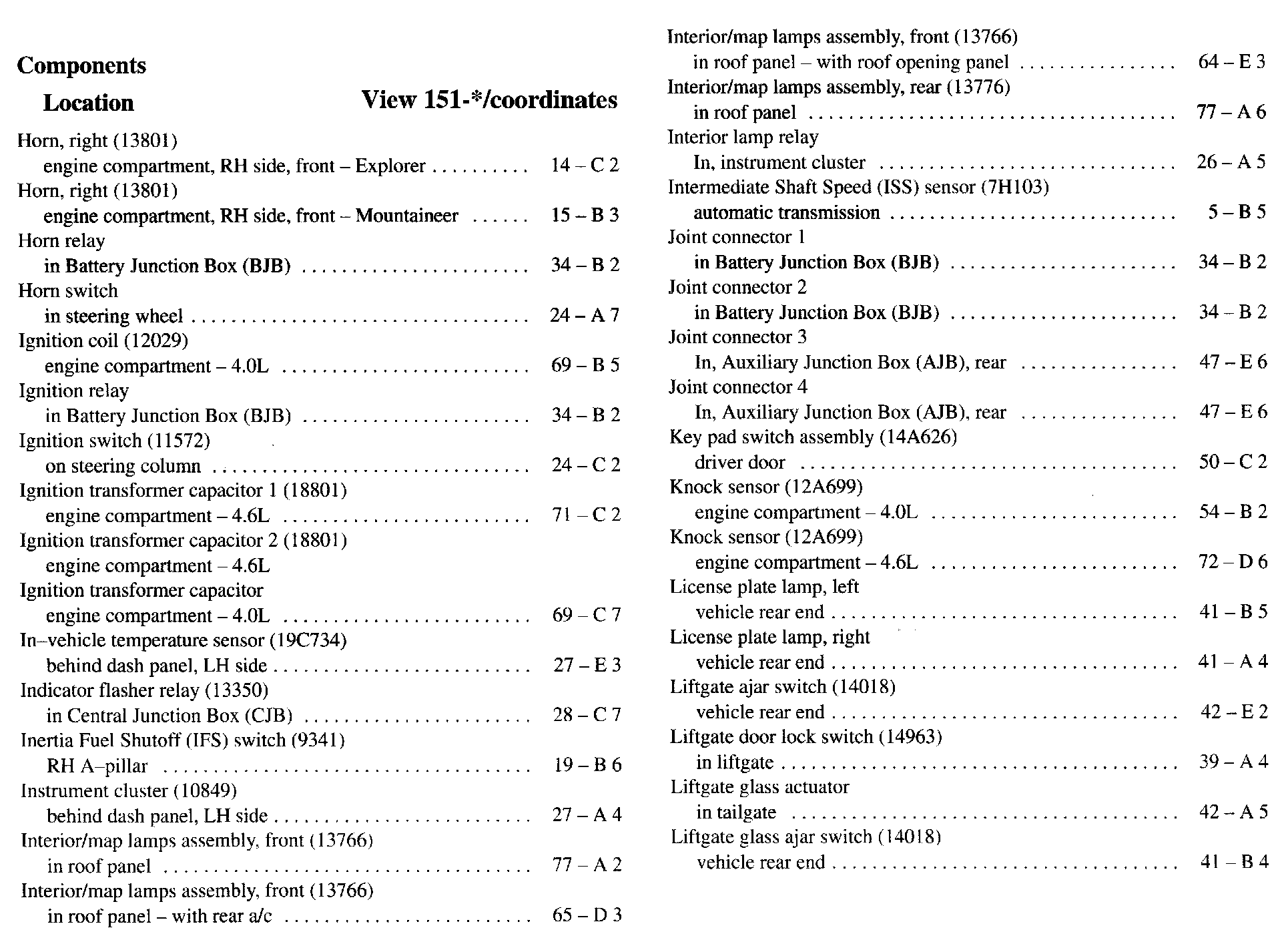

Ho-Li:

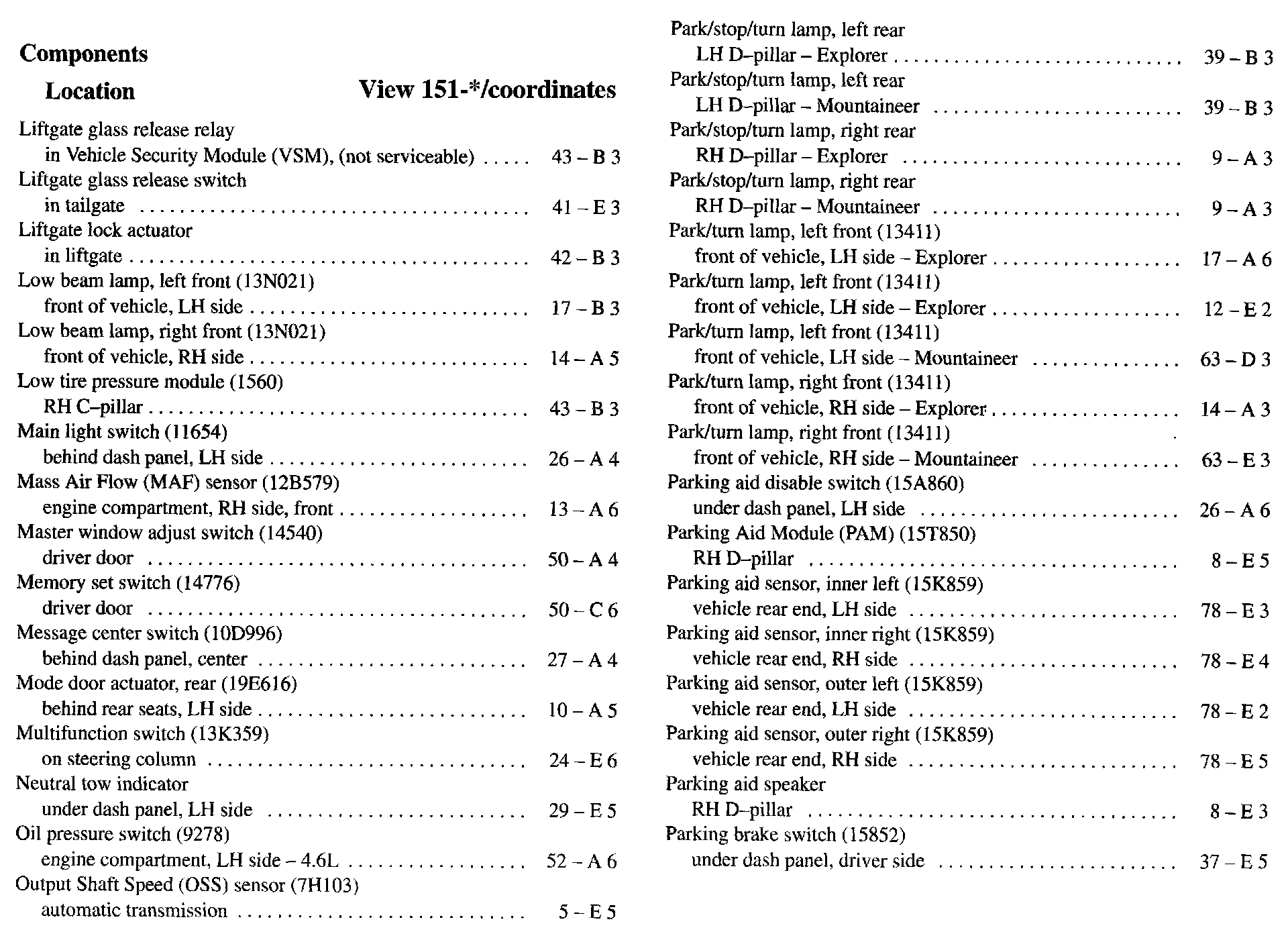

Li-Pa:

Pa-Re:

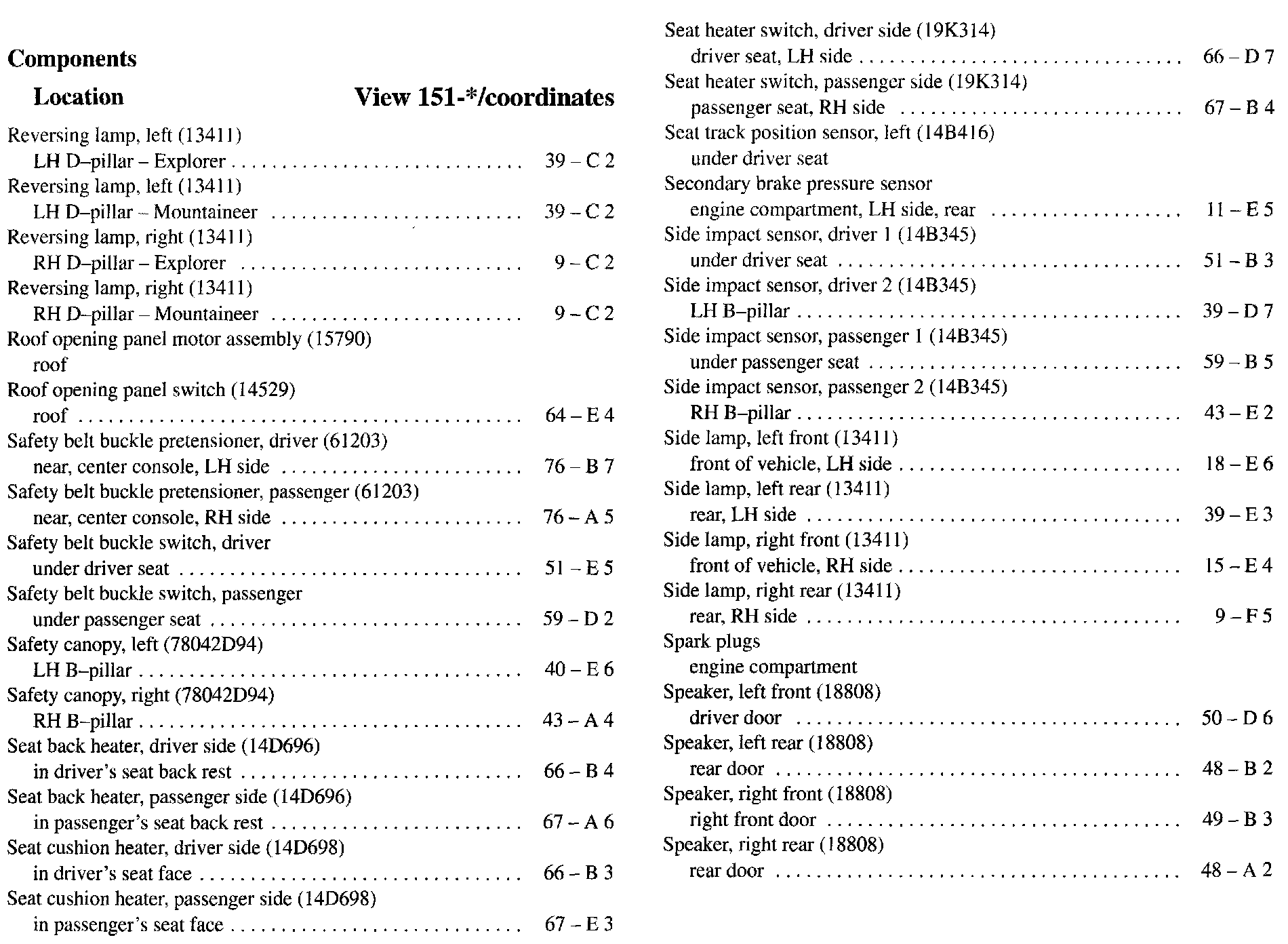

Re-Sp:

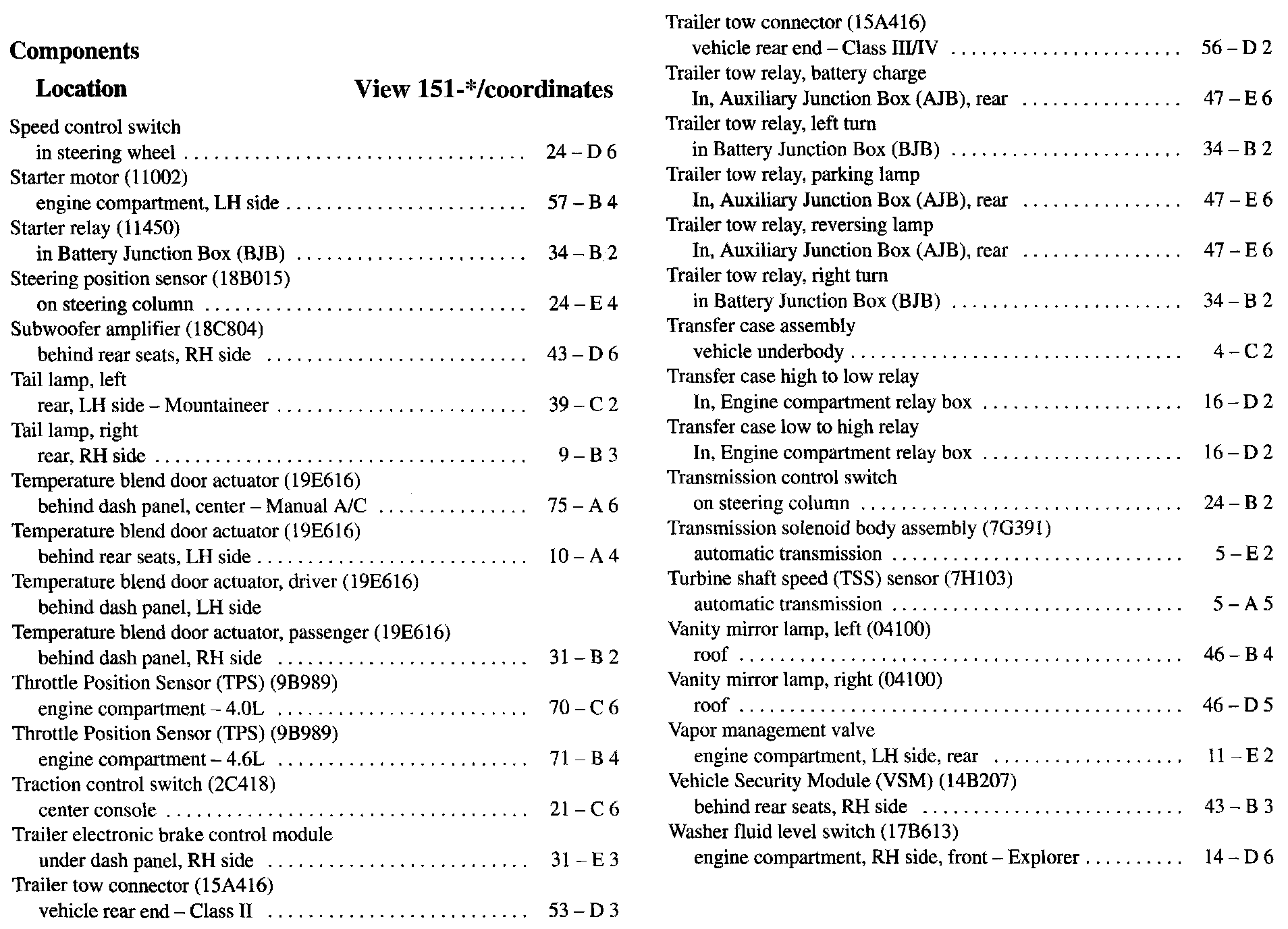

Sp-Wa:

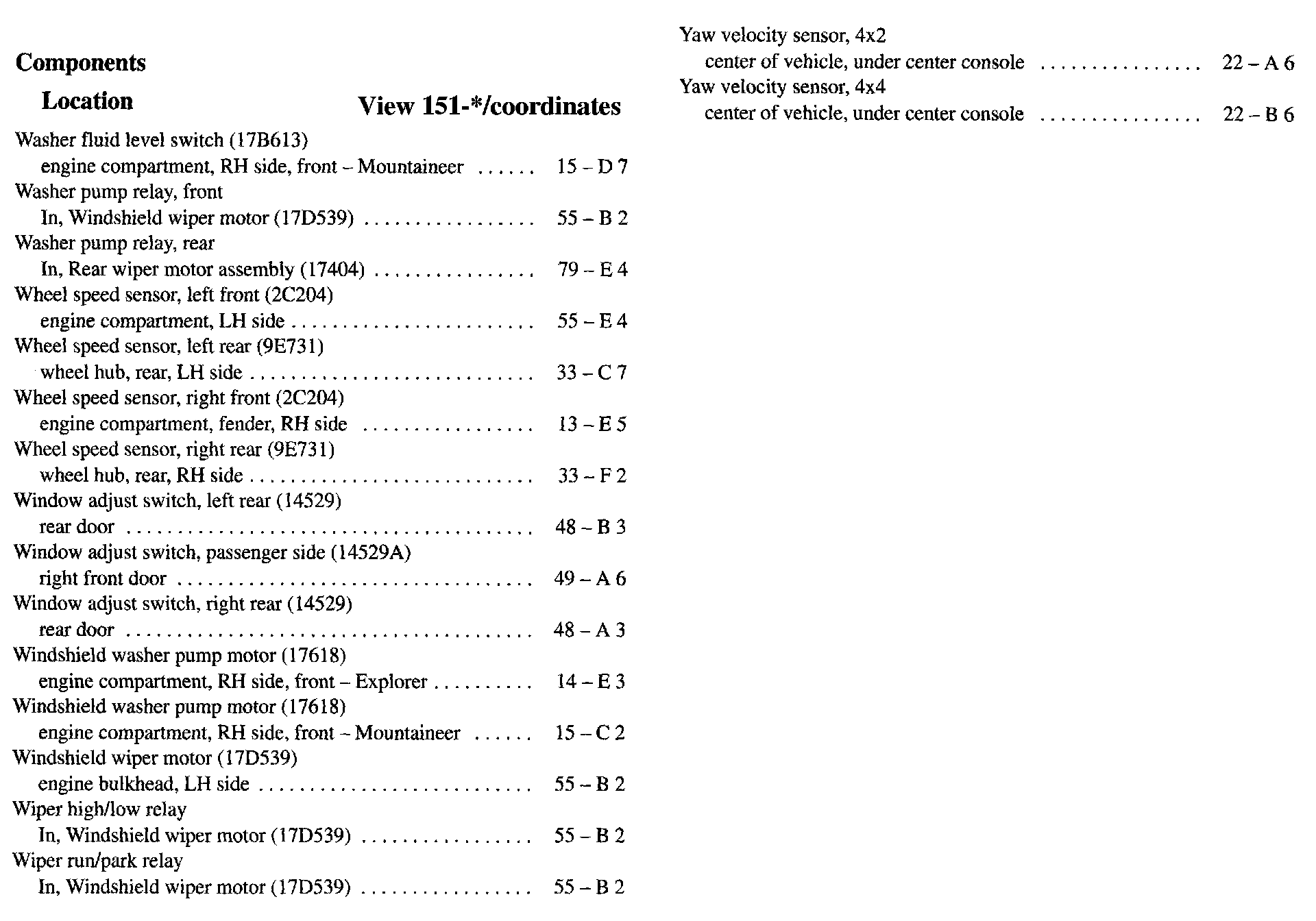

Wa-Ya:
