Front Planetary and One-Way Clutch Assembly: Notes

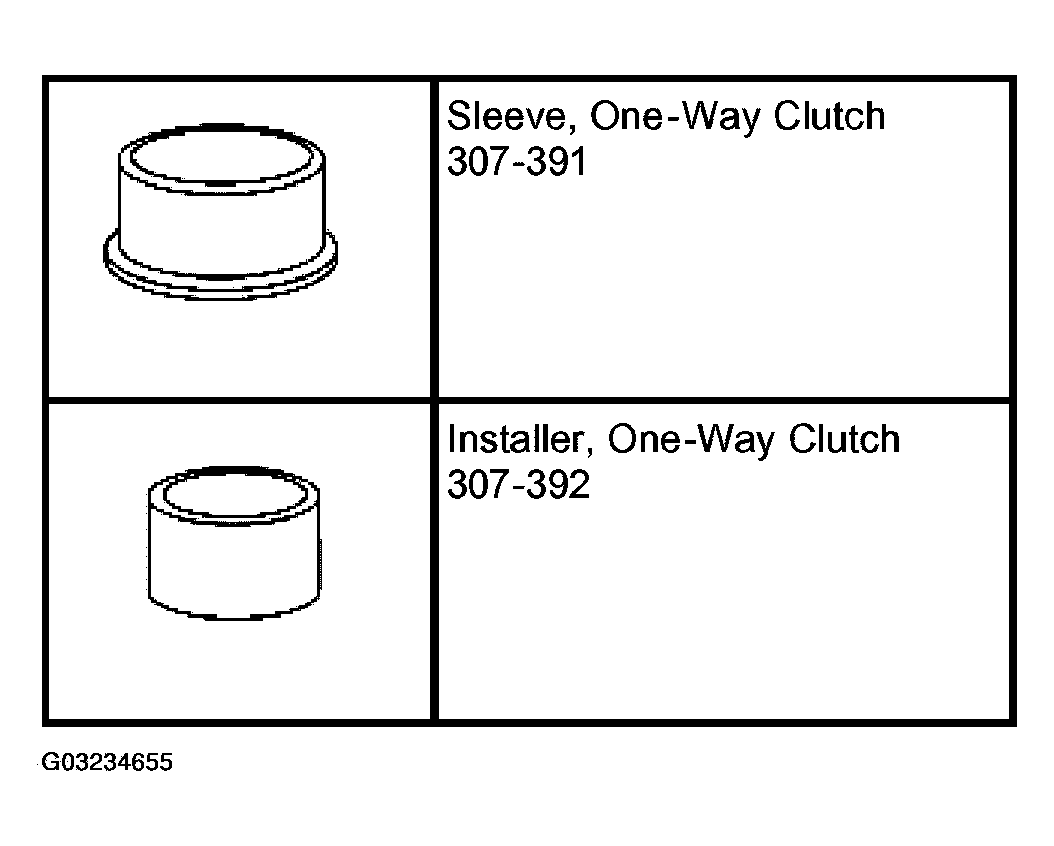

Fig 1: Identifying Special Tool
G03234655Courtesy of FORD MOTOR CO.

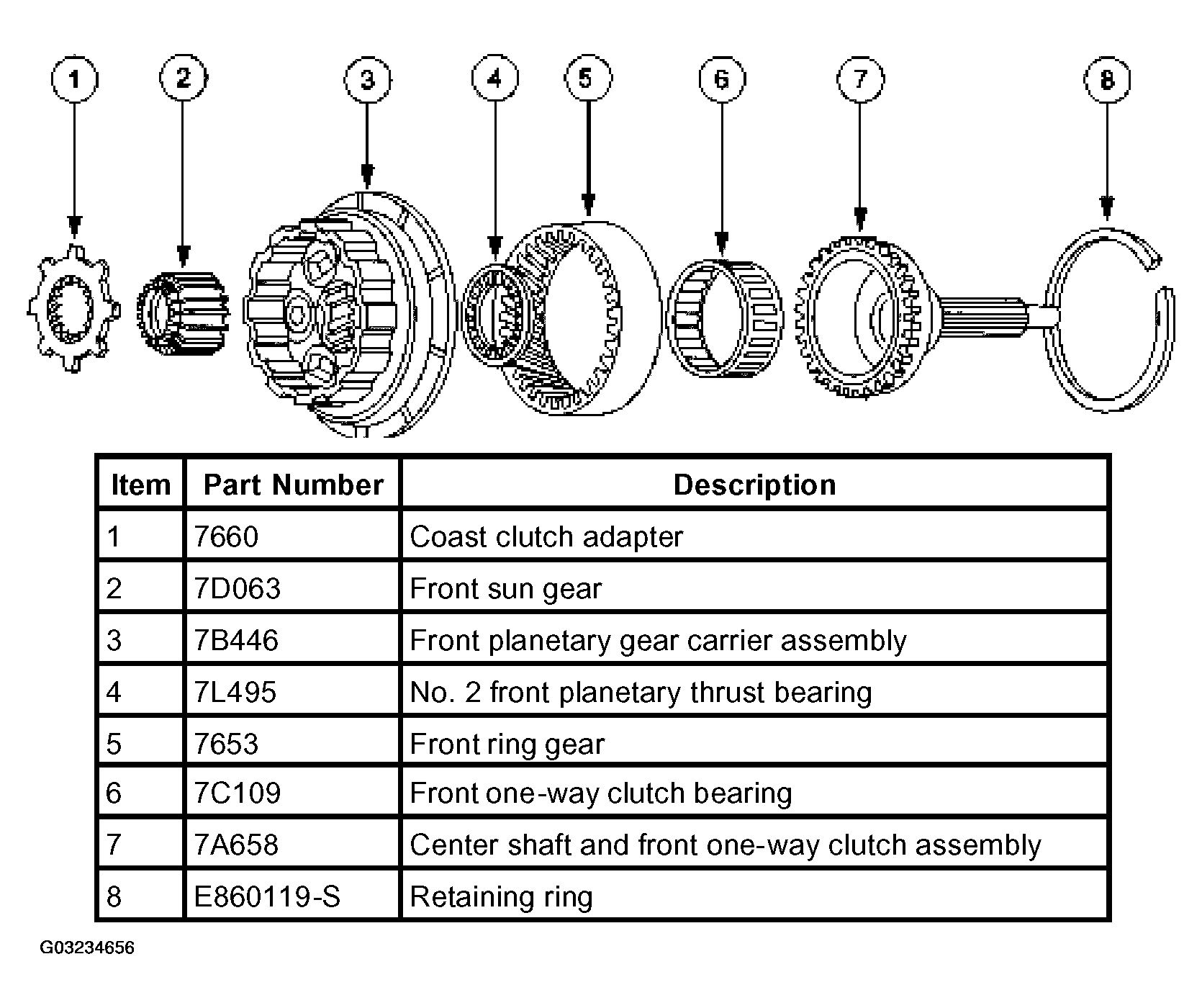

Fig 2: Exploded View Of Front Planetary And One-Way Clutch Assembly
G03234656Courtesy of FORD MOTOR CO.
