Test A

PINPOINT TEST A: THE CHARGING SYSTEM WARNING INDICATOR IS ON WITH THE ENGINE RUNNING

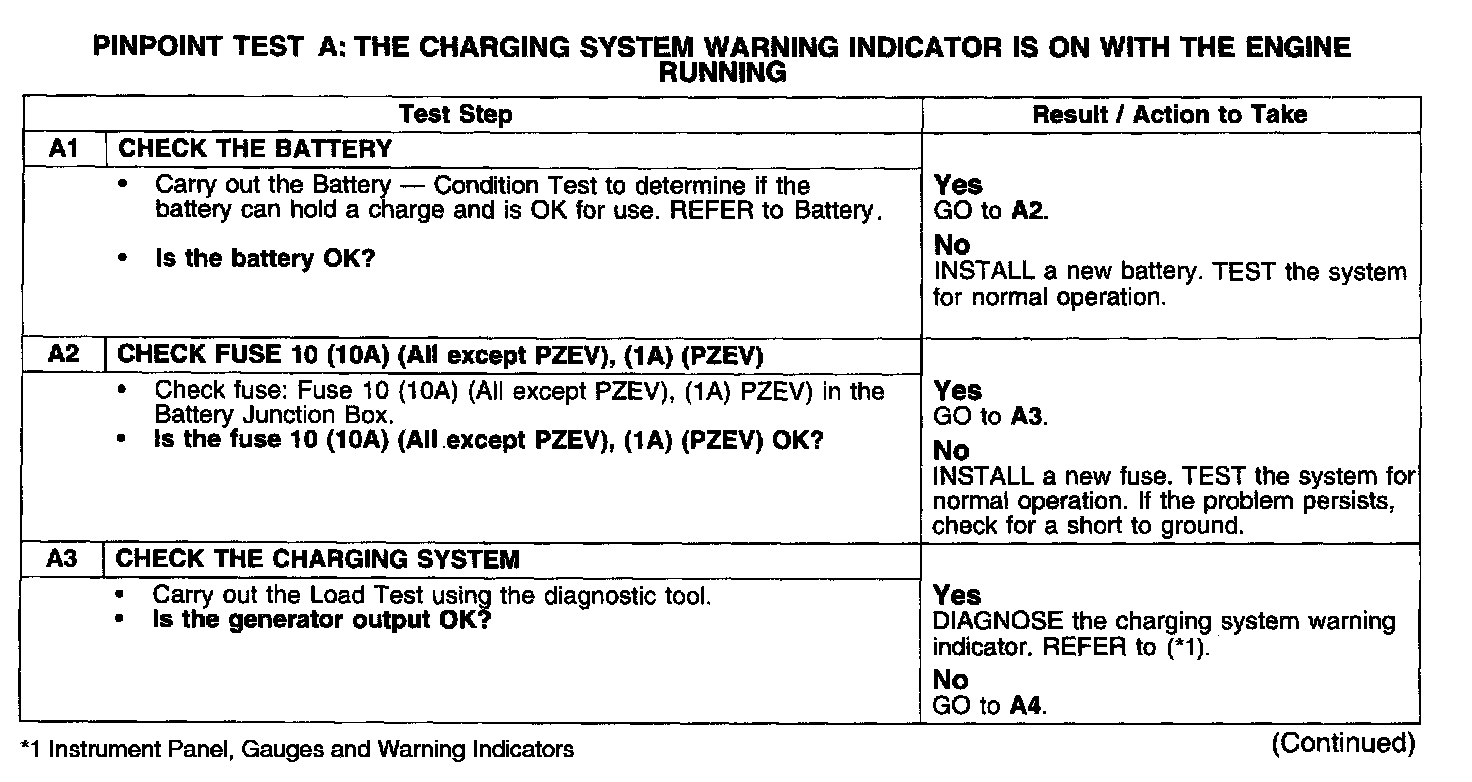

Test A1-A3:

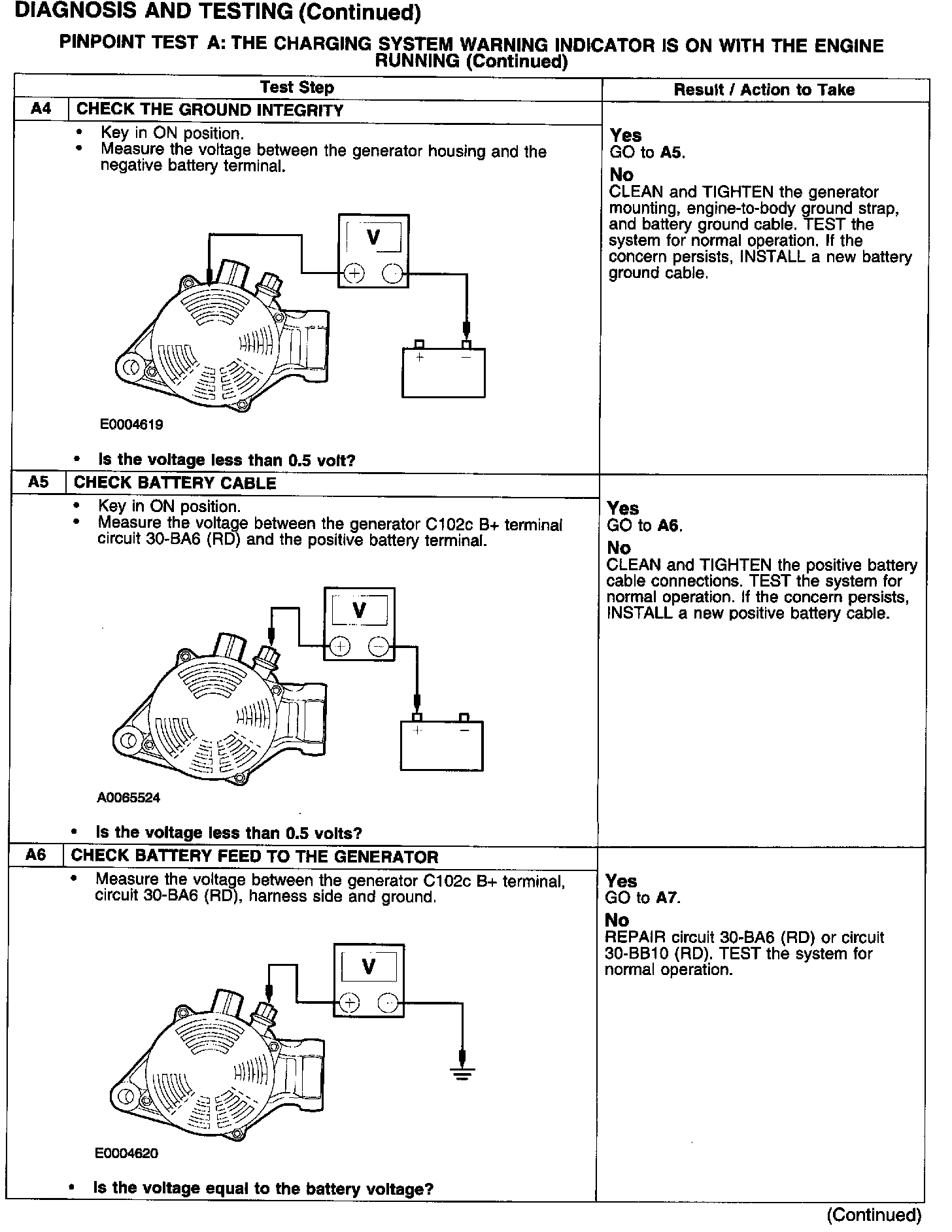

Test A4-A6:

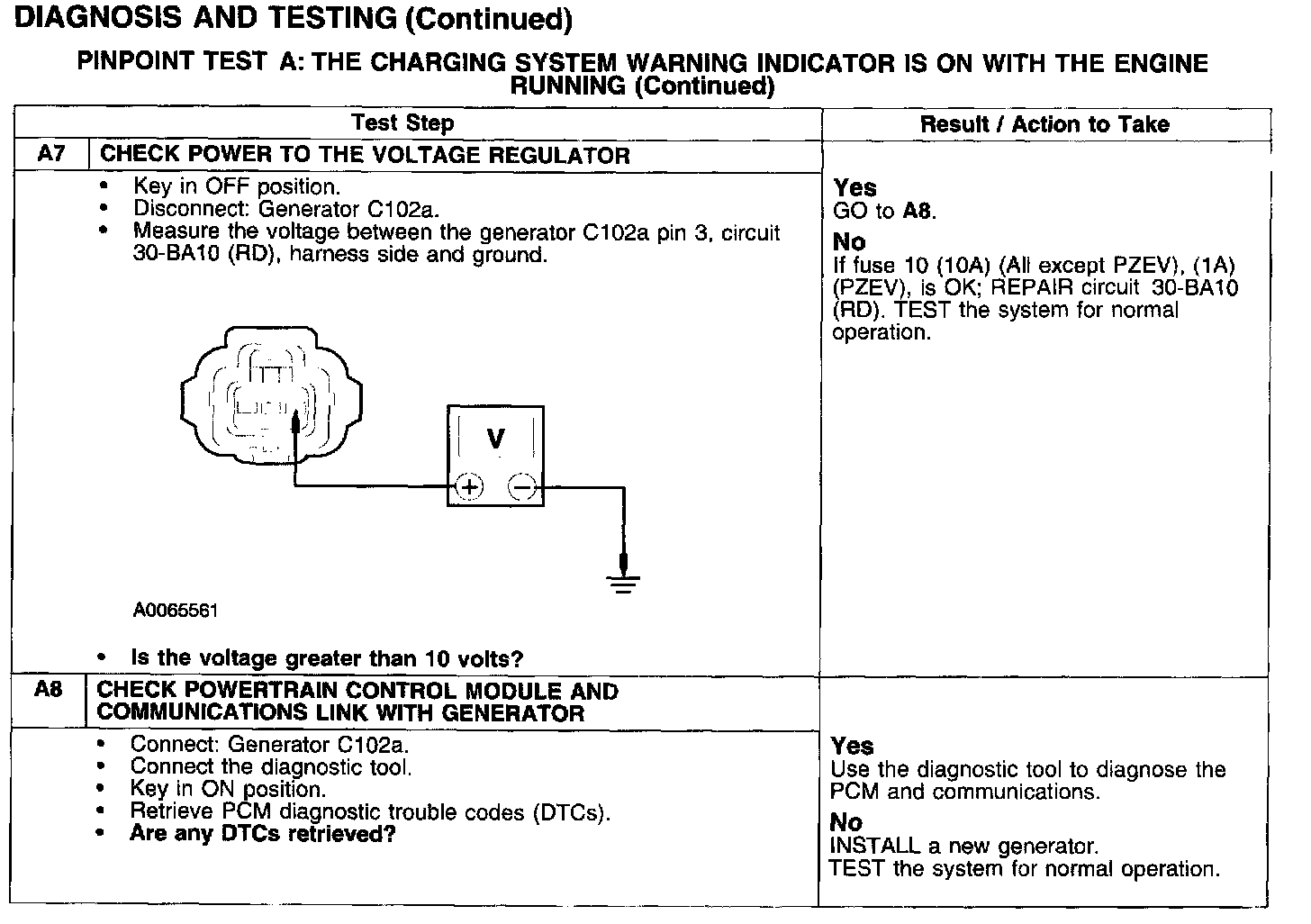

Test A7-A8:
