Test A
PINPOINT TEST A: THE ENGINE DOES NOT CRANK BUT THE RELAY CLICKS
Test A1-A2:

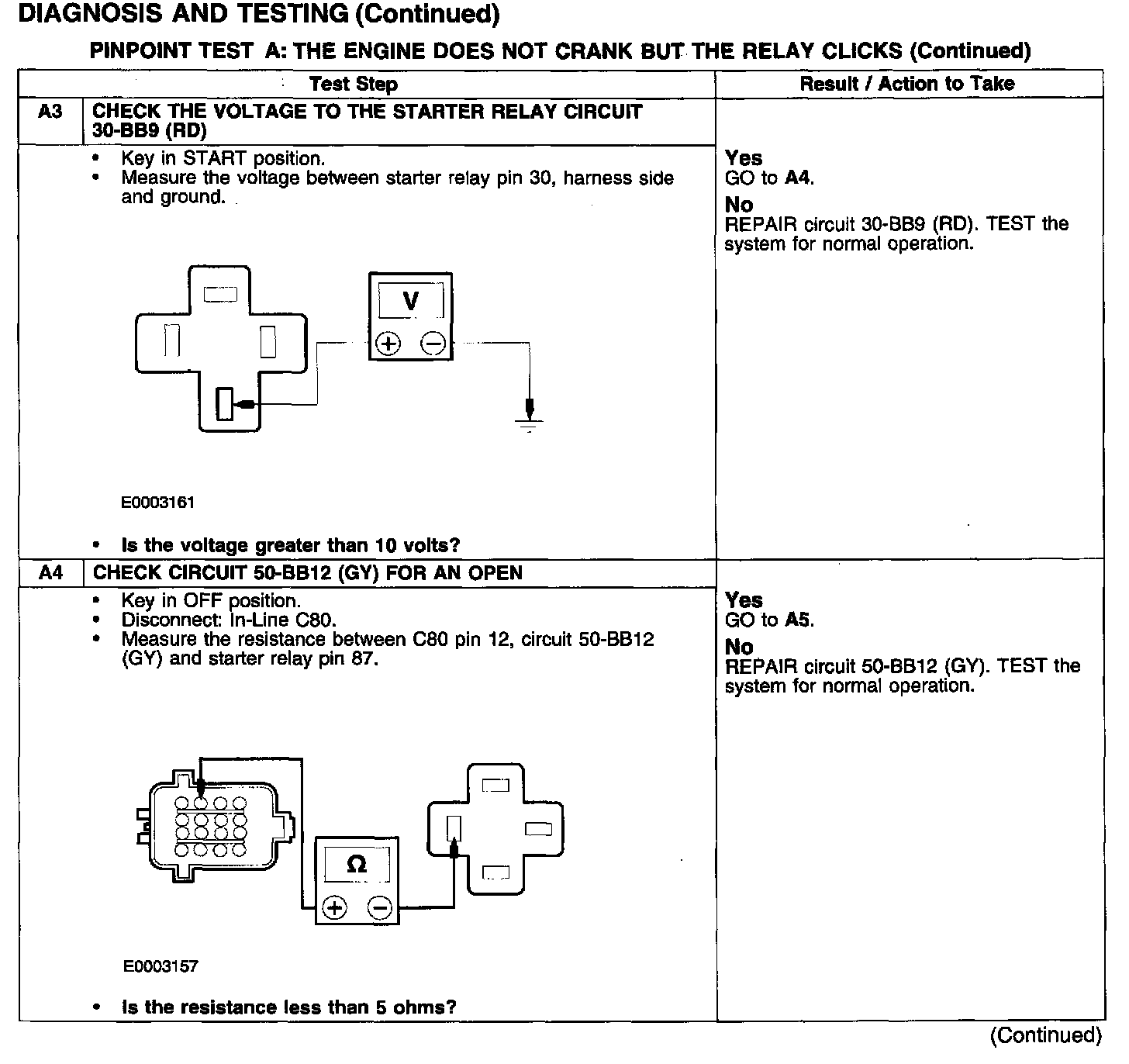

Test A3-A4:

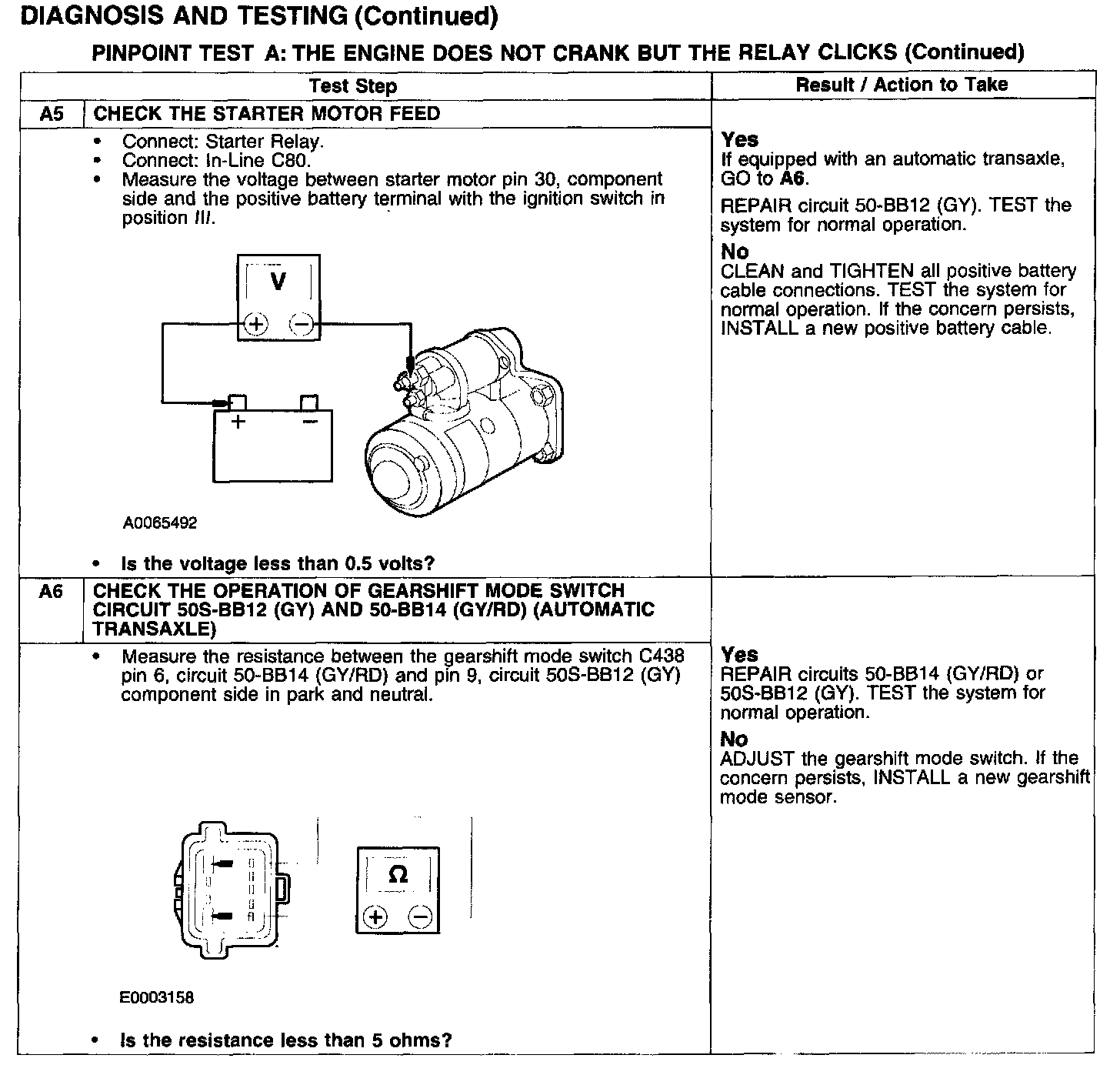

Test A5-A6:
