Lower Engine Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Lower Engine Components (1 Of 2)
G04034340Courtesy of FORD MOTOR CO.

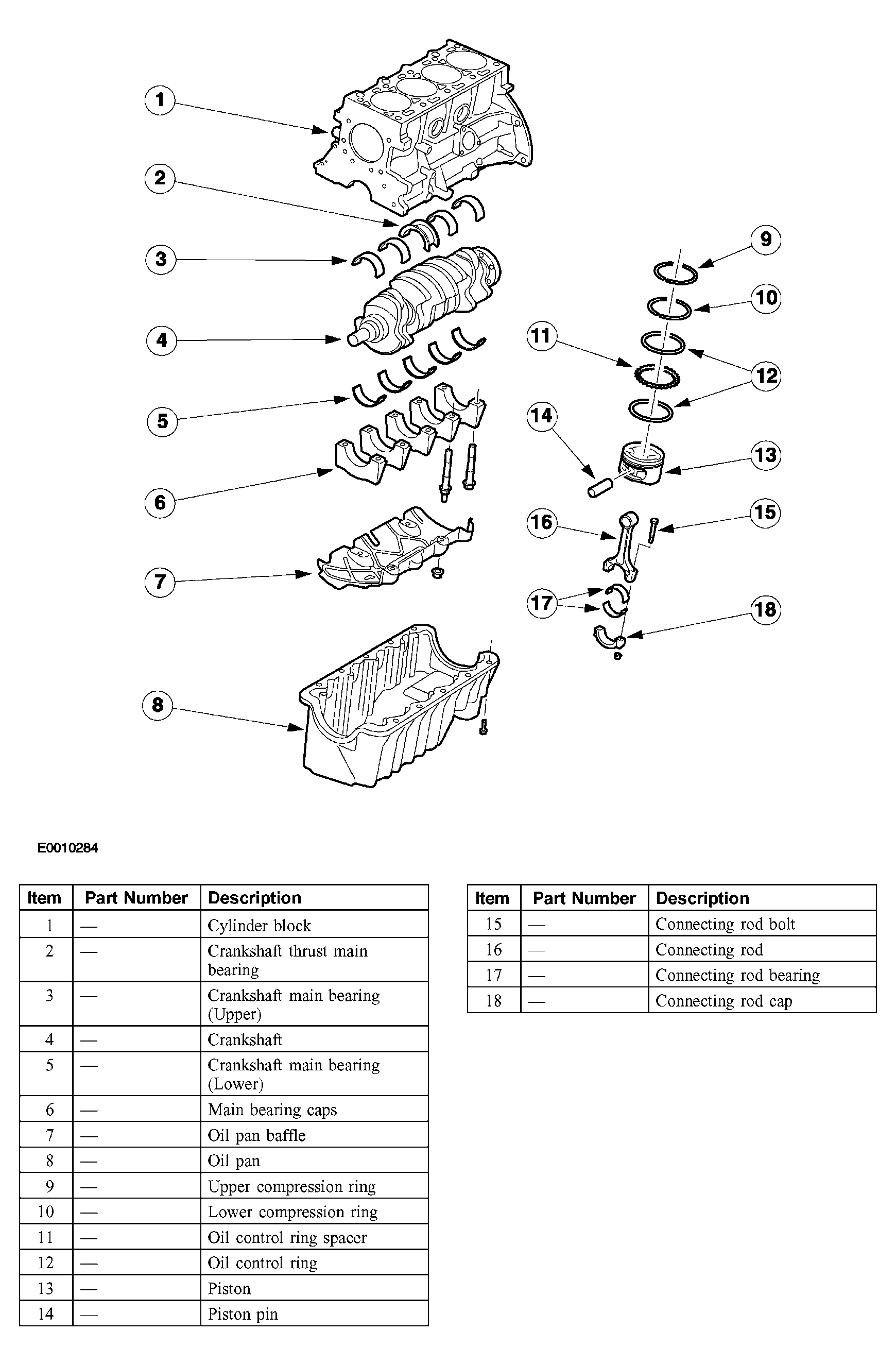

Fig 2: Identifying Lower Engine Components (2 Of 2)
G04034341Courtesy of FORD MOTOR CO.
