Main Control Assembly
WARNING:
This page is about a different variant/trim than selected.

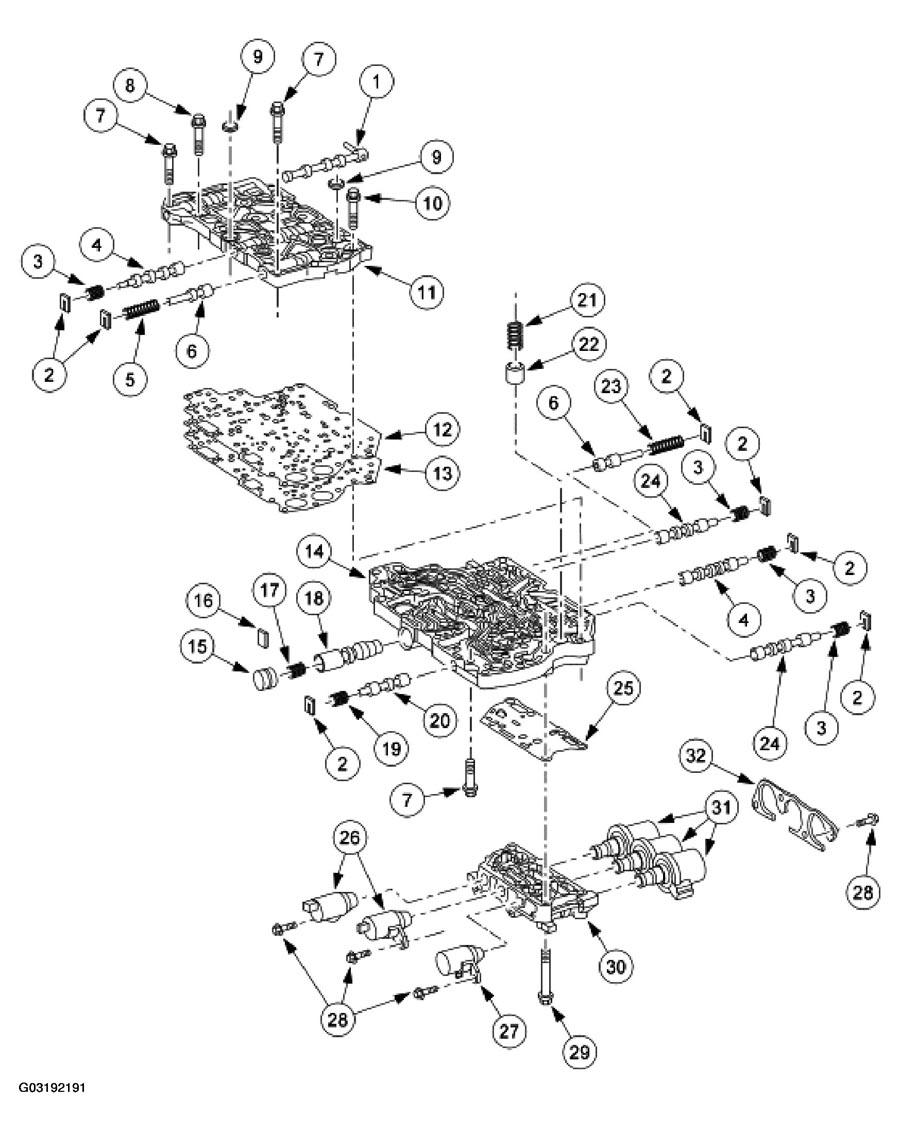

Fig 1: Identifying Main Control Assembly Components (1 Of 2)
Courtesy of FORD MOTOR CO.

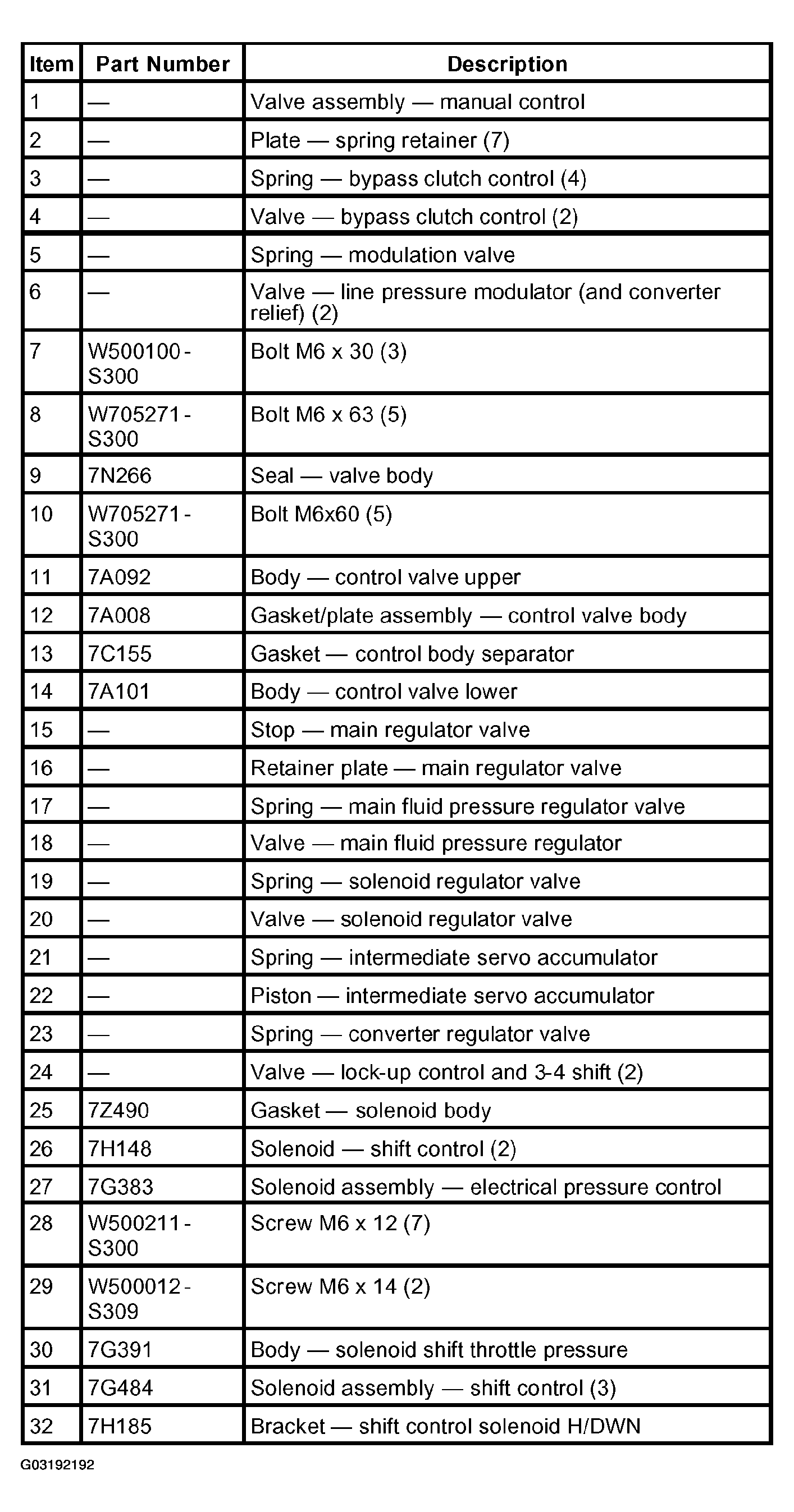

Fig 2: Identifying Main Control Assembly Components (2 Of 2)
Courtesy of FORD MOTOR CO.
