Main Control Valve Body: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: The top side of the separator plate has a bonded gasket.

NOTE: The separator gasket goes on the bottom side.

NOTE: Inspect the main control valve body.

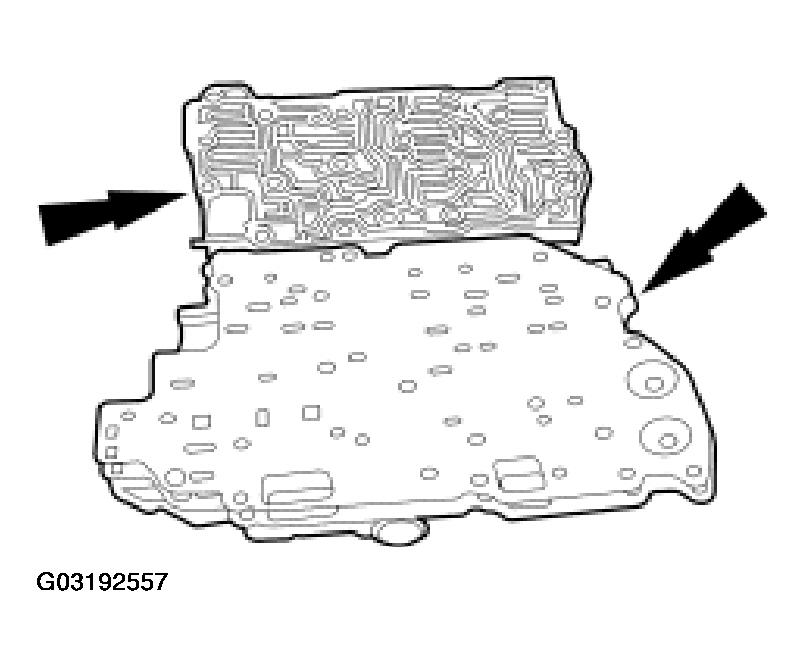

Fig 1: Installing Control Valve Body Plate Assembly And Separator Gaskets

Courtesy of FORD MOTOR CO.

NOTE: Do not fully tighten the bolts at this stage.

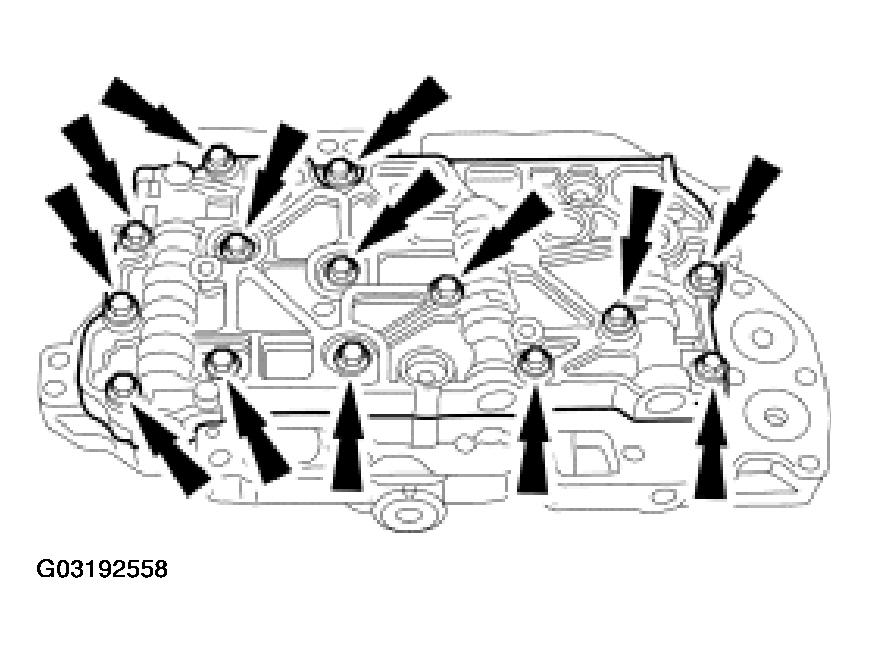

Fig 2: Assembling Main Control Valve Body

Courtesy of FORD MOTOR CO.

Assemble the main control valve body.
Install the seals.

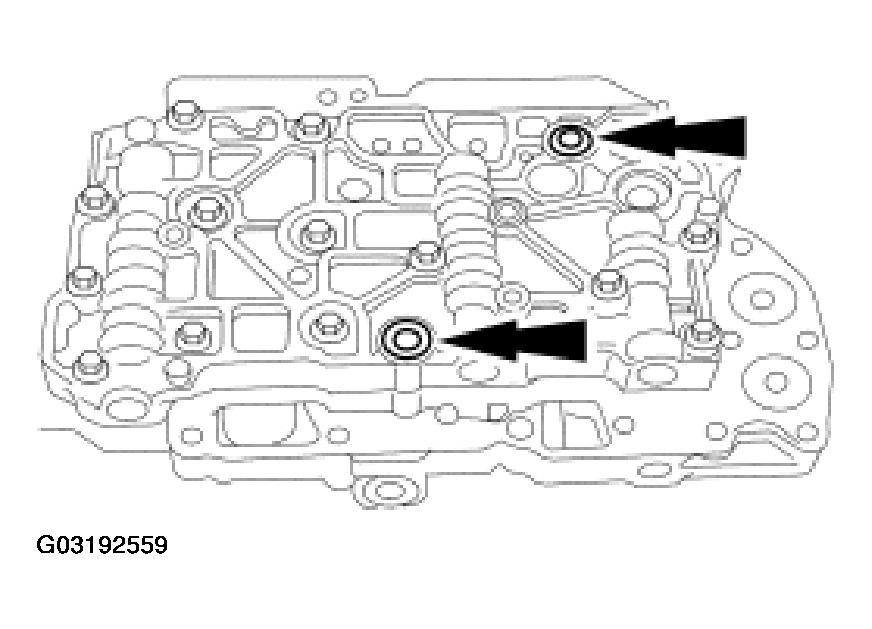

Fig 3: Installing Seals
Courtesy of FORD MOTOR CO.
Tighten the solenoid body bolts.

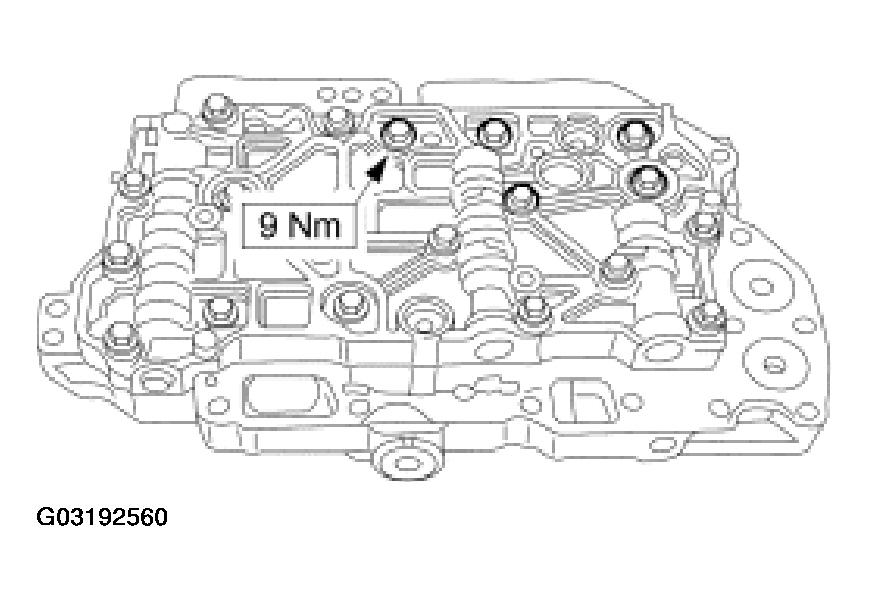

Fig 4: Tightening Solenoid Body Bolts
Courtesy of FORD MOTOR CO.
Tighten the remaining bolts in the sequence shown.

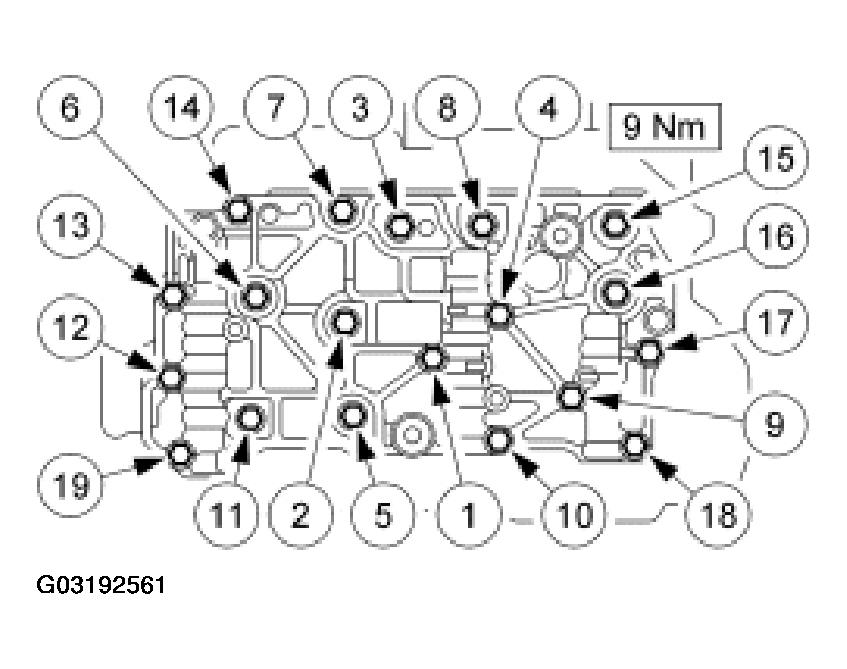

Fig 5: Tightening Remaining Bolts In Sequence
Courtesy of FORD MOTOR CO.
