Case Assembly

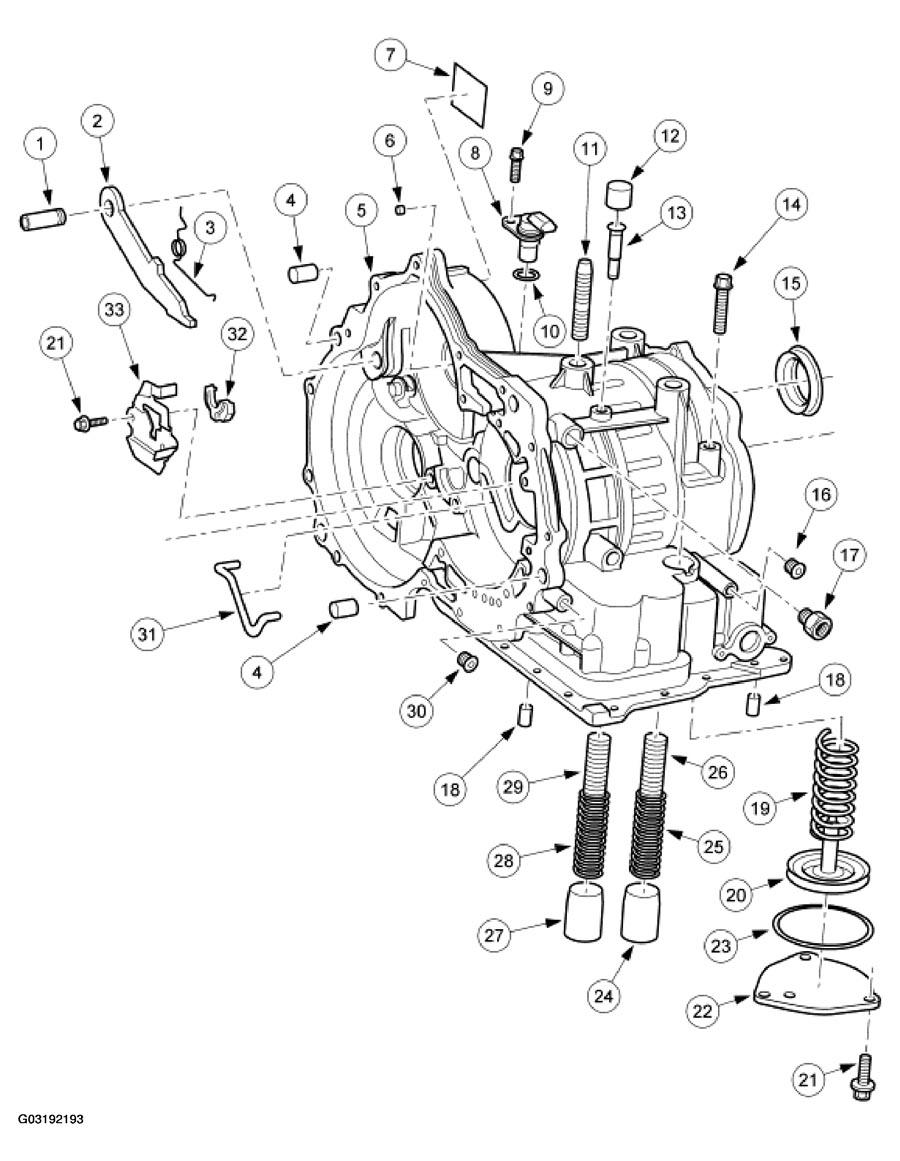

Fig 1: Identifying Case Assembly Components (1 Of 2)
G03192193Courtesy of FORD MOTOR CO.

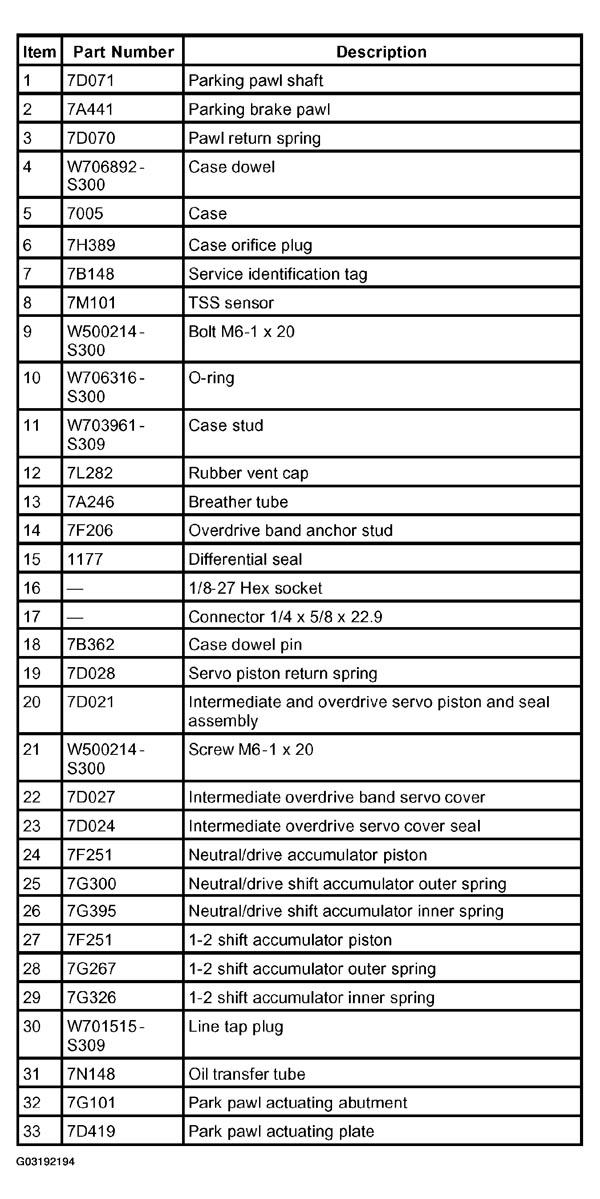

Fig 2: Identifying Case Assembly Components (2 Of 2)
G03192194Courtesy of FORD MOTOR CO.
